Default Attn Experienced Clutch Changers!

i have a 1.6 that i swapped to 1.8 clutch and flywheel... im almost done with 1 thing... i have the tranny back in, but the 14mm bolts that bolt to the starter on the right side of the tranny wont line up... any tips? i have all the 17mm bolts in all the way around but cant get the 14mm bolts in... i tried jacking the engine, tranny, both at the same time and still couldnt get it lined up. nothing is in the way, the gasket is good, but still theres a very tiny gap around where the starter is.. i dont get it! spamnavy please read and all others who done this before!
thanks, marlon
myfonti is offline   Reply With Quote
Old 02-16-2007, 09:16 AM   #2
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Man, I'm clueless on this one, and I've done several Miata clutch changes. Maybe check to see if the little bracket that routes the clutch hydraulic line isn't sandwiched in between the tranny bellhousing and engine.
bripab007 is offline   Reply With Quote
Old 02-16-2007, 09:56 AM   #3
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

can you run the bolts all the way through w/o the starter in place? That'd help decide where the problem is.
m2cupcar is offline   Reply With Quote
Old 02-16-2007, 10:33 AM   #4
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

the bolts stop when getting all the way through the tranny. it hits the starter and wont go through/catch thread. ill check it out in a few once it warms up a bit....
myfonti is offline   Reply With Quote
Old 02-16-2007, 11:03 AM   #5
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

but the same bolts will screw in the starter (starter not installed - outside the engine bay)?
m2cupcar is offline   Reply With Quote
Old 02-16-2007, 07:30 PM   #6
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

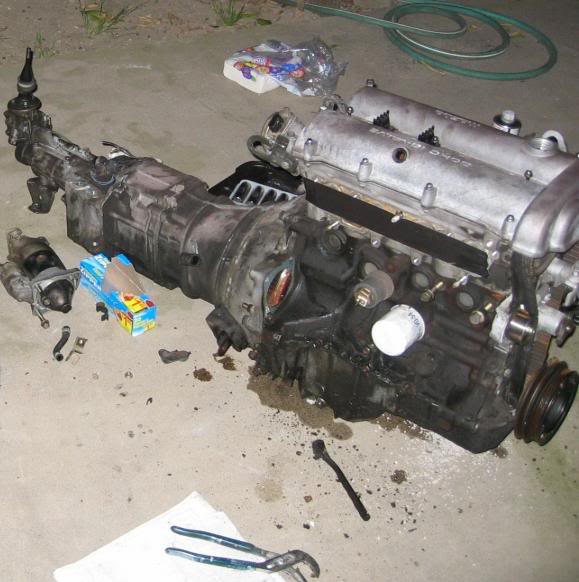

here is the best picture I have that describes the bolts you are talking about. There are three 14mm bolts, but only two will thread in, while the third requires a nut on the other side to fasten it. I hope this helps, i would like to help more but im a bit unclear on exactly what the problem is.

Name:  starterbolts.jpg
Views: 0
Size:  54.2 KB
akaryrye is offline   Reply With Quote
Old 02-19-2007, 05:58 PM   #7
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

good news! everything is bolted and torqued!
bad news- cant get the fill/check plug off to refill the gear oil... any tips on how to get that off so i can get my baby back on the road and tuned?!?! i broke 2 14mm wrenches... i tried looking for an 8pt 9/16 socket, but that didnt work... will a vise grip work? help me!
myfonti is offline   Reply With Quote
Old 02-19-2007, 06:02 PM   #8
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

damn...thats item #1...adjustable wrench?
miatamania is offline   Reply With Quote
Old 02-19-2007, 06:09 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

is it safe to use an adjustable wrench on that bolt?
myfonti is offline   Reply With Quote
Old 02-19-2007, 06:10 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by myfonti View Post
good news! everything is bolted and torqued!
bad news- cant get the fill/check plug off to refill the gear oil... any tips on how to get that off so i can get my baby back on the road and tuned?!?! i broke 2 14mm wrenches... i tried looking for an 8pt 9/16 socket, but that didnt work... will a vise grip work? help me!
heh, uhm you pull the fill plug before the drain plug, always.

Anyway, what you need is air tools. An impact gun would get it off with a quickness.
Ben is offline   Reply With Quote
Old 02-19-2007, 06:18 PM   #11
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

damn. i drained the tranny already before pulling the fill plug... geez... anyone wanna lend me some air tools? i will only need it for 10 minutes eheheh
myfonti is offline   Reply With Quote
Old 02-19-2007, 06:21 PM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

if you can't get it off, you can tow your junx over :gay:
Ben is offline   Reply With Quote
Old 02-19-2007, 06:23 PM   #13
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

the guy that did mine just used a wrench...and another larger wrench and pried it off...he's a big kid though.
miatamania is offline   Reply With Quote
Old 02-19-2007, 06:23 PM   #14
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

lol tow where? its been a week and a day now that my car hasnt been turned on! anyone else have any tips on how to take off the fill bolt?
myfonti is offline   Reply With Quote
Old 02-19-2007, 06:28 PM   #15
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

i meant you can tow it over and use a lift and air tools

i think there's another way to get oil in the tranny tho.. through the shift turret or some ****... read about it, but never had to try it. think i saw it in the miata.net garage
Ben is offline   Reply With Quote
Old 02-19-2007, 08:34 PM   #16
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,251
Total Cats: 7
Default

like i told you online last night, i was able to just use an 18" adjustable wrench.

SamS is offline   Reply With Quote
Old 02-19-2007, 08:36 PM   #17
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

the shifter turret method wont work... i tried and wasted a lil oil... but not my shifter turret is full haha... ummm i guess ill go borrow someone's big wrench... ben? do u have 1? haha
myfonti is offline   Reply With Quote
Old 02-19-2007, 08:39 PM   #18
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

yeah, but the lock on my toolbox failed in the LOCKED position. haven't been able to get back into it. probably should have been working on that instead of screwin around on the net.

like i said, if you can tow the car, we can put it on my dad's lift and use his pneumatic impact.
Ben is offline   Reply With Quote
Old 02-20-2007, 02:19 PM   #19
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Vise grip it tight then wack the vice grips as far from the bolt as you can with a BFH. It's like a manual impact wrench.
fmowry is offline   Reply With Quote
Old 02-20-2007, 09:55 PM   #20
Junior Member
Thread Starter

Join Date: Jan 2006
Location: atlanta ga
Posts: 111
Total Cats: 0
Default

yep. thats exactly what i did! now its time to break her in!
