Old 05-30-2009, 01:40 AM   #41
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by MazDilla View Post
I agree with Sav. I don't like the m-tuned reroute for that very reason. Which gives me an idea...
Keep in mind the T-Stat housing in most cases is 4" from the back of the head, plus each T-Stat has a very small hole drilled to allow a little flow. 90+ kits and I have a ton of cool happy customers.
M-Tuned is offline   Reply With Quote
Old 05-30-2009, 10:23 AM   #42
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by mrtonyg View Post
The thermostat must go in the back of the head because it needs to pressurize the coolant. The flow of coolant dictates where the thermostat is placed. Since the flow of cooled coolant enters the engine from the lower radiator hose at the lower housing and exits out the back of the head it needs the thermostat at the point of exit for flow control and proper pressurization to avoid hot spots in the head and block.

If the thermostat is kept in the front of the engine, the rear part of the head/block would tend to run hotter from the lack of flow.

If I get a chance, I will post my reverse-flow/electric pump setup.
I understand why a t'stat is needed. I'm asking why it can't be in an inline housing a short distance from the head.

Sav's reason of standing water would make sense but I'd have a heater feed to circulate coolant around. Also like Marc said, there should be flow through the t-stat at all times, even when fully closed.

Please show your set up, sounds bad ***.
Ben is offline   Reply With Quote
Old 05-30-2009, 10:33 AM   #43
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Yeah, post your electric water pump photos,Im fabbing a similar setup,and would like something to compare with.From a previous reroute I made in 2004,moving the sensor or T-stat will not warm up at the rate you are accustomed to.
-G-
Reverend Greg is offline   Reply With Quote
Old 05-30-2009, 01:21 PM   #44
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

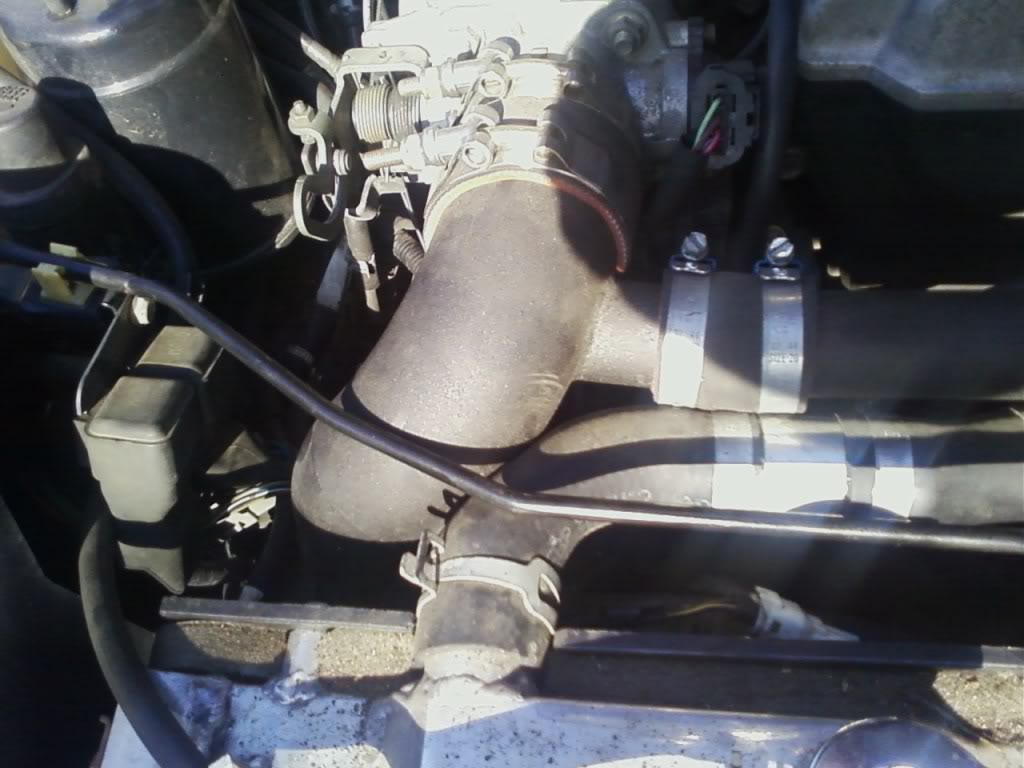

Joe and Steph, you both have plenty of room between the up-pipe to the intake mani and the inlet to the radiator. With my BEGI S4 kit and the Godspeed rad the two pipes nearly touch. The rad inlet hose is deformed against the up-pipe.

Shorten the elbow to the intake mani on the up-pipe to open up some space? No way the radiator inlet hose can turn left and around as it is.
Name:  waterinlet.jpg
Views: 78
Size:  82.5 KB
cueball1 is offline   Reply With Quote
Old 05-30-2009, 02:05 PM   #45
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,915
Default

@ cueball: The pictures on Bell's webpage (which, granted, depict the old-style routing like I have) suggest an under-the-throttle routing:



I wonder if some variant of this could be made to work with your steroid-infused radiator?



@ everyone: I just noticed (while looking for that picture) that there's a stern warning on the webpage:
Quote:
Originally Posted by Bell's Website
** 2nd Note: This part can be installed without pulling the motor. However, expect a few bloody knuckles and a few curses. And don't say we did not warn you. **
Ha! Ain't that the truth.

In all seriousness though, most of the major issues I encountered were ones I created for myself, like buggering up that stud trying to remove it the wrong way, and doing a ****-poor job of driving in the freeze plug the first time (which itself was a deviation from Bell's design.) If you take it slow, think about what you're doing, and discipline yourself to put down the tools and walk away for a bit if you get frustrated, then it's actually not all that bad of a job.
Joe Perez is offline   Reply With Quote
Old 05-30-2009, 02:29 PM   #46
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

Quote:
Originally Posted by Joe Perez View Post
discipline yourself to put down the tools and walk away for a bit if you get frustrated, then it's actually not all that bad of a job.
that is my number one problem!!!
tyson87 is offline   Reply With Quote
Old 05-30-2009, 04:14 PM   #47
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by Joe Perez View Post
If you take it slow, think about what you're doing, and discipline yourself to put down the tools and walk away for a bit if you get frustrated, then it's actually not all that bad of a job.
That quote applies to just about any automotive modification covered on mt.n, or in general. I have to remind myself of that from time to time. Plus it is nice to have a garage and a second car. I can walk away whenever I want, close the garage door, and take the other car to work. There were times in my broke-college-student past when that was not true.
ZX-Tex is offline   Reply With Quote
Old 05-30-2009, 04:43 PM   #48
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Joe Perez View Post
Also, bear in mind that your routing is incompatible with 1.8 NAs (as well as NBs which are using an MS1) as they have a CAS poking out the back of the exhaust cam, and probably incompatible with anybody pre-'01 who is using the factory ignition coils as well. Not that anybody who is serious about boost should be using those coils anyway. :rolleyes"


That is correct. The "Racer" kit does nothing more than return the heater core water to the upper radiator hose rather than the mixing manifold. It's available as an add-on option to the "Turbo" reroute, but I don't advise it, as doing this defeats the operation of the thermostat by running water through the radiator all the time.

I spent some time on the phone talking with Steph and Corky and convinced them to flip the names. This one that I have was originally labeled the "Racer" reroute, and the other one the "Turbo" reroute. That made no sense to me, as this one is ideal for street cars, whereas the other is pretty much a track-only affair.

In the stock 1.6 setup, there is a water outlet on the bottom of the intake manifold. This connects to the outboard port on the bottom of the throttle body. Then the inboard port on the bottom of the TB connects to the thermostatic air valve on the upper portion of the intake manifold, and the other port on the TAV connects to the bottom of the thermostat housing. Finally, a second hose on the bottom of the thermostat housing connects to the nipple on the mixing manifold. (the reason it passes under the thermostat is to ensure that water is circulating down there so that the thermostat opens when it should).

In my setup, I'd originally placed the oil cooler between the outlet on the intake manifold and the inlet on the throttle body. So I simply removed the line leading from the oil cooler to the throttle body, and the one from the TAV to the mixing manifold, and ran a new hose from the oil cooler outlet to the mixing manifold.

If you don't have an OEM 1.8 coil cooler on your 1.6, you'd simply run a hose from the outlet of the thermostatic air valve on the top of the intake manifold down to the nipple on the mixing manifold, as I've illustrated here:


If you do not have an oil cooler, and you also wish to eliminate the factory interheater (the coolant running through the TB and TAV), then you can just block off the coolant outlet on the bottom of the intake manifold and the coolant inlet at the mixing manifold, and run no hoses at all. With the thermostat removed from the front, it's no longer crucial to have coolant circulation through that circuit.

Of course, if you use the blockoff plate supplied by Bell, rather than removing the lower thermostat housing from the head, you can leave the stock hoses alone and they'll work just fine.

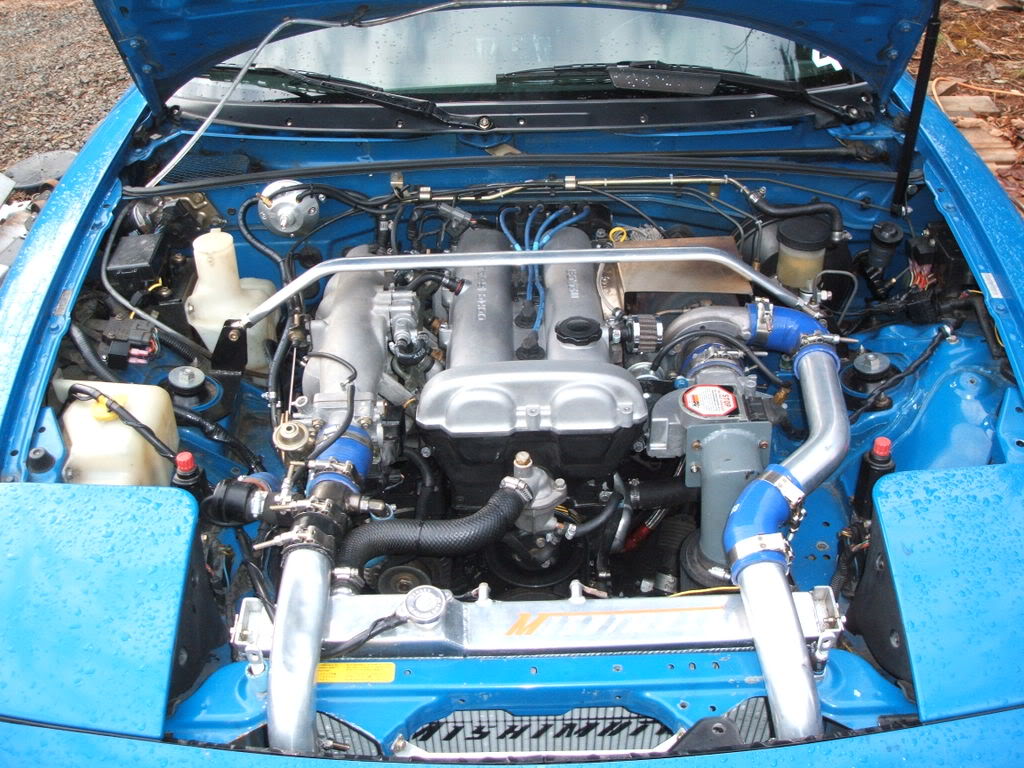

Alright, lets see if I have this figured out. If I put a cap on the lower thermostat housing barb, along with a cap on the intake manifold barb, I can eliminate the coolant going through the throttle body? I've already eliminated the thingy right above the injectors by looping a small piece of line between the two barbs, as you can see here:
Name:  DSCF3131.jpg
Views: 365
Size:  172.4 KB

After all this, if I "T" the heater core outlet (the one closest to the master cylinder) into the upper radiator hose, I'll have a rerouted coolant system, good for the track? It all seems too simple, too cheap, and too good to be true. Apologies for the slight thread-jack.
curly is offline   Reply With Quote
Old 05-30-2009, 11:35 PM   #49
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

I'll likely cut the rad inlet shorter as well as the intake up-pipe. Not sure about having straight slips there without the rolled edges. Guess I'll have to use he-man strength on the clamps. (yes I'm nervous about that too)

I removed the bolt and nut off the rear housing. There is a hard line running almost up against that housing right across the middle of it. In my dark *** garage I have no idea what it is. I'm working pretty much by feel. Fuel? ABS? Can't get the housing off the stud with that line in the way. It sure doesn't have much give. Ideas? Thought I'd ask before I just bend the crap out of it.
cueball1 is offline   Reply With Quote
Old 05-30-2009, 11:45 PM   #50
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Well crap. It's the EGR line. Guess I now have a 2nd project to look into. Gaah!!!
cueball1 is offline   Reply With Quote
Old 05-31-2009, 12:40 AM   #51
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,915
Default

Quote:
Originally Posted by cueball1 View Post
I'll likely cut the rad inlet shorter as well as the intake up-pipe. Not sure about having straight slips there without the rolled edges.
Just put a couple small grooves into the pipe about 1/4" up from the end. They don't have to be perfect or even go all the way around. You just need to give the pipe a little surface texture so that the pressure of the clamp against the hose causes the hose to firmly grip the pipe.

Quote:
Originally Posted by curly View Post
Alright, lets see if I have this figured out. If I put a cap on the lower thermostat housing barb, along with a cap on the intake manifold barb, I can eliminate the coolant going through the throttle body?
Yes, but see below.
Quote:
Originally Posted by curly
After all this, if I "T" the heater core outlet (the one closest to the master cylinder) into the upper radiator hose, I'll have a rerouted coolant system, good for the track? It all seems too simple, too cheap, and too good to be true.
It depends on whether "after all this" means after doing everything I have done above (relocating the thermostat and water outlet to the back) or merely removing the coolant line through the throttle body.

The treatment of the heater core's output is a secondary issue. The treatment of the lines going to the throttle body and intake manifold are entirely peripheral and pretty much totally unrelated to the reroute idea. In my case, I was bored, and since I live in southwest Florida where the ambient temperature rarely falls below the melting point of gallium, I decided "frak it."

The principal problem with the stock routing is that with the thermostat in front, much of the coolant coming in from the pump goes straight up and out without having ever circulated through the back of the engine. As a result, the engine is undercooled and unevenly cooled. By blocking the front outlet and relocating the thermostat and radiator feed to the back of the head, we force nearly all of the coolant coming from the water pump to flow all the way through the entire engine.

Now, if you were to take the outlet of the heater core and run it to the upper radiator hose, you would increase the cooling capacity of the engine. Unfortunately, you'd also cause it to take half of eternity to warm up, as you've now got 100% of the coolant going through the radiator all the time, whether the thermostat is open or closed. If you are able to idle the car for 10 or 20 minutes after startup without moving it (so that no airflow passes through the radiator) then it will eventually come up to temp. But this isn't really a feasible thing for most of us.

Now, if you already did the rear-thermostat relocation, that's about the only issue. If you didn't however, then once the temperature does rise enough to open the thermostat, you'll be back to the situation where a lot of the coolant is once again bypassing the back of the engine and just going straight out the front, and the back half of your engine is now being undercooled again.

Nice shock mounts, BTW.
Joe Perez is offline   Reply With Quote
Old 05-31-2009, 02:16 AM   #52
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Joe Perez View Post
The treatment of the lines going to the throttle body and intake manifold are entirely peripheral and pretty much totally unrelated to the reroute idea.
Right, knew that, didn't mean to make it sound like they were connected. Simplifying and eliminating anything in the engine bay peaks my attention more than a slutty high-schooler.

Quote:
Originally Posted by Joe Perez View Post
The principal problem with the stock routing is that with the thermostat in front, much of the coolant coming in from the pump goes straight up and out without having ever circulated through the back of the engine. As a result, the engine is undercooled and unevenly cooled. By blocking the front outlet and relocating the thermostat and radiator feed to the back of the head, we force nearly all of the coolant coming from the water pump to flow all the way through the entire engine.
Gotcha, so I need to relocate the thermostat to the back of the head to cool the engine evenly. Wasn't the issue of #4 burning up originally linked to unevenly distributed fuel, which is why everyone started doing DIY duel feed fuel rails? I think I heard that from Pat. That'd be great, because not only would I be cooling the engine better, but I could also get rid of three connections (and possible leaks) in the fuel setup. I have plenty thanks to the BEGI afpr and the duel feed rail.

Quote:
Originally Posted by Joe Perez View Post
If you were to take the outlet of the heater core and run it to the upper radiator hose, you would increase the cooling capacity of the engine. Unfortunately, you'd also cause it to take half of eternity to warm up, as you've now got 100% of the coolant going through the radiator all the time, whether the thermostat is open or closed. If you are able to idle the car for 10 or 20 minutes after startup without moving it (so that no airflow passes through the radiator) then it will eventually come up to temp. But this isn't really a feasible thing for most of us.

Now, if you already did the rear-thermostat relocation, that's about the only issue. If you didn't however, then once the temperature does rise enough to open the thermostat, you'll be back to the situation where a lot of the coolant is once again bypassing the back of the engine and just going straight out the front, and the back half of your engine is now being undercooled again.
Alright so I'll definitely do the thermostat relocation. I doubt I'd have a problem of it taking too long to warm up during a hot track day. With the engine dead cold (although it was 85 degrees out) I was completely warmed up by the end of the first straight, and that's not even pushing it. A lap or two and 10/10 and I could probably even warm up my last girlfriend, and she was a cold-hearted bitch.

Quote:
Originally Posted by Joe Perez View Post
Nice shock mounts, BTW.
Mine? They're just the NB hats that I got with my Fat Cat bump stops. Didn't know they were anything special, but thanks anyways!
curly is offline   Reply With Quote
Old 05-31-2009, 12:22 PM   #53
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Jesus. I've been trying the M-tuned egr line adjustment method, whacking the crap out of it with a block of wood and a hammer, and it's still not out of the way. That's one tuff pipe. I'm afraid of damaging the end connections to keep whacking on it like this. WTF to do next?
cueball1 is offline   Reply With Quote
Old 06-01-2009, 04:50 AM   #54
Junior Member
iTrader: (-1)

Join Date: Apr 2008
Location: Southern California
Posts: 168
Total Cats: 0
Default

oooooh, I like the "higher routing" of the one stephani(e) had on her thumbs. It would allow me to still do oil filter changes from the top of the engine bay...instead of from the side/below.
wherestheboost is offline   Reply With Quote
Old 06-01-2009, 09:56 AM   #55
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,915
Default

Quote:
Originally Posted by curly View Post
Gotcha, so I need to relocate the thermostat to the back of the head to cool the engine evenly. Wasn't the issue of #4 burning up originally linked to unevenly distributed fuel, which is why everyone started doing DIY duel feed fuel rails?
That was long held as an axiom, however I have seen sufficient proof (both mathematically and in the form of AbeFM's flow test video) to convince me that the stock NA fuel rail does not significantly contribute to un-evenness of fuel distribution.

At the same time, there is sufficient documentation to show that in the stock configuration a significant temperature gradiant exists across the engine from front to back, and that a rear-thermostat reroute corrects this condition and improves overall cooling system efficiency.


Quote:
Originally Posted by curly
They're just the NB hats that I got with my Fat Cat bump stops. Didn't know they were anything special, but thanks anyways!
I know. I have the same ones. Just saying that they're nice tophats is all.


Quote:
Originally Posted by cueball1 View Post
Jesus. I've been trying the M-tuned egr line adjustment method, whacking the crap out of it with a block of wood and a hammer, and it's still not out of the way. That's one tuff pipe. I'm afraid of damaging the end connections to keep whacking on it like this. WTF to do next?
Flyin' Miata : Engine conversions : 1.8 conversion : EGR block-off plate



Quote:
Originally Posted by wherestheboost View Post
oooooh, I like the "higher routing" of the one stephani(e) had on her thumbs. It would allow me to still do oil filter changes from the top of the engine bay...instead of from the side/below.
True, that's the one thing that will likely annoy me about the way my pipe is routed. Still, it's not the end of the world. We'll just have to use an extra diaper when doig the filter change.

Y'know, I just realized something. Now that the charcoal canister has been evicted from my engine bay, I think I may have space to put the oil filter up there. Does anybody remember the name / web address of the fellow who builds the plate to sit it behind the headlight on an NB? (edit: NVM, it's Thompson. And they appear to be sold out with no estimated date for more...)
Joe Perez is offline   Reply With Quote
Old 06-02-2009, 12:48 AM   #56
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Quote:
Originally Posted by cueball1 View Post
Jesus. I've been trying the M-tuned egr line adjustment method, whacking the crap out of it with a block of wood and a hammer, and it's still not out of the way. That's one tuff pipe. I'm afraid of damaging the end connections to keep whacking on it like this. WTF to do next?

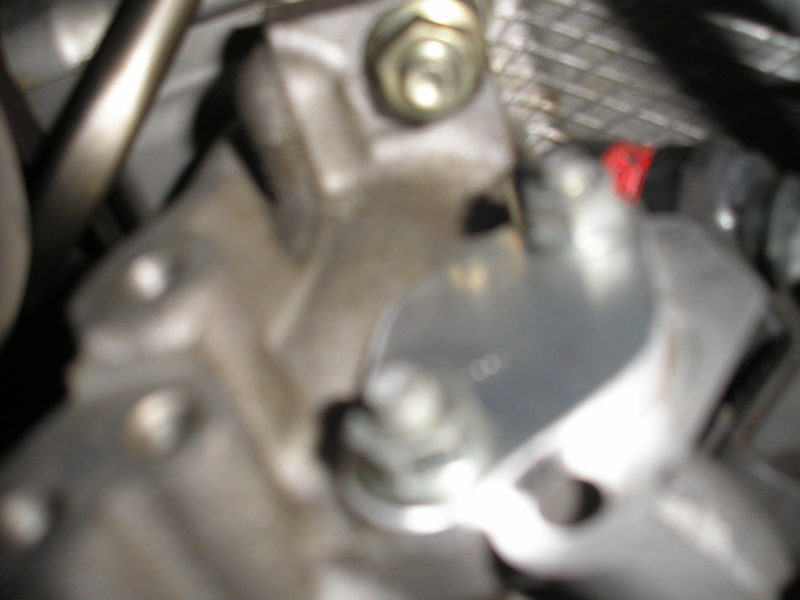

Block it off! I wish I had known sooner to warn you. I will add it to the website though for future users.

I blocked mine off and expected an engine code. Not so far though. I am quite surprised. The solenoid was left intact, just had the manifold welded closed and the plate put on the intake manifold.
Stephanie
Attached Thumbnails
Bell's New Coolant Reroute: a Review-p5046231.jpg
Stephanie Turner is offline   Reply With Quote
Old 06-02-2009, 01:04 AM   #57
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Do you sell a block off plate that weighs as much if not more than the moon? Cueball would like that.

Steph, I bought one of your old reroute kits from a member on the board. It has a welded tube off the spacer and no groove for the thermostat. The groove isn't a problem, I can machine it at work, but do you have diameter and depth so I can program it? I'm guessing the welded tube goes to the heater core, and you later replaced with the threaded hose barb shown in Joe's pictures above, is this correct? And there doesn't seem to be threads for the coolant sensor, would you mind providing those thread specs to this lazy bum?

And last question, and anyone could probably answer this, but why can't we use the stock miata water neck behind the head? Does the outlet point in the wrong direction? The fan switch is ground off and just acting as a plug right now, I figure if I don't have enough clearance, I could grind the whole thing down further and weld it shut (again at work, haha). But if it points in the wrong direction, it won't really matter either way.
curly is offline   Reply With Quote
Old 06-02-2009, 10:19 AM   #58
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,915
Default

Quote:
And last question, and anyone could probably answer this, but why can't we use the stock miata water neck behind the head?
The one from the 1.6 engine can be used, however the fitting for the thermoswitch much be ground down and then welded shut (or otherwise plugged). If this is not done, it is too tall to fit between the engine and the firewall.

The ones from the later 1.8 engines will fit, but they wind up pointing diagonally upwards, rather than sideways. Here's a picture, from fun02se's reroute:

Joe Perez is offline   Reply With Quote
Old 06-02-2009, 01:28 PM   #59
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Curly, Ha! I'm fabbing a 4" thick block off plate from spent uranium. About 43lbs!
cueball1 is offline   Reply With Quote
Old 06-02-2009, 04:30 PM   #60
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,324
Default

The spacerless guys will prefer a '94 neck because the '93 neck hits the temp sensor.
Savington is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
MSPNPPro-MM0105: Coolant Temperature Output slomiata MEGAsquirt 5 10-07-2015 02:11 PM
Is my swirl pot design okay? FrankB Race Prep 10 10-02-2015 10:00 PM
Bad head gasket or ? shooterschmidty Engine Performance 8 09-30-2015 11:28 PM
Koni 1150 Coilover Kit drumman83 Suspension, Brakes, Drivetrain 2 09-25-2015 08:03 PM


Tags
reroute

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 01:12 PM.
