Hey guys so I have what I think is probably a hard question to answer without seeing the wiring but there may be common issues that I don't know about.
So my miata ('93 with '97 1.8) has trouble getting power. Sometimes it starts just fine and other times I turn the key and there's nothing. No lights, no cranking, nothing. Which means no power. I know absolutely nothing about wiring. I'd love to learn so I guess the first step would be to ask you guys what I should check. I've checked all grounds and they all seem to be fine. The negative battery terminal ground is pretty ugly. The kid who did the swap didn't do the greatest job. That wire is frayed all around the ground but it is grounded so I don't think that would be the issue.
Any help would be appreciated.
Thanks
ryankpeck is offline   Reply With Quote
Old 03-07-2016, 10:05 AM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by ryankpeck View Post
So my miata ('93 with '97 1.8) has trouble getting power. Sometimes it starts just fine and other times I turn the key and there's nothing. No lights, no cranking, nothing. Which means no power.
By "nothing," do you mean literally nothing? As is, no headlights, no brake lights, and no horn?

How about the radio, the wipers, and the HVAC blower?

My guess here is that the problem is in the vicinity of the keyswitch. Either the switch itself or the wiring behind it. If the headlights, brake lights and horn work, but nothing else does, then it's almost certainly that switch.
Joe Perez is offline   Reply With Quote
Old 03-07-2016, 10:14 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

replace your battery ground, and make sure the battery itself isnt bad.
Braineack is offline   Reply With Quote
Old 03-07-2016, 10:22 AM   #4
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Pics when you get a chance.
By checking the connection I assume you mean unscrewing that connection, cleaning all associated parts to bear metal; a Dremel with a wire wheel works great for this. Assemble with dielectric grease. Repeat for all grounding points.
The ground from the battery can be upgraded with one of the many fine products we have available. my .02
-JB
2manyhobyz is offline   Reply With Quote
Old 03-07-2016, 10:34 AM   #5
Junior Member
Thread Starter

Join Date: Aug 2015
Location: CT
Posts: 45
Total Cats: 0
Default

By no power I mean absolutely nothing. No brake lights, headlights or headunit. The grounds I've taken them all apart and made sure they were down to bare metal with a wire wheel. I haven't used dielectric grease but I can definitely do that.

When I get a chance today I'm going to take a picture of the negative ground because after looking up replacement negative battery wires I'm thinking it may be wrong.

I replaced the ignition switch a while back because it was bad but this is different as I have absolutely nothing happening. It's also a brand new battery so that's not the problem.
ryankpeck is offline   Reply With Quote
Old 03-07-2016, 10:58 AM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Hmm...

It could also be the 80A Main fuse, or the connections thereto. It's in the box under the hood, and is secured with screws underneath.
Joe Perez is offline   Reply With Quote
Old 03-07-2016, 11:18 AM   #7
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,061
Total Cats: 48
Default

Just did this with my car. It was a badly corroded negative terminal on the battery. It sounds like itnmay be something different for yours if you have cleaned that up though.
x_25 is offline   Reply With Quote
Old 03-07-2016, 01:57 PM   #8
Junior Member
Thread Starter

Join Date: Aug 2015
Location: CT
Posts: 45
Total Cats: 0
Default

Changed the 80A main fuse yesterday thinking that was it because it was pretty badly corroded but that didn't make a difference unfortunately.
ryankpeck is offline   Reply With Quote
Old 03-07-2016, 01:58 PM   #9
Junior Member
Thread Starter

Join Date: Aug 2015
Location: CT
Posts: 45
Total Cats: 0
Default

Quote:
Originally Posted by x_25 View Post
Just did this with my car. It was a badly corroded negative terminal on the battery. It sounds like itnmay be something different for yours if you have cleaned that up though.
It was the terminal itself or the ground? I haven't done anything to the terminals
ryankpeck is offline   Reply With Quote
Old 03-07-2016, 02:02 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

the miata already has shitty grounding.

if you have a frayed ground strap your miata isn't going to play nicely.
Braineack is offline   Reply With Quote
Old 03-07-2016, 02:04 PM   #11
Junior Member
Thread Starter

Join Date: Aug 2015
Location: CT
Posts: 45
Total Cats: 0
Default

Alright well I guess the negative ground is definitely the first step then! Thanks braineack
ryankpeck is offline   Reply With Quote
Old 03-08-2016, 12:06 PM   #12
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

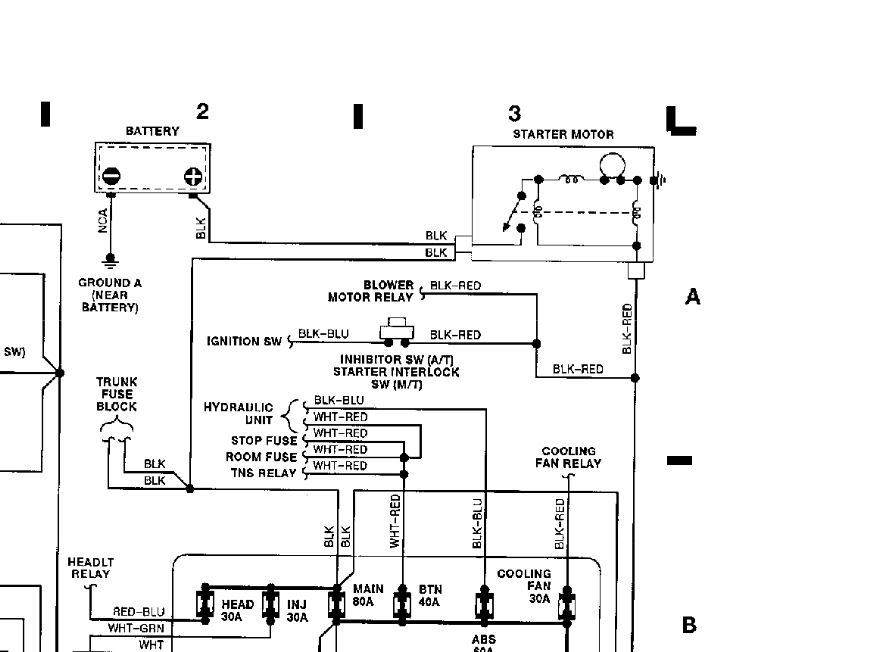

Remember that all of the +12V comes down the starter cable to the starter and then gets distributed from there. I'd check that connection first before replacing anything.
Attached Thumbnails
Calling any wiring gurus-80-screen_shot_2016_03_08_at_11_08_32_8f3671f18c3443ec1940e1eb55410ce9b9c8fef8.png
BarbyCar is offline   Reply With Quote
Old 03-08-2016, 12:21 PM   #13
Junior Member
Thread Starter

Join Date: Aug 2015
Location: CT
Posts: 45
Total Cats: 0
Default

Oh wow ok that's definitely something I haven't checked. Thanks a lot barby
ryankpeck is offline   Reply With Quote
Old 03-08-2016, 12:23 PM   #14
Junior Member
Thread Starter

Join Date: Aug 2015
Location: CT
Posts: 45
Total Cats: 0
Default

Also, looking at that diagram, it shows the negative battery cable just grounds and that's all. Mine goes further than just grounding. I'll have to check to see where it stops next but I know for sure it doesn't just ground and end there.
ryankpeck is offline   Reply With Quote
Old 03-08-2016, 12:51 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by ryankpeck View Post
Also, looking at that diagram, it shows the negative battery cable just grounds and that's all. Mine goes further than just grounding.
It's been a while since I looked at the battery wiring in depth, but I do recall you're right. I'm pretty sure that the battery ground cable continues on from chassis, pops out under the car, and attaches to the PPF.

The other key ground is the obvious one from the engine block to chassis on the exhaust side, but I'm sure you've already verified that.
Joe Perez is offline   Reply With Quote
Old 03-08-2016, 12:56 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by ryankpeck View Post
Also, looking at that diagram, it shows the negative battery cable just grounds and that's all. Mine goes further than just grounding. I'll have to check to see where it stops next but I know for sure it doesn't just ground and end there.
it showing you where the battery itself grounds (just off the battery in the trunk), but not where everything else does to it.
Braineack is offline   Reply With Quote
Old 03-08-2016, 12:57 PM   #17
Junior Member
Thread Starter

Join Date: Aug 2015
Location: CT
Posts: 45
Total Cats: 0
Default

I have checked the engine-chassis ground but I haven't looked at the ppf so I'll check the starter connection and the ppf ground tonight.
ryankpeck is offline   Reply With Quote
Old 03-12-2016, 06:37 PM   #18
Junior Member
Thread Starter

Join Date: Aug 2015
Location: CT
Posts: 45
Total Cats: 0
Default

Alright so I just want to give an update.
Today I changed the starter, battery terminals and fixed up all grounds including dielectric grease.
I'm pretty sure that the starter was the issue but I can't be completely sure since I did so many other things.
Thanks to all you guys for suggesting things to do!
ryankpeck is offline   Reply With Quote
Old 03-17-2016, 07:41 PM   #19
Newb

Join Date: Feb 2016
Location: Olympia, WA
Posts: 25
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
replace your battery ground, and make sure the battery itself isnt bad.
Can second this I had this exact problem on mine. Found out that the terminal end of the wire was broken and wasn't clamping to the negative terminal anymore. Replaced it and solved it.
Antidavid is offline   Reply With Quote
Old 03-18-2016, 09:47 AM   #20
Junior Member
Thread Starter

Join Date: Aug 2015
Location: CT
Posts: 45
Total Cats: 0
Default

The brain didn't even mention the terminal end in his post and if you read the last post the problem has been resolved. Pretty sure it was just a bad starter connection
ryankpeck is offline   Reply With Quote
