Default CAULK ASK FUNK!!! ARRGHGHH (diff upgrade tragedy)

**** *** ****. So my car was supposed to be ready today with a nice fresh rear end, prepped and eager for burnouts and launch control set up.

Instead, I got a call from the mechanic with- "we are still waiting for seals for that torsen you're installing". I was like WHAA??? considering I gave him what I thought was a rx7 clutch diff to swap out with the factory LSD that was in my car. And so I drive to the shop to lay eyes on what the **** was up.

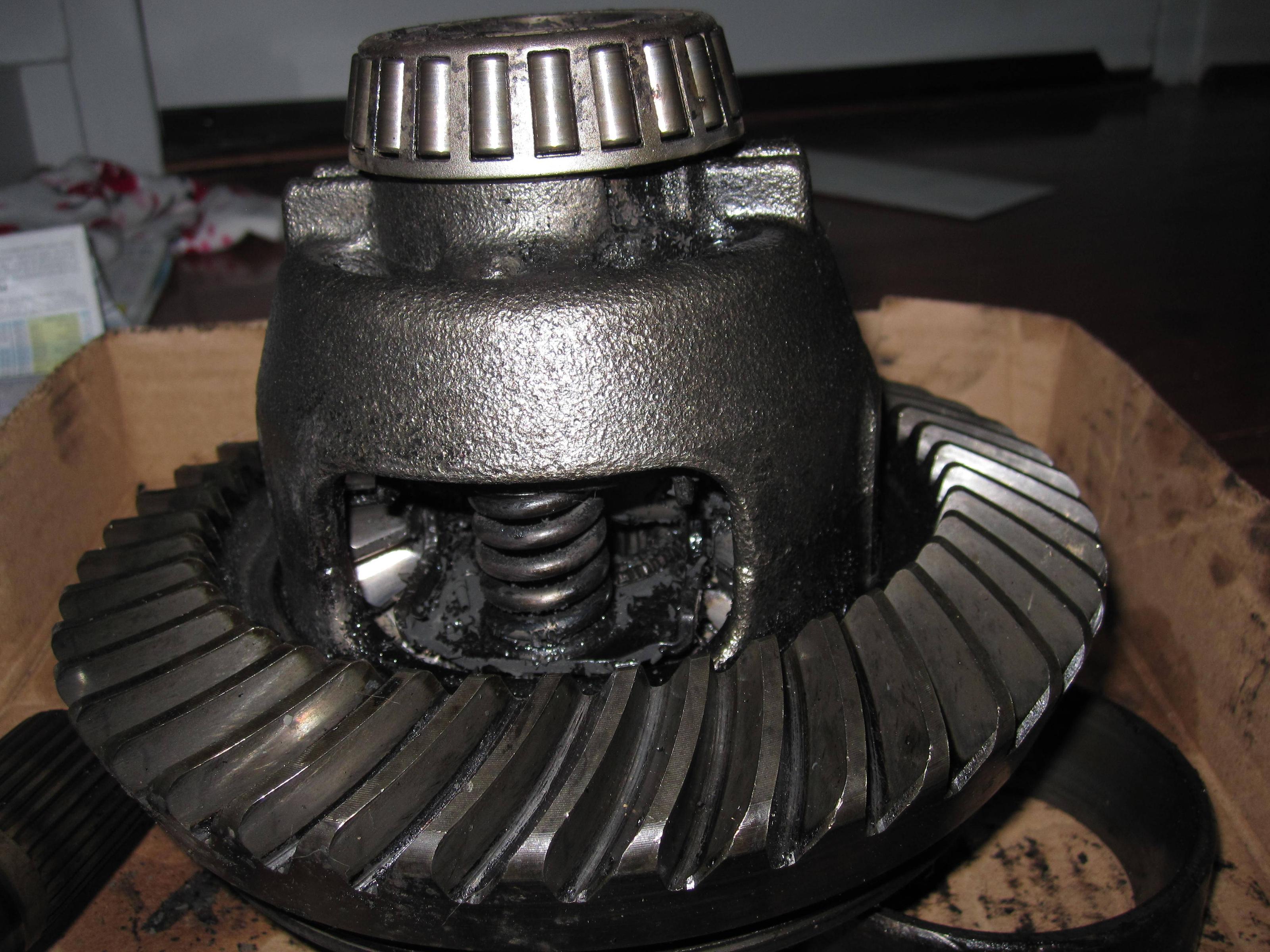

So, this is what I saw. This is what came out of my car:



WHAT THE ******* HELL IS THIS?

Then, he shows me the ring and pinion that came out of my car:

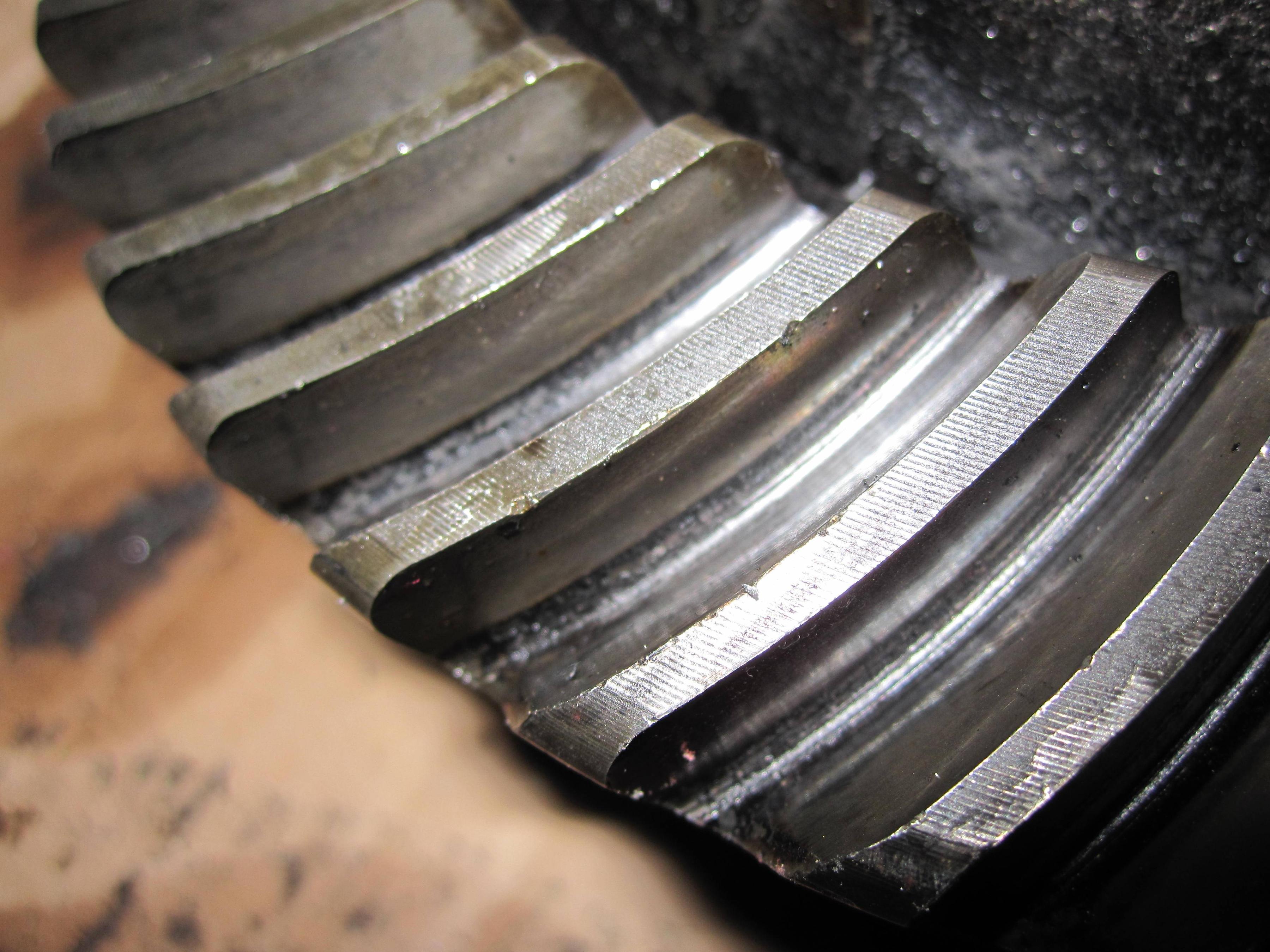

The ring had a lot of small chips in it, like this:

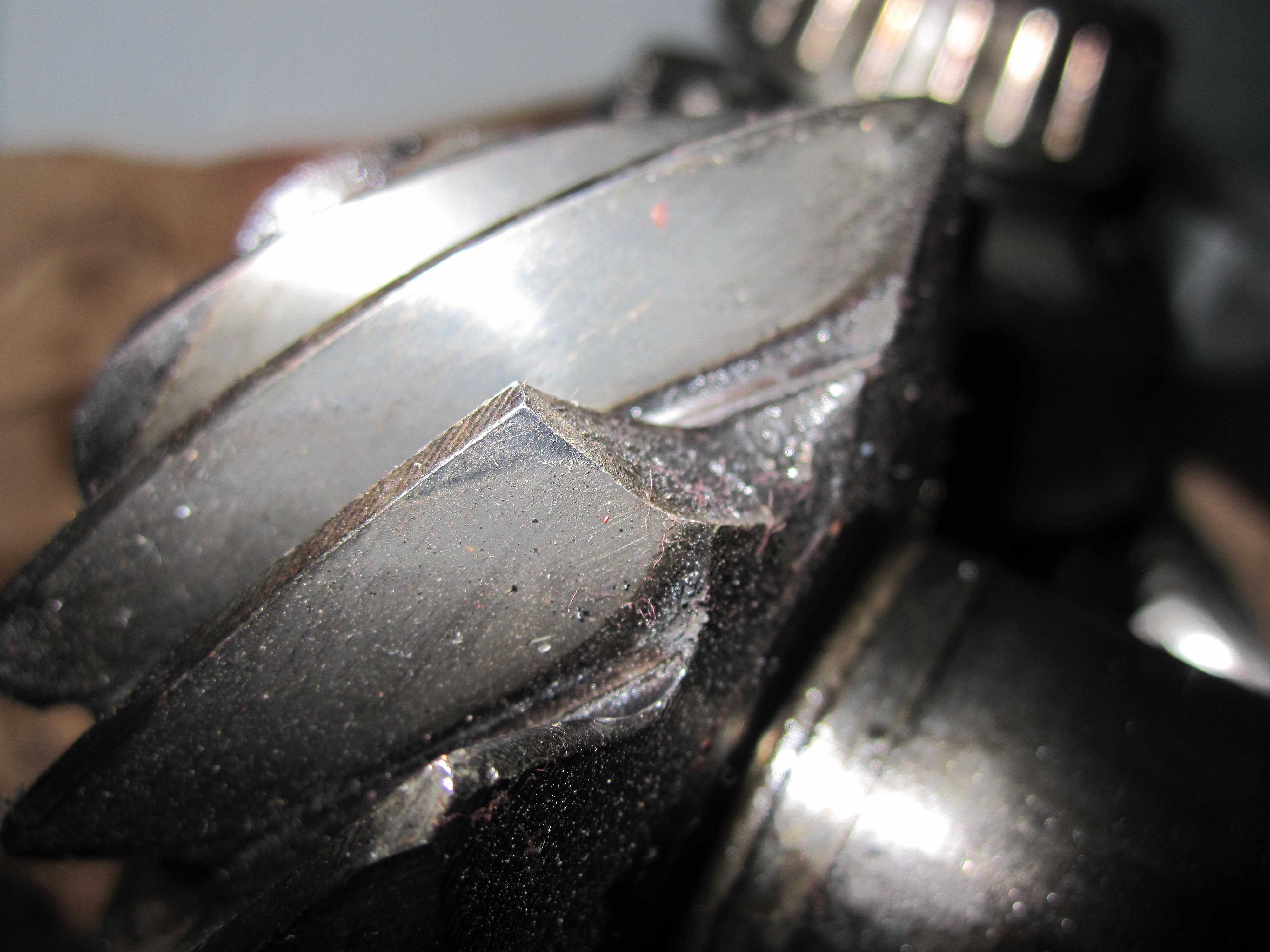

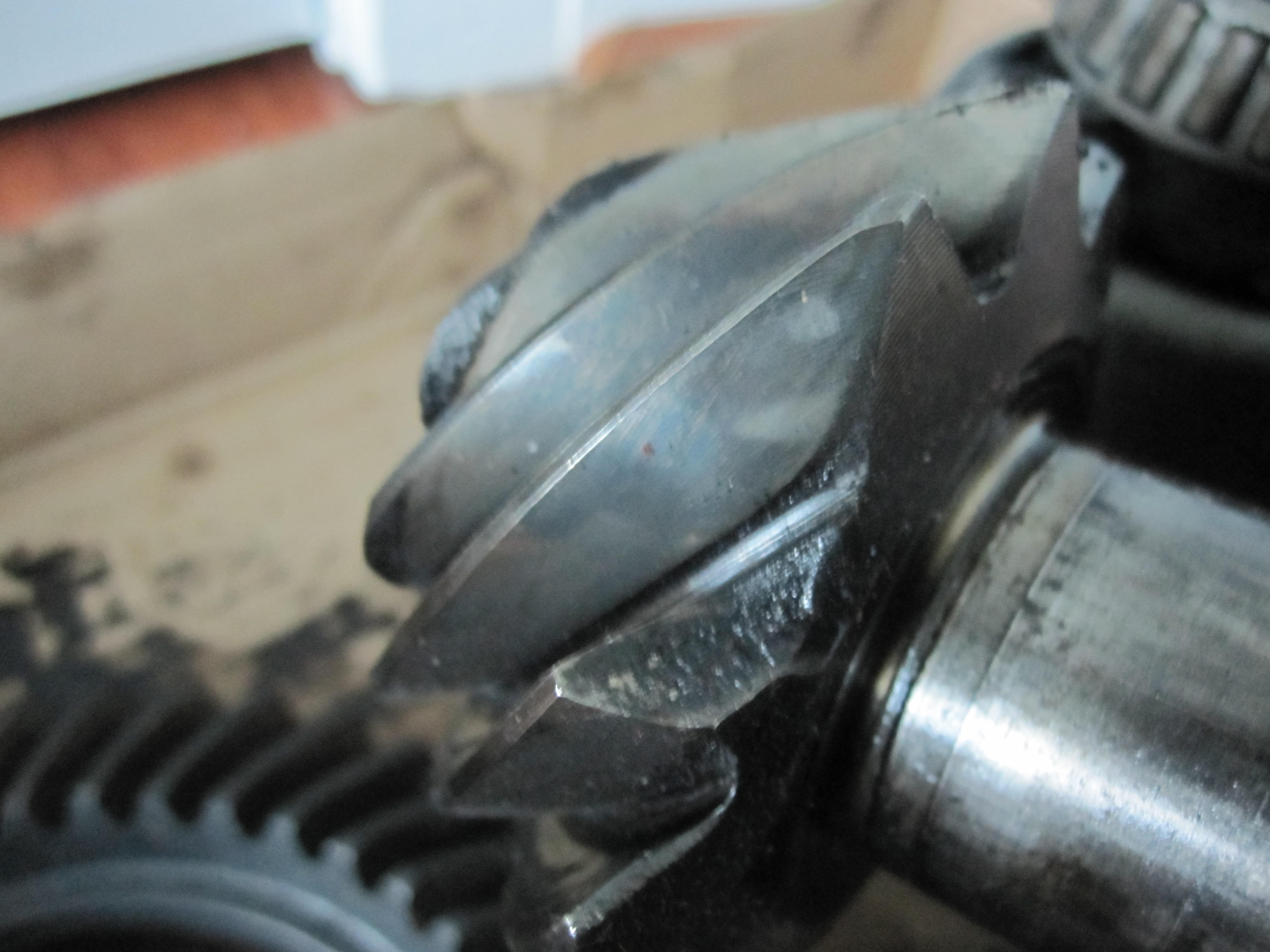

And the pinion had been lightened:

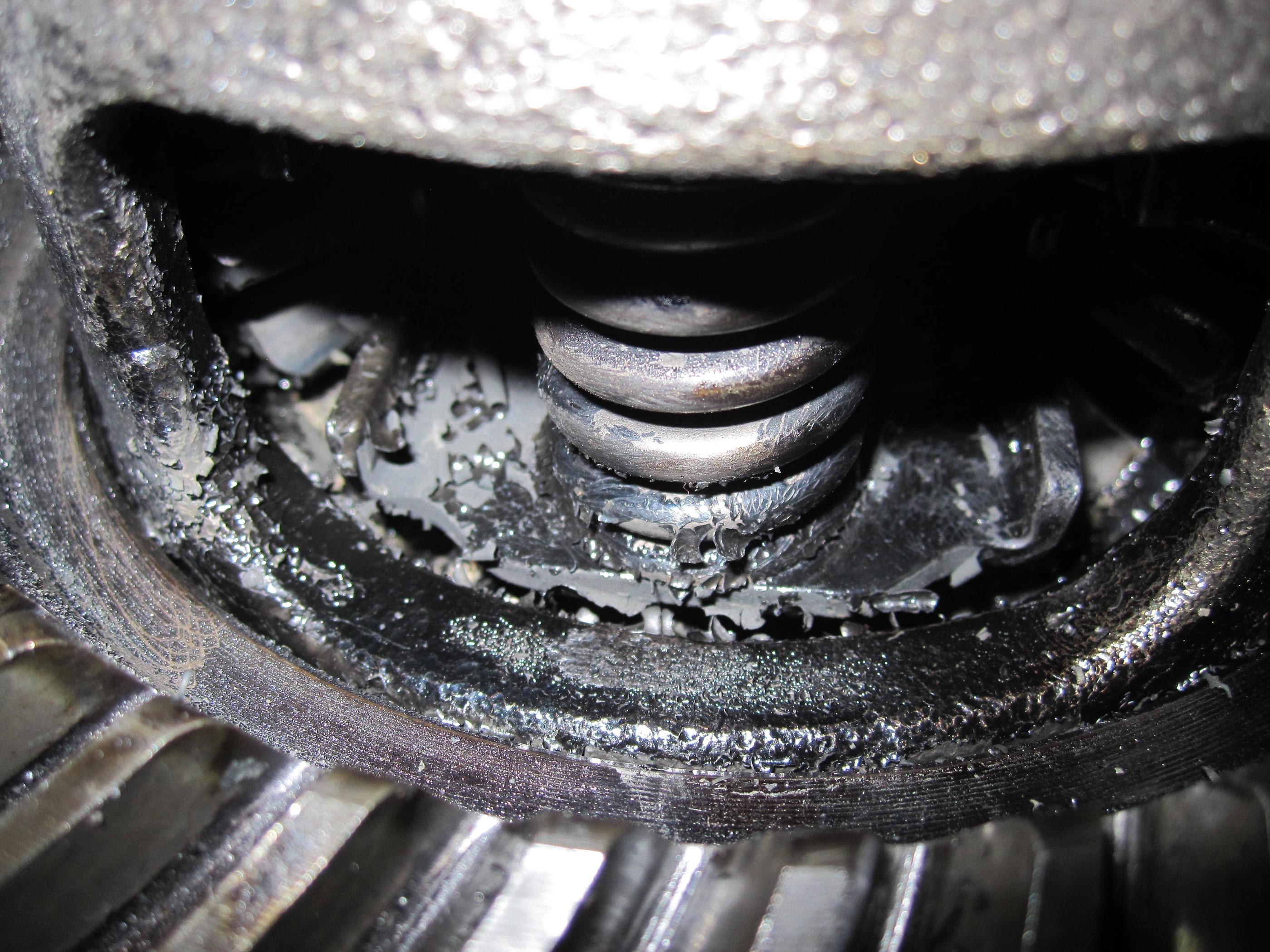

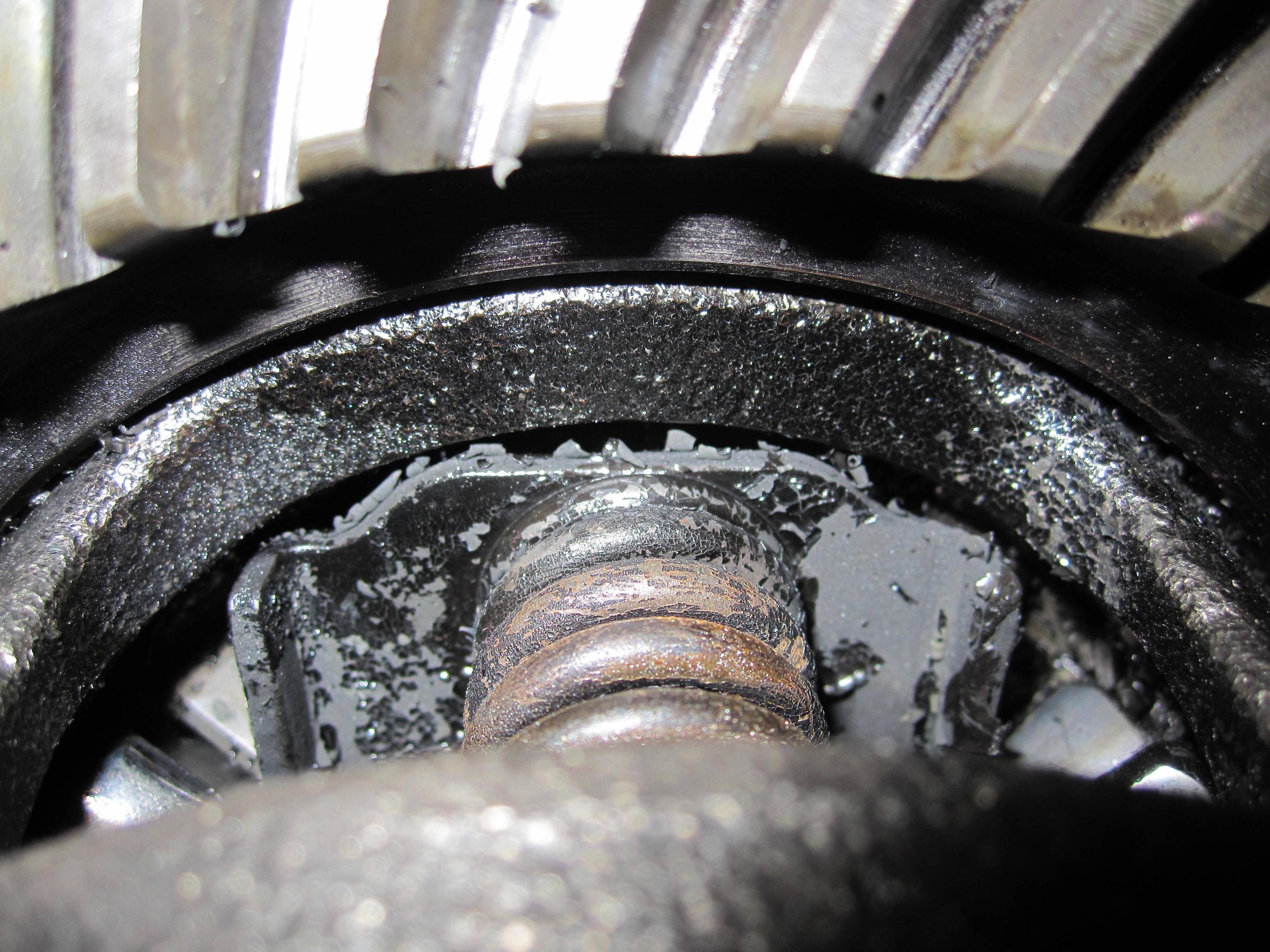

Then I looked inside the clutch diff:



Uggghh



So I broke a tooth on my pinion gear. My **** still worked though- worm gears were ok and clutch diff still engaged. Unless I was doing one wheel burnouts and didn't know it. ANYWAYS what is that diff?

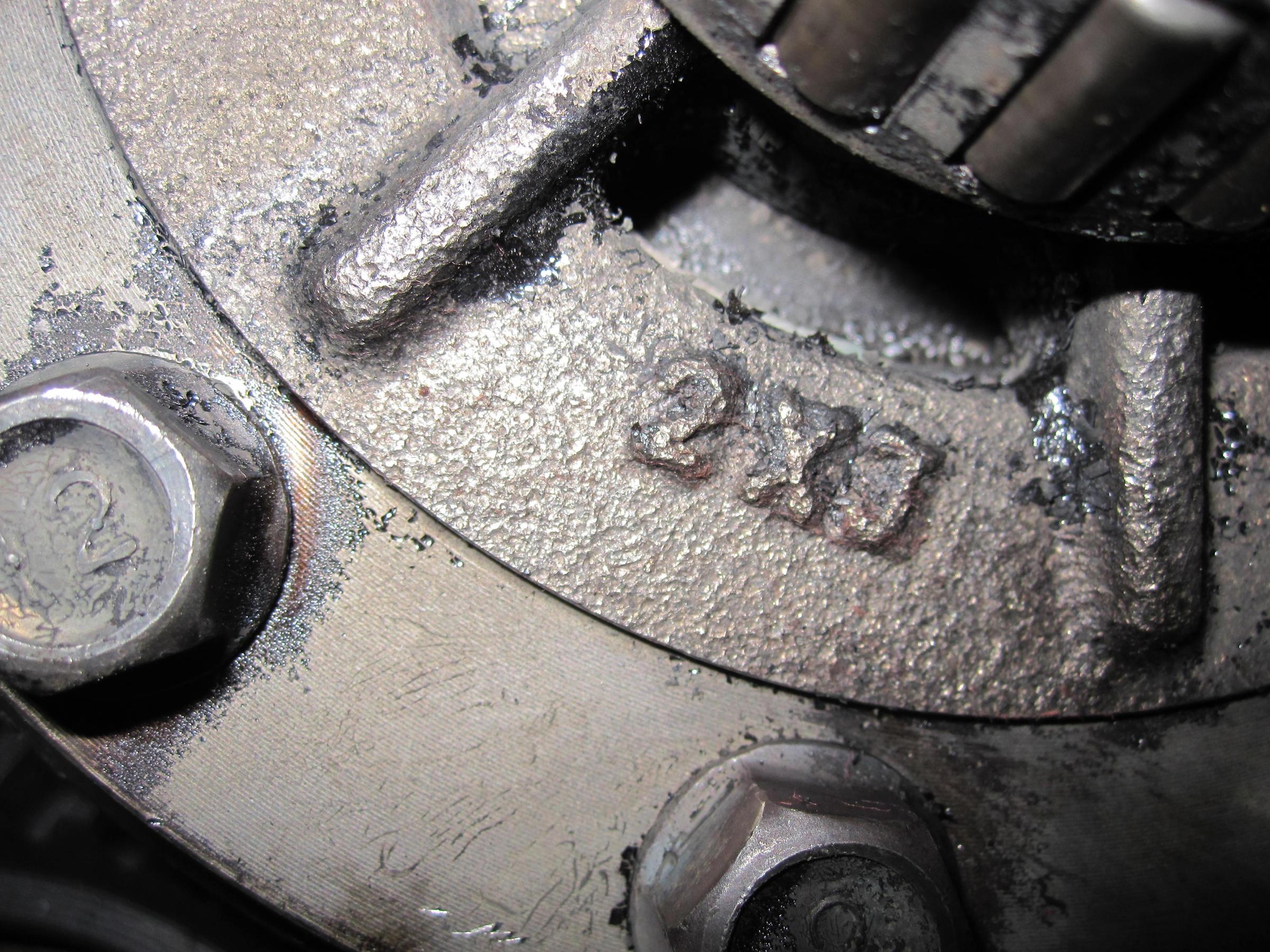

These are the markings on the diff that was in my car:

[URL=http://imgur.com/4yZT3.jpg]



What is this thing? Is it a rx7 diff? Is it a Tochigi fuji LSD? See here for pics of that: http://www.miata.net/garage/diffguide/index.html It looks a whole lot like one.

This is what I gave my mechanic- what I thought was a rx7 clutch type diff. He told me it was a torsen. Was he incorrect? I thought with all the miata torsens you could see the gears inside.

WTF is going on? I need some answers please.

And BTW I will now be cryotreating my r&p.
Faeflora is offline   Reply With Quote
Old 10-12-2010, 07:35 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

Since you have an '03, it's pretty obvious that your OEM LSD would be a T-F, yes.

Post a smaller photo of the LSD you're putting in and I'll tell you what it actually is. Or you can just throw the piece of **** Rx7 LSD away/sell it to someone who drag races and get something that will let the car handle, like a Torsen or an OS Giken.
Savington is offline   Reply With Quote
Old 10-12-2010, 07:40 PM   #3
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Yes I guess it is a TF. It does have the hexagonal center pin like this:

Faeflora is offline   Reply With Quote
Old 10-12-2010, 07:55 PM   #4
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

OK so do these TF diffs wear out? I really want my diff to be launch-sturdy which is why I wanted the RX7 diff. BUT I will just use the TF diff if it is better.


ORRRRR

should I go for a welded open diff? I can get one for free.
Faeflora is offline   Reply With Quote
Old 10-12-2010, 09:49 PM   #5
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Quote:
Originally Posted by faeflora View Post
should I go for a welded open diff? I can get one for free.
rccote is offline   Reply With Quote
Old 10-12-2010, 10:08 PM   #6
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Or maybe if I just weld the driveshaft to the axles I would have more reliability. ?
Faeflora is offline   Reply With Quote
Old 10-12-2010, 10:34 PM   #7
Senior Member
iTrader: (1)

Join Date: Jul 2009
Location: Batavia, IL
Posts: 604
Total Cats: 0
Default

Quote:
Originally Posted by faeflora View Post
Or maybe if I just weld the driveshaft to the axles I would have more reliability. ?
Cococarbine3 is offline   Reply With Quote
Old 10-12-2010, 10:35 PM   #8
Junior Member

Join Date: Jun 2007
Location: Grayslake IL
Posts: 410
Total Cats: 2
Default

Mount a tire directly to the driveshaft. Then you can do donuts like a boss.
Aricjm15 is offline   Reply With Quote
Old 10-12-2010, 11:19 PM   #9
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Aricjm15 View Post
Mount a tire directly to the driveshaft. Then you can do donuts like a boss.
Hmm that gives me a better idea. Why not mount a tire directly to the driveshaft AND a tire to the crank pully? Then I can go sideways 24/7.
Faeflora is offline   Reply With Quote
Old 10-12-2010, 11:22 PM   #10
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

aaronc7 is offline   Reply With Quote
