Old 03-23-2012, 06:06 PM   #21
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

I can't stress enough how much Boss Frog door bars + FM frame rails and butterfly brace did to my stock (r package)(now with RB sway bars) miata.

The improvement was monumental. At first i just had the frame rails and butterfly brace, and that made it pretty good. But after installing the door bars i could feel just pulling out of my driveway EVERYTHING was stiffened up. I also love my boss frog bars, they don't get in the way of anything. Everyone i let sit in my car say they don't even notice them. Even a buddy of mine that's over 6' 240lbs+ says he doesn't notice them.

Like i said, i highly suggest the combo.
Erat is offline   Reply With Quote
Old 03-23-2012, 06:25 PM   #22
Junior Member

Join Date: Oct 2008
Location: Southern CA
Posts: 219
Total Cats: 3
Default

Quote:
Originally Posted by Ben View Post
If I lift my 01 at one of the rear points, it will pick up 3 wheels. My rollbar is welded in, and the rear uprights go all the way to the frame rails in the trunk. It has sport bracing, but no aftermarket rails or door bars.
i can't picture how 3 wheels can lift off the ground, especially if lifted from the rear...
crono36 is offline   Reply With Quote
Old 03-23-2012, 06:27 PM   #23
Junior Member

Join Date: Oct 2008
Location: Southern CA
Posts: 219
Total Cats: 3
Default

that said, i have frame rails, no x brace, and a HD sport bar. I'll be putting in the FM vmaxx track setup shortly, if there are any chassis issues i'll probably go door bars first then frog arms, as funds allow.
crono36 is offline   Reply With Quote
Old 03-23-2012, 06:36 PM   #24
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

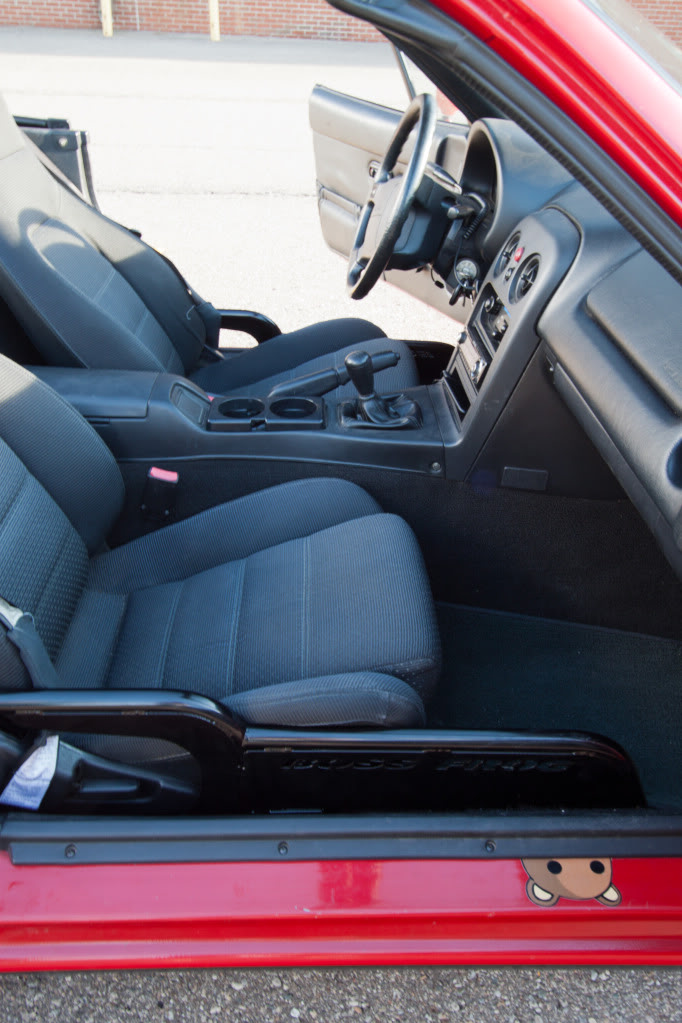

Plus these things just look sexy as shiz!!



Oh, i forgot, the seats were a little bit of a PITA but i got them in.
Attached Thumbnails
Chassis Rigidity beyond a roll bar...-6138796786_3820784bba_o.jpg
Erat is offline   Reply With Quote
Old 03-23-2012, 07:24 PM   #25
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by crono36 View Post
i can't picture how 3 wheels can lift off the ground, especially if lifted from the rear...
Jack goes up, all wheels except for the one diagonal from the jack go up as well. I'll take a pic at some point. Car is loaded on the trailer now.

The roll bar is welded to the frame rail. Pics of roll bar here:
https://www.miataturbo.net/general-miata-chat-9/i-have-disease-aka-miata-3-a-56401/

I'm not a fan of the bolt in door bars personally (roll cage nascar bars are a different story). I would stitch weld the seam around the door opening before installing bolt in door bars.
Ben is offline   Reply With Quote
Old 03-23-2012, 07:26 PM   #26
Junior Member

Join Date: Oct 2008
Location: Southern CA
Posts: 219
Total Cats: 3
Default

ahh, for some reason i was expecting the other rear wheel to be planted. that makes sense now.
crono36 is offline   Reply With Quote
Old 03-26-2012, 05:04 AM   #27
Junior Member

Join Date: May 2010
Posts: 52
Total Cats: 1
Default

I have been away form Miatas for a while...Hadn't seen the door bars before. Those don't look bad at all. How does it effect the seat moving back and forth?

Craig
mankiew is offline   Reply With Quote
Old 03-26-2012, 05:27 AM   #28
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Quote:
Originally Posted by mankiew View Post
I have been away form Miatas for a while...Hadn't seen the door bars before. Those don't look bad at all. How does it effect the seat moving back and forth?

Craig
Probably about 85-90% of what it used to be. Passenger seat needs to be a few notches from all the way back due to the MS behind the seat. Drivers seat goes all the way back. I think i could have allotted more room on the seat side by installing them a little better. But the seats work nonetheless.
Erat is offline   Reply With Quote
Old 03-27-2012, 12:08 AM   #29
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

On an NB, the ecu isn't behind the passenger seat anymore but the factory still puts in the bracket to limit that seats travel. It can be removed to allow the passenger seat to travel all the way back. The door bars won't affect fore/aft travel as they are parallel to the seats.

I have decided to man up and install mine. Just waiting for clear weather to do it on the flat part of my driveway.
Mobius is offline   Reply With Quote
Old 03-27-2012, 11:05 PM   #30
Newb

Join Date: Jul 2011
Posts: 37
Total Cats: 0
Default

Quote:
Originally Posted by Lokiel View Post

I have an MSM which had more chassis stiffening than most NBs to start with and here's my progressive chassis stiffening mods and how I ranked them (0 = no difference, 5 = most difference):

- MX5 Plus Twin Hoop Roll Bar with intergrated torque box (5)
- FM Frame Rails (2)
- Boss Frog Frog Arms (3)
- Carbing 3-point Front Strut Brace (0) - the stock MSM front strut brace is quite good

Frog Arms made a bigger difference than the frame rails but the fact that I can easily get 2 wheels airbourne when jacking up a corner indicates that the frame rails are doing a pretty good job of chassis stiffening.
I'm surprised you scored the 3 point brace so low. I have the exact same one and love it. But... you do have the MSM, but damn lol
atlnb is offline   Reply With Quote
Old 03-27-2012, 11:31 PM   #31
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Perhaps adding a large reinforcement plate to the attachment point of the 3 point STB, where it joins the firewall area, will spread the load and increase its effectivity. Popstoy on m.net did this and said it had a large effect.
JasonC SBB is offline   Reply With Quote
Old 03-27-2012, 11:40 PM   #32
Newb

Join Date: Jul 2011
Posts: 37
Total Cats: 0
Default

i guess you mean the backing plate. yea i have this on my STB and it made such an improvement over my old 2 pt
atlnb is offline   Reply With Quote
Old 03-28-2012, 12:31 AM   #33
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

WTTFF????

If you jack up an unbraced car will it really arch like a mcdonalds sign?
Faeflora is offline   Reply With Quote
Old 03-28-2012, 12:42 AM   #34
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 485
Total Cats: 44
Default

Quote:
Originally Posted by atlnb View Post
I'm surprised you scored the 3 point brace so low. I have the exact same one and love it. But... you do have the MSM, but damn lol
As a said, the MSM OEM brace is quite good so I didn't really notice the difference. What I SHOULD have done was take the car for a drive without any front strut brace, install the 3-pt brace and do the same test. I sure that there would have been a noticeable difference then.
Lokiel is online now   Reply With Quote
Old 03-28-2012, 12:47 AM   #35
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 485
Total Cats: 44
Default

Quote:
Originally Posted by JasonC SBB View Post
Perhaps adding a large reinforcement plate to the attachment point of the 3 point STB, where it joins the firewall area, will spread the load and increase its effectivity. Popstoy on m.net did this and said it had a large effect.

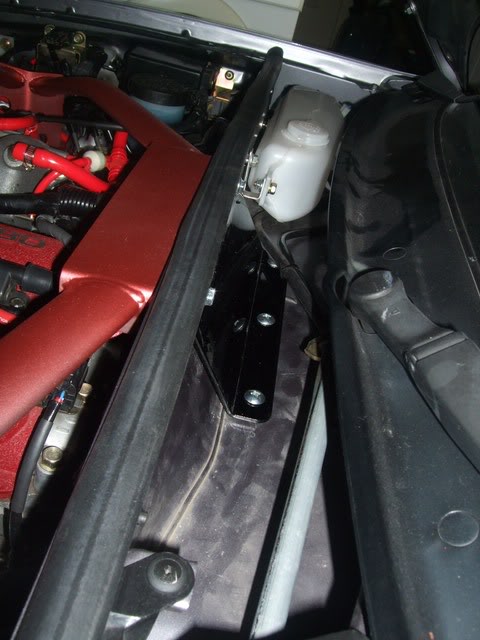

These 3-pt braces do come with a firewall backing plate that also attaches to the chassis:



Some people have questioned the validity of the 3-pt braces that simply mount to the firewall which is a valid concern because the firewall does flex - the rear bracket that also gets screwed into the chassis helps prevent this.
Attached Thumbnails
Chassis Rigidity beyond a roll bar...-05_fireredfirewallrearbrace.jpg
Lokiel is online now   Reply With Quote
Old 03-28-2012, 01:20 AM   #36
Newb

Join Date: Jul 2011
Posts: 37
Total Cats: 0
Default

Quote:
Originally Posted by Lokiel View Post
As a said, the MSM OEM brace is quite good so I didn't really notice the difference. What I SHOULD have done was take the car for a drive without any front strut brace, install the 3-pt brace and do the same test. I sure that there would have been a noticeable difference then.
wouldn't have mattered anyway since you already said you didn't notice any difference.
atlnb is offline   Reply With Quote
Old 03-28-2012, 04:52 AM   #37
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Quote:
Originally Posted by Lokiel View Post
Some people have questioned the validity of the 3-pt braces that simply mount to the firewall which is a valid concern because the firewall does flex - the rear bracket that also gets screwed into the chassis helps prevent this.
That's one question people have, other questions are: "does the strut tower brace even do anything?" With a 4 link suspension, the only forces going into the shock tower are what is being absorbed by the strut, any lateral movement stays in the subframe.
Erat is offline   Reply With Quote
Old 03-28-2012, 11:19 AM   #38
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

blah
Faeflora is offline   Reply With Quote
Old 05-05-2012, 12:02 AM   #39
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Is there any alternative to the Frog Arm product? I'm taking my fenders off (front clip already off for engine removal) and am going to Herculine the lips for rust/chipping prevention from our gritty roads and the occasional winter drive. I don't want to spring $250 so if there is a DIY frog arm that would be nice?
Landrew is offline   Reply With Quote
Old 05-05-2012, 03:13 AM   #40
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Landrew View Post
Is there any alternative to the Frog Arm product? I'm taking my fenders off (front clip already off for engine removal) and am going to Herculine the lips for rust/chipping prevention from our gritty roads and the occasional winter drive. I don't want to spring $250 so if there is a DIY frog arm that would be nice?
Alternative is just welding some stupid piece of metal between the places where frog shiz bolts up. Not rocket surgery shiiiii
