Arrow coilovers worth the install

I got these coil overs from a friend for my miata. There not brand name.

They look like they would work but idk.

suggestions

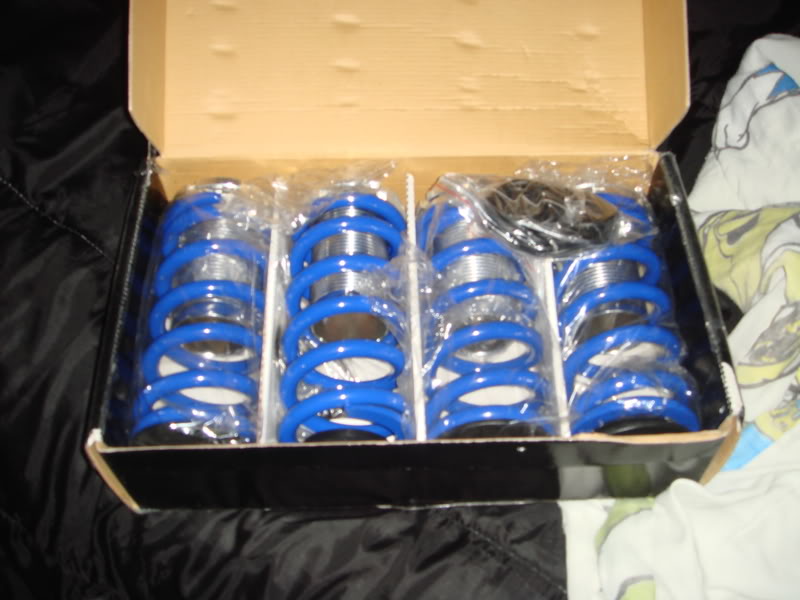

Name:  DSC00780.jpg
Views: 1
Size:  62.6 KB

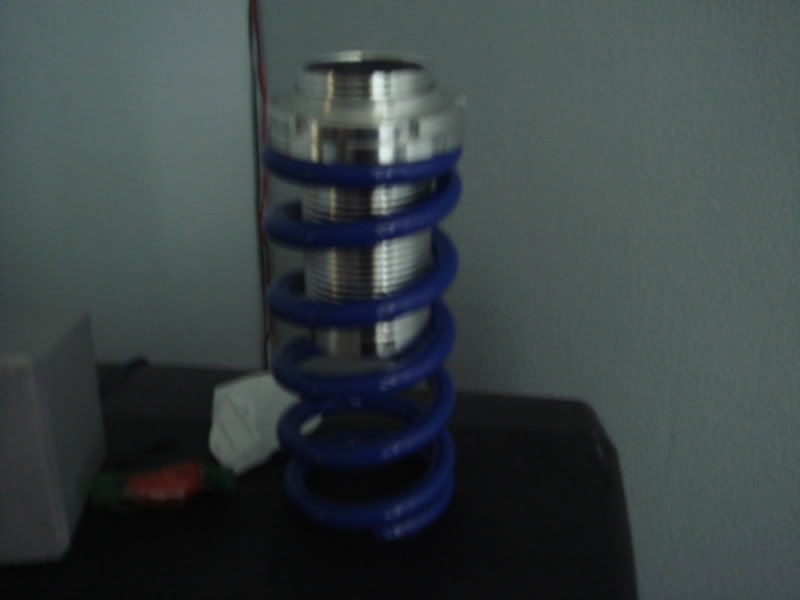

Name:  DSC00782.jpg
Views: 1
Size:  21.6 KB

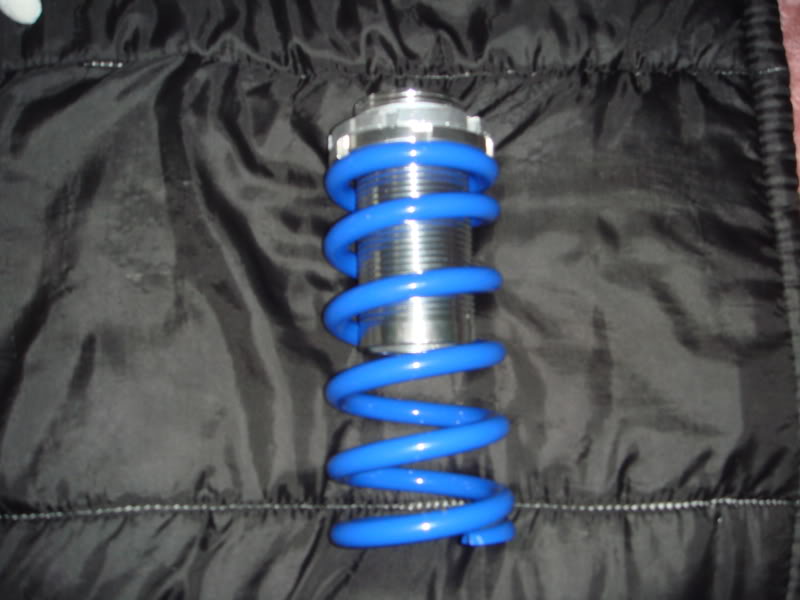

Name:  DSC00783.jpg
Views: 1
Size:  48.6 KB
mike_671 is offline   Reply With Quote
Old 04-17-2008, 05:10 AM   #2
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

They are the ****! I mean the *****.. It really depends on the rates, but for what its worth ive herd both good and bad e-bay stories about similar "coilover selves." I would stay away from them if i were to do it all over again i would have gone straight to my flex or did a koni/GC set-up.
thesnowboarder is offline   Reply With Quote
Old 04-17-2008, 05:17 AM   #3
Senior Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

yea i figured they were from ebay. O well ill just put them on anyway and see how they feel. I just want to drop the ride height of my car since its sits so high in the back
mike_671 is offline   Reply With Quote
Old 04-17-2008, 05:50 AM   #4
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

spring rates?
Oscar is offline   Reply With Quote
Old 04-17-2008, 07:30 AM   #5
Senior Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

^ idk
mike_671 is offline   Reply With Quote
Old 04-17-2008, 08:39 AM   #6
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

if you dont know any info on them no.

Sell them and get some fatcat bump stops, some flebay AGX, and have fun.
Pitlab77 is offline   Reply With Quote
Old 04-17-2008, 08:52 AM   #7
Senior Member
iTrader: (14)

Join Date: Aug 2007
Location: Buffalo, NY
Posts: 734
Total Cats: 1
Default

From the accounts I've heard the thing to do with ebay coilovers is buy them for their sleeves and throw out the springs.

Do some research, figure out some good spring rates, and do it right.

Installing random springs on your car... Odds are against them being an improvement.
deliverator is offline   Reply With Quote
Old 04-17-2008, 09:35 AM   #8
I'm Miserable!

Join Date: Aug 2007
Location: Sun City, Ca
Posts: 94
Total Cats: 0
Default

I tried them a while back for grins. Part of your success (or failure) will be detrermined by what kind of shocks you have. With KYB AGX the sleeve sits in a really funky position. I ended up with loose springs at anything near full droop. This was on an NB so they might be better on an NA.
socal pat is offline   Reply With Quote
Old 04-17-2008, 09:48 AM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

go to the gym with a ruler and stack weights on them.
hustler is offline   Reply With Quote
Old 04-17-2008, 09:57 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

or get a caliper and freaking do the math.
Braineack is offline   Reply With Quote
Old 04-17-2008, 10:08 AM   #11
Senior Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

Whats the equation on finding out the spring rates.
mike_671 is offline   Reply With Quote
Old 04-17-2008, 10:54 AM   #12
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

F = K * X
solve for K
K = F/X
Where:
F = force (or the total weight you stack on the spring)
K = spring constant
X = spring deflection

So, for example, measure the free length of the spring. Say it is 10". Then you stand it on end and pile on 200 lbs. of weight on the top of the spring and measure its length again. Say the spring has compressed to 9". That means the spring has deflected 1". Therefore, using the equation above, your spring rate is K = 200 lb/in

You can also figure out K by measuring the spring, like the coil diameter, and counting the number of coils. But you need to know the springs material properties. Good luck finding that.
ZX-Tex is offline   Reply With Quote
Old 04-17-2008, 11:27 AM   #13
Senior Member
iTrader: (8)

Join Date: Oct 2005
Posts: 764
Total Cats: 0
Default

F X k * 1 million
F= fucked
K= Krap

These ebay coil overs are fucked up crap x 1 million.
I wouldnt waste time with them.
miatanutz is offline   Reply With Quote
Old 04-17-2008, 11:46 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

I know many locals that went/won in SCCA nationals with $40 ebay coilovers. Some are 500/350 lbs. something like that.
Braineack is offline   Reply With Quote
Old 04-17-2008, 12:26 PM   #15
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

throw them bitches on there for ***** and giggles, and in the mean time, source some real springs with known spring rates (eibach 2.5" for example) and buy them and swap once you get them
Zabac is offline   Reply With Quote
Old 04-17-2008, 12:53 PM   #16
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You can get QA1 springs for... $38 a piece i think from Summit racing.
cjernigan is offline   Reply With Quote
Old 04-17-2008, 12:53 PM   #17
Senior Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

^ Thats what i was gonna do. I only have blown stock shocks anyways so how much more can i **** it up by putting on these. Ill just put them on and bitch about them tom.
Im trying to save up to buy me a suspension set up, But the paint job is coming first so we will see what happens.
mike_671 is offline   Reply With Quote
Old 04-17-2008, 12:58 PM   #18
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

suspension>paint
get your priorities straight homie
Zabac is offline   Reply With Quote
Old 04-17-2008, 01:01 PM   #19
Junior Member

Join Date: Jul 2007
Location: Chitown Illinois
Posts: 55
Total Cats: 0
Default

i would never put those on my car, maybe if i was south of the border and simply cared about the way the car looked at ride height. but the bottom line is you get what you pay for, those end up seezing or with broken sleeves, spend little money get something safe and worthy of your time...
tpod is offline   Reply With Quote
Old 04-17-2008, 01:40 PM   #20
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Even if they have a good rate, I'd be worried about the quality of steel used for the springs. Though I know very little about springs, I'd wager they'll likely wear out very quickly and start to sag..

You could always send them to me and I'll let you know how they work.
elesjuan is offline   Reply With Quote
