Old 02-16-2013, 07:08 PM   #1
Newb
Thread Starter

Join Date: Nov 2012
Location: Eugene,OR
Posts: 28
Total Cats: 6
Default connect FE3 / FE-DOHC to (rx7) R trans with US parts

There is a lot of information about how to mate a FE motor and the stronger type 2 or "R" transmission. Some people have been welding adapter plates, but that seemed to complicated to me. I knew there must be a Mazda factory combination that would work.

After a severe amount of googling, and lost sleep, I stumbled on a Australian build thread. In that thread There was a single picture of the FE-DOHC bolted to a R trans. That fellows build alerted me to the fact that B2600 came with R series transmissions and that G (B2600) and F motors have similar bellhousing patterns. So, I bough a B2600 bellhousing and What do you know? It all fits right together:



So the assembly consists of:
RX7 FD transmission (for proper shifter placement and gear ratios)
B2600 bellhousing, clutch, flywheel, pressure plate, starter, etc..

There is plenty of pilot bearing engagement, and the b2600 flywheel bolts right up to the F motors crankshaft.

The B2600 flywheel is a fair bit bigger than a 1.8 miata or the 2.0 FE, as is the bellhousing to go with it. I had to trim the sharp corner off the bellhousing where the starter bolts in, to help with firewall clearance. so the Starter will only be held in by two bolts. the bellhousing bosses are very thick where the bolts go through, so I had to buy longer ones than what came out of the kia assembly.
Attached Thumbnails
connect FE3 / FE-DOHC to (rx7) R trans with US parts-img_2319.jpg

Last edited by XS Hack; 02-16-2013 at 07:39 PM. Reason: Newb can't figure out picture uploading
XS Hack is offline   Reply With Quote
Old 02-16-2013, 07:47 PM   #2
Newb
Thread Starter

Join Date: Nov 2012
Location: Eugene,OR
Posts: 28
Total Cats: 6
Default

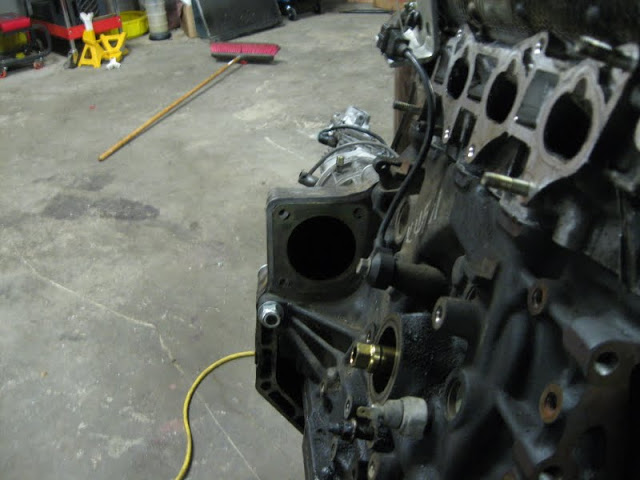

Here is another angle. I cut off the sharp corner of the starter pocket, the with the bolt hole that is furthest from the crank centerline.

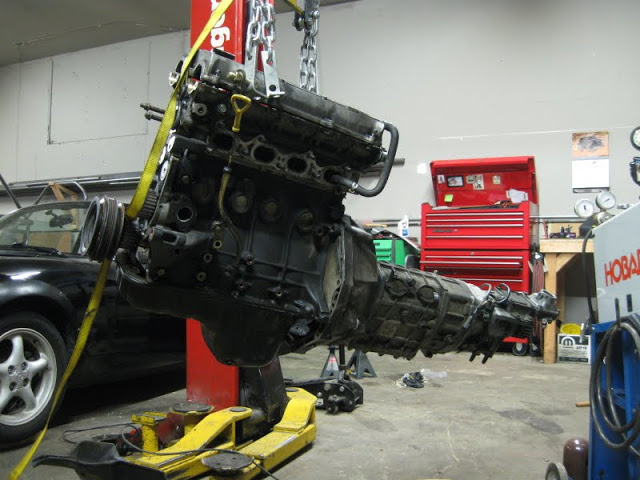

and another, the whole assembly

Attached Thumbnails
connect FE3 / FE-DOHC to (rx7) R trans with US parts-img_2324.jpg   connect FE3 / FE-DOHC to (rx7) R trans with US parts-img_2325.jpg
XS Hack is offline   Reply With Quote
Old 02-16-2013, 08:06 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

my buddy is attempting to do the same thing as you. he'll be overjoyed to see these pics.

good job.

please post as much info as you go about this as possible
18psi is offline   Reply With Quote
Old 02-16-2013, 10:56 PM   #4
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Wow, awesome information. Thanks for sharing
Stealth97 is offline   Reply With Quote
Old 02-16-2013, 11:04 PM   #5
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Apparently the transmission fits a 4g63 also if someone is interested in a swap http://projectzerog.com/rx7transmissions.shtml
Stealth97 is offline   Reply With Quote
Old 02-17-2013, 12:40 AM   #6
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

In.
Dot3 is offline   Reply With Quote
Old 02-18-2013, 04:44 AM   #7
Newb
Thread Starter

Join Date: Nov 2012
Location: Eugene,OR
Posts: 28
Total Cats: 6
Default

I will be sure to keep everyone updated on any progress. The only thing I haven't checked is clutch engagement on the splines. The spline pattern is the same, however, the B2600 input is a tad shorter- I think a quarter inch or less. I will verify all that this week. Easiest solution would be swap inputs, or just have a little milled off the bellhousing face (remember it is very thick).

Yes, the trans came behind a mitsu engine for the first year or two in the b2600. This is the later bellhousing. The trans are similar, mazda just made a bellhousing to suit the mitsu engine before designing there own 2.6 engine.
XS Hack is offline   Reply With Quote
Old 02-18-2013, 10:04 AM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by XS Hack View Post
The only thing I haven't checked is clutch engagement...

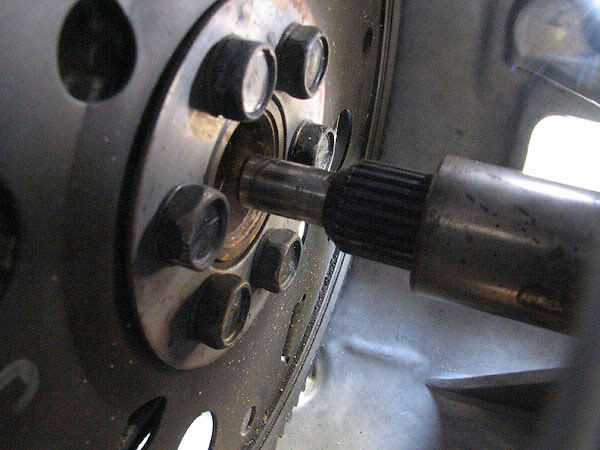

That's the problem. I bolted up the bongo housing and RX R box to an FE block years ago and noticed the excessive distance between the shaft end and crank. As it sits there is <10mm engagement of a near 30mm spline depth when the clutch sits against a stock flywheel.


Then JoePianka put the two R trans side-by-side and confirmed this in Yank's build thread.


Quote:
Originally Posted by m2cupcar View Post
re: the bongo/ute R bell - IIRC that bell is ~20mm deeper than the RX7 bell because the R trans it was paired with has an input shaft much longer than the RX7 R trans. I assembled that bongo bell with the rx7 trans and was seeing less than half the clutch splines penetrated by the input shaft and maybe 2mm of the input shaft making it to the pilot bearing, of which 1mm of that is radiused. Like I said, IIRC, this was five years ago.
Quote:
Originally Posted by JoePianka View Post
You are Absolutely correct. there is about Half and inch of difference in the shaft lengths... looks like I'm swapping Input Shafts too.

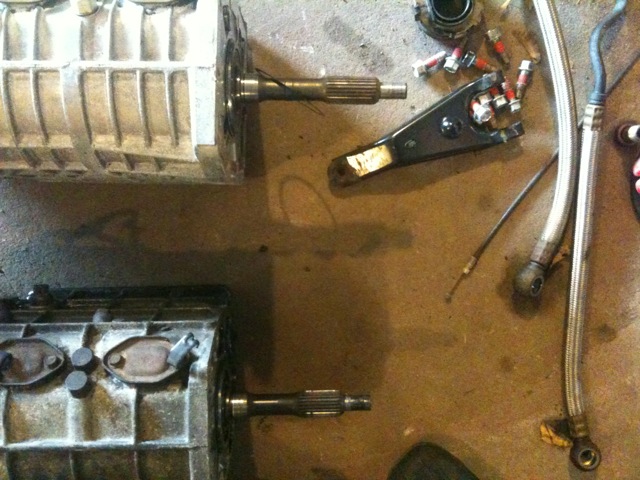

UTE up top, TurboII bottom
And if you bring over the truck R input shaft there's this:
Quote:
Originally Posted by m2cupcar View Post
fwiw: The ute/bongo input shaft you're using for the hybrid trans will need the tip cut off (~10mm) for use with the FE3 because it will interfere with the crankshaft upon fitting. That ute/bongo trans was used with an F2 crank which has a much deeper recess in the crank end.
And once it is in there, you have the crappy first gear.

I considered getting a flywheel made to spec - that would make up the 10mm the RX shaft lacks. BUT that would also reduce the area available for the larger clutch/pp.
Attached Thumbnails
connect FE3 / FE-DOHC to (rx7) R trans with US parts-transmission-r02.jpg
m2cupcar is offline   Reply With Quote
Old 02-18-2013, 03:48 PM   #9
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Heh dammit... you just let the world know what i'm doing for my F2 Miata...
concealer404 is offline   Reply With Quote
Old 02-18-2013, 04:06 PM   #10
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

A custom flywheel?
m2cupcar is offline   Reply With Quote
Old 02-18-2013, 04:11 PM   #11
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Highly doubtful. You posted why i wouldn't need it above.

Sounds like worst case scenario i need a TII trans, B2600 bell, and B2600 input shaft.
concealer404 is offline   Reply With Quote
Old 02-19-2013, 09:24 AM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Ah- the granny gear solution.
m2cupcar is offline   Reply With Quote
Old 02-19-2013, 10:31 AM   #13
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Quote:
Originally Posted by m2cupcar View Post
That's the problem. I bolted up the bongo housing and RX R box to an FE block years ago and noticed the excessive distance between the shaft end and crank. As it sits there is <10mm engagement of a near 30mm spline depth when the clutch sits against a stock flywheel.


Then JoePianka put the two R trans side-by-side and confirmed this in Yank's build thread.





And if you bring over the truck R input shaft there's this:


And once it is in there, you have the crappy first gear.

I considered getting a flywheel made to spec - that would make up the 10mm the RX shaft lacks. BUT that would also reduce the area available for the larger clutch/pp.

That picture is shown with an automatic flywheel, this needs to be more looked into with a proper manual flywheel bolted on that engine.
duffbuster243 is offline   Reply With Quote
Old 02-19-2013, 10:40 AM   #14
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by m2cupcar View Post
Ah- the granny gear solution.

Not a big deal with a 3.23 rear end.


That setup is confirmed to bolt up and work correctly on an F2 either way.

What weirds me out is that in FWD-land, the FE3 is a direct swap for an F2. No weirdness with clutch/trans/mounts, none of that.

Strange that it's not so in RWD-land.
concealer404 is offline   Reply With Quote
Old 02-19-2013, 11:01 AM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I only think it's because the FE never came oe in rwd. If it did, then Mazda would've just cut the tip off the input shaft as needed. I assume you'll be making some kind of compensation for the shifter location.
m2cupcar is offline   Reply With Quote
Old 02-19-2013, 11:52 AM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by m2cupcar View Post
I only think it's because the FE never came oe in rwd. If it did, then Mazda would've just cut the tip off the input shaft as needed. I assume you'll be making some kind of compensation for the shifter location.
The Kia crank is different, then?


And yes, i'll make some kind of compensation. I have a sawzall.
concealer404 is offline   Reply With Quote
Old 02-19-2013, 12:43 PM   #17
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

The kia crank is indeed different though I don't know the specifics. Yank would- he's running the kia engine. The sportage also had a different transmission.
m2cupcar is offline   Reply With Quote
Old 02-20-2013, 03:30 AM   #18
Newb
Thread Starter

Join Date: Nov 2012
Location: Eugene,OR
Posts: 28
Total Cats: 6
Default

I will be really busy for the next two weeks, so, there will be little time to move forward with this. However, M2cup, My RX7 input shaft does not look like yours. Mine is from a FD, not FC. I think this makes a difference.

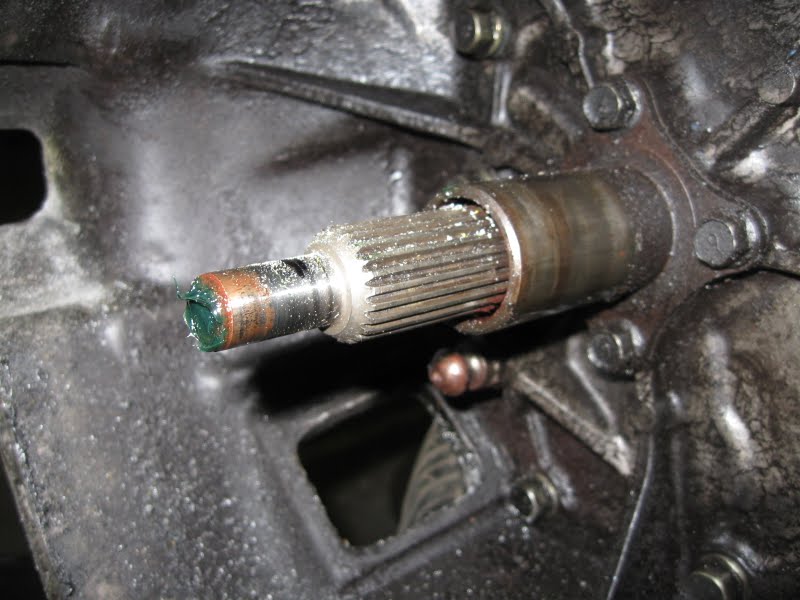

The spline looks significantly longer on my trans, compared to the pictures you posted above. More like the truck version. There is more than 35 mm of spline exposed with the bellhousing installed, about 37mm available.

In the pictures you posted, it looks like the "pilot bearing snout" on the input (RX7 FC) won't engage the pilot bearing. Mine is well engaged as you can see in this picture. The rusty part is the part engaging the pilot bearing when installed, about 12mm total. The snout on the FD is about 27 mm, on the B2600 it is 25mm. I will do more measurements when everything comes apart again. i will also install the clutch assembly and check clearances.



I have no way to prove it, but I think the input shaft in the FD is different than the FC. The FD has a pull style clutch, where the FC had a more standard push style I think. I can tell you the FD bellhousing is completely different from that in the FC. This could lead to changes in the input shaft.
Attached Thumbnails
connect FE3 / FE-DOHC to (rx7) R trans with US parts-img_2329.jpg
XS Hack is offline   Reply With Quote
Old 02-20-2013, 10:10 AM   #19
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

That photo is of the FC R trans (box/mid and tail) mounted to the bongo front/bell housing. It's the bongo's shaft sleeve that's so much longer. When the Rx7 box is mounted to the original front/bell housing from the Turbo II it looks like your photo. Photos below show the measurements for the truck R and Rx7 R input shafts starting at the box. I hope your's was measured the same- for everybody's sake and the FD is indeed a longer shaft.

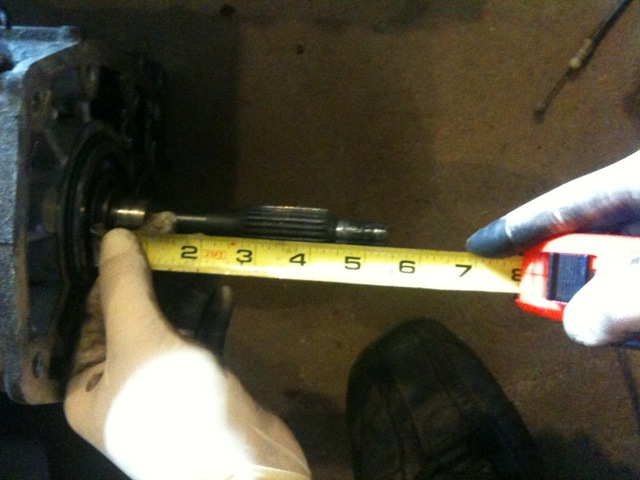

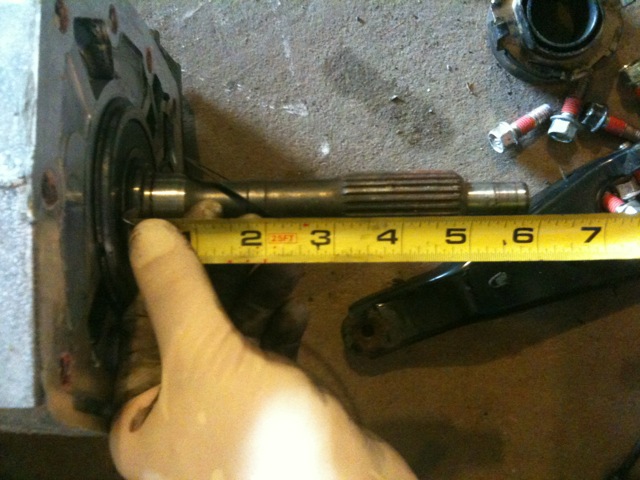

Top- Truck : Bottom- FC Rx7 TII


Truck


FC Rx7 TII
Attached Thumbnails
connect FE3 / FE-DOHC to (rx7) R trans with US parts-trans-utevsfc.jpg   connect FE3 / FE-DOHC to (rx7) R trans with US parts-trans-uteinputshaft.jpg   connect FE3 / FE-DOHC to (rx7) R trans with US parts-trans-fcinputshaft.jpg
m2cupcar is offline   Reply With Quote
Old 04-20-2013, 01:34 AM   #20
Newb
Thread Starter

Join Date: Nov 2012
Location: Eugene,OR
Posts: 28
Total Cats: 6
Default It works!

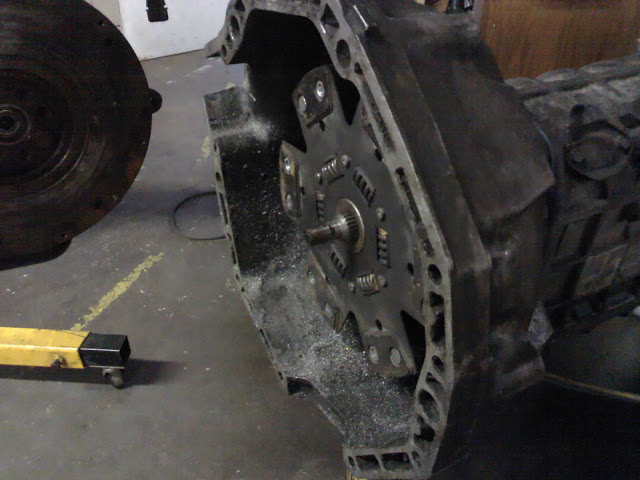

I finally had time to put the flywheel on the engine and slip a clutch disc in the trans before bolting it all together. The clutch disc has more than adequate travel on the splines! I'm attaching a picture of the clutch in its most forward position, as it would be when seated against the flywheel. As you can see, with the clutch seated against the flywheel there is still about 9mm of spline left.



So the winning combination is B2600 flywheel, clutch, pressure plate, starter, and bellhousing with the FD RX-7 transmission. On the KIA engine i had to remove the dowel pin from the crankshaft, because the B2600 flywheel did not have a hole for it. Of course you could drill a dowel hole with some careful measuring.
Attached Thumbnails
connect FE3 / FE-DOHC to (rx7) R trans with US parts-2013-04-19_20-11-37_682.jpg
XS Hack is offline   Reply With Quote
