Default Coolant Fitting on VVT Block

Hey guys,

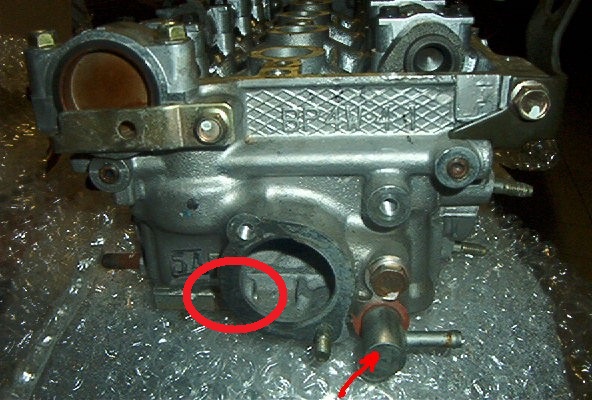

Does anyone know what size the fitting is on the rear outlet of a VVT is?



It's the circled hole in the bottom left of the outlet that you can see in the image.

I'd be very thankful, as solving that solves a major problem in my build.
Attached Thumbnails
Coolant Fitting on VVT Block-m2_head_rear_plug1.jpg
blaen99 is offline   Reply With Quote
Old 05-11-2014, 11:58 AM   #2
Senior Member

Join Date: Sep 2013
Posts: 903
Total Cats: 59
Default

That's the coolant temp gauge sensor bung, there should be a block off on there. I think it's an M12x1.25.
Dunning Kruger Affect is offline   Reply With Quote
Old 05-11-2014, 12:00 PM   #3
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

If it's a coolant temp sensor, isn't it M12x1.5?
blaen99 is offline   Reply With Quote
Old 05-11-2014, 12:01 PM   #4
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Correction, it's 1/8 BSP, not M12 as per http://forum.miata.net/vb/showthread.php?t=228741
blaen99 is offline   Reply With Quote
Old 05-11-2014, 12:14 PM   #5
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

The only problem with the above is that it looks physically too large for 1/8 BSP in the head.

Can anyone confirm?
blaen99 is offline   Reply With Quote
Old 05-11-2014, 03:44 PM   #6
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Verified with a tap, it is a 1/8 BSP hole.

On an interesting note, the position is perfect for the coolant sensor if you simply drill and tap that same exact location. Bit of a tight fit, but hey, we here at MT.net are all about tight fits in holes, amirite?
blaen99 is offline   Reply With Quote
Old 05-11-2014, 04:28 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yes, its almost like it's a perfect spot for a coolant temp gauge sensor. Almost.
curly is offline   Reply With Quote
Old 05-12-2014, 10:43 AM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I have a 1/8NPT coolant temp sender in there.
Leafy is offline   Reply With Quote
Old 05-12-2014, 11:47 AM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Should be 1/8 NPT. That's where the factory gauge sender in NAs goes. I run coolant temp senders there in most of the VVT swaps I've done.
Savington is online now   Reply With Quote
Old 05-12-2014, 02:25 PM   #10
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Quote:
Originally Posted by Leafy View Post
I have a 1/8NPT coolant temp sender in there.
Ditto. Just run an NPT tap through the hole first.

C
chriscar is offline   Reply With Quote
