Default Coolant leak from back of head?

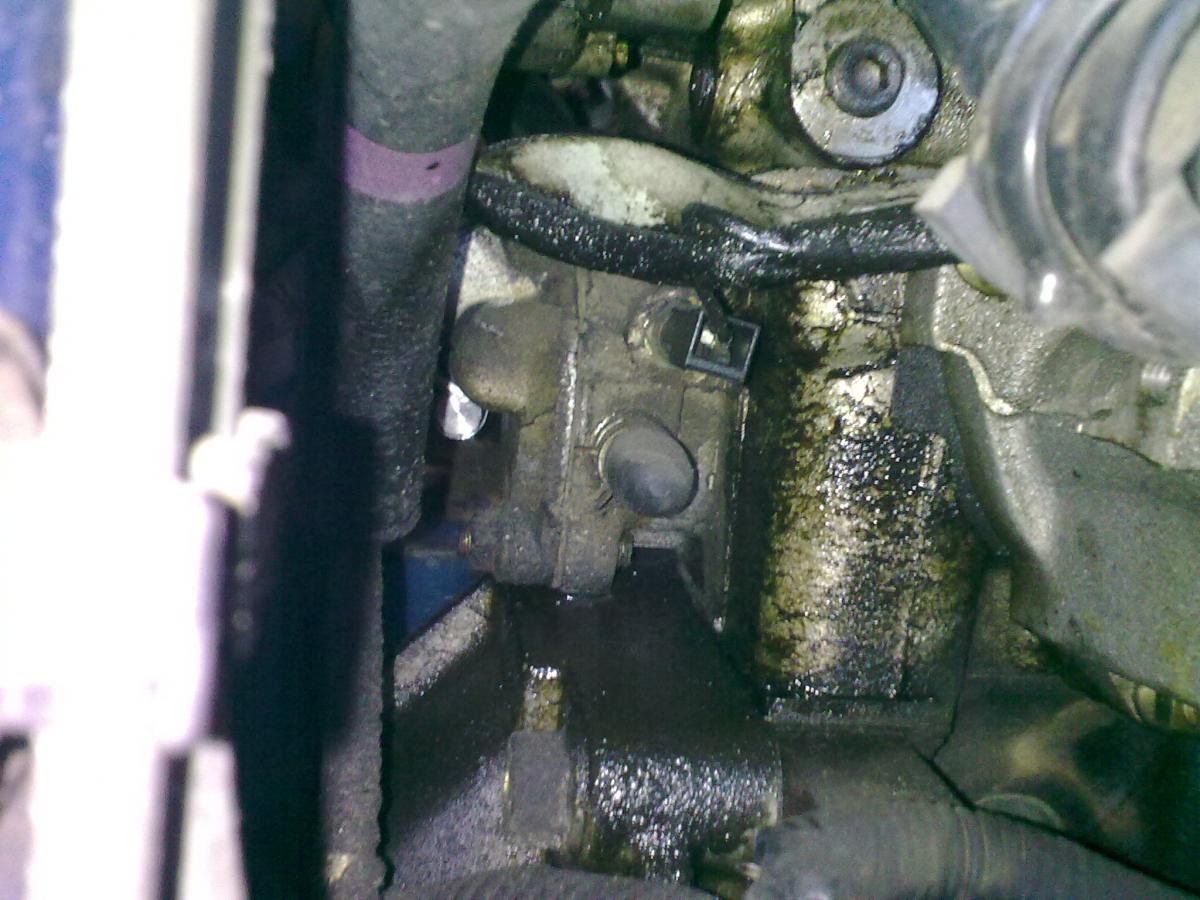

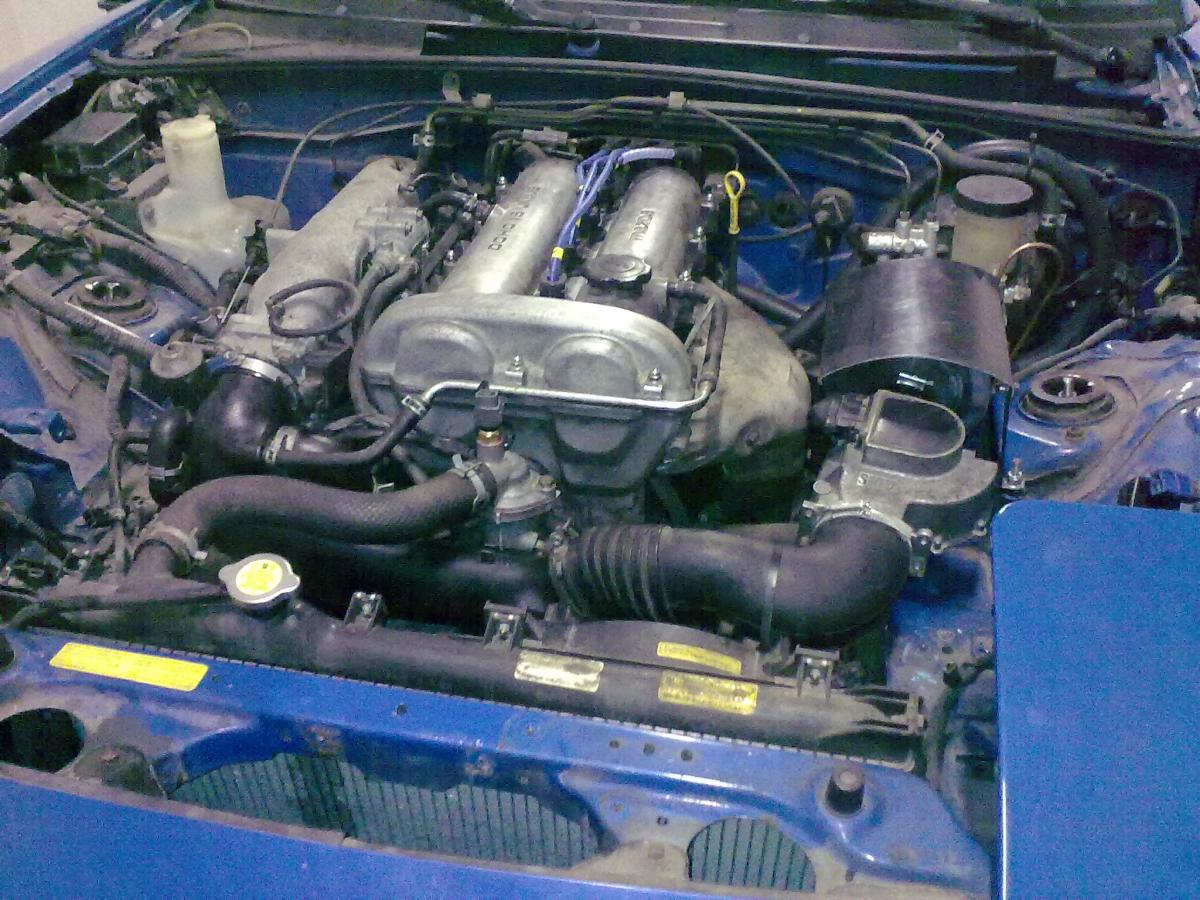

This is not from my turbo, but from my MaX5 racer 91 1.6 NA. Too much very clear coolant is coming from the back of the head, going down near the clutch area. Hints/pointers?

I wanted to post this to M.net, but feared the 'is your radiator cap on' reply.

Thanks,

Your role model.
Attached Thumbnails
Coolant leak from back of head?-21012010656.jpg   Coolant leak from back of head?-21012010657.jpg   Coolant leak from back of head?-21012010658.jpg   Coolant leak from back of head?-21012010660.jpg
Laur3ns is offline   Reply With Quote
Old 01-21-2010, 04:14 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,848
Total Cats: 1,788
Default

if it's not the rear gasket for the heater core outlet, that rubber nipple, or the IM gasket....then it's the head gasket. Which, by the pics, is what I'll guess.
Braineack is online now   Reply With Quote
Old 01-21-2010, 04:19 PM   #3
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

HG crossed my mind too.

Looking for pics of back of stock 1.6 NA head so get some idea what Im looking at. Got any?
Laur3ns is offline   Reply With Quote
Old 01-21-2010, 04:21 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,848
Total Cats: 1,788
Default

not in stock form...

Braineack is online now   Reply With Quote
Old 01-21-2010, 04:22 PM   #5
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
rear gasket for the heater core outlet
Uh, where is that? Its not the heater core lines.

Quote:
that rubber nipple
Doesnt look like if, nor does it drip from there when runnin

Quote:
the IM gasket
That would be from the side of the head right. That is very dry there.

Quote:
then it's the head gasket
Bummer.
Laur3ns is offline   Reply With Quote
Old 01-21-2010, 04:24 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,848
Total Cats: 1,788
Default

when my little nipple failed over the weekend, it was very apparent that it was the issue...the large splice in it was gushing coolant:



yours is dry, and it really doesn't seem like it's coming form the IM gasket, which would drip down the side of the motor...so unless that water neck gasket failed, or the heater hose attached it it is leaking, I'm still sticking with HG.
Braineack is online now   Reply With Quote
Old 01-21-2010, 04:28 PM   #7
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

My guess is water neck gasket for now. Or I fucked that looping up.
Laur3ns is offline   Reply With Quote
Old 01-21-2010, 04:42 PM   #8
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

It's hard to tell what's water and what's oil from those pics, but it looks like the spray is too high to be HG. Can check your oil to see if there's any coolant in it. It doesn't look like the water neck gasket since that whole assembly looks dry.
TrickerZ is offline   Reply With Quote
Old 01-21-2010, 04:43 PM   #9
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by TrickerZ View Post
It's hard to tell what's water and what's oil from those pics, but it looks like the spray is too high to be HG. I would think the water neck is the culprit. Can check your oil to see if there's any coolant in it.
There is clear coolant on the garage floor. It's coolant. Ill check that water neck.
Laur3ns is offline   Reply With Quote
Old 01-22-2010, 09:34 PM   #10
Junior Member

Join Date: Jan 2010
Location: buffalo,ny
Posts: 99
Total Cats: 0
Default

its prob the back seal of the HG
llink78 is offline   Reply With Quote
Old 01-27-2010, 04:22 PM   #11
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Spookyfish View Post
My guess is water neck gasket for now. Or I fucked that looping up.
It WAS the water neck gasket. Removed, cleaned, replaced. Not too bad of a job and the cooling is perfect now.

Thanks for all the input.
Laur3ns is offline   Reply With Quote
Old 01-27-2010, 04:25 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,848
Total Cats: 1,788
Default

yay, my first initial guess.
Braineack is online now   Reply With Quote
Old 01-27-2010, 04:29 PM   #13
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Braineack View Post
yay, my first initial guess.

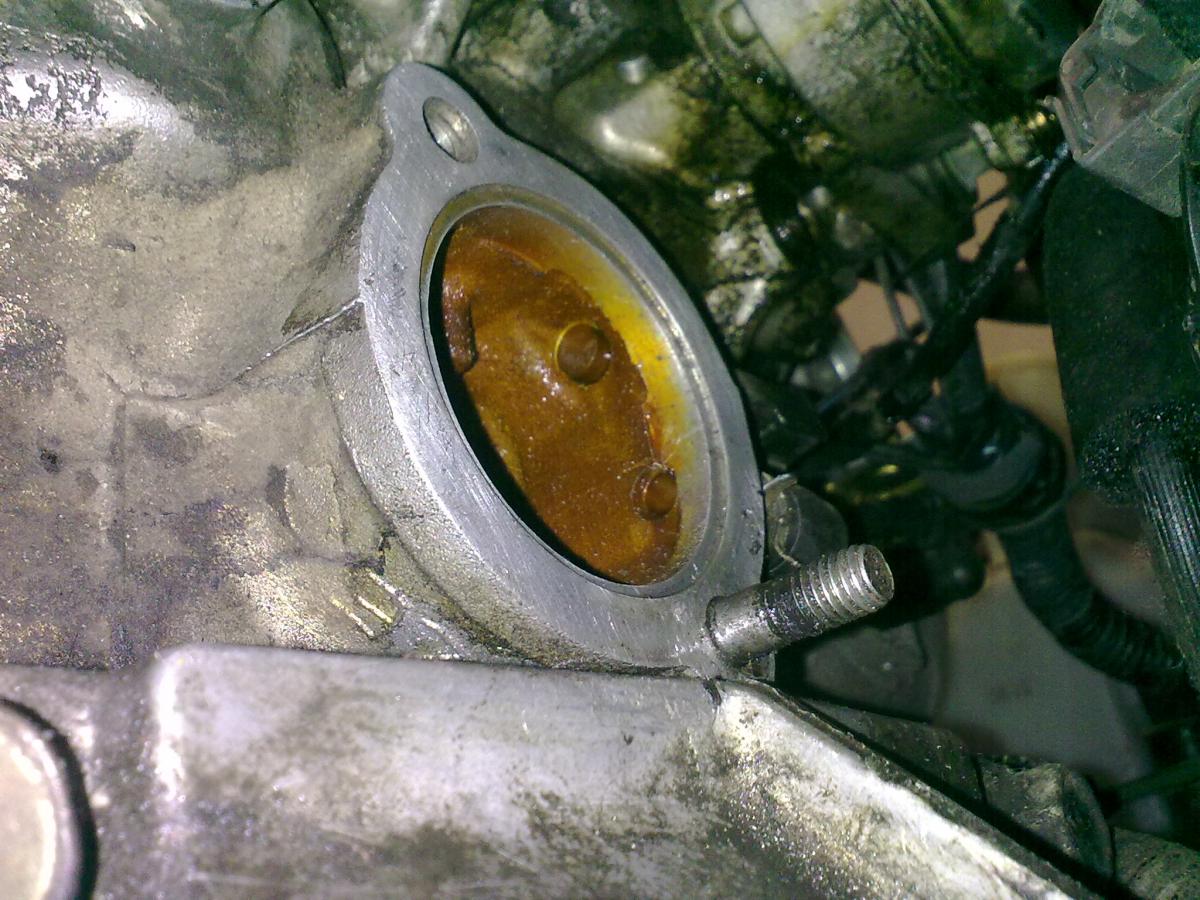

You win this picture of a clean rear water neck attachment point on a B6 engine.
Attached Thumbnails
Coolant leak from back of head?-27012010693.jpg
Laur3ns is offline   Reply With Quote
Old 01-29-2010, 08:50 AM   #14
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

This is a nice picture for future reference:
Laur3ns is offline   Reply With Quote
Old 03-08-2010, 11:06 AM   #15
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Having the same problem right now... thanks for creating this thread with such good pictures!
Newbsauce is offline   Reply With Quote
Old 03-08-2010, 12:53 PM   #16
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Newbsauce View Post
Having the same problem right now... thanks for creating this thread with such good pictures!
No problem. Do drain enough coolant so that that water neck can really dry before you put the new gasket on.
Laur3ns is offline   Reply With Quote
Old 01-08-2011, 02:00 PM   #17
Junior Member

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Default

Quote:
Originally Posted by Spookyfish View Post
No problem. Do drain enough coolant so that that water neck can really dry before you put the new gasket on.
where did you get the gasket from?
chris824 is offline   Reply With Quote
Old 01-08-2011, 03:56 PM   #18
Junior Member

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Default

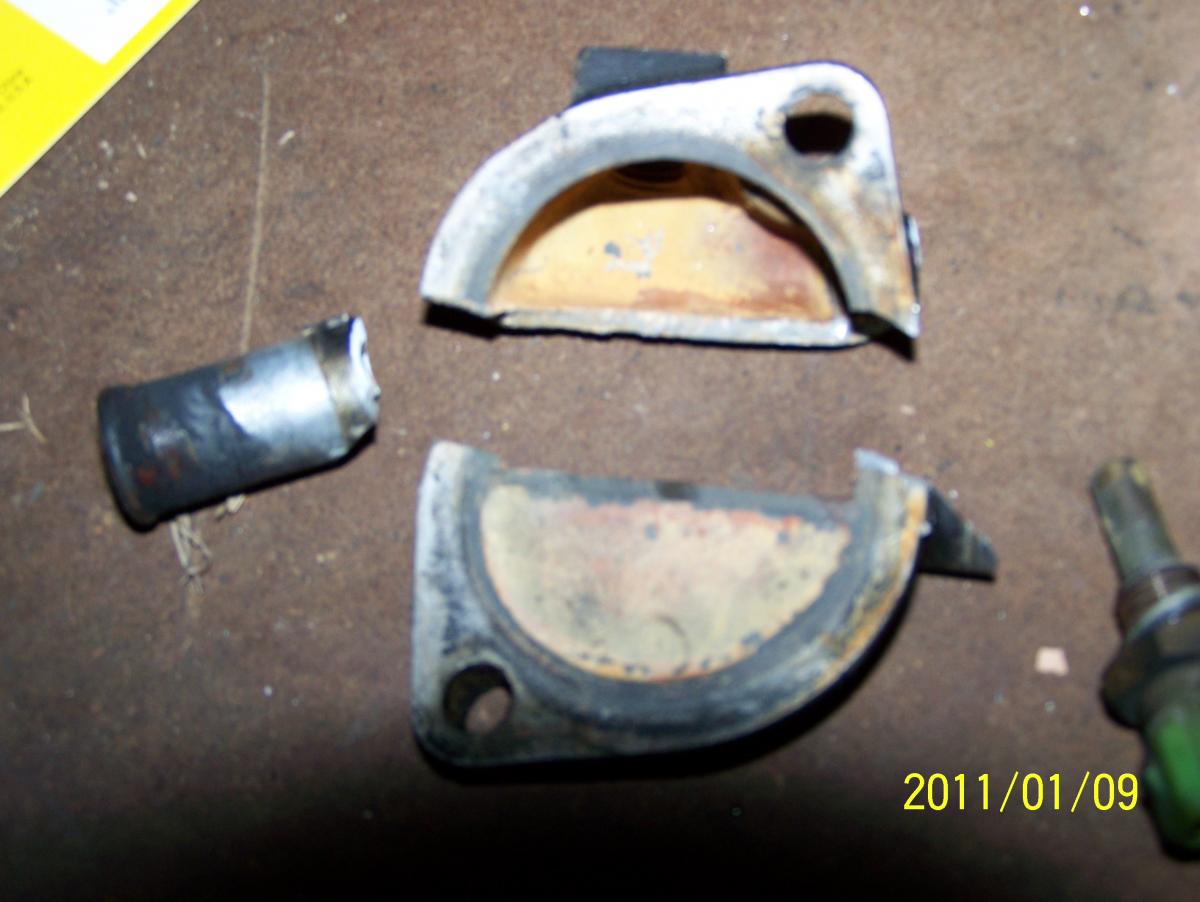

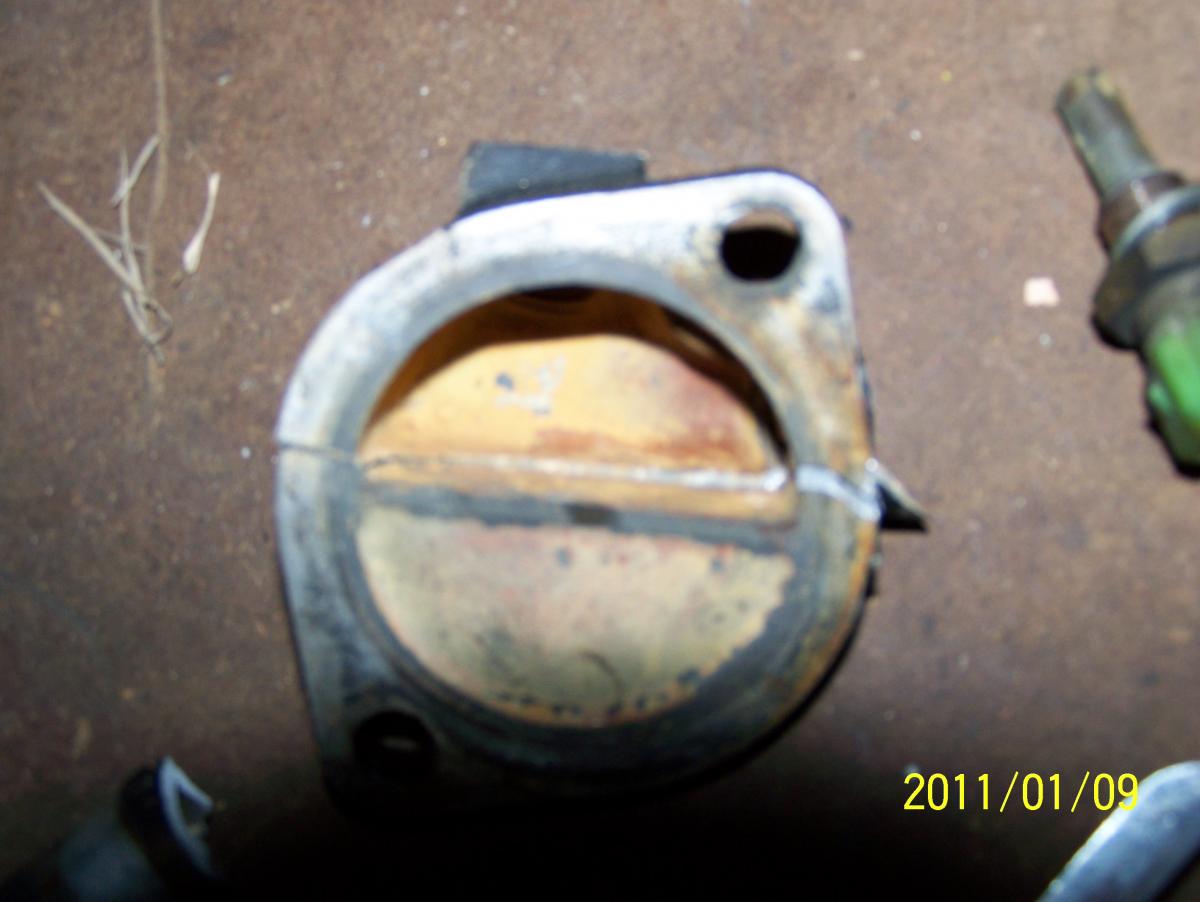

this dont look good i pulled it off to inspect and this is what i found.
chris824 is offline   Reply With Quote
Old 01-08-2011, 04:01 PM   #19
Junior Member

Join Date: Jul 2009
Location: Pineville,LA
Posts: 174
Total Cats: 0
Default

this
Attached Thumbnails
Coolant leak from back of head?-006.jpg   Coolant leak from back of head?-007.jpg
chris824 is offline   Reply With Quote
Old 01-08-2011, 05:30 PM   #20
Senior Member
iTrader: (1)

Join Date: Jul 2009
Location: Batavia, IL
Posts: 604
Total Cats: 0
Default



Now would be a good time for a coolant reroute.
http://www.etdracing.com/m-tuned/pro...products_id=85
You can also fab one up cheaper too, via the picture in the 4th post.
