cyl 4 misfire - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 04-04-2012, 10:45 PM   #1
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default cyl 4 misfire

Driving me crazy. Happened on my second run on Sunday. Got back on the gas after turn 2, no power and sounds like a ------- subaru. MIL flashing. p0304. Fluids didn't mix, nothing out the tailpipe so driving home on 3 cylinders wins vs tow truck.

#4 plug is black. Cleaned up and swapped out with another cylinder. p0304. coil swapped. p0304. All 4 plugs spark. Pull upper im, walls are coated with gas. Injectors all measured 13 ohm. Stock measured 12.

Surely it must be an injector then. Swapped the stock back in, put everything back together. p0304. w.t.f

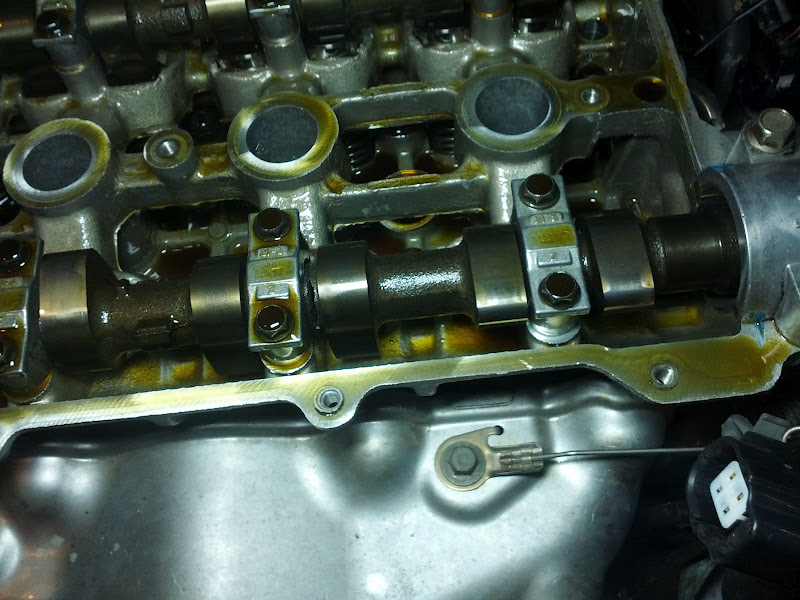

Attached Thumbnails
cyl 4 misfire-img_20120404_191052.jpg
midpack is offline   Reply With Quote
Old 04-04-2012, 11:06 PM   #2
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Oh yeah. Cam cap was loose
midpack is offline   Reply With Quote
Old 04-04-2012, 11:07 PM   #3
Senior Member

Join Date: Nov 2010
Location: Pittsburgh PA
Posts: 1,196
Total Cats: 12
Default

Sounds like it might be running rich, and since cyl. 4 is usually the hottest with a stock cooling configuration, it would be affected first. Any signs/sounds/visuals of detonation events? I assume this happened at the track? If you're running so rich that their is gas sitting on the inside of the intake manifold, I'd start looking for things that would cause the ECU to send extra fuel.



FWIW, if you do not clear the ECU between tests, the codes will remain. Don't know if you tried that.
2ndGearRubber is offline   Reply With Quote
Old 04-05-2012, 12:36 AM   #4
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

yeah i hear that running rich is a common cause of broken camshafts.

Do I need anything to install a new exhaust cam? new caps? Maybe a torque wrench to smash into the shop tech's head that rebuilt my head not 200 miles ago?
midpack is offline   Reply With Quote
Old 04-05-2012, 03:11 AM   #5
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Almost sounds like injector 4 is shorted open in the harness somewhere.
Mobius is offline   Reply With Quote
Old 04-05-2012, 10:04 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

if it's constantly on #4, it has to be the #4 injector, plug, plug wire, or valves/rings.
Braineack is offline   Reply With Quote
Old 04-05-2012, 10:29 AM   #7
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

With only 2 of the 3 cams rotating, exhaust valves on #4 never open. yes, I have 3 cams now. See?

midpack is offline   Reply With Quote
Old 04-05-2012, 10:37 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

more cams more powah!
Braineack is offline   Reply With Quote
Old 04-05-2012, 12:04 PM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Holy ****!!!
Reverant is offline   Reply With Quote
Old 04-05-2012, 12:35 PM   #10
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

It's my patented triple overhead cans TOHC (tm). My car is full of win this year. Fully expect it to spontaneously implode when the MS2 gets installed.
midpack is offline   Reply With Quote
Old 04-05-2012, 01:15 PM   #11
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

A little jb weld and she'll be just fine. just make sure its timed right! lol
Holy ---- that sucks.
hochkis is offline   Reply With Quote
Old 04-05-2012, 01:21 PM   #12
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Wow.

What a man you are.
Faeflora is offline   Reply With Quote
Old 04-05-2012, 02:35 PM   #13
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

snapped cam was going to be my guess...that was until i made it far enough in the thread to get to your photo.
fooger03 is offline   Reply With Quote
Old 04-08-2012, 01:03 AM   #14
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Wow. Wow!

So the next question is, after having driven home with the cam faces grinding against each other, are you going to do anything to clean the motor out? Or just clean out the valve cover area and call it good.
Mobius is offline   Reply With Quote
Old 04-08-2012, 06:11 AM   #15
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by midpack View Post
LOL @ the camshaft breakage that is obvious, but not so obvious, in the first post of thread. That's pretty crazy.
Bryce is offline   Reply With Quote
Old 04-08-2012, 10:55 AM   #16
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

How often does this shi really happen?? And wtffff
Faeflora is offline   Reply With Quote
Old 04-08-2012, 11:30 AM   #17
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Maybe the shop that left the cam cap loose 200 miles ago owes you an engine?
hornetball is offline   Reply With Quote
Old 04-08-2012, 04:04 PM   #18
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

DAMN! That hasn't even happened to Faeflora yet.
flounder is offline   Reply With Quote
Old 04-08-2012, 10:05 PM   #19
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Quote:
Originally Posted by Mobius View Post
Wow. Wow!

So the next question is, after having driven home with the cam faces grinding against each other, are you going to do anything to clean the motor out? Or just clean out the valve cover area and call it good.
FM says to have the journals inspected and if trashed buy a new head since that's cheaper than machining and getting a custom cam ground to match. So head comes off and goes to a non-shitty shop. Instead of working on the car I bought a Yamaha Blaster and spent the weekend getting muddy. Maybe tomorrow.

I figured an oil/filter change would take care of any bits of shaft. The small piece didn't look like there was much in the way of damage, but I never looked at the big piece. 200 miles is a common OCI right?
midpack is offline   Reply With Quote
Old 04-08-2012, 10:08 PM   #20
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Quote:
Originally Posted by hornetball View Post
Maybe the shop that left the cam cap loose 200 miles ago owes you an engine?
Yeah about that. Told me to leave and never come back when I asked about getting $72 for a headgasket they cost me by doing a shitty job on intake valves that leaked after a valve job. Called them last week to see if they wanted to have a discussion, was told there were customers there and would call back in a few minutes. That was Thursday. I'll give it one more try and next time they hear from me will be in small claims. cocksucking ----------ing piece of ------- ---- ********.
midpack is offline   Reply With Quote
