Default Cylinder 2 and 4 not firing

All of a sudden the car is running on two cylinders. There is spark but apparently no fuel. I did a little digging and it was recommended that reflashing the ECU may help the issue. I went ahead and reflashed it and the issue persists. Help I have to go to work in the morning
buffon01 is offline   Reply With Quote
Old 05-31-2014, 11:25 PM   #2
Junior Member
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Wrong section. Need more info on your setup. What standalone are you running?
Gt2560rMiata is offline   Reply With Quote
Old 05-31-2014, 11:39 PM   #3
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Wasn't sure what the real issue is so I figure general chat would do.

I'm on MS1
buffon01 is offline   Reply With Quote
Old 06-01-2014, 01:53 PM   #4
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Anyone, please :(
buffon01 is offline   Reply With Quote
Old 06-01-2014, 03:08 PM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Sequential module fell out?
Reverant is offline   Reply With Quote
Old 06-01-2014, 05:52 PM   #6
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Never had sequential. It's running COP on waste spark.
Attached Files
File Type: msq 2014-05-20_17.33.04.msq (41.1 KB, 45 views)
buffon01 is offline   Reply With Quote
Old 06-01-2014, 05:52 PM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Sequential injection, not ignition.
Reverant is offline   Reply With Quote
Old 06-01-2014, 06:28 PM   #8
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Sorry I misread. I don't have anything sequential... that I know of. I thought MS1 wasn't capable of that. I checked the wiring harness and all seems fine. I opened MS and didn't see anything out of place.
buffon01 is offline   Reply With Quote
Old 06-02-2014, 05:00 PM   #9
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I inspected the injector to make sure that they were not firing. I switched 1 with 2 and 3 with 4 to check if they were stuck and they are not. All for injector can squirt. I then checked the voltage at the harness and all 4 clips showed 12v with the ignition on. Then I cleaned the grounds under the brake booster and #2 and #4 still won't fire.

Is MS not grounding the injectors? or am I missing something?
buffon01 is offline   Reply With Quote
Old 06-02-2014, 06:49 PM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Sounds like driver #2 that drives injectors 2 and 4 has gone belly up.
Reverant is offline   Reply With Quote
Old 06-02-2014, 07:03 PM   #11
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

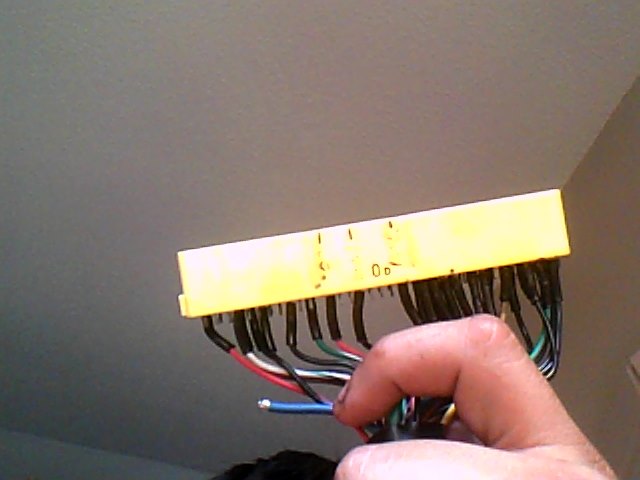

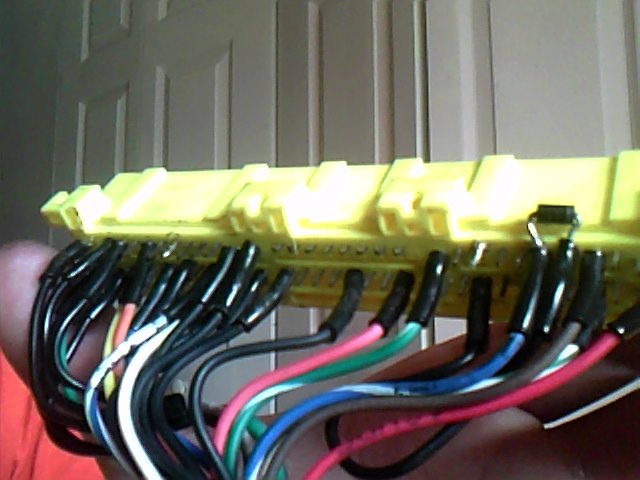

So I just discovered the harness has a cable that came apart from the pin.

I've looked for the harness diagrams but it seems that the site hosting the images is no longer up and couldn't find anything that could guide me.

I looks like it belongs to this pin (there seems to be some solder residue)

Quote:
Originally Posted by Reverant View Post
Sounds like driver #2 that drives injectors 2 and 4 has gone belly up.
Do you have a wiring diagram?
Attached Thumbnails
Cylinder 2 and 4 not firing-snapshot_20140602_1.jpg   Cylinder 2 and 4 not firing-snapshot_20140602_2.jpg
buffon01 is offline   Reply With Quote
Old 06-02-2014, 08:20 PM   #12
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by buffon01 View Post
So I just discovered the harness has a cable that came apart from the pin.

I've looked for the harness diagrams but it seems that the site hosting the images is no longer up and couldn't find anything that could guide me.

I looks like it belongs to this pin (there seems to be some solder residue)



Do you have a wiring diagram?
The MS was build by Braineack right? I can see if I can dig up a wiring diagram when I get some time, honestly don't know when that will be though.
shuiend is offline   Reply With Quote
Old 06-02-2014, 09:18 PM   #13
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by shuiend View Post
The MS was build by Braineack right? I can see if I can dig up a wiring diagram when I get some time, honestly don't know when that will be though.
Yeah he built it. Thanks
buffon01 is offline   Reply With Quote
Old 06-02-2014, 09:32 PM   #14
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

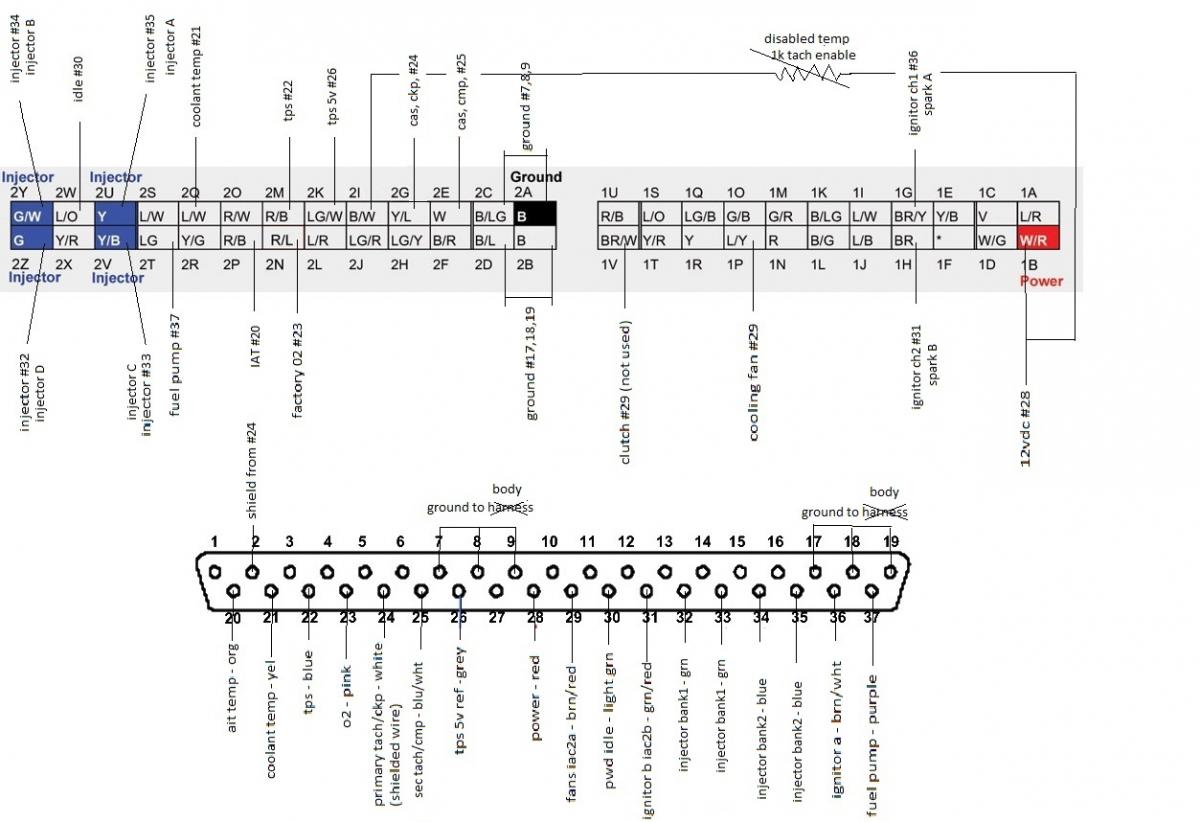

So I managed to dig this diagram out. If this is correct, then the blue wire that came off the pin is the for the injector bank.
Attached Thumbnails
Cylinder 2 and 4 not firing-standalone-harness.jpg
buffon01 is offline   Reply With Quote
Old 06-02-2014, 10:54 PM   #15
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Frank's site has a picture at the bottom that might also help.
