Default Dash Gauge Choices

I currently have a AFR gauge (not hooked up), boost gauge, and an intercooler temperature gauge. The first and third being pretty much useless to me. Do to my recent overheating issues I've been wanting to get a Water Temperature gauge.

I did a search and found almost nothing. I was curious as to what everyone runs as far as...

Brand (who is reliable, who is not?)
Half or Full Sweep (Do Half Sweeps suffice or is it better to get full sweep?)
Mechanical or Electrical
Analog or Digital (are digital hard to read in sun with top down?)
What gauges do you have in your dash, which do you find the most important?
RavynX is offline   Reply With Quote
Old 08-23-2010, 04:07 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

how is AFR useless? hook it up, its one of the most important gauges. And LOL at intercooler temp gauge. Might as well run a blinker fluid gauge

I've heard good opinions about omori
18psi is offline   Reply With Quote
Old 08-23-2010, 04:09 PM   #3
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I have Prosport is very consistent with what I see on MS.
buffon01 is offline   Reply With Quote
Old 08-23-2010, 04:14 PM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Intercooler temperature. Interior Crocodile?

Do you mean IAT intake air temperature?

I am running or soon will be

AFR (soon)
Water temp
Oil temp (soon)
Oil pressure
EGT
boozt
knock
Faeflora is offline   Reply With Quote
Old 08-23-2010, 04:21 PM   #5
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by 18psi View Post
how is AFR useless? hook it up, its one of the most important gauges. And LOL at intercooler temp gauge. Might as well run a blinker fluid gauge

I've heard good opinions about omori
Previous owner installed the gauges, they're from TDR. The AFR one was disconnected when the previous owner installed the Hydra Nemesis EMS, or at least that is what we assumed. @ blinker fluid.
RavynX is offline   Reply With Quote
Old 08-23-2010, 05:04 PM   #6
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

It really depends on how much you can spend. I mean Defi gauges are real nice, but $$$$
cardriverx is offline   Reply With Quote
Old 08-23-2010, 05:05 PM   #7
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I definitely keep the AFR gauge. Going to a gauge style WBo2 setup is the only positive thing from my non-gauge style crapping out.

Then I have boost gauge, I now have a third slot that needs to be filled. IMO an IAT gauge is useless accept for knowing outside temp when I get in the car.

I've heard that the OP gauge on the early miatas are pretty good. Oil temp or coolant temp would be my choices
miatauser884 is offline   Reply With Quote
Old 08-23-2010, 05:12 PM   #8
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by RavynX View Post
I currently have a AFR gauge (not hooked up), boost gauge, and an intercooler temperature gauge. The first and third being pretty much useless to me. Do to my recent overheating issues I've been wanting to get a Water Temperature gauge.

I did a search and found almost nothing. I was curious as to what everyone runs as far as...

Brand (who is reliable, who is not?)
Half or Full Sweep (Do Half Sweeps suffice or is it better to get full sweep?)
Mechanical or Electrical
Analog or Digital (are digital hard to read in sun with top down?)
What gauges do you have in your dash, which do you find the most important?
Well everyone thinks what they run is best but my setup is bestest. I have a PLX DM-100 setup so my oil pressure, oil temp, water temp will make my gauge flash when **** exceeds my thresholds. Mad neato. AFR will be on the screen full time, but if say my oil pan rips off my gauge will start flashing because of zero oil pressure. 4 gauges in one for the win.

I do have mechanical boost and EGT though. Why? Mechanical boost is super cheap and reliable. EGT is dual needle (dual probe) westach and was a lot of money. I would have bought PLX but that **** was not out at the time I got the Westach setup.

I have the stock stuff in my dash. Seriously, check out the plx stuff- you can buy it from a forum member and it is very little $ mroe than piles of conventional gauges.
Faeflora is offline   Reply With Quote
Old 08-24-2010, 12:53 AM   #9
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Quote:
Originally Posted by djp0623 View Post
I definitely keep the AFR gauge. Going to a gauge style WBo2 setup is the only positive thing from my non-gauge style crapping out.
I'll need to see if I can hook into the existing sensor they were previously using as I agree that a AFR gauge is useful.

Quote:
Originally Posted by faeflora View Post
Well everyone thinks what they run is best but my setup is bestest. I have a PLX DM-100 setup so my oil pressure, oil temp, water temp will make my gauge flash when **** exceeds my thresholds. Mad neato. AFR will be on the screen full time, but if say my oil pan rips off my gauge will start flashing because of zero oil pressure. 4 gauges in one for the win.

I have the stock stuff in my dash. Seriously, check out the plx stuff- you can buy it from a forum member and it is very little $ mroe than piles of conventional gauges.
Are those PLX gauges easy to see in the daylight with the top down?
RavynX is offline   Reply With Quote
Old 08-24-2010, 01:01 AM   #10
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

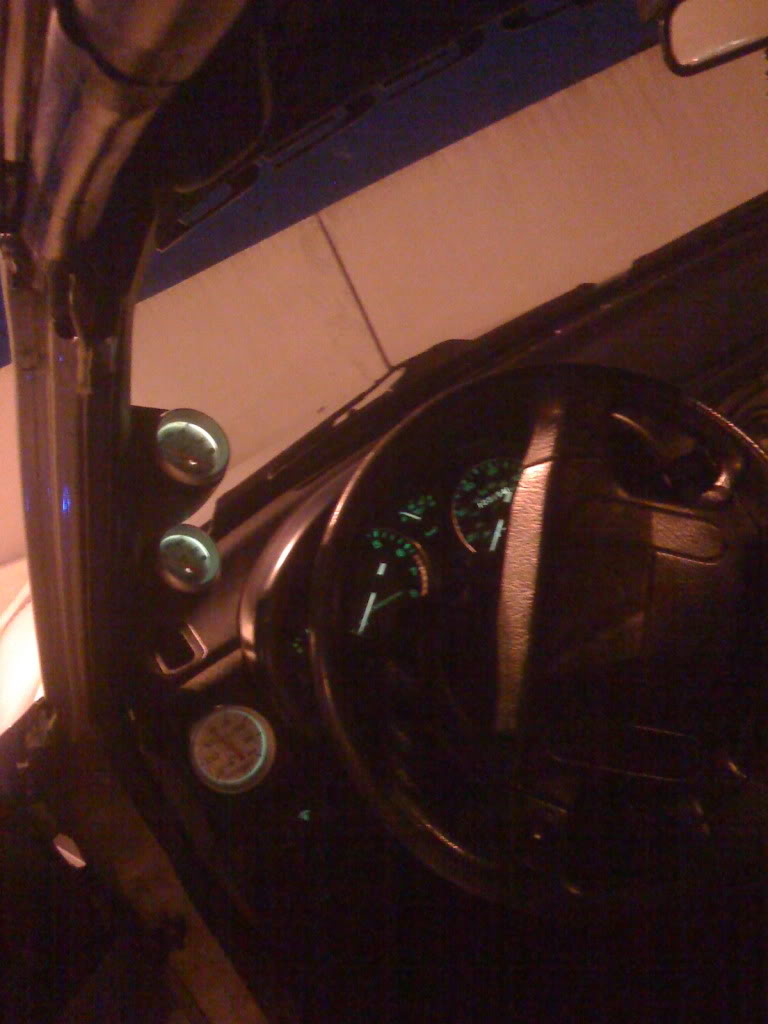

I have autometer everything minus my AFR which is AEM, but I have oil pres, oil temp, h2o temp, vac/boost, and that's all she wrote all electric minus vac lol I need a better pic you get the point though Name:  IMG_0163.jpg
Views: 15
Size:  78.7 KB
p51hellfire is offline   Reply With Quote
