Lightbulb DIY frame rail reinforcement...

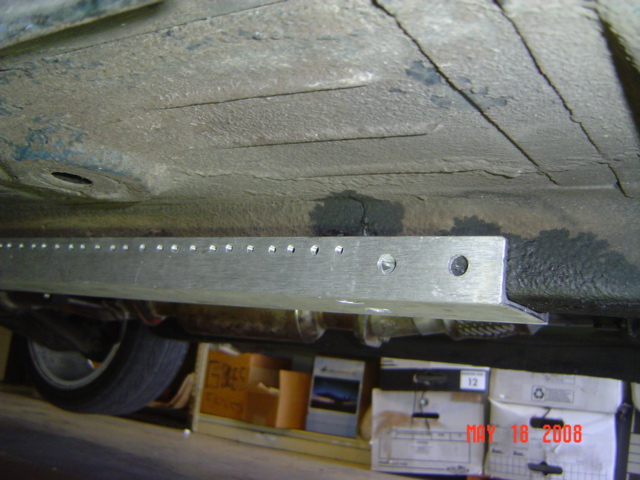

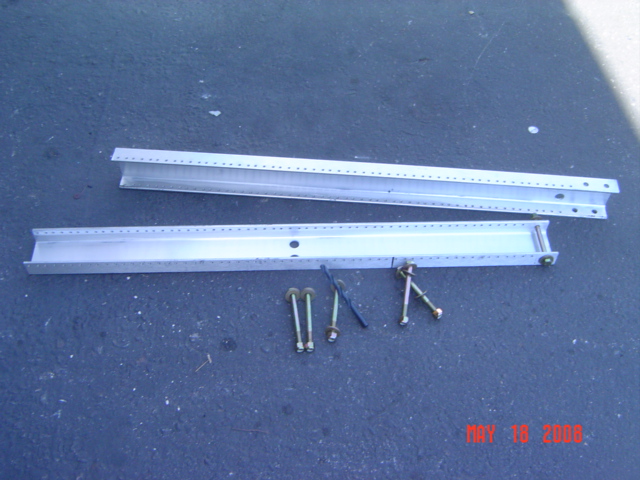

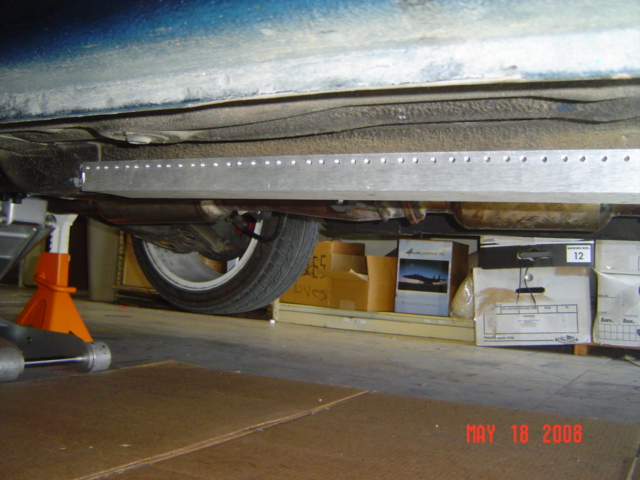

So I was thinking about FM's frame rail reinforcement...when a friend of mine showed me his. Aluminum rails out of computer server racks! Perfect width. Just cut to length, slip over rails, drill holes, and bolt up! (unless your rails are beat to s#*t like mine) So after some "massaging" in they went..cost me $18.00 in hardware...as opposed to $199.00. Here's a few pics:
Attached Thumbnails
DIY frame rail reinforcement...-turbo-build-069.jpg   DIY frame rail reinforcement...-turbo-build-073.jpg   DIY frame rail reinforcement...-turbo-build-071.jpg   DIY frame rail reinforcement...-turbo-build-072.jpg
MX54PLA is offline   Reply With Quote
Old 05-19-2008, 12:51 AM   #2
Junior Member

Join Date: Nov 2007
Location: Nellis AFB
Posts: 189
Total Cats: 1
Default

Did they work well... can you feel any difference
mr_mazda329 is offline   Reply With Quote
Old 05-19-2008, 12:54 AM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2008
Location: Ventura, CA.
Posts: 220
Total Cats: 0
Default

Quote:
Originally Posted by mr_mazda329 View Post
Did they work well... can you feel any difference
Feels a bit tighter...but haven't really had a chance to push it..just finished about an hour ago.
MX54PLA is offline   Reply With Quote
Old 05-19-2008, 12:57 AM   #4
Junior Member

Join Date: Nov 2007
Location: Nellis AFB
Posts: 189
Total Cats: 1
Default

Cool... Not bad for $18. Go test it out more
mr_mazda329 is offline   Reply With Quote
Old 05-19-2008, 01:00 AM   #5
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

pretty cool, i'm wondering how sturdy those rails are?
Mach929 is offline   Reply With Quote
Old 05-19-2008, 01:02 AM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2008
Location: Ventura, CA.
Posts: 220
Total Cats: 0
Default

Quote:
Originally Posted by Mach929 View Post
pretty cool, i'm wondering how sturdy those rails are?
They are pretty thick...I was standing on them while drilling holes....NO FLEX!!
MX54PLA is offline   Reply With Quote
Old 05-19-2008, 01:10 AM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Did you just bolt through the sides or did you bolt up through the floor as well?
cjernigan is offline   Reply With Quote
Old 05-19-2008, 01:12 AM   #8
Junior Member

Join Date: Dec 2007
Location: San Diego to LA, CA
Posts: 297
Total Cats: 0
Default

thats cool, but the point of the FM rails is that they mount to the floor pans increase the stiffness along them.

Good idea though. if you mount some traverse reinforcement across those racks I am sure you will get a noticeable difference
91NApeewee is offline   Reply With Quote
Old 05-19-2008, 01:13 AM   #9
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2008
Location: Ventura, CA.
Posts: 220
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Did you just bolt through the sides or did you bolt up through the floor as well?
Floor as well
MX54PLA is offline   Reply With Quote
Old 05-19-2008, 01:14 AM   #10
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2008
Location: Ventura, CA.
Posts: 220
Total Cats: 0
Default

Quote:
Originally Posted by 91NApeewee View Post
thats cool, but the point of the FM rails is that they mount to the floor pans increase the stiffness along them.

Good idea though. if you mount some traverse reinforcement across those racks I am sure you will get a noticeable difference
Yes..thats the next DIY project
MX54PLA is offline   Reply With Quote
Old 05-19-2008, 01:17 AM   #11
Junior Member

Join Date: Dec 2007
Location: San Diego to LA, CA
Posts: 297
Total Cats: 0
Default

DId you drill up through the center of the frame rails to mount them to the floor?
91NApeewee is offline   Reply With Quote
Old 05-19-2008, 01:20 AM   #12
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Where did you get the rails? Do you have a part number or something?
wes65 is offline   Reply With Quote
Old 05-19-2008, 01:23 AM   #13
Junior Member

Join Date: Jan 2008
Posts: 138
Total Cats: 0
Default

might find them at Fry's
silentbob343 is offline   Reply With Quote
Old 05-19-2008, 01:26 AM   #14
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by silentbob343 View Post
might find them at Fry's
I might have to see where the closest one is, im not sure.
wes65 is offline   Reply With Quote
Old 05-19-2008, 01:40 AM   #15
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

awwwwww dammit and here I had access to a bunch of those two post rack extrusions about a month ago. free. but didn't take them.
y8s is offline   Reply With Quote
Old 05-19-2008, 01:51 AM   #16
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

For reference:

FMs


kenzo42 is offline   Reply With Quote
Old 05-19-2008, 02:05 AM   #17
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

I like this idea alot. Your gonna connect to two rails next right? What exactly from a shelf is that?

This makes me want to get two street sign posts and a sign to connect them both. I remember seeing a miata with a street sign under the car somewhere.

Vash-
Vashthestampede is offline   Reply With Quote
Old 05-19-2008, 03:11 AM   #18
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2008
Location: Ventura, CA.
Posts: 220
Total Cats: 0
Default

Quote:
Originally Posted by Vashthestampede View Post
I like this idea alot. Your gonna connect to two rails next right? What exactly from a shelf is that?

This makes me want to get two street sign posts and a sign to connect them both. I remember seeing a miata with a street sign under the car somewhere.

Vash-
I remember waking up once with a street sign stuck under my car....I think there was a mailbox and a trash can too
MX54PLA is offline   Reply With Quote
Old 05-19-2008, 12:13 PM   #19
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Very innovative, sort of I guess, great idea, I like $18 much better than $200.
I just might copy you here.
Zabac is offline   Reply With Quote
Old 05-19-2008, 01:45 PM   #20
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by MX54PLA View Post
So after some "massaging" in they went
What exactly did that entail?
I can see some grinder work and perhaps some hammering. Was it that the rail was slightly wider than the track in the bracing, or was your rail uneven down it's length and you just smoothed it out.

How did you hurt your frame rails that bad in the first place?
What is the width of the rack you're using?

Do you think that these braces would "slip" over an unmolested frame rail?
What would be ideal is if the brace .001" wider than the rail and you would simply tap it up into place with a rubber mallet. Rigging up a crossbrace would be a really simple proposition.

Is there any dramatic difference in the undercarriage between the years. I know FM's brace is "universal", but is there anything to consider along those lines?
samnavy is offline   Reply With Quote
