Well this thread is going straight in line with where I'm at too. Hacked the rear fenders out for the flares yesterday... have 5 9"ULs pre-ordered (always have a spare). I just wish I had some 275s to mount to make sure I have the clearance, but since I don't, I'm taking as much out as I can and still be able mount the flares.

Back to the splitter... is there some magic formula/ratio for splitter 'projection' (ie 1-4") surface area to rear wing area? I hear you can run with the rear wing alone, but don't want to run a splitter by itself. Put the 2 on and how do you know you have the 'right' splitter:wing ratio?
GeneSplicer is offline   Reply With Quote
Old 01-31-2010, 12:52 AM   #102
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

It's not really a matter of area - you make the splitter as big as possible in order to utilize the most rear downforce while still maintaining a neutral balance. Wings are adjustable, splitters generally aren't.
Savington is offline   Reply With Quote
Old 02-01-2010, 06:40 PM   #103
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by GeneSplicer View Post
Well this thread is going straight in line with where I'm at too. Hacked the rear fenders out for the flares yesterday... have 5 9"ULs pre-ordered (always have a spare). I just wish I had some 275s to mount to make sure I have the clearance, but since I don't, I'm taking as much out as I can and still be able mount the flares.

Back to the splitter... is there some magic formula/ratio for splitter 'projection' (ie 1-4") surface area to rear wing area? I hear you can run with the rear wing alone, but don't want to run a splitter by itself. Put the 2 on and how do you know you have the 'right' splitter:wing ratio?

Here is the thread where I hacked up my fenders and installed flares.

I did extensive articulation studies with the springs removed from my shocks. The 15X9 6UL’s with 275/35’s I felt needed 15mm spacers for enough bump clearance on the inside edge both front and rear.
https://www.miataturbo.net/forum/t42620/

Last weekend I installed a 6 speed. And a 1" 929 master cylinder. I still need some additions to my splitter spats, dive planes, canards or whatever you want to call them I am still working out some DIY designs.

Bob
bbundy is offline   Reply With Quote
Old 02-01-2010, 06:56 PM   #104
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by ronmastas View Post
wow, I didn't realized I was this late to the thread.

Anyhow, I wanted to say hi. I was at the track event hosted by Team Miata 2 years ago * i think* at Reno-Fernley. I think we were the few people from Washington state that made it down there. I was in my ls1 240sx. I was so cheering you on as you had your way with that Ferrari 430. He wasn't a slow driver from watching from the hot pits. Looked like a fun battle. In the last year, I lost my miata virginity and realized how much of an amazing car it was. In hindsight, wish I had a chance to talk to you then. I should hopefully develop a miata for lapping days this upcoming season.
-Ronald
Yea that was a fun event. I think It was my forth of 7 5 speed transmissions that I broke late in the day Saturday and found a replacement at a local salvage yard had it at the track by 5pm and had it in the car working by myself in the pits with my wife handing me tools by 8pm Ran the next day with it and drove it the 800 miles home on Monday. Broke transmission again two weeks later at an autocross.

The car wasn’t running good due to boost issues. The waste gate door was catching and staying open so the car was incredibly laggy but it was still dam fast when it was spooled. Learned a lesson about waste gate porting on that one.

Bob

Last edited by bbundy; 02-01-2010 at 08:08 PM.
bbundy is offline   Reply With Quote
Old 02-01-2010, 07:53 PM   #105
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Damn Bob I wish I had a lift in my garage. Thats awesome.
turotufas is offline   Reply With Quote
Old 02-01-2010, 11:15 PM   #106
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

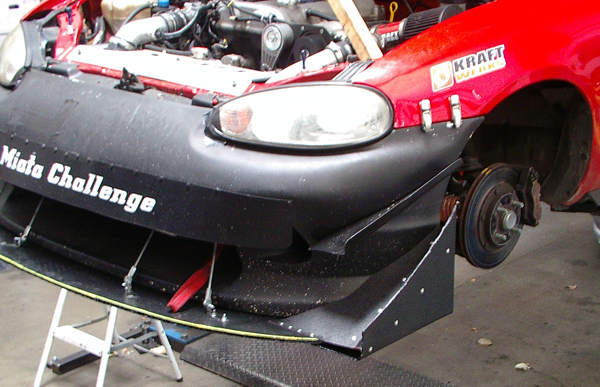

mine. a bit ugly, but works.
Attached Thumbnails
DIY front splitter.-william_nb_diveplane.jpg
bellwilliam is offline   Reply With Quote
Old 02-01-2010, 11:34 PM   #107
Junior Member

Join Date: Mar 2009
Location: maine
Posts: 224
Total Cats: -1
Default

i'm suprised no one has tried useing plexi or lexan. the plastics are very durable and pretty easy to cut.
94blackmx5 is offline   Reply With Quote
Old 02-01-2010, 11:41 PM   #108
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by bellwilliam View Post
mine. a bit ugly, but works.
looks good to me

Function over form
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-02-2010, 02:55 AM   #109
Senior Member
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

94blackmx5- Have you read the whole thread?

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 02-02-2010, 02:34 PM   #110
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by bellwilliam View Post
mine. a bit ugly, but works.
What materials did you use for that? I ordered some 1/8" Black ABS and was looking to make something very similar for the ends in front of the front tires. I was thinking about to getting some of the cheap Ebay canards as well.

Bob
bbundy is offline   Reply With Quote
Old 02-02-2010, 02:36 PM   #111
Junior Member

Join Date: Mar 2009
Location: maine
Posts: 224
Total Cats: -1
Default

Quote:
Originally Posted by Jfornachon View Post
94blackmx5- Have you read the whole thread?

Have a great day,
Jared
yes i have and there is plenty of mention of wood aluminum and abs. But no one has tried .5" plexi glass or lexan. Have a great day
94blackmx5 is offline   Reply With Quote
Old 02-02-2010, 02:44 PM   #112
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

Quote:
Originally Posted by bbundy View Post
What materials did you use for that? I ordered some 1/8" Black ABS and was looking to make something very similar for the ends in front of the front tires. I was thinking about to getting some of the cheap Ebay canards as well.

Bob
splitter - it is a material we source locally. they use this same material for building containers for military. ~$180 for a sheet of 5x8 (not 4x8), 5/8" thick. it is corrugated plastic. they come in different thickness.

canard - it is just same material you use. 1/8" ABS plastic. top piece is aluminum.
bellwilliam is offline   Reply With Quote
Old 02-02-2010, 05:40 PM   #113
Senior Member
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

Quote:
Originally Posted by 94blackmx5 View Post
yes i have and there is plenty of mention of wood aluminum and abs. But no one has tried .5" plexi glass or lexan. Have a great day
Since I have not used those materials. I am going to assume that you have. However I would think that they would react the same way the other plastics would in the event that they make contact with a burm or other surface.

I would aslo venture to say if someone has used it here that they would have mentioned it by now. I would love to find out how they hold up. If you can do it reasonably please do it and let us know how if works. That would be a great help to us all.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 02-02-2010, 06:14 PM   #114
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by 94blackmx5 View Post
yes i have and there is plenty of mention of wood aluminum and abs. But no one has tried .5" plexi glass or lexan. Have a great day
Significantly heavier than plywood maybe a bit stiffer than ABS. I suspect the corrugated plastic bellwilliam is using is some good lightweight stuff. I couldn’t find anything like that readily available.

Bob
bbundy is offline   Reply With Quote
Old 02-02-2010, 06:30 PM   #115
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

There's lighter stuff out there, if you want to spend between 4 and 10 times the cost of plywood.

I built a splitter for someone else on here that's basically identical to mine. He went off at Buttonwillow in December and tore the splitter off the car. The wood survived being torn off, and run over. He's building a new aluminum frame for it and bolting it back onto the car. It doesn't get more durable than that.
Savington is offline   Reply With Quote
Old 02-02-2010, 06:41 PM   #116
Junior Member
iTrader: (1)

Join Date: Jan 2008
Posts: 161
Total Cats: 0
Default

Wrong thread (edited)...

Last edited by psiturbo; 02-02-2010 at 06:56 PM. Reason: JDMPOWELOL
psiturbo is offline   Reply With Quote
Old 02-02-2010, 06:45 PM   #117
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by psiturbo View Post
*random dorifto crap*
...
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-02-2010, 06:55 PM   #118
Junior Member
iTrader: (1)

Join Date: Jan 2008
Posts: 161
Total Cats: 0
Default stupid

Quote:
Originally Posted by Full_Tilt_Boogie View Post
*random dorifto crap*
...
psiturbo is offline   Reply With Quote
Old 02-02-2010, 09:52 PM   #119
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

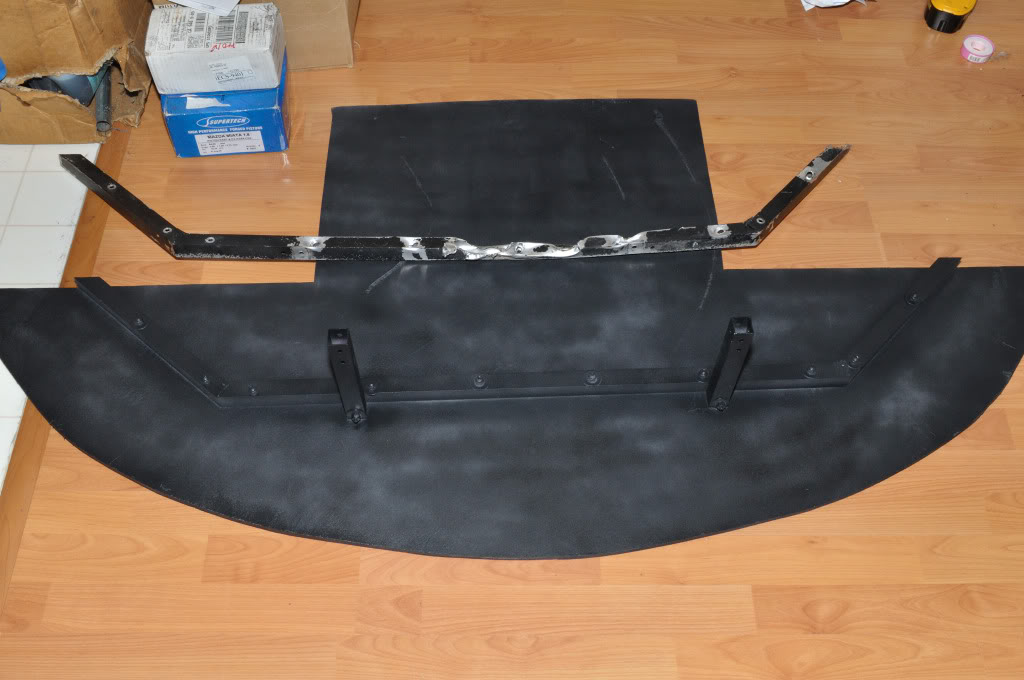

Here's the splitter I ran over and fixed up along with the old mounting bracket. It needs another coat of paint to hide the primer, but it mounts up just fine.

Name:  DSC_7715.jpg
Views: 83
Size:  139.9 KB
orion4096 is offline   Reply With Quote
