Old 11-24-2009, 03:19 PM   #41
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

Quote:
Originally Posted by hustler View Post
also don't forget that plastic is much less likely to go through heat exchangers than metal.
?????? my aluminum splitter will bend, not explode into radiator killing shards like glass? or what do you mean?
spoolin2bars is offline   Reply With Quote
Old 11-24-2009, 03:47 PM   #42
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by MicaCeli View Post
He is 145lbs.

Looks like they had to redo the place where the rods mounted to the body.

Before



After



Another reason that allot of people use wood especialy on the track is that if you have an off or damage the front splitter Alum will bend and f up your air-dynamics in the front. Wood will just break off.
there will be a 3rd redesign.
y8s is offline   Reply With Quote
Old 11-24-2009, 04:10 PM   #43
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I made the end plates for my wing from birch plywood laminated with 1/16" ABS on both sides (I laminated it myself) That way I get the best of both worlds: the lightness of the birch, and the durability of the ABS. 1/16" ABS sheet is a lot cheaper than 1/4" ABS. IIRC I bought a 1/16" x 4' x 8' sheet of black ABS locally for about $35, maybe less.

I will be making my next splitter with the same material.
ZX-Tex is offline   Reply With Quote
Old 11-24-2009, 04:23 PM   #44
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by y8s View Post
there will be a 3rd redesign.
did they use a "bend-n-break" for that? I'm not sure there's a measurable improvement from the first to the second given the force it's up against.
m2cupcar is offline   Reply With Quote
Old 11-24-2009, 04:38 PM   #45
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

Quote:
Originally Posted by m2cupcar View Post
did they use a "bend-n-break" for that? I'm not sure there's a measurable improvement from the first to the second given the force it's up against.
Yeah, I found that interesting.

I think they should of started off with a thicker splitter. Although I've seen cars at the track with like 6-8 Splitter rods in the front. If it still bends at speed add more rods.
MicaCeli is offline   Reply With Quote
Old 11-24-2009, 04:56 PM   #46
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

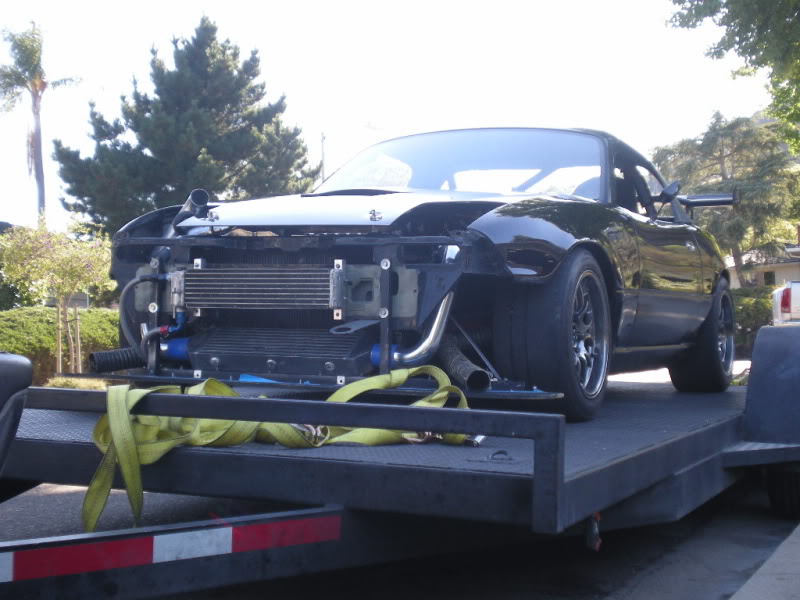

Name:  DSCN1596.jpg
Views: 206
Size:  117.3 KB

You can see the supports and such there. One of the supports is kinked now, but only on one side because the car scrapes when I back it out of the driveway.

Quote:
Originally Posted by MicaCeli View Post
If it still bends at speed add more rods.
Priced out one of those rods recently? They aren't cheap.
Savington is offline   Reply With Quote
Old 11-24-2009, 05:18 PM   #47
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by m2cupcar View Post
did they use a "bend-n-break" for that? I'm not sure there's a measurable improvement from the first to the second given the force it's up against.
i may be crazy but the "after" shot looks like the bracket's broken at the bend. wat.
y8s is offline   Reply With Quote
Old 11-24-2009, 05:20 PM   #48
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

ha, i saw that too.
Braineack is offline   Reply With Quote
Old 11-24-2009, 06:17 PM   #49
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

some interesting ideas!
zoomin is offline   Reply With Quote
Old 11-25-2009, 03:24 PM   #50
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Interesting I found this write up that shows how to do the DIY plywood/fiberglass splitter almost exactly the way I was devising to do it myself. At least the layup part. they are using 3/8" plywood.

http://specialprojectsms.com/image/TECHNICAL-2.gif

FWIW we also have sheets of ” ABS at my work. comparing a small chunk of it to a small chunk of my plywood. The ABS is significantly heavier and not even close in stiffness.

Bob
bbundy is offline   Reply With Quote
Old 11-25-2009, 03:33 PM   #51
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by bbundy View Post
FWIW we also have sheets of ABS at my work. comparing a small chunk of it to a small chunk of my plywood. The ABS is significantly heavier and not even close in stiffness.

Bob
Exactly. That is why I am doing the laminate. It is much lighter and much stiffer for about the same thickness.
ZX-Tex is offline   Reply With Quote
Old 11-25-2009, 03:43 PM   #52
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by spoolin2bars View Post
?????? my aluminum splitter will bend, not explode into radiator killing shards like glass? or what do you mean?
If the splitter sees and scoops dirt, its coming off and either the radiator is going to break it or its going to break the radiator depending upon the design.
hustler is offline   Reply With Quote
Old 11-25-2009, 04:04 PM   #53
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Sav: this is what you used?
Laur3ns is offline   Reply With Quote
Old 11-25-2009, 04:48 PM   #54
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

It wasn't wood Andrew, it was "tie-dye carbon fiber", lol.

I know I'm late to the party here, but walking around the paddock at Daytona and LS you see a lot of wood splitters, and a lot of wooden scrape plates too under the front ends of some cars. The wear characteristics are something to consider with the material you choose, Sav was scraping the splitter every time around on the corkscrew, dunno what would've happened had it been something other than wood.
kotomile is offline   Reply With Quote
Old 11-25-2009, 08:22 PM   #55
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Now I know cost is some of the reason for using ply wood but why not laminate it with carbon fiber instead of fiberglass, I now it costs more but wouldn't it be stronger? and its the same proses, its not like it would cost that much to do on your own.
Gotpsi? is offline   Reply With Quote
Old 11-25-2009, 10:28 PM   #56
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Dallas, TX
Posts: 220
Total Cats: 1
Default

Quote:
Originally Posted by kotomile View Post
It wasn't wood Andrew, it was "tie-dye carbon fiber", lol.

I know I'm late to the party here, but walking around the paddock at Daytona and LS you see a lot of wood splitters, and a lot of wooden scrape plates too under the front ends of some cars...
The "scrape plates" are usually made of jabrock, a very hard wood.
modernbeat is offline   Reply With Quote
Old 11-25-2009, 11:54 PM   #57
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,684
Total Cats: 216
Default

A thought just occurred to me.
Trees are carbon based life forms, therefor:
Wood = Carbon Fiber

XD
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-26-2009, 04:22 PM   #58
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Quote:
Originally Posted by Gotpsi? View Post
Now I know cost is some of the reason for using ply wood but why not laminate it with carbon fiber instead of fiberglass, I now it costs more but wouldn't it be stronger? and its the same proses, its not like it would cost that much to do on your own.
The raw carbon weave material would cost 3-4x what it cost me to build my entire splitter. Then you have to buy resin, peel-ply, own a vacuum pump, chromate tape, etc. Buy the plywood in 1/2", it's stiff enough to stand up to a lot of abuse, and you don't have to cover it in anything but black spray paint to protect your dignity.
Savington is offline   Reply With Quote
Old 11-26-2009, 06:08 PM   #59
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Savington View Post
you don't have to cover it in anything but black spray paint to protect your dignity.
Lolz.

Is this worth it without a rear wing Sav? I thought I remember you doing the wing before the splitter. I was considering going to Home Depot Motorsports for splitter plywood, and air dam siding. But if it'll make me too much over steer prone, I'll wait till I have money to blow on a wing, which will probably be never. Hopefully I'll get around to the air dam no matter what.
curly is offline   Reply With Quote
Old 11-26-2009, 06:28 PM   #60
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Here's a splitter Savington made for me for use with the oem bumper and r-lip.

orion4096 is offline   Reply With Quote


Reply
