Default Exhaust manifold / downpipe removale problem.

Hey guys,

Pulling out my 01+ header and stock downpipe to make room for my BEGi S6 system, and one of the @#$!$ nuts going from the header to the downpipe rounded off on me! Is there any way to pull the manifold and downpipe up through the top? If not, I will have to reach up in there with a die grinder and grind that nut off (probably ruin the stud in the process)...

I tried a bit to pull it from the top but it seems like the linkage from the steering column down to the steering rack is in the way.

Any help appreciated,

Keith
Twodoor is offline   Reply With Quote
Old 08-21-2014, 05:27 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I believe there is a clamp on the downpipe section that bolts to the transmission. If you remove that clamp you should be able to pull the header out from the top.
shuiend is offline   Reply With Quote
Old 08-21-2014, 05:36 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Yep. you're gonna have to really massage it out but its do-able
18psi is offline   Reply With Quote
Old 08-21-2014, 05:39 PM   #4
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Sawzall. Always Sawzall.


concealer404 is offline   Reply With Quote
Old 08-21-2014, 10:00 PM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by concealer404 View Post
Sawzall. Always Sawzall.


Great minds think alike!



Keith

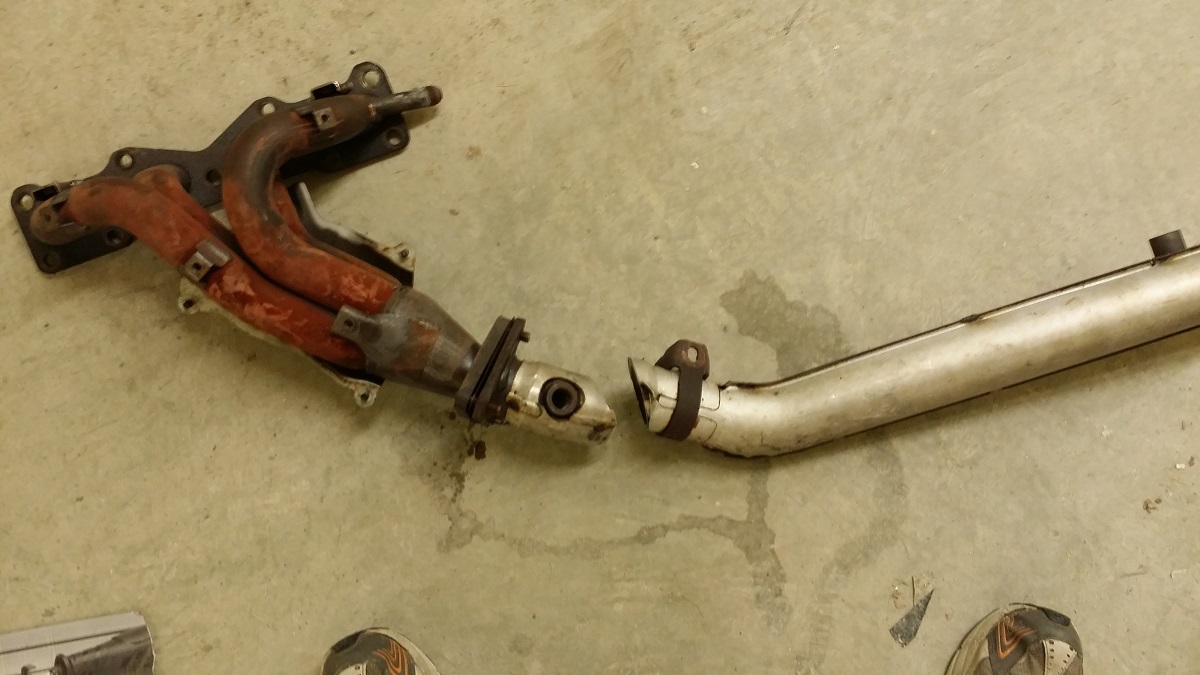

Attached Thumbnails
Exhaust manifold / downpipe removale problem.-sawzall-rescue.jpg
Twodoor is offline   Reply With Quote
Old 08-22-2014, 12:26 AM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

welp,

that's definitely effective



18psi is offline   Reply With Quote
Old 08-22-2014, 09:56 AM   #7
Senior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

With it out of the car I was able to remove the damaged nut... 01+ header has two damaged studs now (one broken off, but with good threads... and this one with buggered up threads).

How much is it worth now as it sits with two messed up studs (I have the correct EGR tube in good condition) vs how much would it be worth if I replaced the studs? Trying to figure out if it is worth my trouble to repair it.

Keith
Twodoor is offline   Reply With Quote
Old 08-22-2014, 01:55 PM   #8
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

I ended up breaking 2 studs when I was installing the 01+ header on my 00. Drilled out the studs and they are now bolts. No leaks, no care.
stoves is offline   Reply With Quote
Old 08-22-2014, 02:43 PM   #9
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

Install with sawzall if you really want to impress us.
bikersam717 is offline   Reply With Quote
Old 08-22-2014, 03:12 PM   #10
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

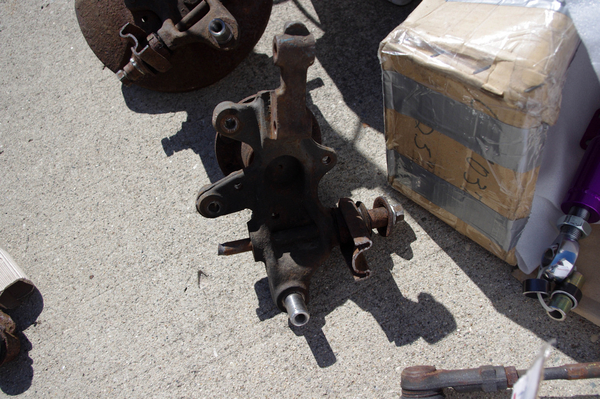

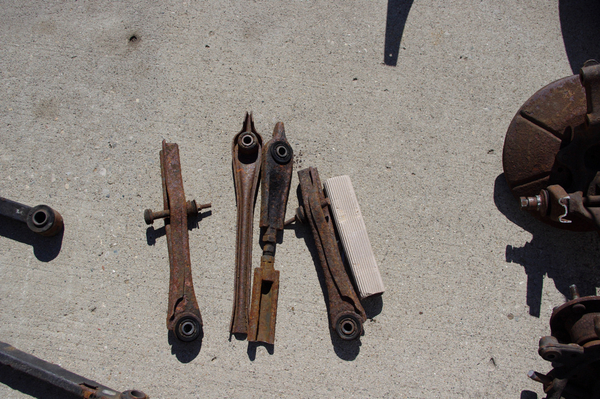

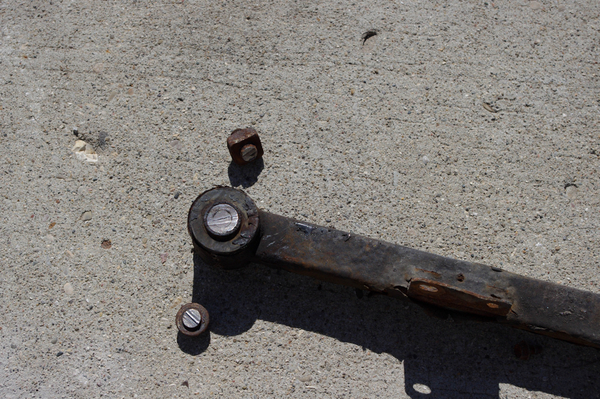

I like sawzalls. You haven't lived until you've had to cut the entire suspension off your race car because not one single bolt would come out.








Attached Thumbnails
Exhaust manifold / downpipe removale problem.-imgp4850.jpg   Exhaust manifold / downpipe removale problem.-imgp4849.jpg   Exhaust manifold / downpipe removale problem.-imgp4848.jpg   Exhaust manifold / downpipe removale problem.-imgp4847.jpg
concealer404 is offline   Reply With Quote
Old 08-22-2014, 03:52 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

18psi is offline   Reply With Quote
Old 08-22-2014, 04:03 PM   #12
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

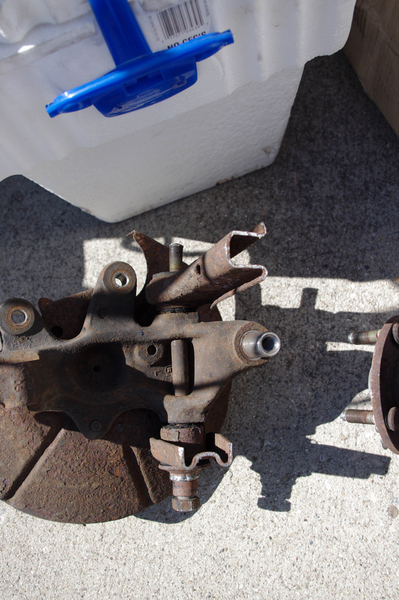

This one is my favorite.



See the bolt that goes through the spindle/hub assy?

See how it's bent and snapped off on the top/threaded end? (Threads now gone) That's what went first under the full force of a 20ton press. Incredible noise and pieces shooting everywhere when that let go. (This is what started me using a scatter shield when using the press)

On the other end, where the bolt head is... the washer you see expanded and pressed down over the sleeve is supposed to be where the bolt head is.

Both hubs just ******* laughed at me in the face of 40,000lbs of force.
