Default Exhaust Routing Option (NZ)

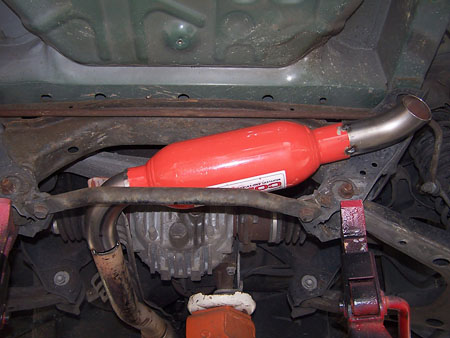

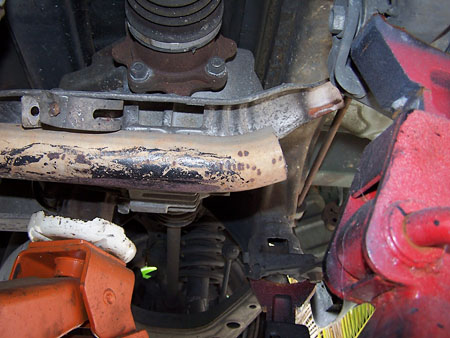

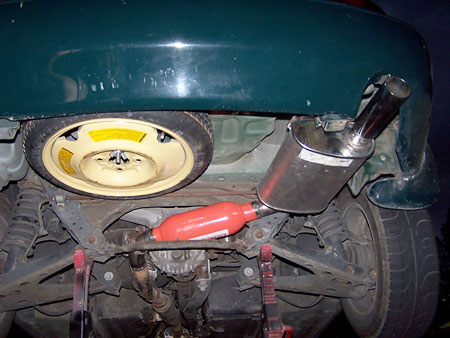

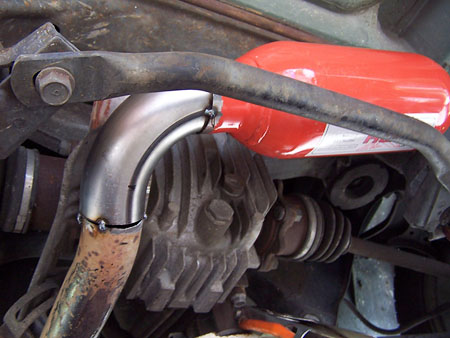

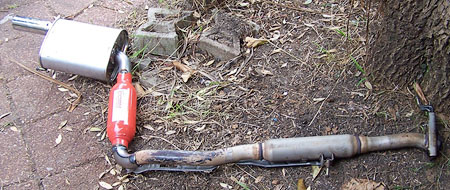

Friend from NZ was telling me about his plan for an Mx5 exhaust. Sounded interesting enough to post, so I asked him to take pics. Definitely an option I'm considering in the future. I think that's a 13" can on that muff - but I like the idea of getting the spare under the trunk w/o having to cut out the skin. Mine is that way because my bumper was already trashed from being rear-ended (yes I kept the cash - spent it on racing :gay. - rob
Attached Thumbnails
Exhaust Routing Option (NZ)-mx5_00.jpg   Exhaust Routing Option (NZ)-mx5_01.jpg   Exhaust Routing Option (NZ)-mx5_02.jpg   Exhaust Routing Option (NZ)-mx5_05.jpg   Exhaust Routing Option (NZ)-mx5_06.jpg

m2cupcar is online now   Reply With Quote
Old 02-04-2007, 10:53 AM   #2
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

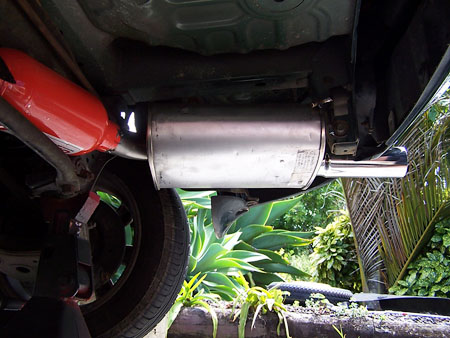

one more
Attached Thumbnails
Exhaust Routing Option (NZ)-mx5_07.jpg
m2cupcar is online now   Reply With Quote
Old 02-04-2007, 12:18 PM   #3
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

that's different.

why the need for two resonators though? i think a langer resonator in the midpipe would have the same effect at what he's doing, then you would have more room in the rear subframe area with just tubing.
kung fu jesus is offline   Reply With Quote
Old 02-04-2007, 01:13 PM   #4
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

The red one looks more like a cherry bomb muffler than a resonator
neogenesis2004 is offline   Reply With Quote
Old 02-04-2007, 01:32 PM   #5
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

Quote:
Originally Posted by neogenesis2004 View Post
The red one looks more like a cherry bomb muffler than a resonator
it's being used as a resonator on that system. i used a 4" bullet muffle (cherry bomb) as a resonator on the midpipe. Bruce has this exhaust now.
kung fu jesus is offline   Reply With Quote
Old 02-04-2007, 01:35 PM   #6
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

lol i "just" run a cherry bomb, sounds pretty bitchin ... not even that loud with a turbo.
akaryrye is offline   Reply With Quote
Old 02-04-2007, 01:49 PM   #7
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

He wanted it quiet-er, like me. I'm running a turbo muff AND an 18" glasspack. What I like about the quiet exhaust is how easy it is to hear the turbo spool up. Sounds wicked.
m2cupcar is online now   Reply With Quote
Old 02-04-2007, 01:56 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

i run the dynomax bullet race muffler. pretty much the same thing but... not red.

are the cherry bombs perfed or louvered?
y8s is offline   Reply With Quote
Old 02-04-2007, 01:59 PM   #9
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

probably- they're cheap and every cheap glasspack I've seen is louvered. Bell mentions running them the "wrong" way in a turbo set so the louveres don't scoop the flow, but then they don't work as well. Mine is the right way. My thinking was that an entire 3" exhaust would compensate for some of the other inefficiencies.
m2cupcar is online now   Reply With Quote
Old 02-04-2007, 02:55 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

how loud are these cars with 3"? Do I really need a muffler with 3" after the turbo?
hustler is offline   Reply With Quote
Old 02-04-2007, 03:11 PM   #11
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

A restrictive exhaust will rob you of more power than you can imagine. Just look at my 15psi dyno. I was being robbed of a minimum 30whp. Sadly I got too aggressive with my tune and have fux0rd my engine.
neogenesis2004 is offline   Reply With Quote
Old 02-04-2007, 04:14 PM   #12
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

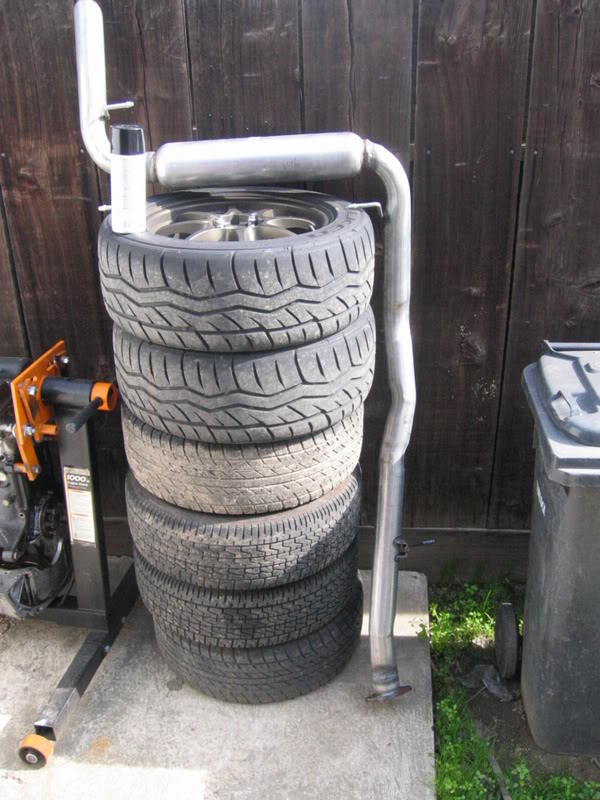

heres my exhaust setup (note the can of fixaflat ... well its paint but just pretend)

Name:  differentalswap007.jpg
Views: 3
Size:  98.6 KB
akaryrye is offline   Reply With Quote
Old 02-04-2007, 11:42 PM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by hustler View Post
how loud are these cars with 3"? Do I really need a muffler with 3" after the turbo?
a 3" resonated exhaust with a decent muffler isn't loud at all. way quieter than any "quiet" N/A system. For example: my car stock with the whole goodwin head to tip exhaust, cat, resonated, and the super silencer tip is WAY louder than it was with the 3 inch exhaust and turbo.

how much are those cherry bombs? the perf core 'resonator' i run was like $35.
y8s is offline   Reply With Quote
Old 02-05-2007, 11:15 AM   #14
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

my 3" in/out at 18" long was $30 delivered from summit
m2cupcar is online now   Reply With Quote
Old 02-05-2007, 12:00 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

I always thought the idea of two 4" x 18" round Magnaflows would be cool, then dumping out the driver side.



Or even going as far as fitting 3 up there for ultra stealth...I really hate loud exhausts.


Last edited by Braineack; 10-02-2007 at 04:01 PM.
Braineack is offline   Reply With Quote
Old 02-05-2007, 12:15 PM   #16
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default

today mine is a like this
=[muffler]=|======|{cat}|===(turbo)

tonight it will be
=======|======|{cat}|===(turbo)

next time I go to the shop it will be
=======|======|===|===(turbo)

<--- likes loud exhausts
VRTSid is offline   Reply With Quote
Old 02-05-2007, 12:20 PM   #17
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
I always thought the idea of two 4" x 18" round Magnaflows would be cool, then dumping out the driver side.



Or even going as far as fitting 3 up there for ultra stealth...I really hate loud exhausts.

they aren't quiet enough. that's why I swapped out my 12" dynomax ultra flo welded for a ginormous 22" long magnaflow.




The top is stock. The bottom is the ultra-flo welded dynomax.

the current muffler is bigger. it got rid of the 3000 rpm drone on the freeway. very livable.
y8s is offline   Reply With Quote
Old 02-05-2007, 01:15 PM   #18
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

3000 rpm on the freeway?

...

I'm at more like 4.5
kotomile is offline   Reply With Quote
Old 02-05-2007, 01:23 PM   #19
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by kotomile View Post
3000 rpm on the freeway?

...

I'm at more like 4.5
traffic? expressway? freeways around here are all 55 max?
y8s is offline   Reply With Quote
Old 02-05-2007, 01:28 PM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
they aren't quiet enough. that's why I swapped out my 12" dynomax ultra flo welded for a ginormous 22" long magnaflow.




The top is stock. The bottom is the ultra-flo welded dynomax.

the current muffler is bigger. it got rid of the 3000 rpm drone on the freeway. very livable.
I need some of that in my life.
