Default Extra wiring harness plugs?

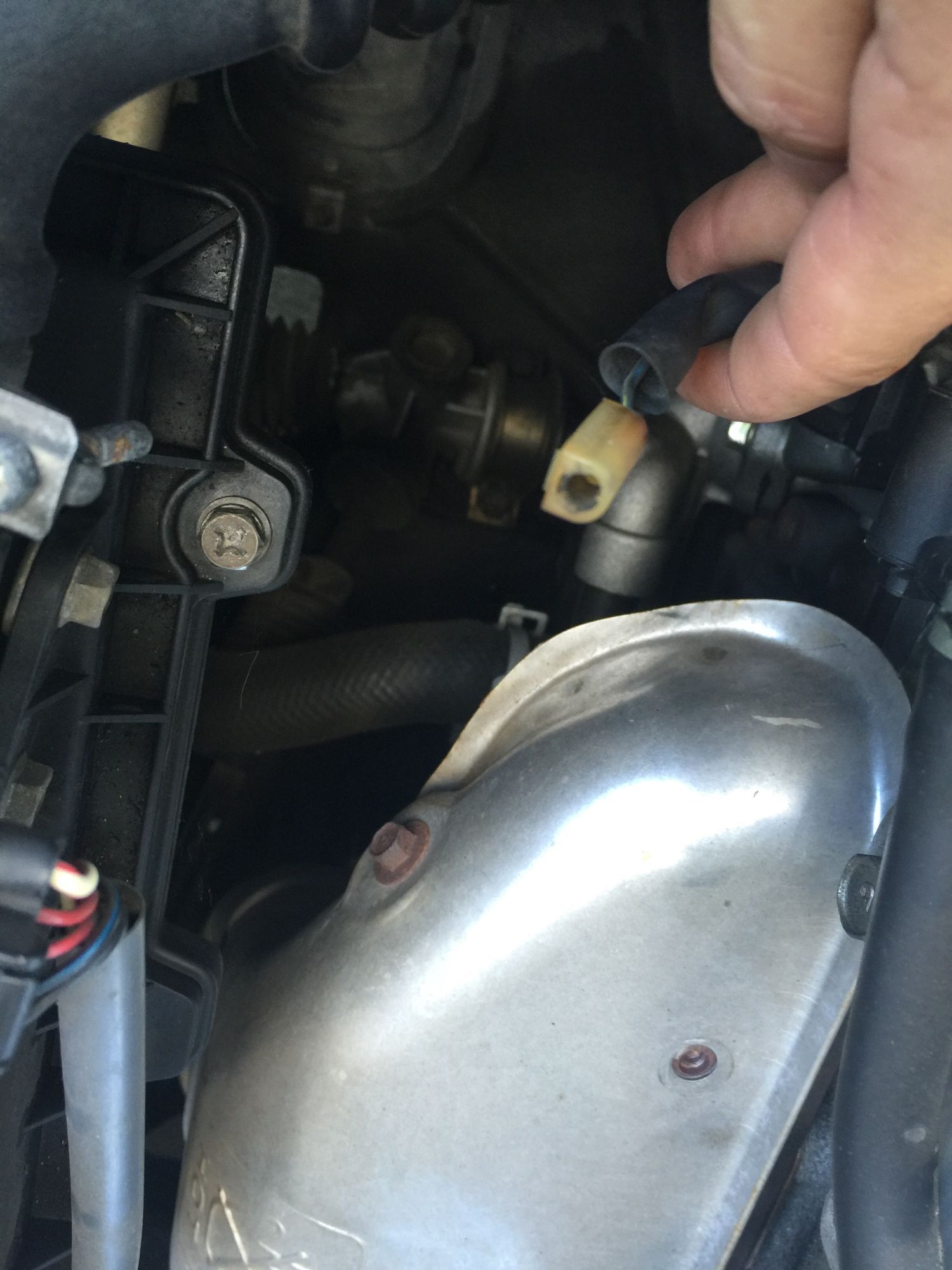

So I have a 94 Factory Manual steering and non AC. I have a few unused plugs under the hood and near the battery. I tried to google them but I think I am using the wrong key words. I am assuming that all NA Miatas had the same wiring harness regardless of options. Here are some pics of what I am trying to identify. The single plug wire pic comes across the front of the engine and is chilling near the heat shield. The other plugs are on top of the driver strut bolting area. The ones in the trunk are near the battery.


Attached Thumbnails
Extra wiring harness plugs?-80-img_7277_c57b27f02849c1a81ea9560877224b4606b5bbe4.jpg   Extra wiring harness plugs?-80-img_7275_face221a4c0a47c140a74821d3a73e14da4d665b.jpg   Extra wiring harness plugs?-80-img_7276_975974c512dca4a415d1d9c43ca70080d315a7d5.jpg
farpolemiddle is offline   Reply With Quote
Old 06-21-2016, 08:49 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

#3 is an AC switch im pretty sure. Do you have AC?
aidandj is offline   Reply With Quote
Old 06-21-2016, 08:51 PM   #3
Senior Member
Thread Starter

farpolemiddle's Avatar

Join Date: May 2016
Location: Lents, Oregon
Posts: 574
Total Cats: 91
Default

From the factory. No AC, Power steering or ABS.
farpolemiddle is offline   Reply With Quote
Old 06-21-2016, 08:58 PM   #4
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

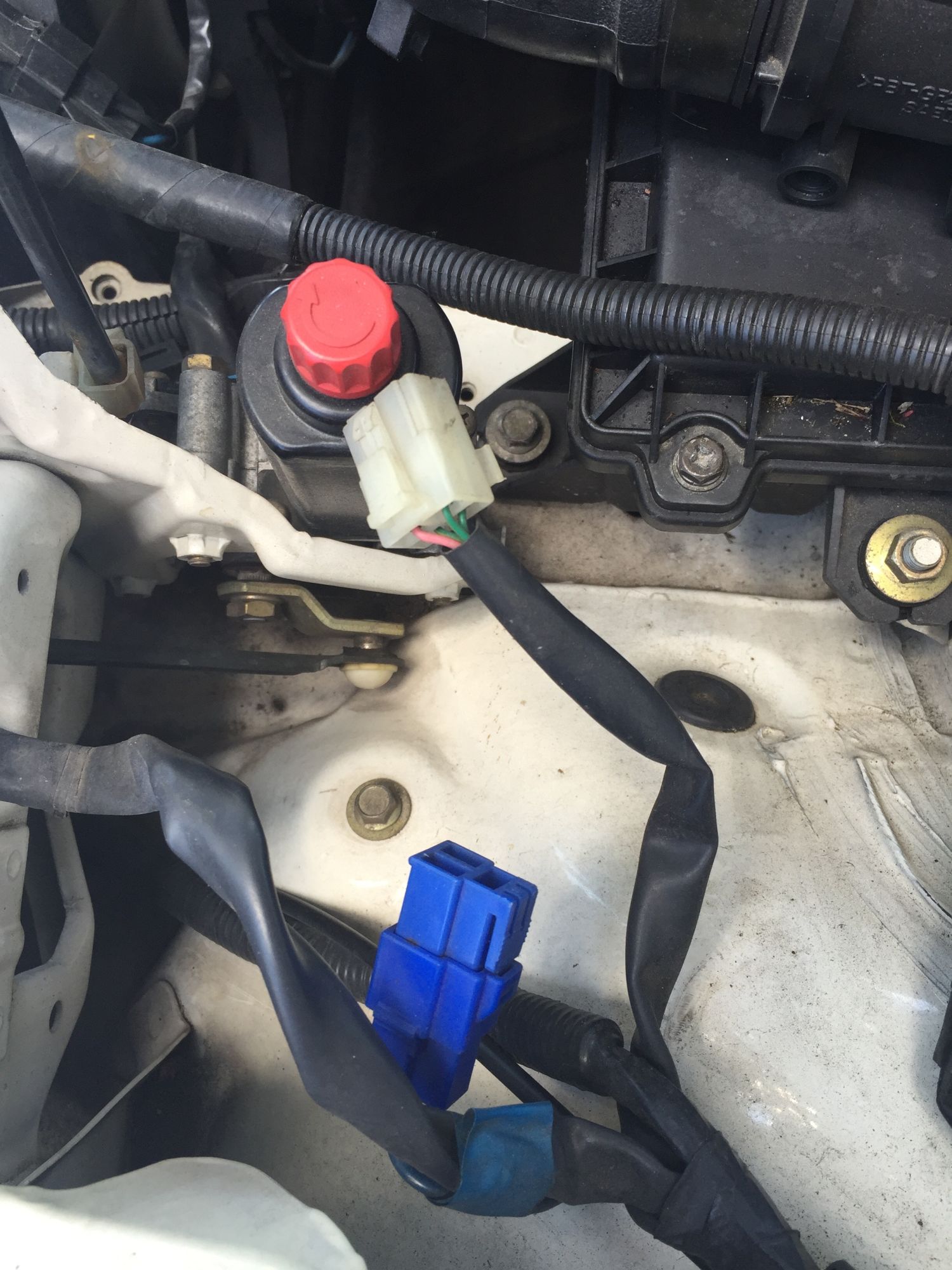

#1: White one is "probably" cruise control. The blue one is a source of 12VDC for maintenance use (power your timing light, whatever).
#2: Power Antenna
#3: Power Steering Pump Sensor to bump idle speed.

Yes, all US Spec Miatas came with the same harness. Uninstalled options result in unpopulated plugs.
hornetball is offline   Reply With Quote
Old 06-21-2016, 09:00 PM   #5
Senior Member
Thread Starter

farpolemiddle's Avatar

Join Date: May 2016
Location: Lents, Oregon
Posts: 574
Total Cats: 91
Default

Quote:
Originally Posted by hornetball View Post
#1: "Probably" cruise control.
#2: Power Antenna
#3: Power Steering Pump Sensor to bump idle speed.

Yes, all US Spec Miatas came with the same harness. Uninstalled options result in unpopulated plugs.

Genius. Now that you call them out they all make perfect sense. I didn't even think about cruise control. I wonder if is worth going through the harness and cutting a lot of this crap out.
farpolemiddle is offline   Reply With Quote
Old 06-21-2016, 09:04 PM   #6
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by farpolemiddle View Post
I wonder if is worth going through the harness and cutting a lot of this crap out.
I avoid messing with the OEM harness to the greatest extent possible. Good rule to follow.
hornetball is offline   Reply With Quote
Old 06-21-2016, 09:25 PM   #7
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by farpolemiddle View Post
Genius. Now that you call them out they all make perfect sense. I didn't even think about cruise control. I wonder if is worth going through the harness and cutting a lot of this crap out.
No to cutting things out. it will only make you hate your life.
shuiend is offline   Reply With Quote
Old 06-21-2016, 10:12 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by hornetball View Post
Yes, all US Spec Miatas came with the same harness. Uninstalled options result in unpopulated plugs.
They were close, but not identical. For instance, try getting a VSS signal out of a '92 that was made without cruise or an automatic transmission. Exactly one wire is missing from the instrument harness, even though the VSS sensor itself is there. And the worst part is that the wire IS there in the "front" harness (which connects to the ECU, cruise computer, etc), it's only missing from the "instrument" harness. So you think you have the wire when you're hooking up the ECU, but it only goes as far as Common Connector X-17, where the Front harness joins the Instrument harness.

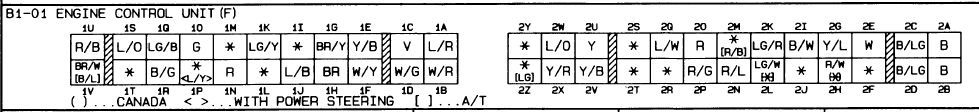

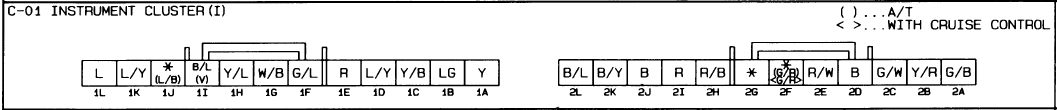

I'm not sure about the later cars, but the 1.6s were filled with fidgity little omissions like that, where a single wire is missing if the car was built without an automatic, or cruise control, or power steering, or ABS, or autonomy from the Queen, etc. And in '93, California cars got their own completely separate set of harnesses, unique in all the world. The early wiring diagrams are full of these little notes:








And so on... Makes no sense to me- it'd be a lot easier to stock a single harness in the factory rather than fifteen different versions of it? But they did. The parts catalog confirms this:



Fifteen different versions of just the front harness alone, just for the '92 model year.


Gram strategy...


But yeah, everything hornetball said is correct with regard to identifying the connectors. The blue plug was indeed put there by Mazda to power timing lights and other dealer service equipment, since there's no battery under the hood to clip onto.

I confirm the guess about the cruise control actuator.
Attached Thumbnails
Extra wiring harness plugs?-80-blob_ac1554da493638ba1758b356adbeeb9405137764.png   Extra wiring harness plugs?-80-blob_ee64cbe352c588e4297d385865e05f66101dc585.png   Extra wiring harness plugs?-80-blob_1167195edc91531294bb2beb67c198049b1b0edc.png   Extra wiring harness plugs?-80-blob_f1fe44cb6a11c627b56e364d7988a9aee496b8f1.png
Joe Perez is offline   Reply With Quote
Old 06-22-2016, 11:19 AM   #9
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Joe Perez View Post
Lots and lots of Joeisms.
Huh?!? I was aware of the differences between US and Canadian harnesses, but never imagined they would have so many different harnesses in our market. Maybe auto vs. manual, but changing the harness for a cruise-control or power steering option? It's borderline "German Engineering."
