Default Eyesore Racing's orgy of destruction

Our usually-reliable ghettocharged Frankenmiata finally did the kind of wholesale explodification we expected it to EIGHTEEN ENDURANCE RACES AGO when we first started racing it.

All the deets are here:

http://www.motoiq.com/magazine_artic...an-option.aspx



Wanna see what happens when an engine eats a screw?
Wanna know how to fix a head gasket with JB weld?
Wanna know what a Mexican Dodge Stratus and a U.S. Subaru WRX have in common?
Ever wondered if an engine with a thrown rod can still be driven?

It's all in there, and more. Man, destruction is fun!

We still don't have a new engine and the next race is about a month away. If anyone has a line on a cheap, running 1.6 in Southern California, let us know. We need a complete engine this time, since the old one is completely toast.

-Dave
eyesoreracing is offline   Reply With Quote
Old 01-23-2012, 10:11 AM   #2
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Great read! Thanks!!
Preluding is offline   Reply With Quote
Old 01-23-2012, 10:13 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

Hey I know what it's like to eat that screw. My piston still has the inprint.

Man, mine faired SO much better...

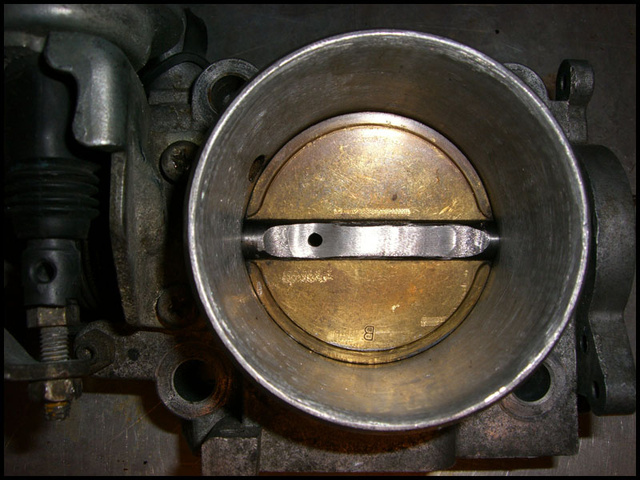

Here's the screw I ate:



I ingested the entire screw a few days after trying to port the TB and shave down the center shaft like a moron

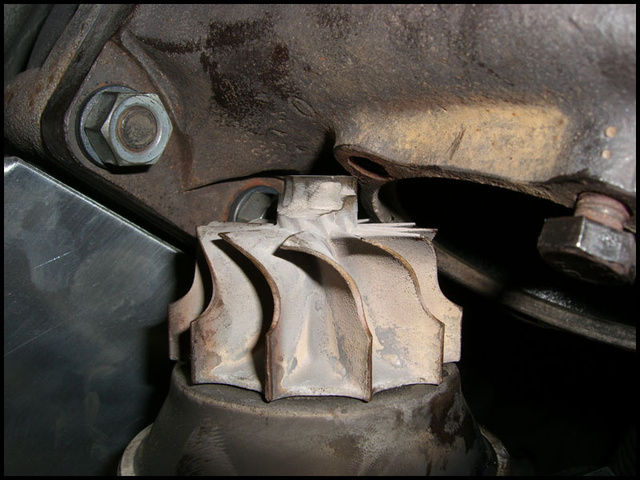

I did damage the turbo:



I seemed to go through cleanly, but if you look there's one bent blade it also bent the shaft where the turbine would rub against the heat/splash shield. My turbo spool dropped by about 1000RPM and I dynoed at about 40 less rwhp (Yes, of course this happened the day before a dyno day.)

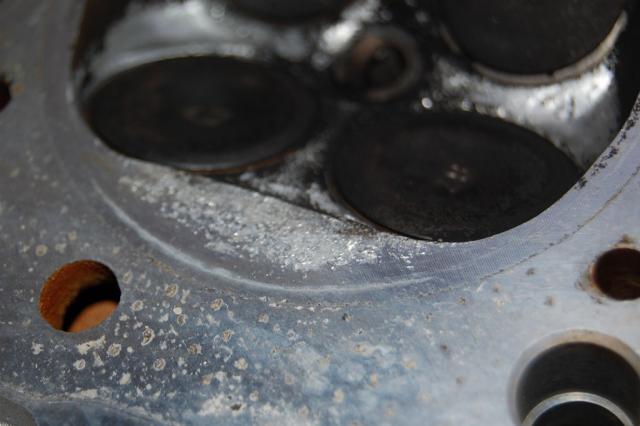

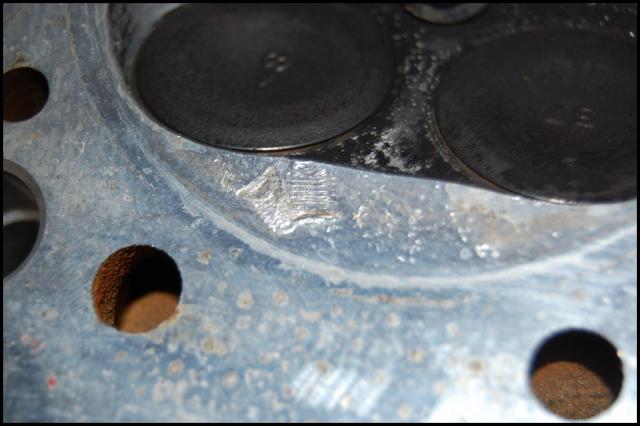

this is about the worst of the head:





sanded it down and still rocking.
Attached Thumbnails
Eyesore Racing's orgy of destruction-throttle_body_screw.jpg   Eyesore Racing's orgy of destruction-bent_blade.jpg   Eyesore Racing's orgy of destruction-coolant-reroute-013.jpg   Eyesore Racing's orgy of destruction-coolant-reroute-015.jpg

Last edited by Braineack; 01-23-2012 at 10:25 AM.
Braineack is online now   Reply With Quote
Old 01-23-2012, 10:23 AM   #4
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

see if these guys have an engine for you - http://www.2ndchanceroadster.com/
phillyb is offline   Reply With Quote
Old 01-23-2012, 11:21 AM   #5
Junior Member
Thread Starter

Join Date: Apr 2008
Posts: 100
Total Cats: 6
Default

2ndchanceroadster does have one, but it already had a rod knockish noise when he got it, so its gonna take some work. We're crossing our fingers for a runner we can just slap in there.

Braineack, I can't believe you got away with so little damage. That turbine wheel damage doesn't even look like foreign object damage, it looks like that blade was bumped during assembly (ask me how I know...)

-Dave

-D
eyesoreracing is offline   Reply With Quote
Old 01-23-2012, 11:25 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

Yeah, I was pretty lucky. I think the pistons did a good job of melting down the copper before it ejected...it rattled around for a good bit at a stoplight before I heard it make its way through
Braineack is online now   Reply With Quote
Old 01-23-2012, 12:35 PM   #7
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

GREAT read. Sounds like a lot of fun.
FRT_Fun is offline   Reply With Quote
Old 01-23-2012, 01:17 PM   #8
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Good read!
Stein is offline   Reply With Quote
Old 01-23-2012, 04:03 PM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

regarding the file-resurfacing, why not scrounge up some fine sandpaper and a flat surface and lap it? I can totally imagine you guys removing a window from some building and lapping the head on that.

and regarding the tranny to exhaust mount, that is also a "common" hole in exhaust method.
y8s is offline   Reply With Quote
Old 01-23-2012, 05:49 PM   #10
Junior Member
Thread Starter

Join Date: Apr 2008
Posts: 100
Total Cats: 6
Default

That's my preferred way to field-surface a head, but we had a hard time finding something flat. We did use a big machined wheel adapter (that was as wide as the head, but half as long) and a sheet of sandapaper, but found it much harder to control than the file. One of the biggest challenges with sanding is that the edges of the paper can fold and cause scratches, so you need to find sandpaper sheets bigger than a cylinder head. In Buttholewillow. On a Saturday night.

-Dave
eyesoreracing is offline   Reply With Quote
Old 01-23-2012, 05:59 PM   #11
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

flat surface and a couple tubes of Crest??
y8s is offline   Reply With Quote
Old 01-23-2012, 08:23 PM   #12
Junior Member
Thread Starter

Join Date: Apr 2008
Posts: 100
Total Cats: 6
Default

You better have some seriously rough crest, or a LOT of time on your hands!
eyesoreracing is offline   Reply With Quote
Old 01-24-2012, 12:54 AM   #13
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

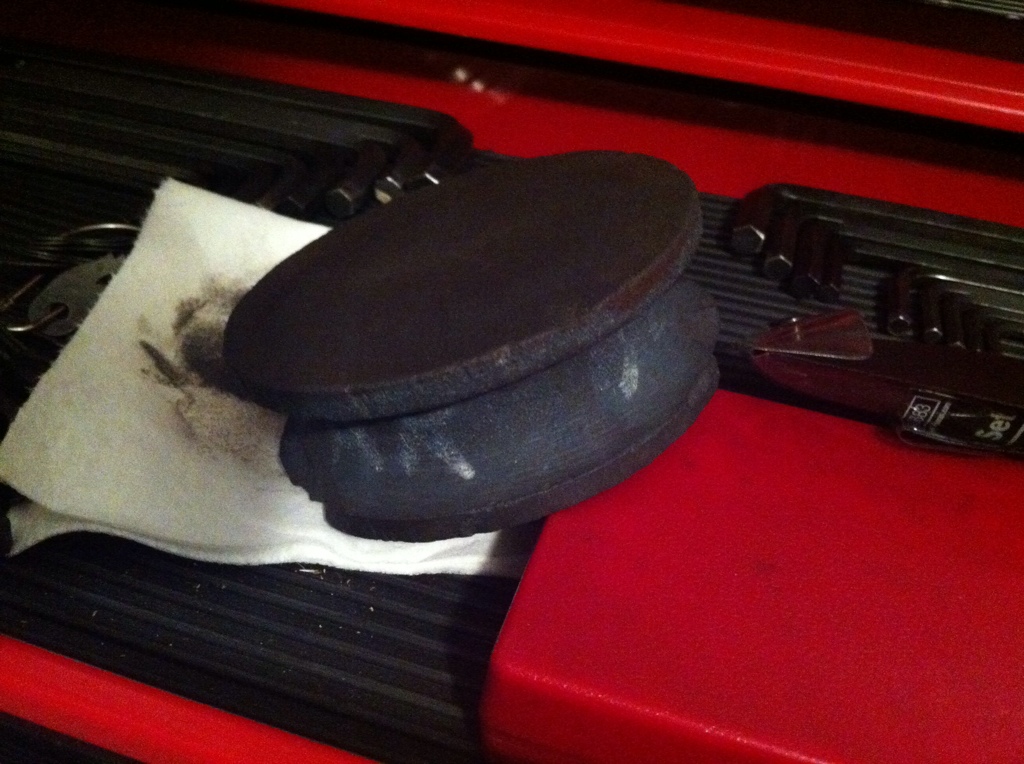

Machinist's stone. Not sure where to find them, but they're like $10 and very useful. Rough side and a smooth side. Keep it in your tool box for anything.
Attached Thumbnails
Eyesore Racing's orgy of destruction-f962db32.jpg
curly is offline   Reply With Quote
Old 01-24-2012, 08:14 PM   #14
Junior Member
Thread Starter

Join Date: Apr 2008
Posts: 100
Total Cats: 6
Default

Well where did you find THAT one? This sounds like just the thing to have on hand at all times...

-D
eyesoreracing is offline   Reply With Quote
Old 01-25-2012, 12:12 AM   #15
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

It's very handy. Got that one when I worked at a machine shop. We'd use it to clean the tables of our machines off before putting the fixtures on, since we would indicate them to within .001".

HA! Found it. It's a "Sharpening Stone for Machine-Mount Blades"

McMaster Carr part # 4474A4

$22.54 each.

Edit: don't forget to look elsewhere, that's just the first place I found it.
curly is offline   Reply With Quote
Old 01-25-2012, 08:33 AM   #16
Junior Member

Join Date: Aug 2011
Posts: 172
Total Cats: 0
Default

I was missing you Dave, thanks for the good read. Been following you since SCC. You know all the other guys didn't even come up to your heel when you left... big shoes to fill...

keep the monstromodifications on the frankenmiata comin'.
mr.na is offline   Reply With Quote
Old 01-25-2012, 11:27 AM   #17
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I love you Dave. You guys are my mechanical inspiration.
Faeflora is offline   Reply With Quote
Old 01-25-2012, 12:21 PM   #18
Junior Member

Join Date: Mar 2008
Location: Seattle
Posts: 244
Total Cats: 3
Default

I laughed, I cried, and I got a weird boner. A+ performance as usual from the ghettocharged miata. <3
DontPassTheFence is offline   Reply With Quote
Old 01-25-2012, 05:02 PM   #19
Former Vendor

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

Is this the same EyeSore Racing that built the Simca currently sitting at my shop?

Attached Thumbnails
Eyesore Racing's orgy of destruction-henri_cuda-01.jpg
Deatschwerks is offline   Reply With Quote
Old 01-25-2012, 10:02 PM   #20
Junior Member
Thread Starter

Join Date: Apr 2008
Posts: 100
Total Cats: 6
Default

Eyesore didn't build the Simca. Our only relationship to the Simca was being pushed off the track by it after our dead-nuts-perfect fuel strategy caused us to run out of gas 6 turns after the checkered flag.
