Default Facing temp issues. In need of some assistance

Some background.

I used to have a PWR radiator installed. I bought a Flex-a-lite fan kit and installed it after doing the last coolant reroute. As usual; the guys in the shop messed it up and when they installed it the fans would brush against the radiator. To make a long story short; both fans broke and punctured a hole in my radiator.

I then bought 2 new fans and a new radiator (the 55mm Mishimoto) and installed both things. I was still facing issues so I decided to take out the BMW tstat and install an OEM one. As I mentioned in the WTB thread I started, I couldn't get one locally so I decided to test the car without any tstat. I have to report I don't like what's happening.

I plan on taking the car back to the shop tomorrow to check the water pump and see if somehow there's a problem with it.

Now on to what I'm currently seeing:

As soon as the car reaches operating temps around town the Autometer gauge shows temps climbing to 210* even while driving the car like an old granny. Oil temps also climb around 30* higher than what used to be normal temps.

Observations:

1) I took out the spark plugs to check whether I had any problems with my headgasket. The only thing I can see is that I'm running pig rich but there's no mix of water and oil.

Can anyone offer any suggestions about what to do next?

Thanks,

Rafa
Rafa is offline   Reply With Quote
Old 07-01-2009, 04:46 PM   #2
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Does the radiator hold pressure?

Is combustion gas getting into the coolant (smell the radiator hole for signs of exhausty smell)?

Is the system adequately burped and there is NO air in it?

I had an overheating issue and it was caused by, of all things, a dying Koyo drain plug leaking all my coolant out. temps would go nuts at idle probably because of steam pockets around the sender.
y8s is offline   Reply With Quote
Old 07-01-2009, 05:11 PM   #3
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

It's possible that with no tstat the water dosent spend enough time in the radiator to cool down enough. The water is moving through the system to fast. Also like Matt said, be 100% sure there's no air in the system.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 07-01-2009, 05:28 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

If he's seeing problems "driving like a granny", the water pump probably isn't pushing the water through the radiator too fast, but maybe
y8s is offline   Reply With Quote
Old 07-01-2009, 05:35 PM   #5
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by y8s View Post
If he's seeing problems "driving like a granny", the water pump probably isn't pushing the water through the radiator too fast, but maybe
Went down to the parking spot to check what you asked. No smell whatsoever. Weird thing just happened. I turned the car on and let it idle for a few minutes. Took it out for a trip around the block and decided to step on it in second gear. At around 5,000 rpm it bogged down for a second and starting misfiring. It won't even idle properly without the A/C on but coolant temps didn't go above 180* during all that time.

FWIW, I changed the Mishimoto radiator cap that came with the radiator (19lbs cap) and put the one I was using with the PWR radiator before (13lbs one).

Could the water pump have been clogged? I ask because all these issues began to happen after a local guy "fixed" my old radiator. I wonder if some of the original welding he did has gotten into the system. Can this happen and if so; what can I do about it?

BTW, thanks Matt and Phil for the assistance.

With regards to Phil's advice about making sure there's no air in the system. I refilled it with water after taking the old Tstat out and also checked it this morning and found it was totally full.
Rafa is offline   Reply With Quote
Old 07-01-2009, 05:53 PM   #6
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,675
Total Cats: 1,561
Default

Could you please take some pictures of your current hose routing (because I know it isn't stock anymore)? I'm trying to remember the details. Do you still have the restrictor in that hose we talked about before?
sixshooter is online now   Reply With Quote
Old 07-01-2009, 05:56 PM   #7
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

just a quick thought-
Once the car has cooled, pull the rad cap so you can watch the coolant and then rev the engine. Do you see bubble action that intensifies with the increase in revs?
m2cupcar is offline   Reply With Quote
Old 07-01-2009, 06:04 PM   #8
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by sixshooter View Post
Could you please take some pictures of your current hose routing (because I know it isn't stock anymore)? I'm trying to remember the details. Do you still have the restrictor in that hose we talked about before?
I'll go down in a few minutes and take some pics. I don't have the restrictor hose anymore. I basically went back to my original coolant reroute minus the tstat I couldn't get locally.

I'll post pics in a few minutes.

Quote:
Originally Posted by m2cupcar View Post
just a quick thought-
Once the car has cooled, pull the rad cap so you can watch the coolant and then rev the engine. Do you see bubble action that intensifies with the increase in revs?
Actually the car cools down pretty fast. I'll do this also when I go down in a few minutes and report on what I see.

Thanks shooter and Rob.
Rafa is offline   Reply With Quote
Old 07-01-2009, 06:25 PM   #9
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Did you burp the system?
JasonC SBB is offline   Reply With Quote
Old 07-01-2009, 06:35 PM   #10
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Pics as promised.

Please bear in mind that I can't get the autofocus to work properly with this camera after only 1 minute of turning it on.

Some of them were clearly out of focus. I'm going to go down again and take additional pics.
Attached Thumbnails

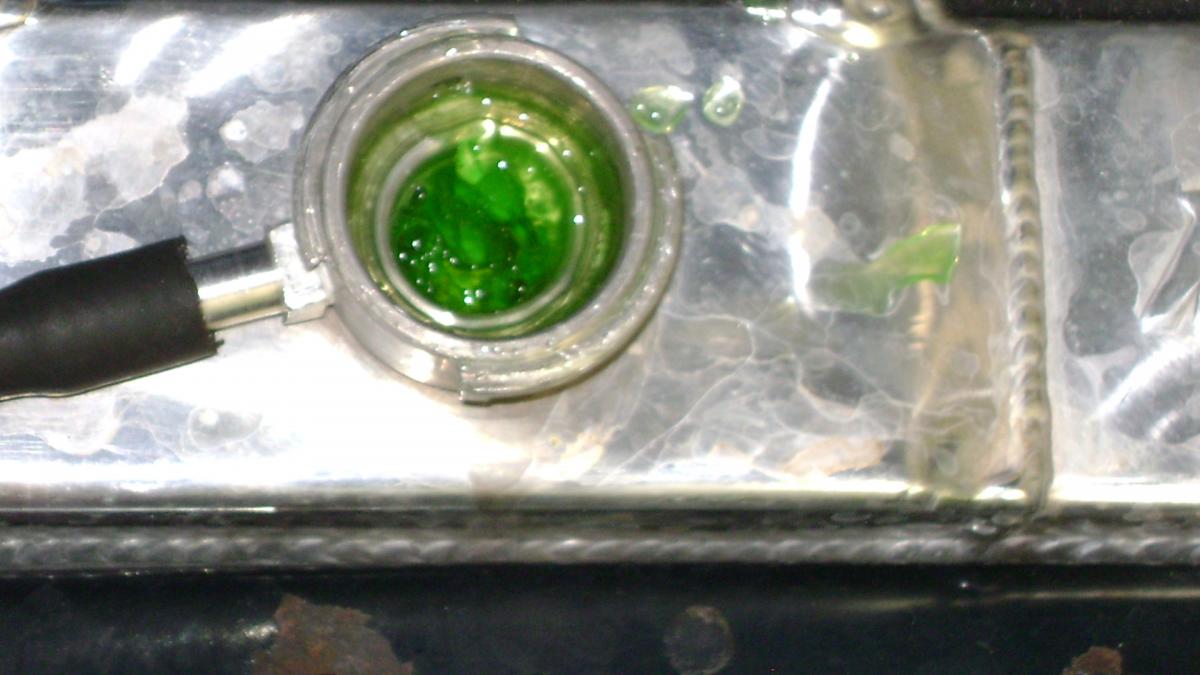

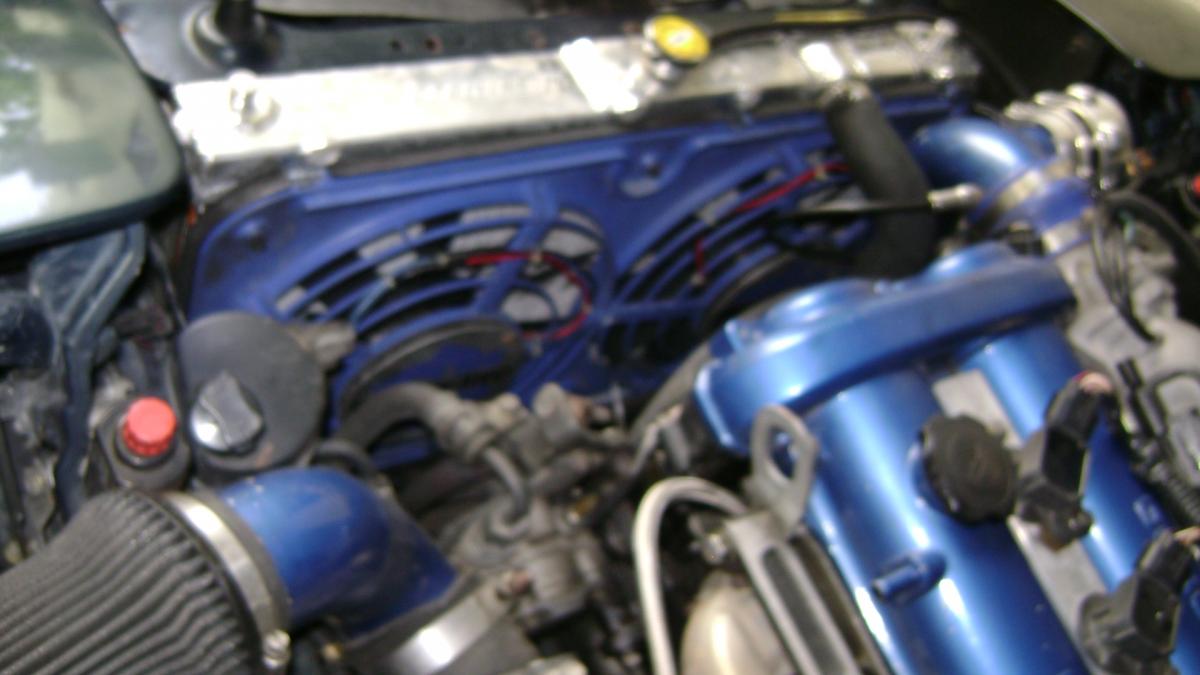

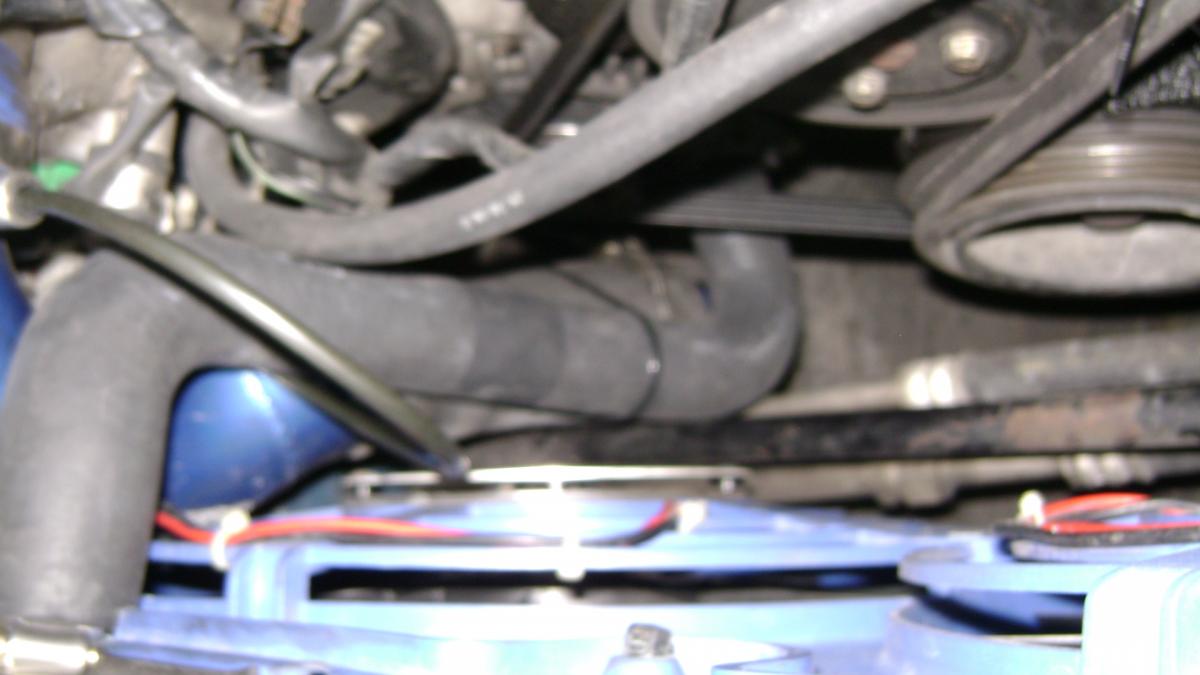

Facing temp issues. In need of some assistance-dsc00813.jpg   Facing temp issues. In need of some assistance-dsc00825.jpg   Facing temp issues. In need of some assistance-dsc00822.jpg
Rafa is offline   Reply With Quote
Old 07-01-2009, 06:36 PM   #11
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by JasonC SBB View Post
Did you burp the system?
No clue about how to do that Jason.
Rafa is offline   Reply With Quote
Old 07-01-2009, 06:59 PM   #12
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

My current reroute is basically the one on this thread: https://www.miataturbo.net/forum/t23314/

sans tstat (for the time being) and thru the coldside instead of the hotside.

Some additional pics:
Attached Thumbnails

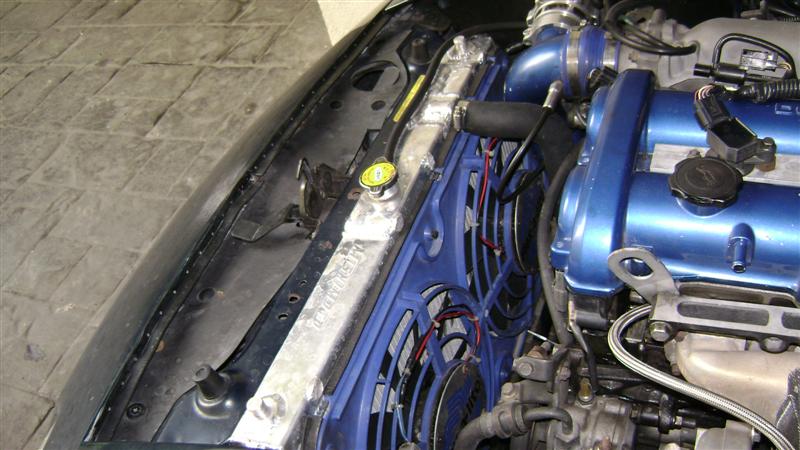

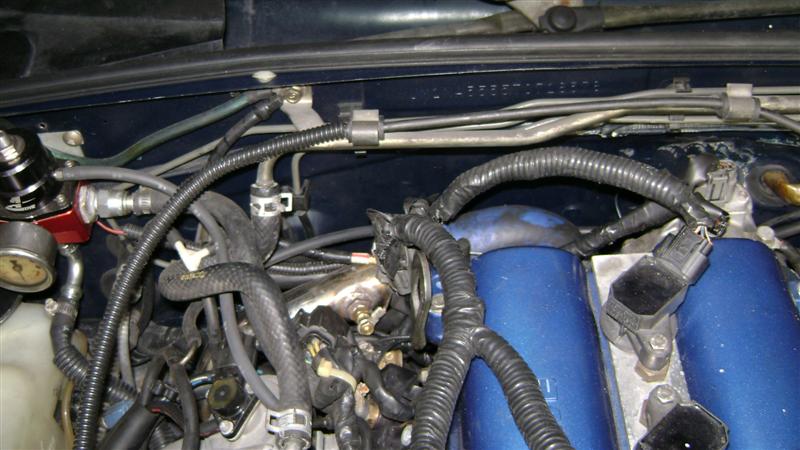

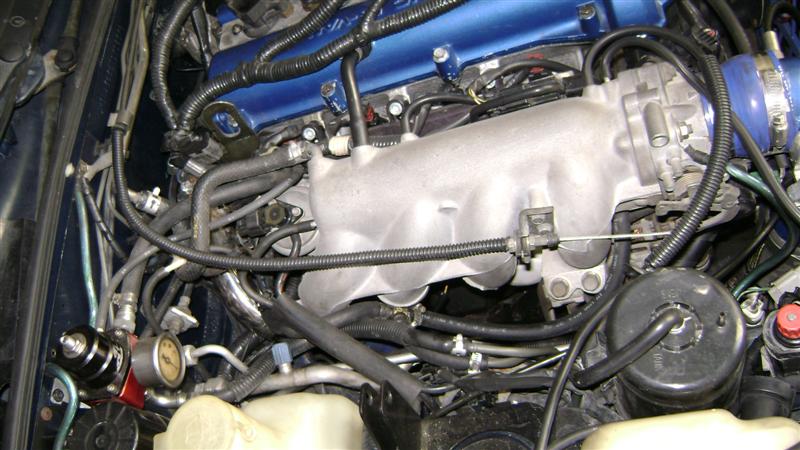

Facing temp issues. In need of some assistance-dsc00827-medium-.jpg   Facing temp issues. In need of some assistance-dsc00830-medium-.jpg   Facing temp issues. In need of some assistance-dsc00835-medium-.jpg
Rafa is offline   Reply With Quote
Old 07-01-2009, 07:01 PM   #13
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

I left the OEM thermosensor in its original position. I used a bended stainless steel pipe and hooked it up to a hose up to the radiator.

The third pic is of the Autometer thermosensor which is placed in that stainless pipe as it comes out of the back of the head.
Rafa is offline   Reply With Quote
Old 07-01-2009, 11:04 PM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

That hose going from the back of the head to the reroute tube looks like the high spot in the cooling system for sure. That's based on its relation to the cam cover vs. the rad filler up front. What happens is air gets trapped in that high spot and inhibits coolant flow past that point. Usually the system purges the air ok, but a large tube like that with air in it probably wouldn't. You could jack up the front of the car to get the rad filler to the highest point and then run it to see if the coolant system would then purge itself of air (burp).

You can see how my exit is kept at the head's coolant exit height at the back. It stays that way to the rad.



You could also add a filler neck back there inline with that hose for burping (and filling).
m2cupcar is offline   Reply With Quote
Old 07-01-2009, 11:26 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

or stuff a swirl-pot back there.
hustler is offline   Reply With Quote
Old 07-01-2009, 11:26 PM   #16
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,675
Total Cats: 1,561
Default

Quote:
Originally Posted by m2cupcar View Post
That hose going from the back of the head to the reroute tube looks like the high spot in the cooling system for sure. That's based on its relation to the cam cover vs. the rad filler up front. What happens is air gets trapped in that high spot and inhibits coolant flow past that point.
That's exactly what I was thinking from looking at the pics.
Quote:
Originally Posted by m2cupcar View Post
You could also add a filler neck back there inline with that hose for burping (and filling).
That is also a good idea. Essentially, you need to be able to open the cooling system at whatever point is the highest and add coolant/water until there is no air in the system. The stock system is carefully designed to have the radiator cap at the highest point. You now have a situation where air cannot come out of the head and back to the radiator. Do you see what I mean? You really don't need a large opening or a filler neck back there where that hose is. You just need an opening big enough to add some water and let the air bubbles out. But a filler neck like the one pictured could work if it was located at the highest point.

Isn't this fun, Rafa?
sixshooter is online now   Reply With Quote
Old 07-02-2009, 12:01 AM   #17
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by sixshooter View Post
That's exactly what I was thinking from looking at the pics.

That is also a good idea. Essentially, you need to be able to open the cooling system at whatever point is the highest and add coolant/water until there is no air in the system. The stock system is carefully designed to have the radiator cap at the highest point. You now have a situation where air cannot come out of the head and back to the radiator. Do you see what I mean? You really don't need a large opening or a filler neck back there where that hose is. You just need an opening big enough to add some water and let the air bubbles out. But a filler neck like the one pictured could work if it was located at the highest point.

Isn't this fun, Rafa?
Let me start by answering your last remark first: It's fun. I get pissed and curse a lot but I have to admit, I also learn a lot! Many thanks to all for assisting. It's really good to know I have a place where I can ask guys much, much more knowldegeable than me for advice and get it

That is precisely why I subscribe to this board!

Shooter: I totally get both your explanation and Rob's. I took a long look at his pics and no question about it: his hose is never higher than the radiator cap. What I'm still trying to decipher is whether I can put a pipe in the same location Rob has his. My radiator cap location is closer to the passenger side than his which could work to my advantage.

BTW, hustler mentioned a "swirl pot" and I've read some past post where he also mentioned it but I have no clue what that is and how it works so... if someone can explain it I'll be most grateful
Rafa is offline   Reply With Quote
Old 07-02-2009, 12:28 AM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

a swirl-pot spins the water into a vortex, air goes to the center and bleeds out.
hustler is offline   Reply With Quote
Old 07-02-2009, 03:05 PM   #19
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
a swirl-pot spins the water into a vortex, air goes to the center and bleeds out.
Thanks for that info hustler.

I triple checked everything this morning. Water pump is working fine.

Rob and shooter: I think your remarks about the hose connected to the back of the head is spot on. It is definitely above the radiator cap. I can see higher temps on the back of the head and I'm pretty convinced it's due to air in the system.

I'm going to try to make mine exactly as the one in Rob's pics.

Many thanks,
Rafa is offline   Reply With Quote
Old 07-02-2009, 03:54 PM   #20
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

your tstat is on its way sir
