Default Flipside Customs Intake Mani (1.6L)

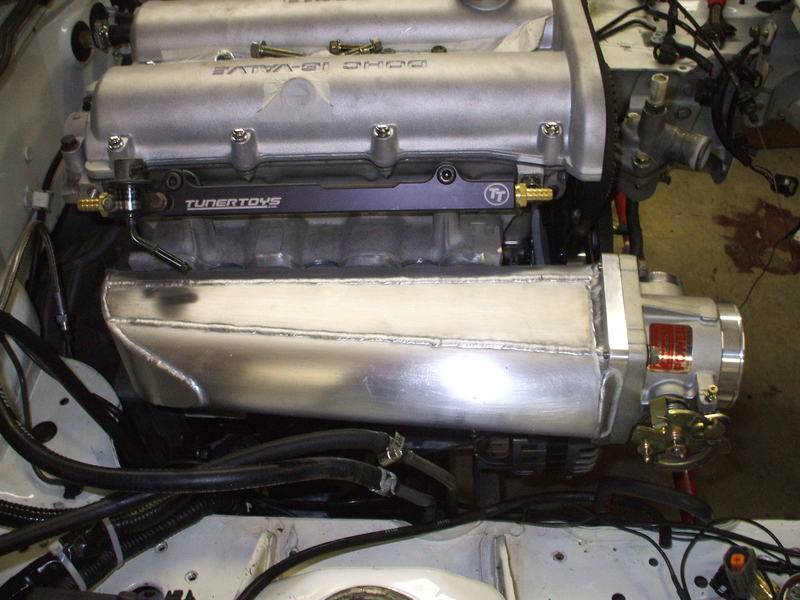

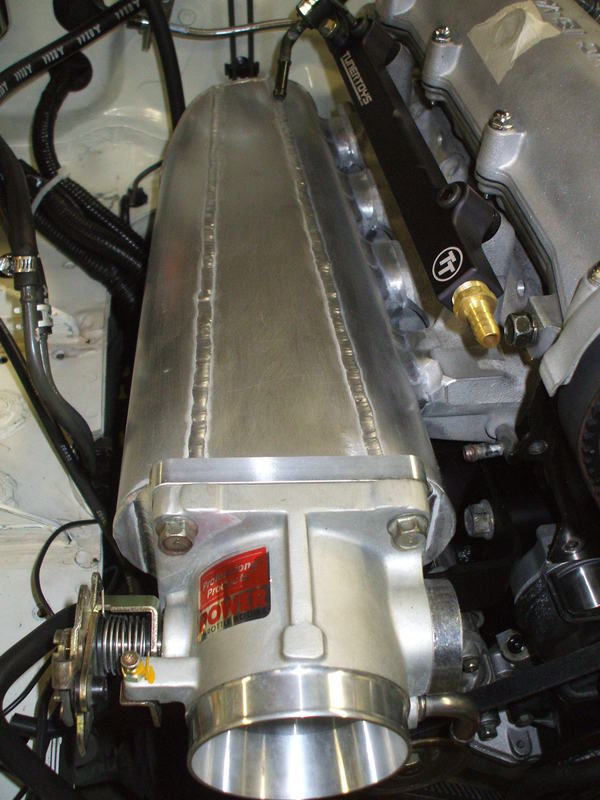

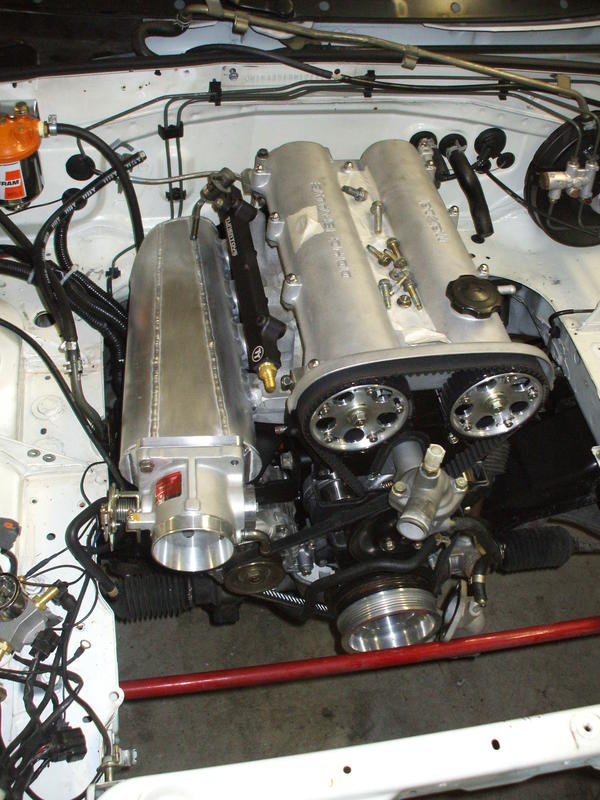

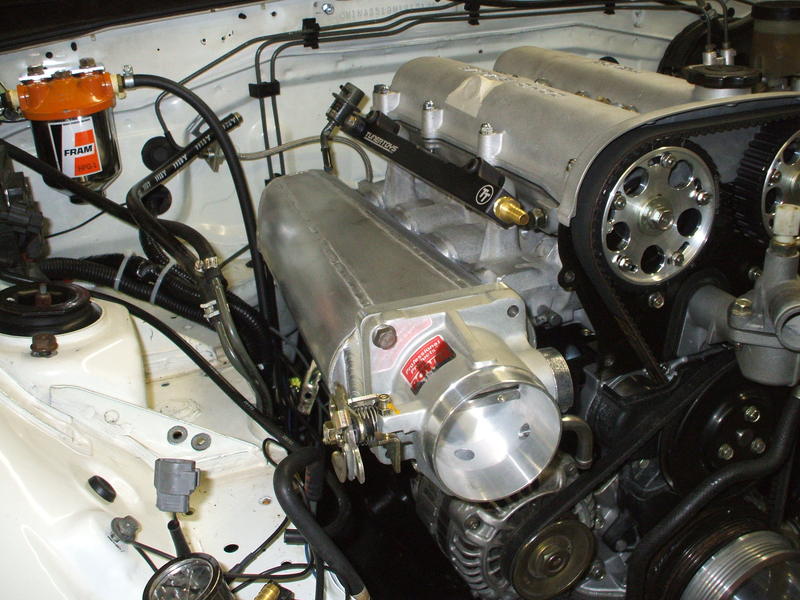

Just thought I would throw up a few pics to guage some interest as the first few are being completed. Pics are off of BracedEunos' car which is using a mustang TB. Cantact Welcome to Flipside

Gary
Attached Thumbnails
Flipside Customs Intake Mani (1.6L)-intake-1.jpg   Flipside Customs Intake Mani (1.6L)-intake-2.jpg   Flipside Customs Intake Mani (1.6L)-intake-3.jpg   Flipside Customs Intake Mani (1.6L)-intake-4.jpg
G2B is offline   Reply With Quote
Old 11-08-2008, 12:37 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

damn thats nice....how much are these going to be running? big money ill bet
18psi is offline   Reply With Quote
Old 11-08-2008, 12:39 AM   #3
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Looks dope!

Vash-
Vashthestampede is offline   Reply With Quote
Old 11-08-2008, 12:43 AM   #4
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Show us some pictures that we haven't seen. How's the inside look?
JayL is offline   Reply With Quote
Old 11-08-2008, 01:43 AM   #5
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

Quote:
Originally Posted by JayMX5 View Post
Show us some pictures that we haven't seen. How's the inside look?
****, show us flow!!!+1BRAIN11!!!FLOW!!
Mach929 is offline   Reply With Quote
Old 11-08-2008, 10:19 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Looks pretty on the outside. What's the surprise inside?
m2cupcar is offline   Reply With Quote
Old 11-08-2008, 01:49 PM   #7
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

The million dollar question.......how much?
spike is offline   Reply With Quote
Old 11-08-2008, 11:09 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Mach929 View Post
****, show us flow!!!+1BRAIN11!!!FLOW!!





should flow well. but what do i know.
Braineack is offline   Reply With Quote
Old 11-08-2008, 11:32 PM   #9
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

The opening for the TB sticks out in front of the engine a lot more than the stock one. I'm curious how much room there will be for the charge pipe that needs to immediately turn-down for the average intercooler routing. Does this thing mean that only over-the-rad IC setups are going to be engineer-able. Guys with larger-than-stock radiators are going to be especially pinched for space there. Just an observation.
samnavy is offline   Reply With Quote
Old 11-09-2008, 12:26 AM   #10
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Hey look at that, number 1 is starved number 4 is over charged and the ones in the middle are somewhere between that. Who wants to torch the number one cylinder? Brainiacs other ideas are about 10 times better then this, and corky's symmetrical flow unit is also an improvement.
TravisR is offline   Reply With Quote
Old 11-09-2008, 12:29 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

gotta take what i'm doing with a grain of salt.
Braineack is offline   Reply With Quote
Old 11-09-2008, 01:02 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

like here, I just did it again, trying to be a little closer to the design:

Braineack is offline   Reply With Quote
Old 11-09-2008, 01:27 AM   #13
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Both pictures tell the same story. It’s the orientation of the inlet that makes the difference.

One way to safeguard against starvation is make the plenum huge, velocity goes way down, so you don't create the shear in any cylinder, but that has its problems because of throttle response.

The sophisticated way is redirect the angle so that plenum volume is low and you don't interrupt flow in any cylinders.

You can think of the velocity field in the entry ways of the ports as spheroidal. If you are far away the velocity vectors are all pointing exactly in. As you get closer and the velocity is higher the velocity field straightens out in some areas because its filing into the port. When you position the T/B in front of those spheroidal velocity fields it interferes with them and causes the port not to flow well. Notice how the number one port slamming air against the wall on the onside and rotating down, and nothing is getting in on the other side. That’s the effect I’m talking about.

So the first cylinder's ability to fill is really impeded, but the rest of the cylinders do ok. The higher the R.P.M. and flow the more the starvation effect.
TravisR is offline   Reply With Quote
