Default FM hood louvers

Has anyone installed them, and where on a MSM-NB hood? Flyin' Miata : Body : Body parts : Flyin` Miata aluminum louver panel
Most text suggest the rear 25% of the hood but the pressure layout on FM's site seems to show the lowest pressure area to be closer to the headlight(s).
Thanks
Phil
PhilZ28 is offline   Reply With Quote
Old 12-02-2012, 06:05 PM   #2
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

DaveC is offline   Reply With Quote
Old 12-02-2012, 06:15 PM   #3
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

specifically here
ThePass is offline   Reply With Quote
Old 12-02-2012, 08:20 PM   #4
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

I bought 2 of these. They will be getting put on my NA during the winter/spring sometime. Mine will go more close to the center of the hood, and a little further towards the headlights. Probably around the bump in the middle of the hood. But i like the idea of having it above the turbo to let some of that heat escape once i stop driving the car, and i turn it off. I'm not really worried about "flow" through my radiator, as much as i am worried about getting the warm air out of the bay. Mainly getting that hot air out and away from where the turbo is.
Erat is offline   Reply With Quote
Old 12-02-2012, 09:09 PM   #5
Newb
Thread Starter

Join Date: Mar 2012
Location: Maryland
Posts: 8
Total Cats: 0
Default

I was thinking the same, but moving them more towards the out edge of the hood. One thing that may dictate the position is the hood bracing. The trick I feel is to remove the bracing, to promote better air flow, and to use the louver as a bridge between the cuts which may necessitate the addition of a few rivets!
PhilZ28 is offline   Reply With Quote
Old 12-02-2012, 09:26 PM   #6
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

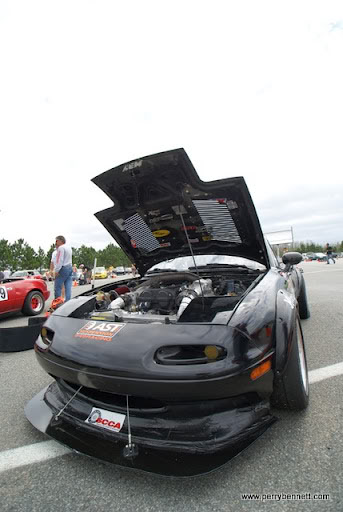

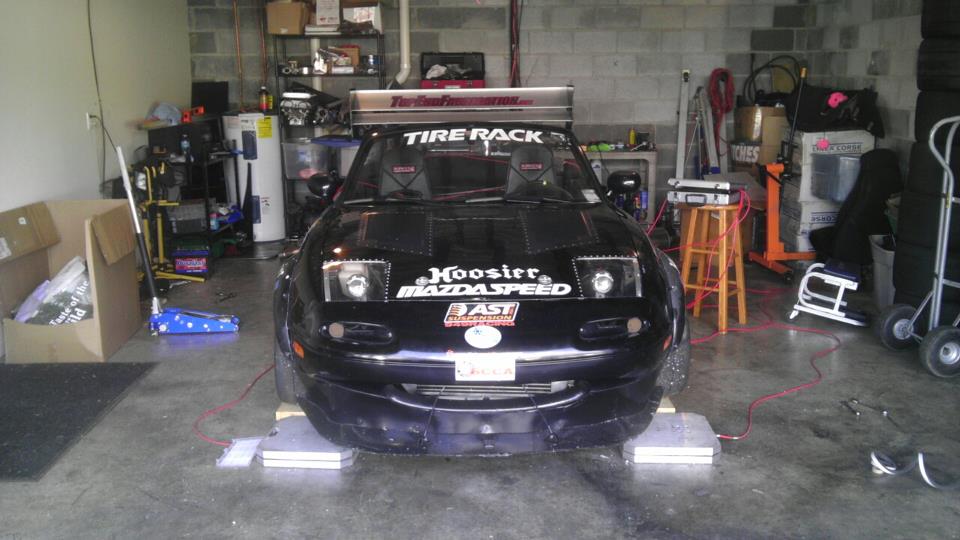

I have these Size Large Hood Louvers (11″X 17″) | Hood Vents For Your Vehicle – RunCool Hood Louvers

They look great and are actually engineered to be functional.



Attached Thumbnails
FM hood louvers-530985_10151117402734242_819197725_n.jpg   FM hood louvers-dsc05261.jpg
TNTUBA is offline   Reply With Quote
Old 12-02-2012, 09:34 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

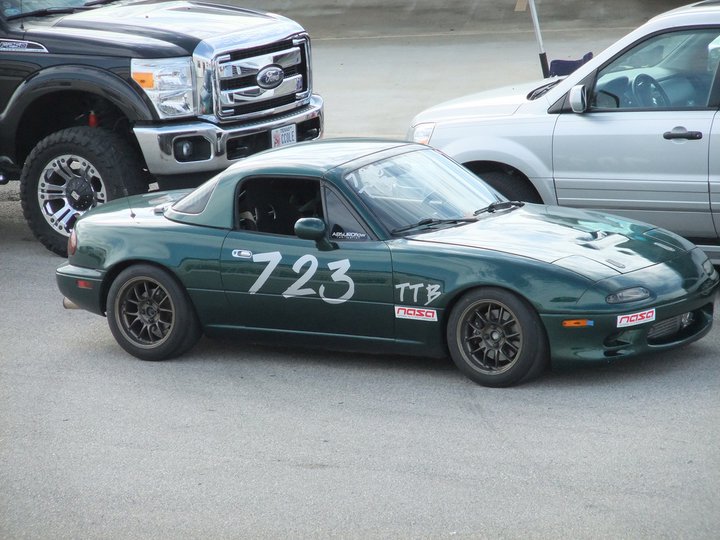

I'd do a smaller vent, further forward.
Attached Thumbnails
FM hood louvers-167123_931981185310_3206131_n.jpg
hustler is offline   Reply With Quote
Old 12-02-2012, 09:44 PM   #8
Newb
Thread Starter

Join Date: Mar 2012
Location: Maryland
Posts: 8
Total Cats: 0
Default

The FM louvers are only 5" wide x 9" long
PhilZ28 is offline   Reply With Quote
Old 12-02-2012, 09:55 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by PhilZ28 View Post
The FM louvers are only 5" wide x 9" long
You want a foil/lip and the vents reduce the size of the hole. Buy whatever you want, but this is the marlin. Those FM vents will probably work if you put them further forward.
hustler is offline   Reply With Quote
Old 12-02-2012, 10:42 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by TNTUBA View Post

They look great and are actually engineered to be functional.
Got some tuft testing to show us? Looks like they are way, way too far back to do anything but vent heat at rest.

If you want an effective duct at speed, it needs to be where Trey's duct is. Nowhere else works nearly as well.
Savington is offline   Reply With Quote
Old 12-03-2012, 11:34 AM   #11
Newb
Thread Starter

Join Date: Mar 2012
Location: Maryland
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
You want a foil/lip and the vents reduce the size of the hole. Buy whatever you want, but this is the marlin. Those FM vents will probably work if you put them further forward.
This one looks like it forces air in, the FM vents are designed to pull air out.
PhilZ28 is offline   Reply With Quote
Old 12-03-2012, 01:28 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by PhilZ28 View Post
This one looks like it forces air in, the FM vents are designed to pull air out.

you're a silly silly sad man.
Braineack is online now   Reply With Quote
Old 12-03-2012, 03:14 PM   #13
Newb
Thread Starter

Join Date: Mar 2012
Location: Maryland
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you're a silly silly sad man.
Yes, I know.
PhilZ28 is offline   Reply With Quote
Old 12-03-2012, 03:59 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by PhilZ28 View Post
This one looks like it forces air in, the FM vents are designed to pull air out.
Close your mouth.
hustler is offline   Reply With Quote
Old 12-03-2012, 04:10 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by PhilZ28 View Post
This one looks like it forces air in, the FM vents are designed to pull air out.
Turn it around backwards, or look at Trey's hood (it's the same vent, just molded in).
Savington is offline   Reply With Quote
Old 12-03-2012, 04:12 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
Turn it around backwards, or look at Trey's hood (it's the same vent, just molded in).
It pretty much "sons" every other hood I've seen in my life.
hustler is offline   Reply With Quote
Old 12-03-2012, 06:25 PM   #17
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by Savington View Post
Got some tuft testing to show us? Looks like they are way, way too far back to do anything but vent heat at rest.

If you want an effective duct at speed, it needs to be where Trey's duct is. Nowhere else works nearly as well.
Just as a note, that car should spend almost 5x as much time at rest as it does at speed, at least at the events that "count".
tpwalsh is offline   Reply With Quote
Old 12-03-2012, 06:35 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

I put my vents in sideways, that way I get mad flow with my extreme drift angles.
Braineack is online now   Reply With Quote
Old 12-03-2012, 08:00 PM   #19
Newb
Thread Starter

Join Date: Mar 2012
Location: Maryland
Posts: 8
Total Cats: 0
Default

So can anyone tell me I can stick my vents
On the hood that is
Thanks
PhilZ28 is offline   Reply With Quote
Old 12-03-2012, 09:21 PM   #20
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

Quote:
Originally Posted by Savington View Post
Got some tuft testing to show us? Looks like they are way, way too far back to do anything but vent heat at rest.

If you want an effective duct at speed, it needs to be where Trey's duct is. Nowhere else works nearly as well.
I placed 4 thermocouples under the hood and did before and after testing. I saw an average 52 degree drop in under hood ambient air temps, 11 degree drop in water temp and 23 degree drop in intake air temps. I didn't put it in a wind tunnel to test it though.
TNTUBA is offline   Reply With Quote
