Default FM1 intercooler pipping

Hi guys,

I picked up the older model FM1 intercooler when it was on DotD (can't say no to $100!). Does anyone have a picture of how the pipping is suppose to routed for it?

It looks similar to the top intercooler in this pic

http://www.flyinmiata.com/projects/O...ges/OTC_IC.jpg

I current have J**'s pipping for the RX-7 IC. I'm hoping to salvage as much as possible.

Thanks,

t.t.
trito is offline   Reply With Quote
Old 03-20-2008, 02:28 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 74,711
Total Cats: 2,059
Default

email BEGi or FM for their old install instructions...i used ot have them hosted, cant seem to find them.

Braineack is offline   Reply With Quote
Old 03-20-2008, 04:08 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2005
Location: San Jose
Posts: 213
Total Cats: 0
Default

koo will do that!
trito is offline   Reply With Quote
Old 03-21-2008, 01:24 PM   #4
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 745
Total Cats: 103
Default

I wasn't able to provide a picture of the piping outside of the car, unfortunately. The piping originally used on those ICs are not pretty as the picture above shows, and I don't recommend copying it. A routing closer to our current setup would be preferable.

Keith@FM is offline   Reply With Quote
Old 03-21-2008, 02:14 PM   #5
Elite Member
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,267
Total Cats: 1

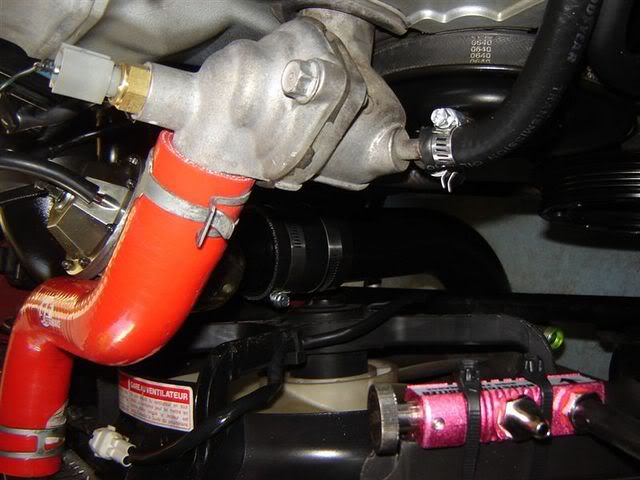

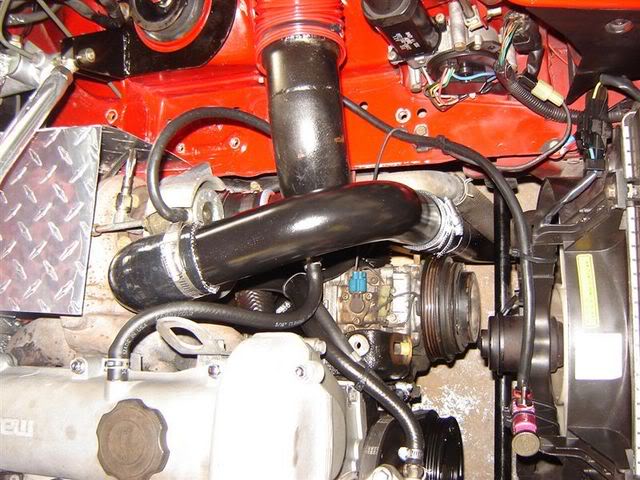

Default

levnubhin is offline   Reply With Quote
Old 03-21-2008, 02:23 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2005
Location: San Jose
Posts: 213
Total Cats: 0
Default

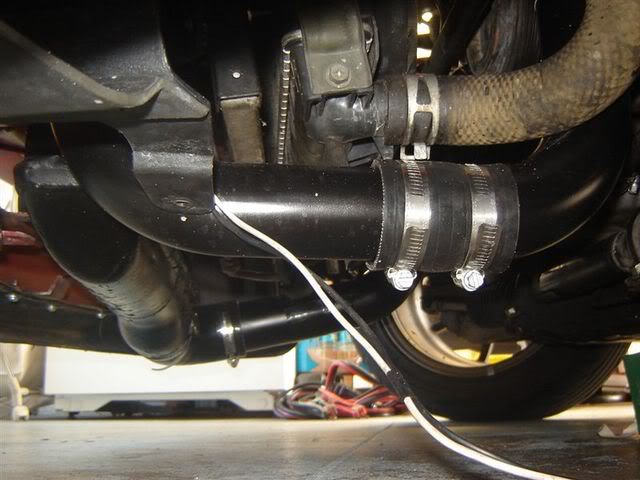

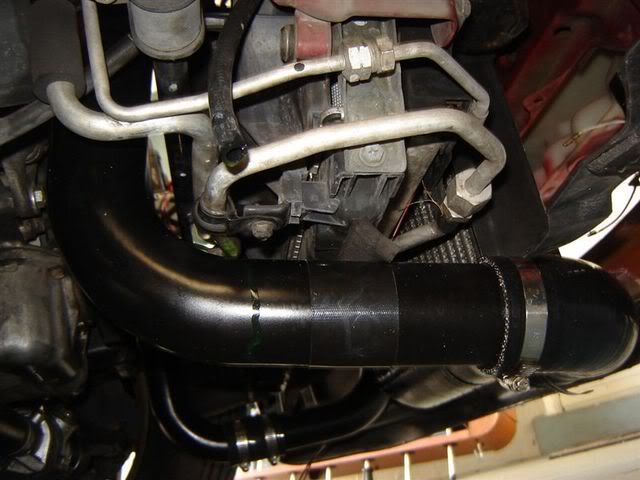

awesome thanks levnubhin! Looks like both inlet and outlet are going under the AC cooler.
trito is offline   Reply With Quote
Old 03-21-2008, 02:29 PM   #7
Elite Member
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,267
Total Cats: 1
Default

You got it man. Yup under rad and a/c
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
