Default Fuel Injector Bullshit

So I purchased a used set of RC Engineering 550cc low ohm injectors from a forum member here. They were supposed to fit a miata. Well they don't. They're .160" too short. If I install them they are loose and move around. And the tip where the injector goes into the head is also different. I used an O-ring there.

Sure I could try to get a refund or whatever but honestly I'd rather just make these work. If I remove the plastic spacers that normally space the rail away form the head, it's too tight. But, if I add a .060 washer between the head and rail the spacing is pretty close. Looks like it should work. Is there any reason NOT to do this? With the O-rings on the ends of the injectors they seal by the o ring being crushed between the injector being pushed down and the head where the injector goes in. The 99 injectors tips are different and it appears the injector seals by being in there, not by being forced down. Would that matter?
patsmx5 is offline   Reply With Quote
Old 08-03-2008, 11:26 PM   #2
Elite Member
iTrader: (3)
Mach929's Avatar
Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0

i had a couple washers spacing my rail for a while when i lost one of those spacers, with proper thickness i think you should be fine
Mach929 is offline   Reply With Quote
Old 08-04-2008, 02:53 AM   #3
Senior Member
iTrader: (10)
Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0

You will be fine with washers, my RCs fit the same way, I had to use a few washers in place of the spacers.
ApexOnYou is offline   Reply With Quote
Old 08-04-2008, 10:34 AM   #4
2 Props,3 Dildos,& 1 Cat
iTrader: (8)
y8s's Avatar
Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407

umm did you put the big fat rubber spacer on them?

ie does the bottom (spray side) look like this:
y8s is offline   Reply With Quote
Old 08-04-2008, 01:40 PM   #5
Senior Member
iTrader: (10)
Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0

FWIW I used a different style O ring, I am not sure if the OEM (Miata) large seal will work, but I never actually tried using it. If you want I could try to find the NAPA part number. FM lists it somewhere on their site too, maybe in the technical section for their dual feed rail, but 2 of the O rings are the same height as the OEM seal, take one away and it fits the RCs shorter pintle cap just fine.
ApexOnYou is offline   Reply With Quote
Old 08-04-2008, 02:25 PM   #6
Elite Member
iTrader: (7)
samnavy's Avatar
Join Date: Apr 2006
Posts: 6,020
Total Cats: 175

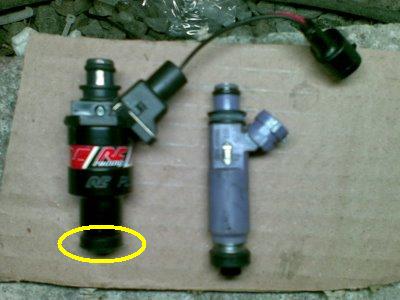

Yup, you need the plastic insulator. It keeps the metal body of the injector from touching the metal intake manifold and grounding it (I think).
Attached Thumbnails
Fuel Injector Bullshit-05092007-002-.jpg
samnavy is offline   Reply With Quote
Old 08-04-2008, 03:24 PM   #7
Senior Member
iTrader: (7)
Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1

FWIW, those little plastic spacers are actually insulators that keep the fuel from getting too hot. I have been running without the middle one and with washers in its place all summer and have not experienced any problems yet. Starts right up every time. The guy at the dealership said that without that insulator, the fuel may boil and have a hard time with warm starts.
wes65 is offline   Reply With Quote
Old 08-04-2008, 04:45 PM   #8
Elite Member
iTrader: (21)
Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,685
Total Cats: 557

Are those insulators dealer only items? Searched on Moss and FM, and couldn't find them. Will the stock ones work, or are they sized to the injector?

Edit: Nevermind. Found 'em at Finishline. http://www.finishlineperformance.com...cat=317&page=2
rleete is offline   Reply With Quote
