Default Gesso's NBLSFuckery

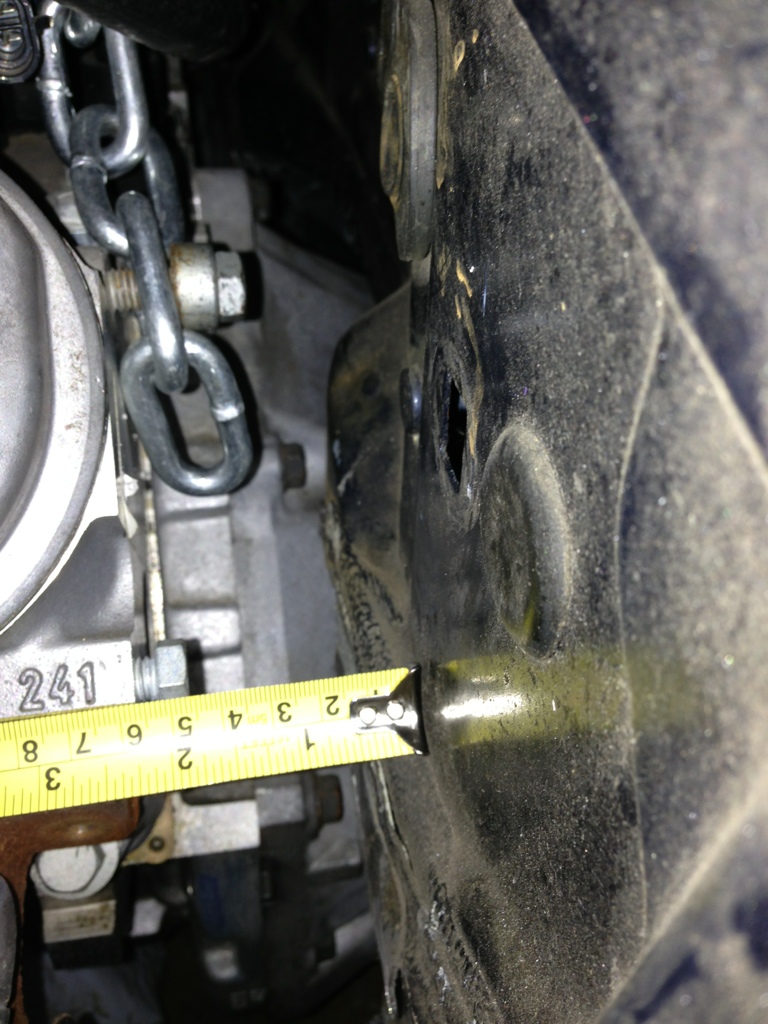

Drivers side head to firewall clearance.

I think this means I put my engine mount adapter plates on backwards. Can anyone who's done this confirm this for me. I'm piecing the kit together and don't have any instructions beyond FM's build blog to check against.

I'd post this at v8miata.net but it's basically a ghost town over there. Tourist show up, look around, and never return. Occasionally kids come by and vandalize the place (spambots). At least here there's a population that keeps things "civilized".
Attached Thumbnails
Gesso's NBLSFuckery-f089a936-eebc-48f6-a22d-8f30ad8fd983-16603-00000752febb65bc.jpg
gesso is offline   Reply With Quote
Old 12-13-2012, 06:28 AM   #2
Junior Member

Join Date: Sep 2009
Location: Bergen, Norway
Posts: 129
Total Cats: 12
Default

Are these the instructions you are looking for?

http://www.flyinmiata.com/support/in...structions.pdf
lassi is offline   Reply With Quote
Old 12-13-2012, 06:32 AM   #3
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Quote:
Originally Posted by gesso View Post
Tourist show up, look around, and never return.

Attached Thumbnails
Gesso's NBLSFuckery-marla%25252c%252byou%252bliar%252521%252byou%252bbig%252btourist%252521.jpg
Nagase is offline   Reply With Quote
Old 12-13-2012, 08:23 AM   #4
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

I have 1 5/16" clearance from the corner of the head to the firewall with the v8r rearward kit + ls6. It gets closer in other spots below that. The passenger side has less clearance.
orion4096 is offline   Reply With Quote
Old 12-13-2012, 12:36 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

I have less than 1" clearance on my stock 1.6L motor.
Braineack is offline   Reply With Quote
Old 12-13-2012, 07:47 PM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 695
Total Cats: 140
Default

Quote:
Originally Posted by lassi View Post
Are these the instructions you are looking for?

http://www.flyinmiata.com/support/in...structions.pdf
Section 4, step 5: Install motor mounts.

No mention of the fact that the mount adapter plates can be installed in multiple orientations :(

Given Orion's measurements I have to assume they're on backwards. Not the end of the world as I have to pull the motor at least one more time anyways.
gesso is offline   Reply With Quote
Old 12-13-2012, 10:43 PM   #7
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

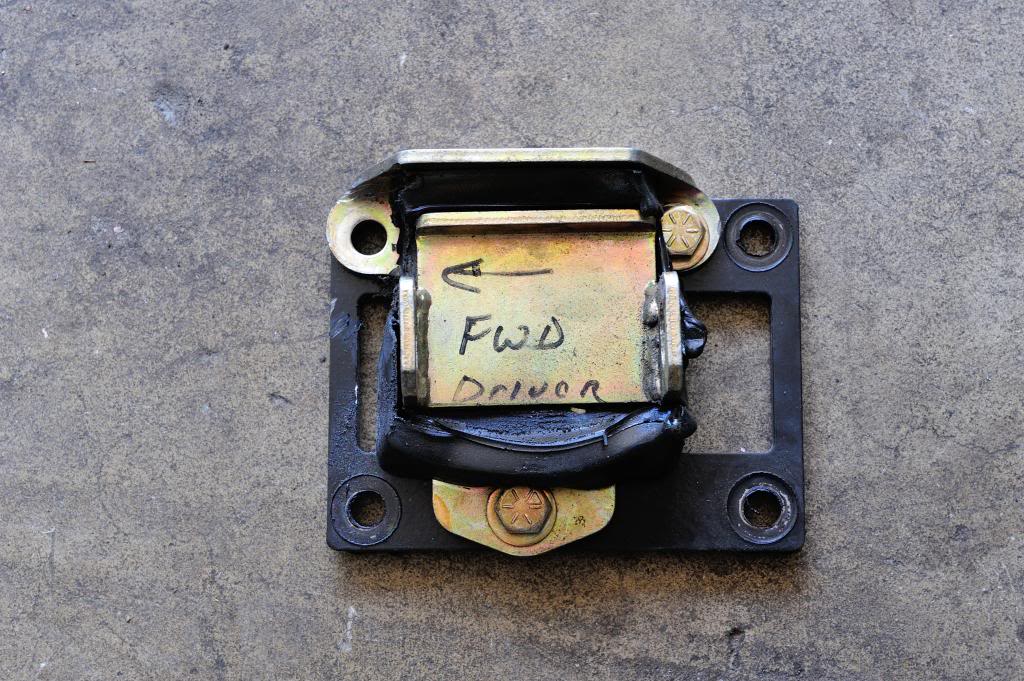

Does this pic help? I had to change out some melted motor mounts and snapped some pics with this one still attached to the adapter plate from v8r. If the adapter is flipped front to back I can see how the engine moves up ~1".

Attached Thumbnails
Gesso's NBLSFuckery-dsc_6468.jpg
orion4096 is offline   Reply With Quote
Old 06-02-2017, 04:20 PM   #8
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Bump. Is the car running yet?
aidandj is offline   Reply With Quote
Old 06-02-2017, 04:25 PM   #9
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I like where this is going
EO2K is offline   Reply With Quote
Old 06-02-2017, 04:52 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 695
Total Cats: 140
Default

Define running... I started the motor last month and it seemed fine...
gesso is offline   Reply With Quote
Old 06-02-2017, 04:52 PM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

MRLS 2018?
aidandj is offline   Reply With Quote
Old 06-02-2017, 04:52 PM   #12
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

We need donut videos.

--Ian
codrus is offline   Reply With Quote
Old 06-02-2017, 04:53 PM   #13
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

It needs some things. Like a clutch...
EO2K is offline   Reply With Quote
Old 06-02-2017, 05:09 PM   #14
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 695
Total Cats: 140
Default

Actually this tread gives me a sad I have three ecu's for the motor but I can't prove that any of them are the original ecu (The one I think is original is busted), which means I probably can't make it legal in CA which was the whole point originally (I've already handled the mods to use the factory manifolds and cats).

I've got a few paths forward from here and none of them are super attractive (thus why I spend my time working on the exofish):
- Give up on carb legal status and make it a track only car (but then I need a truck and a trailer and should sell the exofish and really I would just go S2 or S3 if I was gonna do a track only car)
- Give up on the car but finish it and sell it out of state
- Give up on the car and just sell it as it
- Give up on the car, part out the LS stuff and the 8.8 rear end/subframe/axles (likely the most money this way)
- Convert the car back to "stock" every 2 years
- Register the car out of state (This is more hassle than I really want)
gesso is offline   Reply With Quote
Old 06-02-2017, 05:10 PM   #15
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

What about finding someone who has an ECU+motor and is willing to trade. Or sell your motor+3 ecus. And buy one known combo.
aidandj is offline   Reply With Quote
Old 06-02-2017, 05:17 PM   #16
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by gesso View Post
Actually this tread gives me a sad I have three ecu's for the motor but I can't prove that any of them are the original ecu (The one I think is original is busted), which means I probably can't make it legal in CA which was the whole point originally (I've already handled the mods to use the factory manifolds and cats).

I've got a few paths forward from here and none of them are super attractive (thus why I spend my time working on the exofish):
- Give up on carb legal status and make it a track only car (but then I need a truck and a trailer and should sell the exofish and really I would just go S2 or S3 if I was gonna do a track only car)
- Give up on the car but finish it and sell it out of state
- Give up on the car and just sell it as it
- Give up on the car, part out the LS stuff and the 8.8 rear end/subframe/axles (likely the most money this way)
- Convert the car back to "stock" every 2 years
- Register the car out of state (This is more hassle than I really want)
It has to be the exact ECU that came out the donor car? Or does it just have to be the equivalent ECU? Used ECU out of same year? Take VIN of donor to Chevy parts dept and buy OEM replacement ECU?

--Ian
codrus is offline   Reply With Quote
Old 06-02-2017, 05:33 PM   #17
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default



Motor runs in car. Why does car not drive.
aidandj is offline   Reply With Quote
Old 06-03-2017, 03:39 AM   #18
Junior Member

Join Date: Apr 2017
Location: South Dakota
Posts: 118
Total Cats: 3
Default

Quote:
Originally Posted by codrus View Post
It has to be the exact ECU that came out the donor car? Or does it just have to be the equivalent ECU? Used ECU out of same year? Take VIN of donor to Chevy parts dept and buy OEM replacement ECU?

--Ian
Per DJWade's thread, exact ECU out of donor car with a way to prove it. Utter bullshit.
SpartanSV is online now   Reply With Quote
