Old 11-19-2007, 02:28 PM   #81
Junior Member
iTrader: (1)

Join Date: Jun 2005
Location: San Jose
Posts: 213
Total Cats: 0
Default

Anyone installed it the GS radiator with unclocked greddy turbo and ****'s pipes? I know stock, the ****'s pipes are almost touching the pulley/belts, I'm afraid with the GS radiator's extra length it'll be impossible to route it through.
trito is offline   Reply With Quote
Old 11-19-2007, 02:48 PM   #82
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Thanks Phil.

I'll get one for now and add another later if needed.
kotomile is offline   Reply With Quote
Old 11-21-2007, 01:44 AM   #83
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by trito View Post
Anyone installed it the GS radiator with unclocked greddy turbo and ****'s pipes? I know stock, the ****'s pipes are almost touching the pulley/belts, I'm afraid with the GS radiator's extra length it'll be impossible to route it through.
I'm running Jim's pipes with the stock radiator and the pipes ARE touching my a/c compressor clutch as is. I would definitely order some slim fans. In fact I'm ordering slim fans right now and I don't plan on upgrading to the GS radiator.
Bryce is offline   Reply With Quote
Old 11-21-2007, 10:36 AM   #84
Newb

Join Date: Nov 2007
Location: Minnesota
Posts: 1
Total Cats: 0
Default

Woner if this would fit with the huge *** Spal that FM sells for the passenger side....?
Cman is offline   Reply With Quote
Old 11-21-2007, 11:07 AM   #85
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

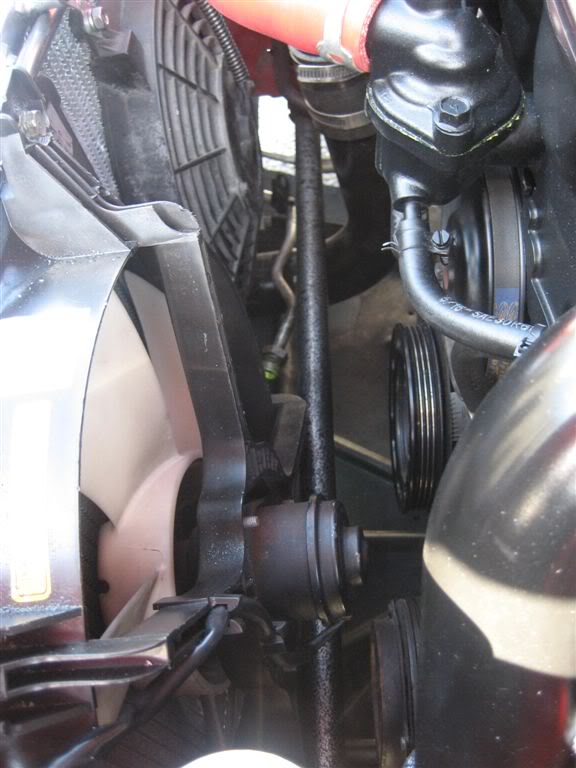

I just replaced my A/C fan with a slim fan that I had. You can see how much room it frees up. I ordered another one from ebay just for this reason.

Name:  IMG_5337.jpg
Views: 1
Size:  60.2 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-21-2007, 11:19 AM   #86
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

night and day, which is why im going with slim fans as well
Zabac is offline   Reply With Quote
Old 11-21-2007, 12:01 PM   #87
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Links to slim fans are dead. How about you guys posting seller names?
olderguy is offline   Reply With Quote
Old 11-21-2007, 12:09 PM   #88
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 11-21-2007, 12:20 PM   #89
Junior Member
iTrader: (1)

Join Date: Jun 2005
Location: San Jose
Posts: 213
Total Cats: 0
Default

Thanks Bryceness! Looking at levnubhin's pic it looks like the slim fan will accomodate the GS rad and Jiimb's pipes.

-t.t.

Quote:
Originally Posted by Bryceness View Post
I'm running Jim's pipes with the stock radiator and the pipes ARE touching my a/c compressor clutch as is. I would definitely order some slim fans. In fact I'm ordering slim fans right now and I don't plan on upgrading to the GS radiator.
trito is offline   Reply With Quote
Old 11-21-2007, 01:33 PM   #90
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Got mine. Haven't got it in yet. What a great buy for all the cooling anyone should ever need! $160 shipped? Are you kidding me? Good to hear they clear the RB hollow sway.

Those slim fans look like the ticket with all that extra space they give you. Someone should contact one of the sellers of those and look for a group buy on them! Look how the rads exploded!
cueball1 is offline   Reply With Quote
Old 11-21-2007, 01:40 PM   #91
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

i want group buy on those fans
Loki047 is offline   Reply With Quote
Old 11-21-2007, 08:11 PM   #92
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by Loki047 View Post
i want group buy on those fans
+1 on the group buy for the fans.
Is someone going to get that organized or will I just have to settle for the already ridiculously cheap prices so I can have a/c?
Bryce is offline   Reply With Quote
Old 12-22-2007, 07:22 PM   #93
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

how's that weatherstripping stuff holding up? I'm trying to figure out a solution for the gap between the radiator and the fans myself.
Trent is offline   Reply With Quote
Old 12-23-2007, 04:29 PM   #94
Junior Member

Join Date: Nov 2007
Location: Boston
Posts: 90
Total Cats: 0
Default

i got both of mine in but one of them has a large dent on the side guess that one is going back.
ldp82 is offline   Reply With Quote
Old 12-23-2007, 04:46 PM   #95
I'm Miserable!
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

can i still order from here? Or do i have to buy one off of ebay now?
miataz is offline   Reply With Quote
Old 01-19-2008, 01:34 PM   #96
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Thought I'd bump up this thread. The group buy is still good. What a bargain for well under $200. This took 2 hours start to finish in a parking lot with a socket, hacksaw, screwdriver, drill and vise grip. Hardly scubbed my knuckles at all. Instructions at the start of this post are pretty much dead on. Ist time I tried to put it in I had just bent over the flaps on the side, didn't work, cut them like in the instructions. Thanks for taking the time for writing and pics! If I had followed instructions to the letter I'd have saved a few minutes.

Tight getting it back it but even with the stock fans, AC and the hollow RB sway it still fit in my 94 with everything pre-assembled. Now after BEGI installs the S4 system on my little mule next month, I have no fears of cooling trouble on the track!

Taking out the stock rad - what a joke that thing is. It's pathetic. No wonder people have cooling issues.
cueball1 is offline   Reply With Quote
Old 01-19-2008, 01:38 PM   #97
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by cueball1 View Post
Thought I'd bump up this thread. The group buy is still good. What a bargain for well under $200. This took 2 hours start to finish in a parking lot with a socket, hacksaw, screwdriver, drill and vise grip. Hardly scubbed my knuckles at all. Instructions at the start of this post are pretty much dead on. Ist time I tried to put it in I had just bent over the flaps on the side, didn't work, cut them like in the instructions. Thanks for taking the time for writing and pics! If I had followed instructions to the letter I'd have saved a few minutes.

Tight getting it back it but even with the stock fans, AC and the hollow RB sway it still fit in my 94 with everything pre-assembled. Now after BEGI installs the S4 system on my little mule next month, I have no fears of cooling trouble on the track!

Taking out the stock rad - what a joke that thing is. It's pathetic. No wonder people have cooling issues.
Are these the same people that might want to do lower priced intercooler sales to the rest of us?
olderguy is offline   Reply With Quote
Old 04-29-2008, 12:26 AM   #98
Junior Member

Join Date: Dec 2005
Posts: 258
Total Cats: 0
Default

just wanna make sure, NA miatas use the 7" fans right?
BrillntBlk92 is offline   Reply With Quote
Old 04-29-2008, 12:57 AM   #99
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I was under the impression everyone was using 10" fans.
cjernigan is offline   Reply With Quote
Old 04-29-2008, 07:45 AM   #100
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by cjernigan View Post
I was under the impression everyone was using 10" fans.
+1
olderguy is offline   Reply With Quote
