Default Godspeed Radiator Install

Allright guys it's in! It looks great amd most of all it works! Not keep in mind that this is a sub $200 radiator so it deffinately falls into the "you get what you pay for" category. The reason I say that is because it is not a direst bolt in. It wasnt difficult to put it in just a little time consuming. So 1st step is to obviously remove the stock radiator and remoce the fans from the radiator. To install the fans onto the new radiator I had to elongate the top mounting holes.
Name:  IMG_5100.jpg
Views: 34
Size:  39.4 KB

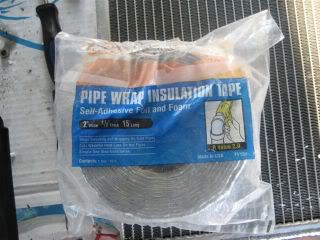

After I mounted the fans I noticed that there were rather large gaps between the radiator and fans. To fix that i went to Home Depot and picked up some self adhesive pipe wrap insullation tape.
Name:  IMG_5098.jpg
Views: 30
Size:  19.4 KB

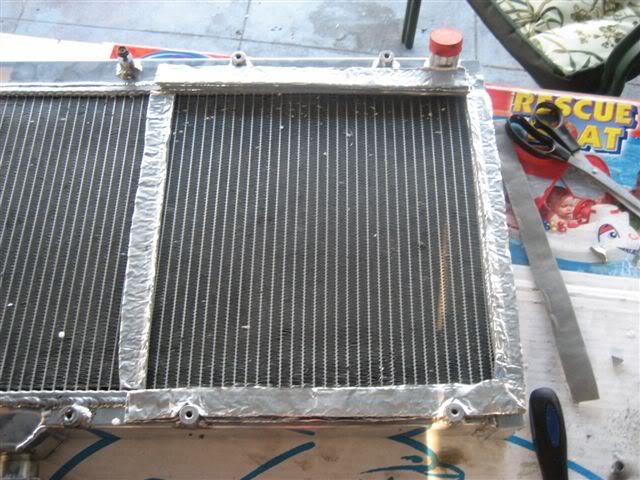

I cut the wrap into about 1" strips and lined the edges of the radiator.
Name:  IMG_5105.jpg
Views: 38
Size:  69.2 KB

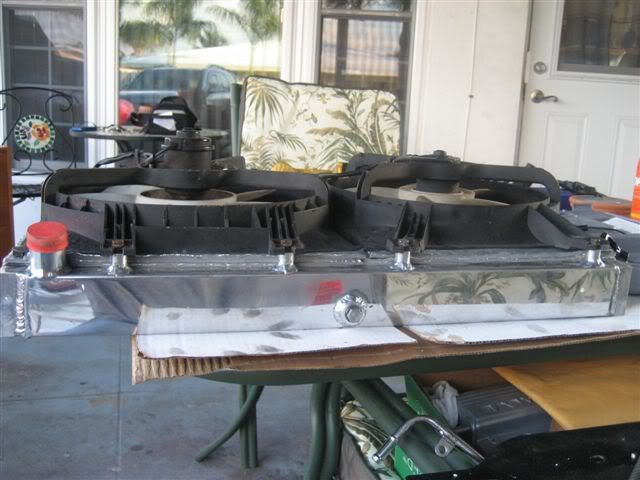

On the outside edges I put 3 strips and down the center between the 2 fans I put 1 strip. Then I mounted the fans.
Name:  IMG_5111.jpg
Views: 31
Size:  48.3 KB

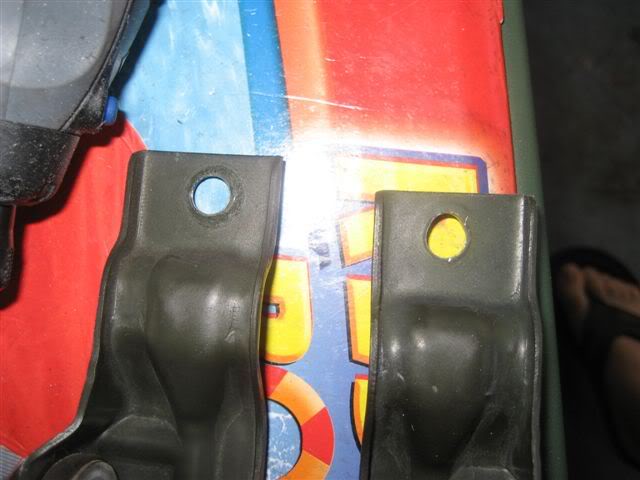

Next was to attach the mounting brackets. Before you do this check to see how your brackets line up with tho hols in the radiator. With my radiator I had elongate the holes on one side.
Name:  IMG_5116.jpg
Views: 28
Size:  37.4 KB

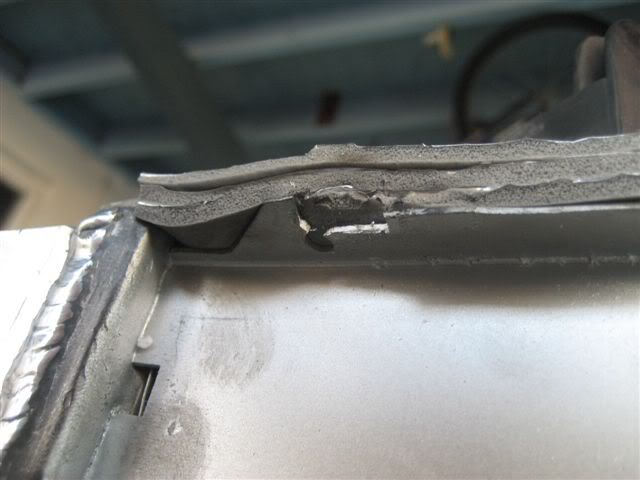

For some reason on the other side the holes lined up perfectly. I also noticed that because this radiator has those lips on the sides I needed to cut 2 pieces out on each side for the bracket to fit flat against the radiator.

Name:  IMG_5114.jpg
Views: 29
Size:  33.1 KB

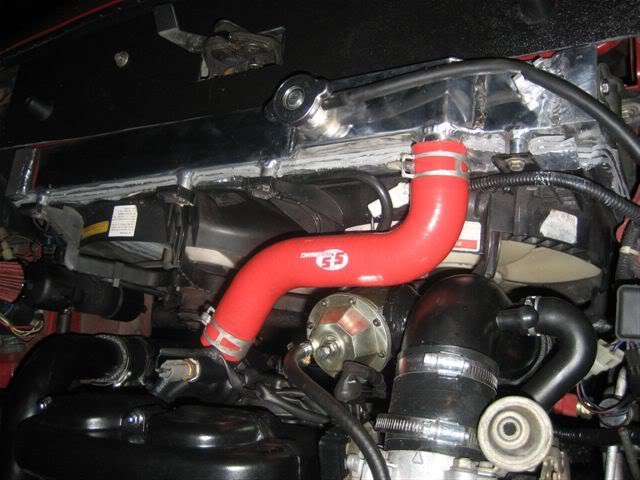

When I went to slide the radiator into the car I noticed that because of how thick it is that it wouldnt just slide down because of the shape of the frame wings near where the radiator sits. What I did was remove the pass side radiator mount from the radiator and then put it in place in the car and then I slid the radiator in. It still took a little muscle but it went in.
Name:  IMG_5125.jpg
Views: 28
Size:  51.8 KB

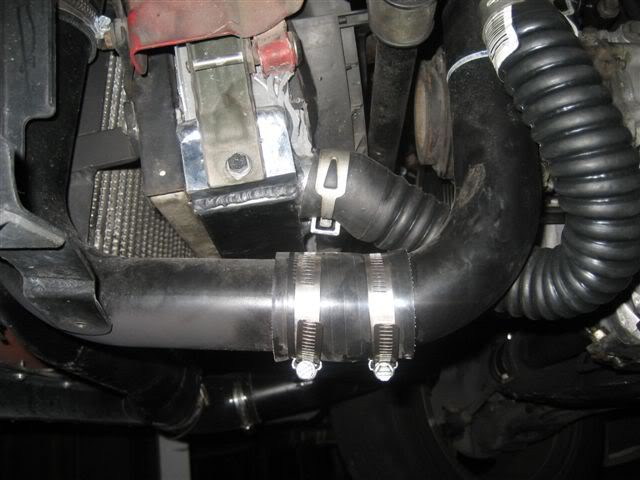

After you get it in just install the top bolts, reattach the hoses and fill it up. One problem I had was where the bottom hoses conectos to the radiator was slightly closer to the center of the radiator i had to use some flex hose in order to get aroung my charge pipe.
Name:  IMG_5128.jpg
Views: 32
Size:  44.1 KB
Here are some more pics.

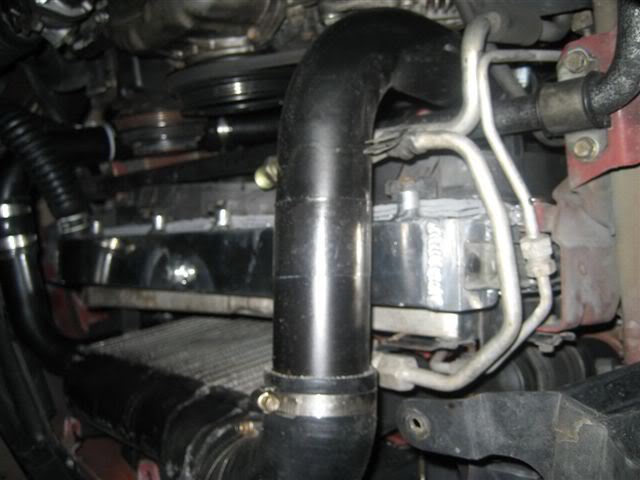

Name:  IMG_5132.jpg
Views: 28
Size:  39.4 KB

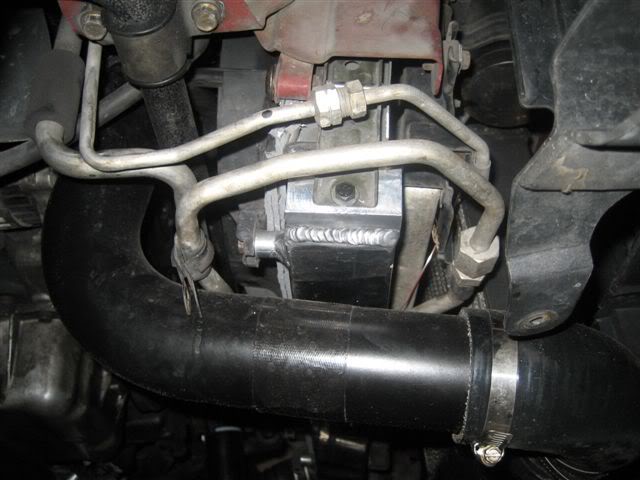

Name:  IMG_5131.jpg
Views: 27

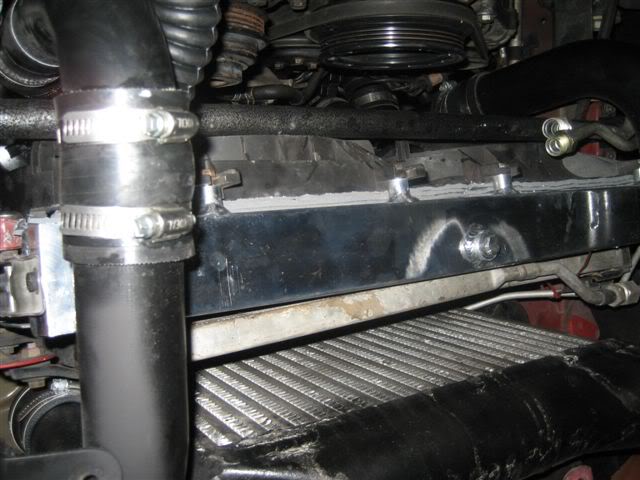

Size:  44.6 KBName:  IMG_5130.jpg
Views: 33
Size:  51.3 KB

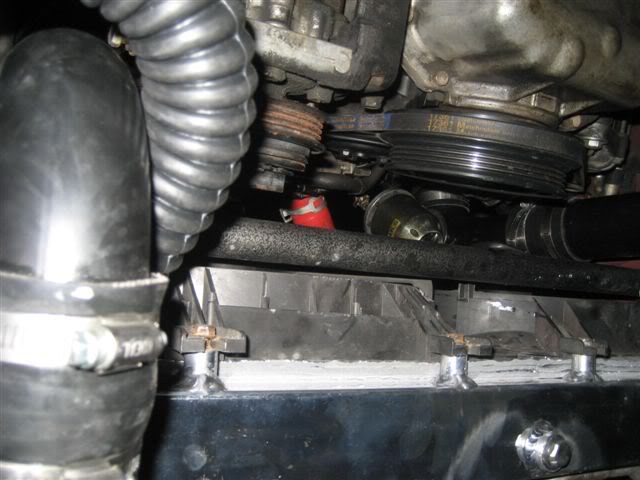

Name:  IMG_5129.jpg
Views: 27

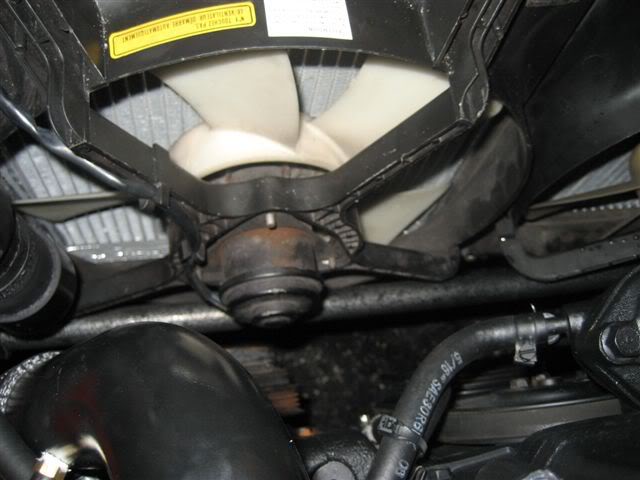

Size:  45.6 KBName:  IMG_5127.jpg
Views: 32
Size:  40.2 KB

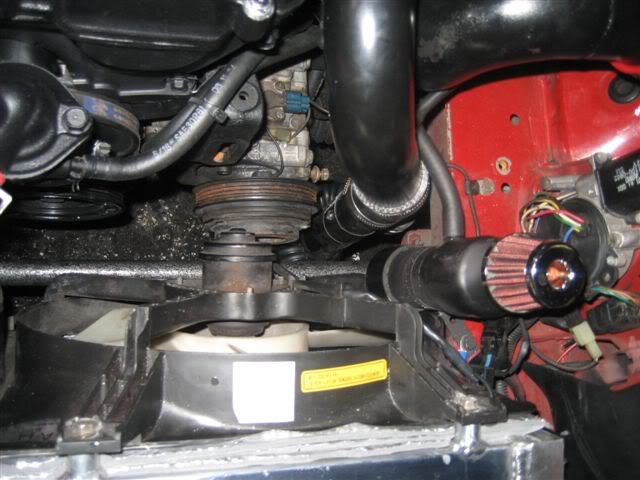

Name:  IMG_5126.jpg
Views: 30

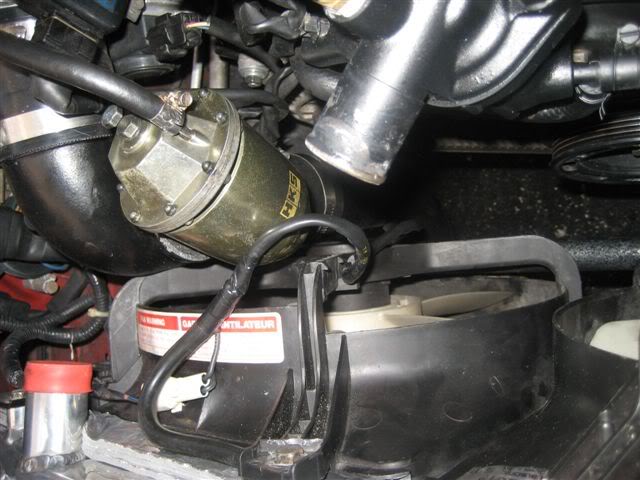

Size:  51.7 KBName:  IMG_5121.jpg
Views: 26
Size:  53.5 KB

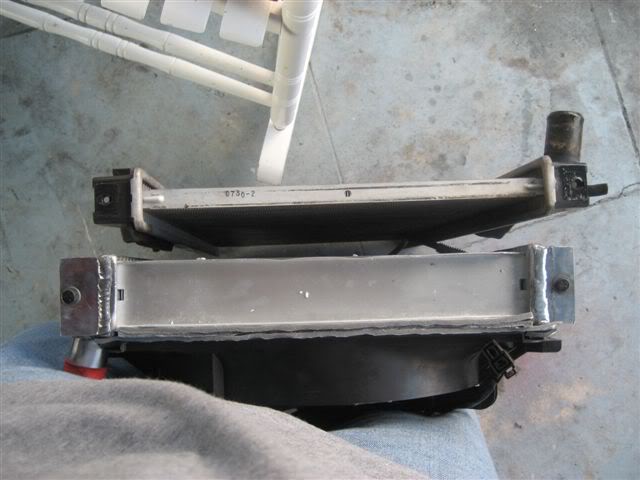

Name:  IMG_5119.jpg
Views: 31

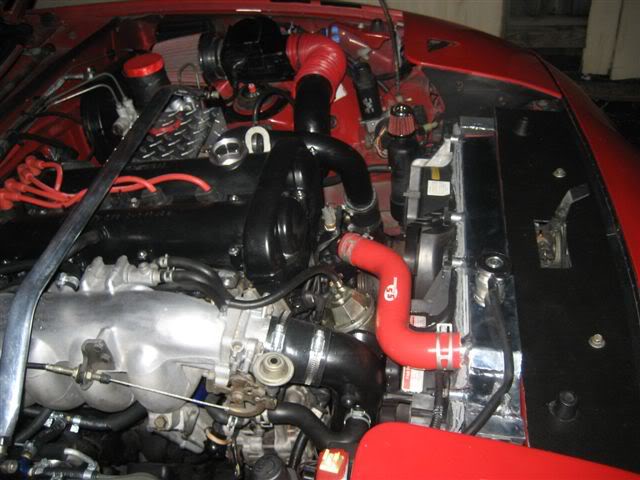

Size:  39.1 KBName:  IMG_5124.jpg
Views: 33
Size:  51.8 KB

If anyone has any questions please feel free to ask.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-07-2007, 10:44 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,140
Total Cats: 6
Default

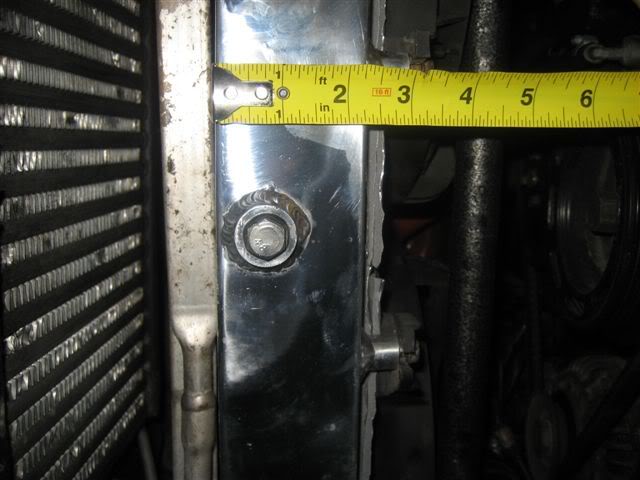

Looks like you have some great swaybar clearance which is something a bunch of us were worried about. Could you measure the actual core thickness for me?
cjernigan is offline   Reply With Quote
Old 11-07-2007, 10:53 PM   #3
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,242
Total Cats: 1
Default

levnubhin is offline   Reply With Quote
Old 11-07-2007, 11:12 PM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 112
Default

OK, install looks easy enough. For less than half cost of a PWR I can deal with enlarging a couple bolt holes.
So is there enough sway bar clearance for an oversized bar?
Ben is offline   Reply With Quote
Old 11-07-2007, 11:22 PM   #5
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,242
Total Cats: 1
Default

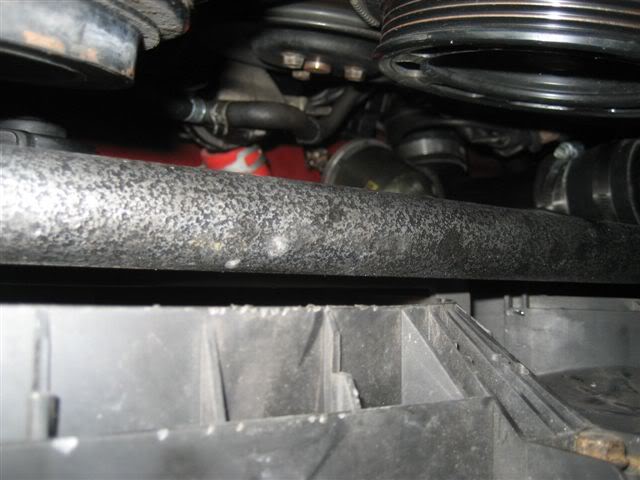

I have the 1" FM bar in there and there is still a small gap between the bar and the fans.
Name:  IMG_5152.jpg
Views: 29
Size:  43.0 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-07-2007, 11:30 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 112
Default

Great, Thanks. I have the same bar. Except mine's gray
Ben is offline   Reply With Quote
Old 11-08-2007, 08:22 AM   #7
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,505
Total Cats: 260
Default

What type of drain fitting is that? just a bolt?
TurboTim is offline   Reply With Quote
Old 11-08-2007, 08:29 AM   #8
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,242
Total Cats: 1
Default

I looks like just a bolt. I didnt bother to mess with it.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-08-2007, 08:51 AM   #9
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,195
Total Cats: 1
Default

That thing is huge. Looks like the chances of it fitting with my over-the-rad IC setup are about zero.
Atlanta93LE is offline   Reply With Quote
Old 11-08-2007, 08:51 AM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,140
Total Cats: 6
Default

Damn it's a big ol bizotch.
cjernigan is offline   Reply With Quote
Old 11-08-2007, 09:42 AM   #11
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,850
Total Cats: 8
Default

sweet...slim fans anyone?
Zabac is offline   Reply With Quote
Old 11-08-2007, 09:53 AM   #12
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,143
Total Cats: -1
Default

Quote:
Originally Posted by whaaamx5 View Post
sweet...slim fans anyone?
group buy
Loki047 is offline   Reply With Quote
Old 11-08-2007, 10:01 AM   #13
Elite Member
Thread Starter
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,242
Total Cats: 1
Default

I need a temp sensor adapter to put in the upper rad hose. Anyone know where to get one cheap?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-08-2007, 10:07 AM   #14
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,413
Total Cats: 17
Default

Quote:
Originally Posted by Loki047 View Post
group buy
You can get slim fans all day long on ebay for sub $30 each. Thats what I'm running on my 3" coolradiator.com radiator.
neogenesis2004 is offline   Reply With Quote
Old 11-08-2007, 10:08 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 74,195
Total Cats: 2,017
Default

Braineack is offline   Reply With Quote
Old 11-08-2007, 10:17 AM   #16
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,413
Total Cats: 17
Default

Here are the same fans I have in my setup. They work perfectly.

http://cgi.ebay.com/ebaymotors/10-Un...spagenameZWDVW
neogenesis2004 is offline   Reply With Quote
Old 11-08-2007, 10:33 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 74,195
Total Cats: 2,017
Default

plus they look good:

Braineack is offline   Reply With Quote
Old 11-08-2007, 10:37 AM   #18
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,850
Total Cats: 8
Default

i think im gonna go with these...
http://cgi.ebay.com/ebaymotors/ws/eB..._promot_widget
group buy? ill see what i can do!
Zabac is offline   Reply With Quote
Old 11-08-2007, 10:44 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 74,195
Total Cats: 2,017
Default

at 1600CFM only need one.
Braineack is offline   Reply With Quote
Old 11-08-2007, 10:51 AM   #20
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,413
Total Cats: 17
Default

LOL, thats the same damn link I just posted.....I have 2 on mine as you can see in the pic scott posted. They are wired together and when they turn on they are never on for more than 15sec before temp is down again.
neogenesis2004 is offline   Reply With Quote
