Hardtop Side latchEs??? WTF?!? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 06-25-2013, 06:07 AM   #1
Newb
Thread Starter

Join Date: Feb 2008
Location: dela-where?
Posts: 6
Total Cats: -2
Default Hardtop Side latchEs??? WTF?!?

Does anyone know why there are no latches on my 91 NA for the hardtop. I just bought a 91 org hard top but I don't have any brackets for the side latches to latch onto.
bear204 is offline   Reply With Quote
Old 06-25-2013, 08:39 AM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

They were optional, just like the Frankenstein bolts. Lots of cars didn't have them.

They're easy to install, through you have to cut some holes in the plastic panels.
Joe Perez is offline   Reply With Quote
Old 06-25-2013, 08:51 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

so long as your front latches are good you don't really need the side ones...
Braineack is offline   Reply With Quote
Old 06-25-2013, 09:45 AM   #4
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Quote:
Originally Posted by Braineack View Post
so long as your front latches are good you don't really need the side ones...
THis.

I ran a hard top for 2 years with just front latches and frankenstein bolts. You will get a little more vibrations out of it, but it is secure.
Tekel is offline   Reply With Quote
Old 06-25-2013, 10:08 AM   #5
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Side latches help eliminate wind noise and squeaks. I think they also help lock the HT down tighter. Car felt stiffer with them installed.

You can get them from Partsgroup for about 30 bucks including hardware. Well worth it, IMO.
rleete is offline   Reply With Quote
Old 06-25-2013, 11:08 AM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

pro tip: the plastic panels on my 2001 had little molded oval lines on the inside where you cut.
y8s is offline   Reply With Quote
Old 06-25-2013, 11:32 AM   #7
Newb

Join Date: Jun 2013
Posts: 20
Total Cats: 0
Default

Ive never seen these side latches. Does anyone have pics? Im thinking of a hardtop to extend the driving period but i dont want to cut anything....
LiquidX is offline   Reply With Quote
Old 06-25-2013, 12:03 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by y8s View Post
pro tip: the plastic panels on my 2001 had little molded oval lines on the inside where you cut.
I took the panels out of my 93 and traced the holes on my 91, then FINALLY cut them like 2 years later.
Braineack is offline   Reply With Quote
Old 06-25-2013, 01:35 PM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

The top isn't likely to fly off without them, however it's definately going to be noisier.

My experiance (on a 92) mirrors that of Y8s- after removing the plastic panels from the car, I found guide lines molded into the backside indicating where to cut.

The striker plate covers the cutout completely, so it doesn't have to be a perfectly accurate and clean cut.
Joe Perez is offline   Reply With Quote
Old 06-25-2013, 07:29 PM   #10
Newb
Thread Starter

Join Date: Feb 2008
Location: dela-where?
Posts: 6
Total Cats: -2
Default

Is there an aftermarket locking system for the HT's? I saw the ones from norcal but I want to keep the top latches quick acting. I don't have side latch brackets so I am trying to secure the top both ways with one solution. Ideas? Problem #1, No side latch bracket Problem #2 People have sticky fingers. I also saw TopLoc one. I would like to DIY this one and not have to spend 100.00. lol Its strange my car had the FS bolts but not the strike plates... Thanks for all the post already! Much appreciated.
bear204 is offline   Reply With Quote
Old 06-26-2013, 03:27 AM   #11
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

Quote:
Originally Posted by bear204 View Post
Is there an aftermarket locking system for the HT's? I saw the ones from norcal but I want to keep the top latches quick acting. I don't have side latch brackets so I am trying to secure the top both ways with one solution. Ideas? Problem #1, No side latch bracket Problem #2 People have sticky fingers. I also saw TopLoc one. I would like to DIY this one and not have to spend 100.00. lol Its strange my car had the FS bolts but not the strike plates... Thanks for all the post already! Much appreciated.
All of the NAs had the frankenstein bolts, but only cars that came equipped with factory hardtops had the side latches. NBs w/o hardtops came with neither frankenstein bolts nor side latches.

I don't use the side latches (they don't fit with the HDHCDD non-HT roll bar that I have) and haven't really missed them. I don't use a lock, either, but then my car is rarely parked in situations where it's an issue.

--Ian
codrus is offline   Reply With Quote
Old 06-26-2013, 03:45 AM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by LiquidX View Post
Ive never seen these side latches. Does anyone have pics?

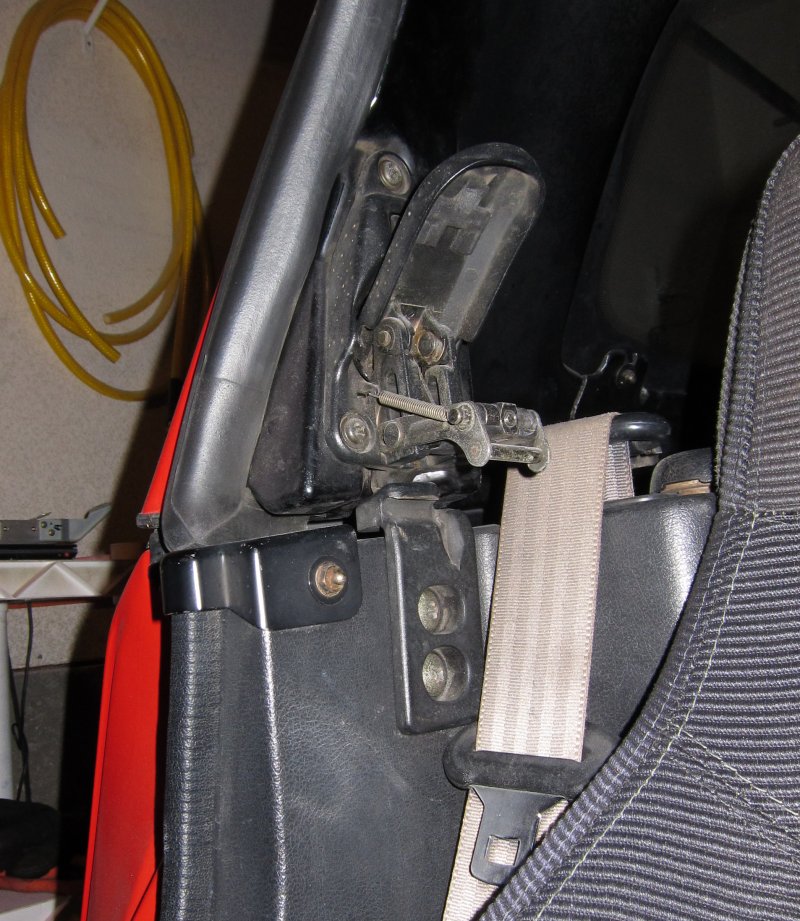

Unlatched:





Latched:





Quote:
Originally Posted by LiquidX View Post
Im thinking of a hardtop to extend the driving period but i dont want to cut anything....
The amount of cutting is minimal, and precision is not required. It's just a bit of soft-ish plastic.




Quote:
Originally Posted by bear204 View Post
Is there an aftermarket locking system for the HT's?
Locking, as in anti-theft?

I can't imagine that a person who is intent on breaking into your car for the purpose of stealing your top is going to be thwarted by any reasonable "locking" mechanism.
Attached Thumbnails
Hardtop Side latchEs??? WTF?!?-unlatched.jpg   Hardtop Side latchEs??? WTF?!?-latched.jpg
Joe Perez is offline   Reply With Quote
Old 06-26-2013, 04:00 AM   #13
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

I believe the side latches (strikers) are identical to the front latches (strikers)

At least when I took them off, I couldn't tell which ones were which.
soviet is offline   Reply With Quote
Old 06-26-2013, 11:16 PM   #14
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Bolt that **** down with the Spec Miata plates if you're worried about theft.
kotomile is offline   Reply With Quote
Old 06-26-2013, 11:17 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by soviet View Post
I believe the side latches (strikers) are identical to the front latches (strikers)

At least when I took them off, I couldn't tell which ones were which.
They are similar, but not identical, and I'm pretty sure they are non-interchangeable.
Joe Perez is offline   Reply With Quote
Old 06-27-2013, 09:37 AM   #16
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by kotomile View Post
Bolt that **** down with the Spec Miata plates if you're worried about theft.
And use an uncommon fastener like the 2 pin security, the triangle one, or security torx (not really uncommon any more).
Leafy is offline   Reply With Quote
Old 06-27-2013, 10:22 AM   #17
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Joe Perez View Post
They are similar, but not identical, and I'm pretty sure they are non-interchangeable.

They're not interchangeable. The screws that hold them in place are in a sort of L pattern on the front latches and a triangular oat tern on the side latches.
richyvrlimited is offline   Reply With Quote
Old 06-27-2013, 10:35 AM   #18
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by richyvrlimited View Post
They're not interchangeable. The screws that hold them in place are in a sort of L pattern on the front latches and a triangular oat tern on the side latches.
I think he was talking about the strikers, the non-hinged parts which reside on the body rather than the top.

These are all two-screw, and while they appear quite similar, they are not identical.
Joe Perez is offline   Reply With Quote
Old 06-27-2013, 03:37 PM   #19
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Joe Perez View Post
I think he was talking about the strikers, the non-hinged parts which reside on the body rather than the top.

These are all two-screw, and while they appear quite similar, they are not identical.
Doh, yes your right, reading comprehension fail, sorry.
richyvrlimited is offline   Reply With Quote
Old 06-27-2013, 10:37 PM   #20
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Leafy View Post
And use an uncommon fastener like the 2 pin security, the triangle one, or security torx (not really uncommon any more).
You definitely could. Although unless the thief comes prepared with (IIRC) 13mm and 10mm wrenches/sockets and a cordless power tool to put them in he's not getting the top very quickly relative to latches.
kotomile is offline   Reply With Quote
