Default Help ID these parts?

Hey guys,

Screwing around in the bay of my Miata today, and noticed two things that I have no idea what they are for, and/or what they should go to.

Anyone care to enlighten me?

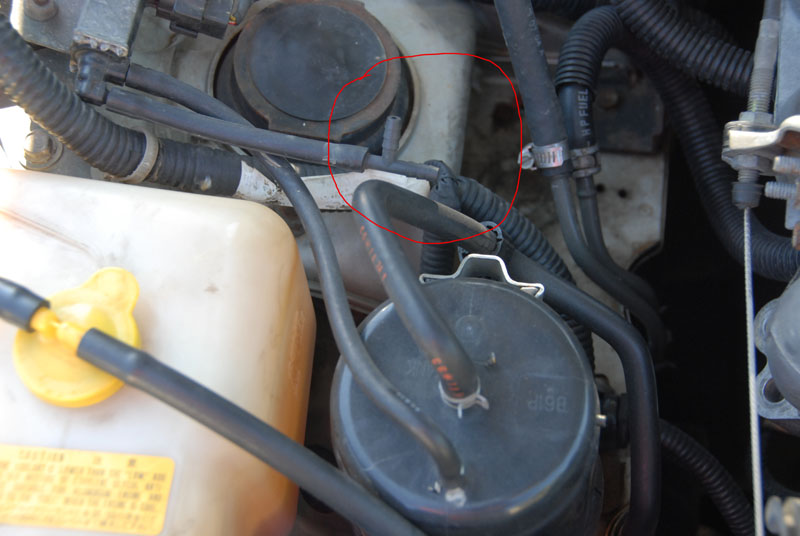

Pic 1 shows a vac tee with nothing on it. Where should that run?

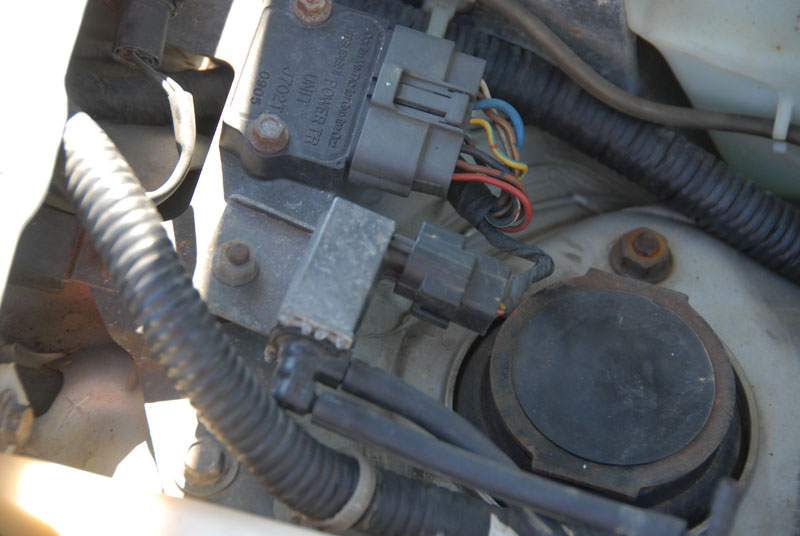

Pic 2 is another photo as a reference to the above. It is located right by the solenoid (i imagine?) for the EVAP.

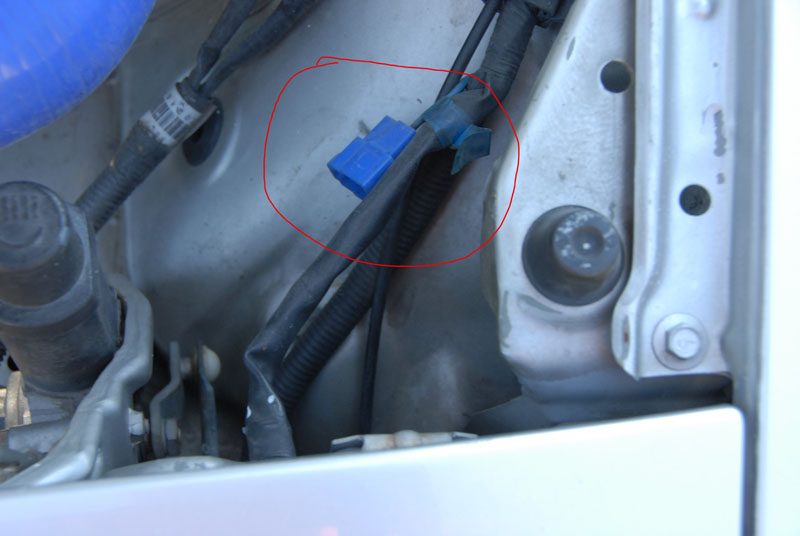

Pic 3 is a blue connector behind the driver's side headlamp. Should that be connected to something??

Thanks a ton guys,
Attached Thumbnails
Help ID these parts?-dsc_0083.jpg   Help ID these parts?-dsc_0084.jpg   Help ID these parts?-dsc_0085.jpg
BradC is offline   Reply With Quote
Old 08-22-2008, 11:41 AM   #2
Junior Member

Join Date: Aug 2007
Posts: 115
Total Cats: 0
Default

Does your car run???

Then I'd say don't worry about it.
This is a m.net question, but I'm feeling nice.

The blue connector is a spare 12V line, good for hooking up your rice *** HIDs.

The T is leftover from a previous owner of the car. That system is the charcoal canister. You don't really need those lines unless you like trees. Normally there is no T and that line goes to the intake manifold.
yertnamreg1218 is offline   Reply With Quote
Old 08-22-2008, 11:56 AM   #3
Junior Member
Thread Starter
iTrader: (6)

Join Date: Jun 2008
Location: Lansdale, PA
Posts: 462
Total Cats: 3
Default

Thank you very much. I'll try m.net next time, but I like this place better.

To confirm then, the item at the top of the second shot is the igniter, correct?
BradC is offline   Reply With Quote
Old 08-22-2008, 12:02 PM   #4
Junior Member
iTrader: (4)

Join Date: Oct 2007
Location: santa cruz
Posts: 246
Total Cats: 0
Default

It's not the igniter. It's a +12 source. I use it to power a timing light.

edit: I can't count past 2.

Last edited by chucker; 08-22-2008 at 01:20 PM. Reason: I'm learning
chucker is offline   Reply With Quote
Old 08-22-2008, 12:07 PM   #5
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Picture #1 is a vacuum leak. Fix it.
jayc72 is offline   Reply With Quote
Old 08-22-2008, 12:12 PM   #6
Junior Member

Join Date: Aug 2007
Posts: 115
Total Cats: 0
Default

Chucker thats the 3rd picture.

BradC yes that is the ignitor. The thing below it is a valve that lets air from the charcoal canister into the manifold.
yertnamreg1218 is offline   Reply With Quote
Old 08-22-2008, 12:18 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

#1 vacuum tee. line should come from Intake manfiold to solenoid
#2 Ignitor
#3 12v source.
Braineack is offline   Reply With Quote
Old 08-22-2008, 04:29 PM   #8
Junior Member
Thread Starter
iTrader: (6)

Join Date: Jun 2008
Location: Lansdale, PA
Posts: 462
Total Cats: 3
Default

Thanks all!
