Old 01-16-2012, 11:23 PM   #21
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Ok, so just tried hooking it up to 1R, and it worked great, car on or off. I really have no idea what power gremlins were working before, but it sounds great now, distorting only at the loudest of volumes. It easily drowned out my 1500rpm (cold engine) idle before distorting.

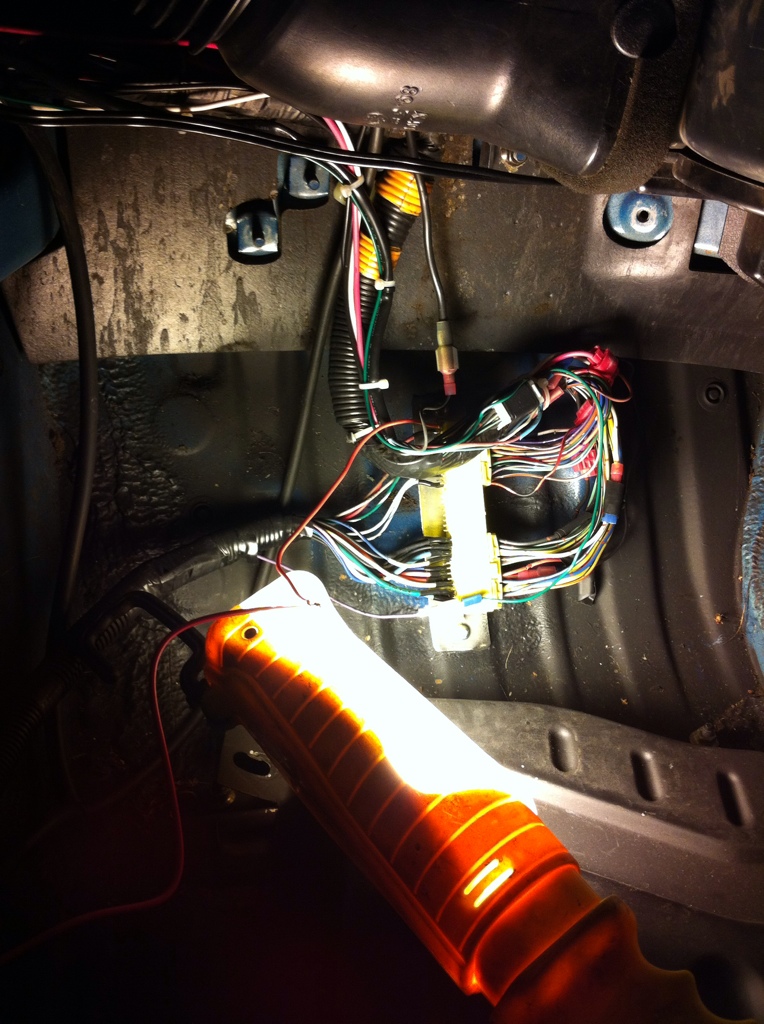

Here's my ghetto test, complete with twisted on extension to reach the MS harness:
Attached Thumbnails
Help me find a 12v source for my amp-bbc7bd22.jpg
curly is offline   Reply With Quote
Old 01-17-2012, 10:51 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

why you gotta ruin my harness?
Braineack is offline   Reply With Quote
Old 01-17-2012, 12:43 PM   #23
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I was thinking about using a vampire tap. Maybe even two.

It's funny how pretty the left side of that plug is (Scott's work) vs. how ugly the right side is, with crimp connections and vampire taps. A lot of that is left over from my bandaid days. Most of the vampire taps aren't even in use, just afraid to take them off.
curly is offline   Reply With Quote
Old 01-17-2012, 12:51 PM   #24
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Glad you got it to work! Now you should write a guide on how to install it so I can do mine, lol

What is this 1R you speak of?
jbrown7815 is offline   Reply With Quote
Old 01-17-2012, 01:47 PM   #25
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

I'm surprised nobody notices that it's a 5A amp (60W), not a 0.5A amp.
IOW, run a wire to the battery and install a fuse within a couple of inches of the battery terminal.
The fact that it works with the 0.8A transformer is because you're not using all the power it can deliver. Double the sound level needs twice the power. Hence, you can achieve a very high sound level although you only have 0.8A
WestfieldMX5 is offline   Reply With Quote
Old 01-17-2012, 01:48 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

It's not a switch power source, the amp would never turn off and it would drain eventually....
Braineack is offline   Reply With Quote
Old 01-17-2012, 02:01 PM   #27
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by WestfieldMX5 View Post
I'm surprised nobody notices that it's a 5A amp (60W), not a 0.5A amp.
I was just going off of what was written on the body of the amplifier: "12V.5A"

In north America, we use the decimal instead of the comma to separate tenths of numbers from whole numbers. So whereas in most European nations, half an amp would be ,5A in the US and Canada .5A is half an amp.

Admittedly, 5 amps would make a lot more sense. 500ma is, well, not a lot of current.

Curly, is this thing fused? If so, what's the fuse rating?

(Wouldn't it be funny if this thing actually does draw 5 amps, and being wired into the ECU's supply, it causes a processor reset every time there's a loud musical transient while he's driving down the road?)

Quote:
Originally Posted by Braineack View Post
It's not a switch power source, the amp would never turn off and it would drain eventually....
Behold the magic and wonder of the $5 SPST automotive relay.
Joe Perez is offline   Reply With Quote
Old 01-17-2012, 02:04 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

just sayin'
Braineack is offline   Reply With Quote
Old 01-17-2012, 10:05 PM   #29
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

You mean 1R is not a switched power source? Because it turns off when I turn the MS off...

Maybe it's not 1R. Does it look like that's what I'm hooked up to? I read the MS harness diagram quickly and thought I was right in saying 1R...

No one's commented on whether or not this is a good (smart) source... I'm hesitant to run a $10 China amp to anything related to my MS.

Joe, it is not fused. It would be though. That's my next question, Ben mentioned running a fuse, and I have a inline fuse holder, but what size fuse?
curly is offline   Reply With Quote
Old 01-17-2012, 11:30 PM   #30
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
It's not a switch power source, the amp would never turn off and it would drain eventually....
so add a relay energized by the switched 12v

beaten by Joe, thought there was a delete option
mx594m is offline   Reply With Quote
Old 01-17-2012, 11:43 PM   #31
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by curly View Post
You mean 1R is not a switched power source? Because it turns off when I turn the MS off...
Yes, 1R is switched. Brainey was talking about wiring the amp directly to the battery (which I still maintain is the best possible solution, obviously with a relay inline.)


Quote:
No one's commented on whether or not this is a good (smart) source... I'm hesitant to run a $10 China amp to anything related to my MS.
I commented on it, and rather sardonically I thought. Specifically, I said "Wouldn't it be funny if this thing actually does draw 5 amps, and being wired into the ECU's supply, it causes a processor reset every time there's a loud musical transient while he's driving down the road?"


Quote:
That's my next question, Ben mentioned running a fuse, and I have a inline fuse holder, but what size fuse?
The more I think about it, the more I'm agreeing with Frank. There's no possible way this thing can operate on 500ma. That's less current than Hustler's mom's cheapest motorized ***** draws.

I'm thinking that the Belgain guy is right, and some lazy dipѕhit in a Chinese sweatshop simply made a typo when she was creating the silkscreen, inserting a decimal where there shouldn't have been one.

As such, you should probably fuse the device at 5A. Fuses don't blow instantaneously at their rated current, and unless you're playing a sine wave at maximum volume (or a modern hip-hop album, which are essentially the same thing) the amp is not going to draw rated current continuously. If the fuse does blow, then replace it with a 7.5 amp unit.
Joe Perez is offline   Reply With Quote
Old 01-17-2012, 11:57 PM   #32
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Gotcha, 5a it is.

I read your reply, and half heatedly laughed out loud, didn't know it was a serious concern. I guess I'll find out.

Can't open the doors in my puny garage though, so it'll have to wait for the weather to chill out, perhaps tomorrow. It's currently rainsnowing.
curly is offline   Reply With Quote
Old 01-21-2012, 01:38 AM   #33
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

So for anyone interested in a cheap amp, this one works fine.

I ended up tapping into that 12v source feeding the MS, soldered in a fuse, and it's working great. It's still distorting at the loudest of louds, but it's still easily audible at freeway speeds in my stripped car with a solid motor mount, so there's really no point in it getting louder. Can't ask for more for $10 really.
curly is offline   Reply With Quote
Old 01-24-2012, 03:41 PM   #34
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

I wired up an amp very similar to this one (except it cost me $40 not $12, I think I got ripped). I wired to the 12v source that was originally meant for the radio. I also wired an on/off toggle in line as well so I can turn the amp off when not in use.
Tekel is offline   Reply With Quote
