Default Help me find my oil leak

My car is leaking oil, to the tune of 1/2qt per day (~150mi). It is not burning, and completely damps a layer of kitty litter overnight, as well as leaving spots wherever I park.

I cleaned and checked my oil drain, no dice. Then I started noticing that oil was pooling on the water neck, and bottom of the valve cover.

Name:  2010-04-150818592.jpg
Views: 1
Size:  97.2 KB

It seems that it leaks while sitting still, but possibly more while running. At first I thought it HAD to be something below oil level to lose that much oil while not running, but the fact that I've got oil all over the front of the motor makes me think otherwise.

Also, I did put in the "special" bolt for the oil pump that you have to use after removing the AC compressor bracket. This motor came without that bracket in place, and I didn't notice it for a few days. I had hoped that that would fix it, but the problem is persistent.

Please take a look at these pics, and if someone has had a similar problem chime in.

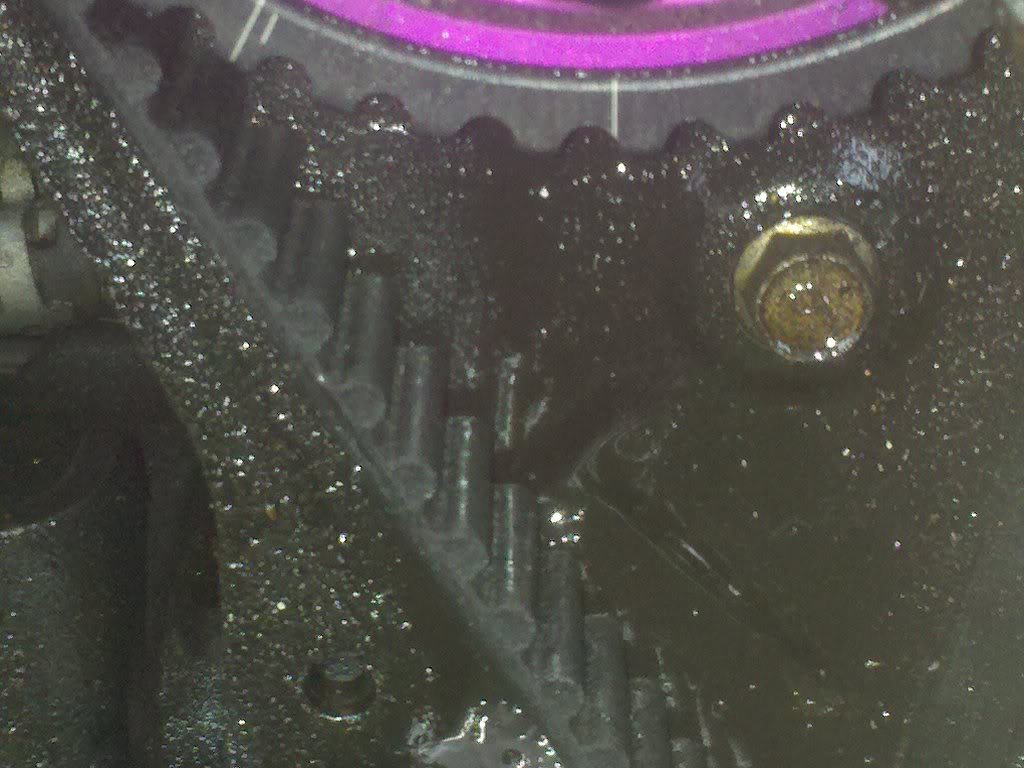

Intake cam gear
Name:  2010-04-15082026.jpg
Views: 2
Size:  115.4 KB

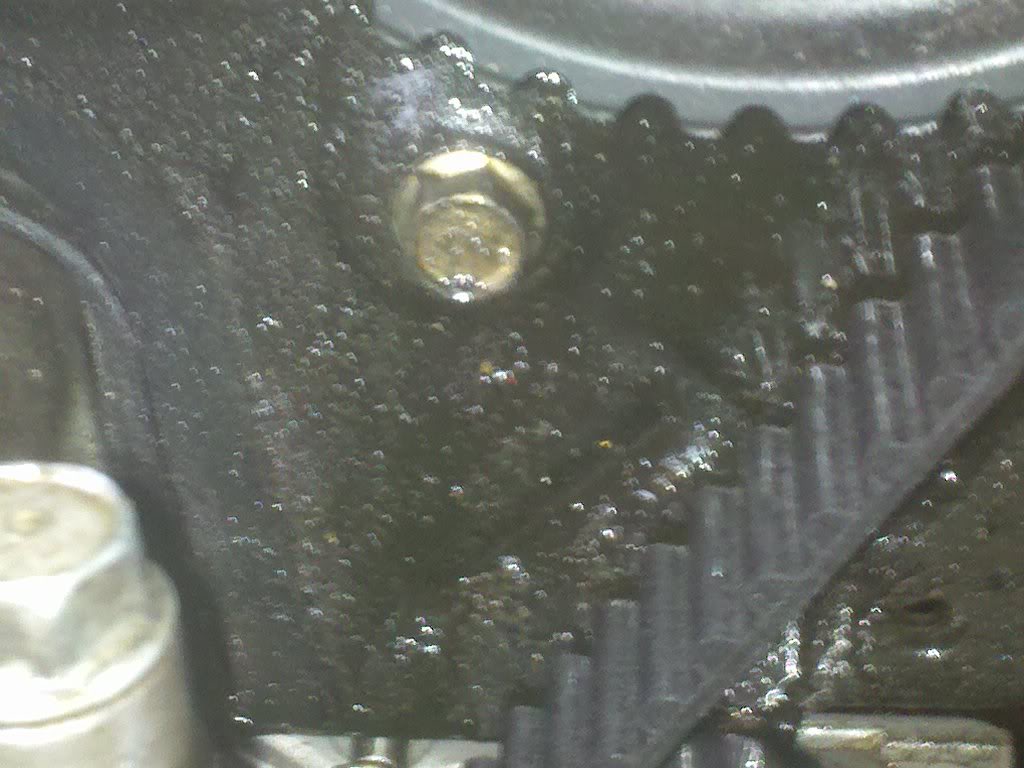

Exhaust cam gear
Name:  2010-04-15082033.jpg
Views: 1
Size:  114.4 KB

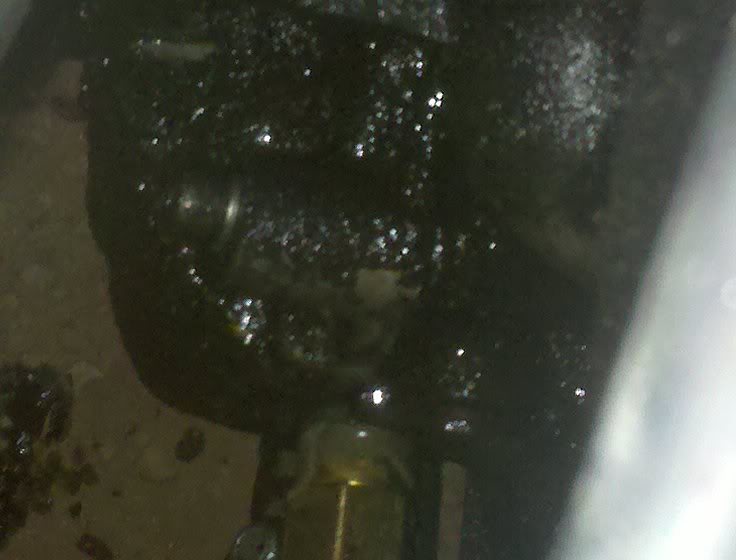

Driver side block and oil pan
Name:  2010-04-15081932.jpg
Views: 0
Size:  47.0 KB


Pass side
Name:  2010-04-15081917.jpg
Views: 1
Size:  98.7 KB

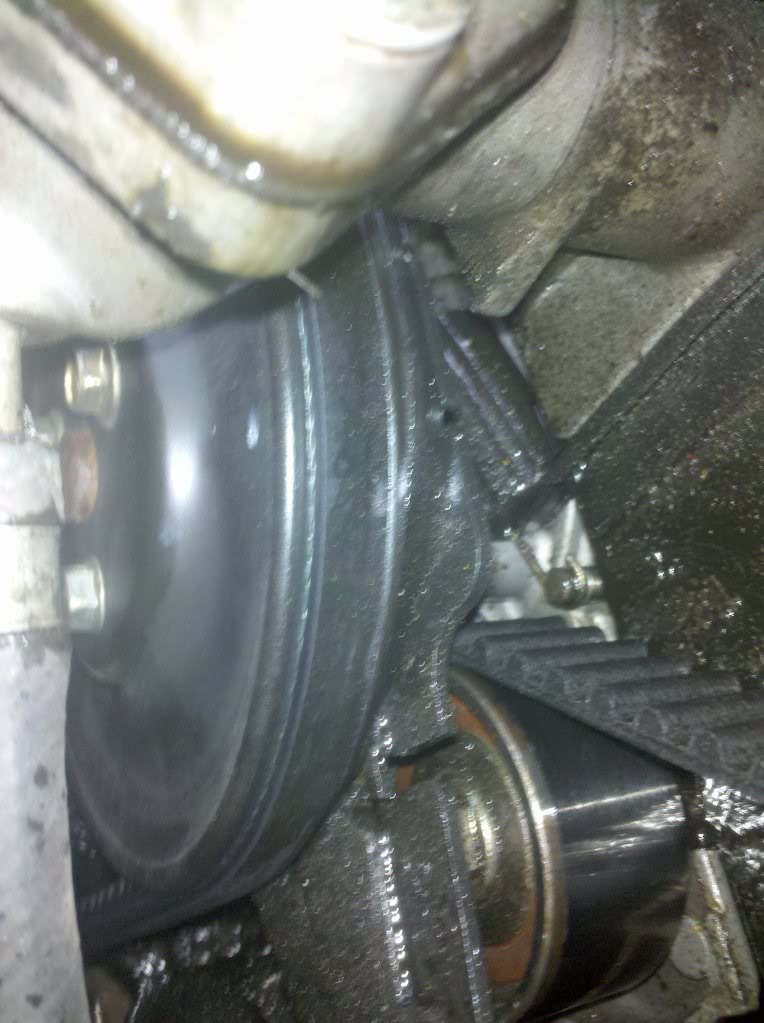

Driver side timing belt pulley
Name:  2010-04-15082233.jpg
Views: 1
Size:  105.0 KB

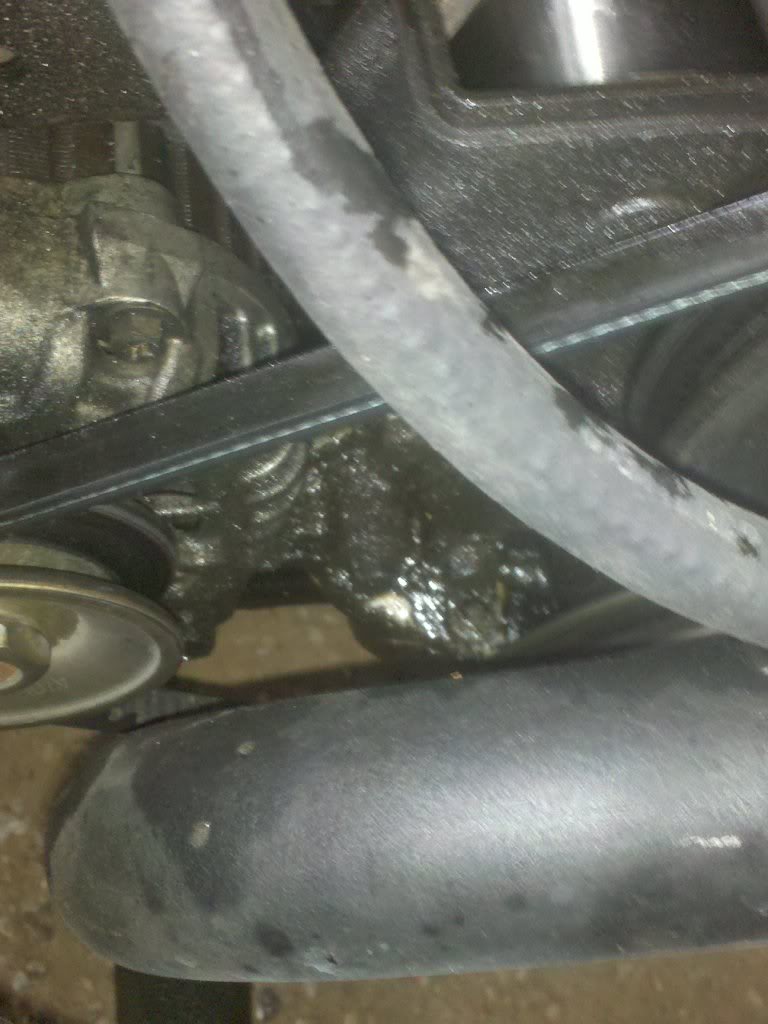

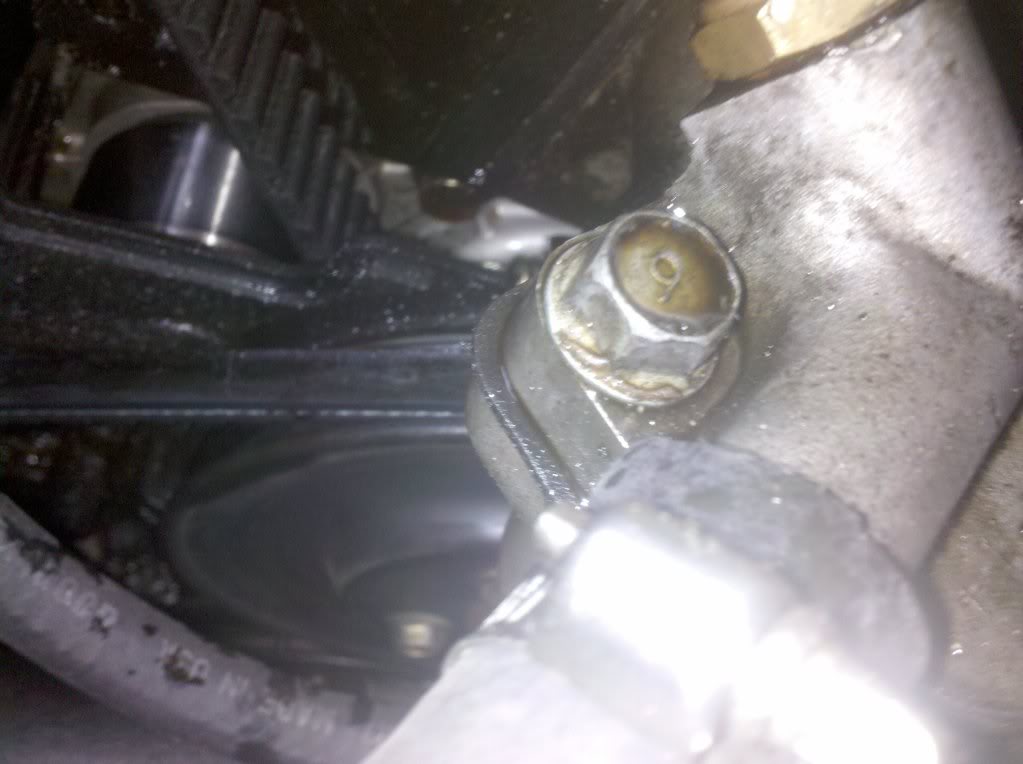

Pass side

Name:  2010-04-15082225.jpg
Views: 0
Size:  77.1 KB


Note that the timing belt itself stays dry...



Also, previously had checked the back of the head, and it was dry under the CAS. Now there's just a little bit of oil there.

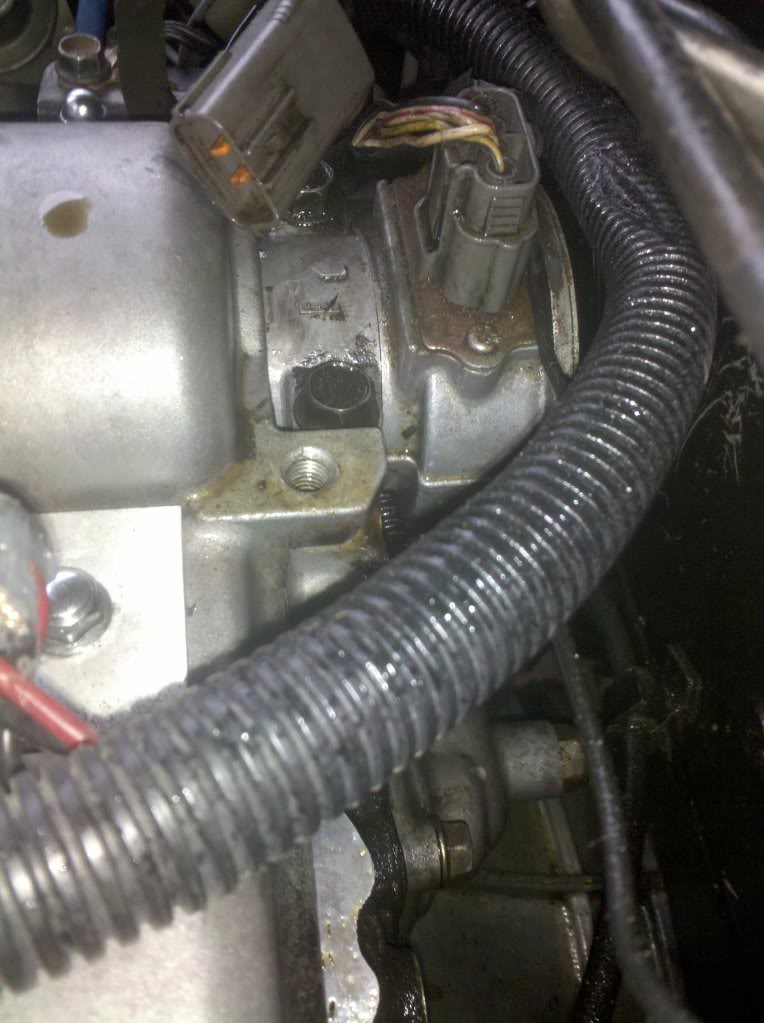

Name:  2010-04-15082537.jpg
Views: 1
Size:  110.4 KB

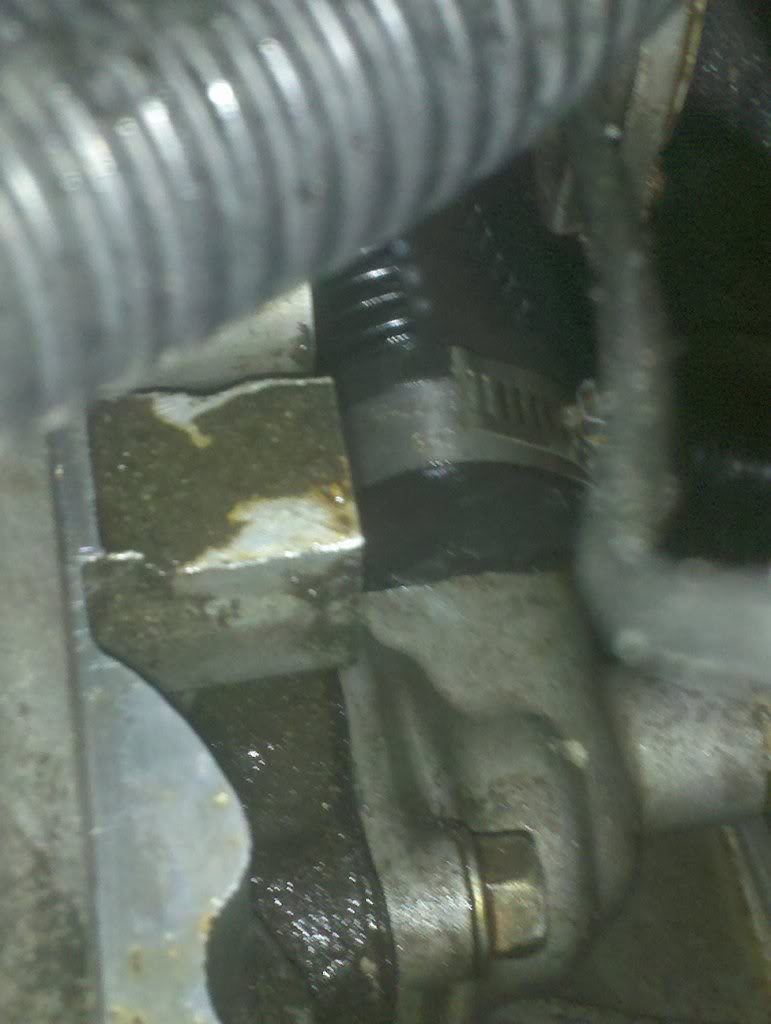

Name:  2010-04-15082521.jpg
Views: 0
Size:  76.2 KB


Thanks guys.
gospeed81 is offline   Reply With Quote
Old 04-15-2010, 01:00 PM   #2
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

For the eleventy billionth time on this forum. GO TO ADVANCE AUTO AND GET SOME OIL DYE AND A UV LIGHT!!!!
neogenesis2004 is offline   Reply With Quote
Old 04-15-2010, 01:04 PM   #3
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by neogenesis2004 View Post
For the eleventy billionth time on this forum. GO TO ADVANCE AUTO AND GET SOME OIL DYE AND A UV LIGHT!!!!
Time.
Money.

Neither of which I have.

I do have a membership to this forum though...and figured someone else just might have seen the same spread on their beater.

I guess when you have oil leaks it's all over the road...no need for dye.
gospeed81 is offline   Reply With Quote
Old 04-15-2010, 01:05 PM   #4
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,637
Total Cats: 1,559
Default

Front cam seals.
sixshooter is online now   Reply With Quote
Old 04-15-2010, 01:06 PM   #5
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by neogenesis2004 View Post
For the eleventy billionth time on this forum. GO TO ADVANCE AUTO AND GET SOME OIL DYE AND A UV LIGHT!!!!
I Lol'd.

Good luck with finding the leak. My only solution was to buy a 2.0.



Have you checked the torque on the front 2 cam caps, if loose, they could leak between the seals, just like the CAS cap being loose in my case.
Bryce is offline   Reply With Quote
Old 04-15-2010, 01:07 PM   #6
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by sixshooter View Post
Front cam seals.

That's really what I was afraid of, and why I asked before biting off another fun project.


Quote:
Originally Posted by Bryce View Post

Have you checked the torque on the front 2 cam caps, if loose, they could leak between the seals, just like the CAS cap being loose in my case.

I checked the cam gear bolt torque when putting the adjustable gear on, didn't check the caps...good idea.
gospeed81 is offline   Reply With Quote
Old 04-15-2010, 01:08 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

Quote:
Originally Posted by sixshooter View Post
Front cam seals.
this


Quote:
Originally Posted by gospeed81 View Post
That's really what I was afraid of, and why I asked before biting off another fun project.
don't have the 20 minutes it might take to cure?
Braineack is online now   Reply With Quote
Old 04-15-2010, 01:09 PM   #8
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Braineack View Post
this
I hate it when you're right.
gospeed81 is offline   Reply With Quote
Old 04-15-2010, 01:10 PM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

imo vc gasket in the front maybe loose cas in the back or damaged oring. disasemble and rtv or good cleaning etc and let the **** cure should help. unless you fuxared your oring on the cas and then you will need a new oring.
magnamx-5 is offline   Reply With Quote
Old 04-15-2010, 01:12 PM   #10
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by magnamx-5 View Post
imo vc gasket in the front maybe loose cas in the back or damaged oring. disasemble and rtv or good cleaning etc and let the **** cure should help. unless you fuxared your oring on the cas and then you will need a new oring.
New o-ring after replacing CAS last month. I checked it daily after install...never leaked. Very little oil back there, nothing like the CAS leaks I've seen.


I was hoping it could be VC gasket. I've done that job 5 times and never fucked it up, but I guess there's a first for it all. I probably didn't let it cure enough this time. Easier to try that than the cam seals.
gospeed81 is offline   Reply With Quote
Old 04-15-2010, 01:12 PM   #11
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Front cam seals and/or vc gasket, especially the cam humps? I wouldn't think it would get as high as the lip of the vc if it didn't originate high up. That's a lot of oil, though.
webby459 is offline   Reply With Quote
Old 04-15-2010, 01:13 PM   #12
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Valve cover gasket?
Turbo_4 is offline   Reply With Quote
Old 04-15-2010, 01:13 PM   #13
Junior Member
iTrader: (4)

Join Date: Dec 2006
Location: Charlotte , nc
Posts: 325
Total Cats: 1
Default

cam seals... Valve cover gasket. both will take time and money to fix, so eh, just pour more oil into it.. Be sure to RTV' the corners of the cam caps when you put a VC gasket on.

Go OEM or do it again.
jedduh01 is offline   Reply With Quote
Old 04-15-2010, 01:15 PM   #14
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by webby459 View Post
Front cam seals and/or vc gasket, especially the cam humps? I wouldn't think it would get as high as the lip of the vc if it didn't originate high up. That's a lot of oil, though.
Yes, it's a lot of oil. I'm really frustated. Need to be focusing on studies and don't have time for it, but a quart of synthetic every other day is straining the wallet.


If it's that high though I wonder how it continues to leak when not running. I guess it's possible it's filling the timing belt galley and leaking out down the oilpan.


I get oil splotches on the floor at the very front and very back of oil pan.
gospeed81 is offline   Reply With Quote
Old 04-15-2010, 01:18 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

the VC gasket might be gone too, but there's no where else to get that oil on the front.

did you have the cams off recently? You might have just not lined the seals up under the front caps...
Braineack is online now   Reply With Quote
Old 04-15-2010, 01:20 PM   #16
Junior Member
iTrader: (3)

Join Date: Mar 2008
Location: Murphy, Tx
Posts: 182
Total Cats: 6
Default

When's that last time you replaced your valve cover gasket?
It looks like it's at least the cam seals too.

The best course of action right now is to clean off the front of the motor, and then see where it's weeping/flowing from.

Hmm... looks like I took way to long to reply.

I may have a spare VC gasket lying around let me check my stash.

Last edited by Fidgitk; 04-15-2010 at 01:22 PM. Reason: timing
Fidgitk is offline   Reply With Quote
Old 04-15-2010, 01:22 PM   #17
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

O hai, I want to waste a lot of time hunting around for an oil leak and spending money on parts only to find that I didn't need to replace that part and my problem still exists instead of buying a $2 bottle of dye and a $1 uv light from a part store. I am so smrt!
neogenesis2004 is offline   Reply With Quote
Old 04-15-2010, 01:22 PM   #18
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,637
Total Cats: 1,559
Default

I always change the cam and front crank seals when replacing the timing belt at its regular interval. It's a lot more fun than doing it twice. And I change the rear main seal when doing a clutch at the end of its normal life span. I guess I don't much like dropping the tranny.
sixshooter is online now   Reply With Quote
Old 04-15-2010, 01:23 PM   #19
meatbag
Thread Starter
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Braineack View Post
the VC gasket might be gone too, but there's no where else to get that oil on the front.

did you have the cams off recently? You might have just not lined the seals up under the front caps...

Cams have not been off. Just swapped cam gears.


Quote:
Originally Posted by Fidgitk View Post
When's that last time you replaced your valve cover gasket?
It looks like it's at least the cam seals too.

The best course of action right now is to clean off the front of the motor, and then see where it's weeping/flowing from.


Replaced valve cover gasket when doing the cam gears. May have fuxored it this time, but have done it several times before with success. I'm blaming it on my wife nagging me when working in the garage...



Will clean motor...check, consider dye and light...check. Most likely will just throw parts at it. Replace cam seals and valve cover at the same time.
gospeed81 is offline   Reply With Quote
Old 04-15-2010, 01:23 PM   #20
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

yay cam seals.

I just finally said F it and pulled my entire motor out to redo all my gasket and seals. They all leaked.

I TOOK MY TIME... used OEM seals and RTV called "the right stuff" . it comes in a half caulking bottle and is 100000% worth the 30 bucks you pay for it. Knock on wood I dont have a single leak now.
240_to_miata is offline   Reply With Quote
