Default help, my axles stuck in the hub! 56k beware

Um i cant get my axle out, any ideas? ive tried using this puller but so far the thing wont budge, also took a few whacks at the end of the shaft for good measure. I would hit it harder but the metal is bending ??? wtf is it so soft for? Anyway so this is where im at ... middle of a diff swap:

Name:  differentalswap009.jpg
Views: 3
Size:  77.5 KB

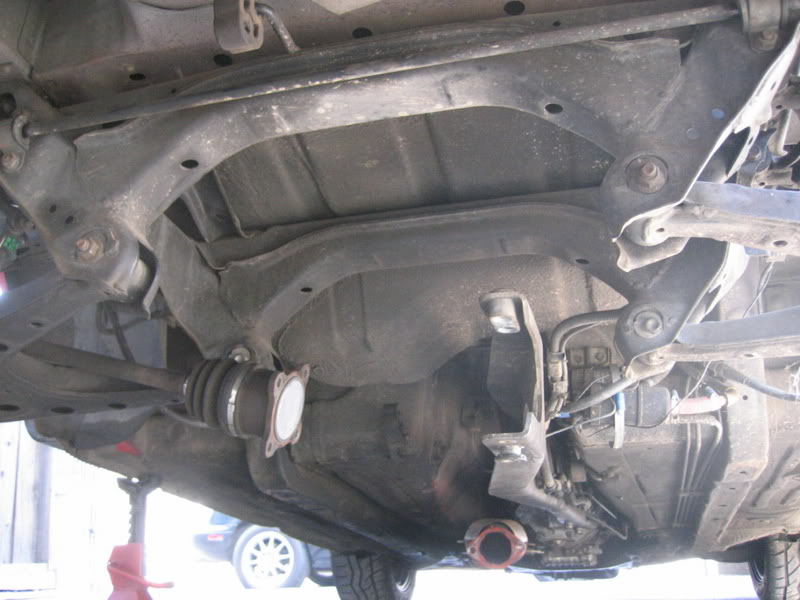

Name:  differentalswap008.jpg
Views: 2
Size:  70.4 KB

And for fun i did this and took some shots, just because its cool and i can:

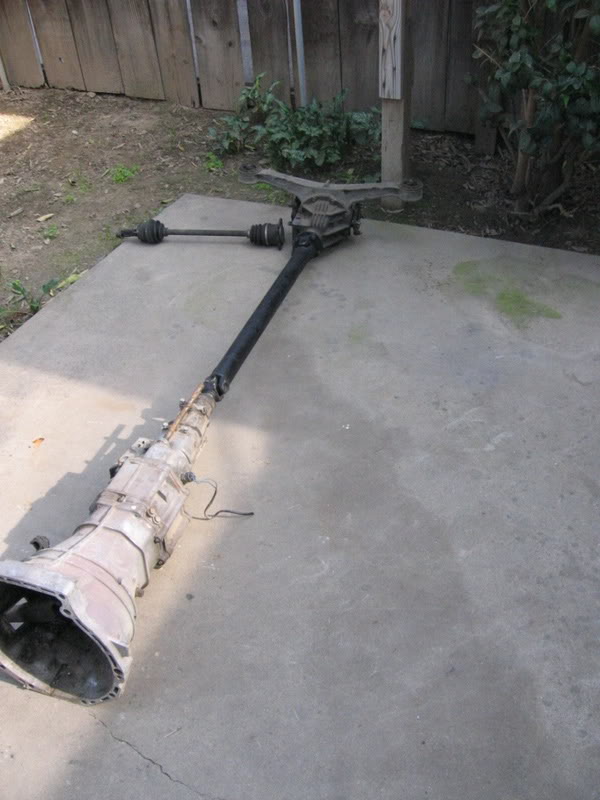

Name:  differentalswap006.jpg
Views: 2
Size:  70.8 KB

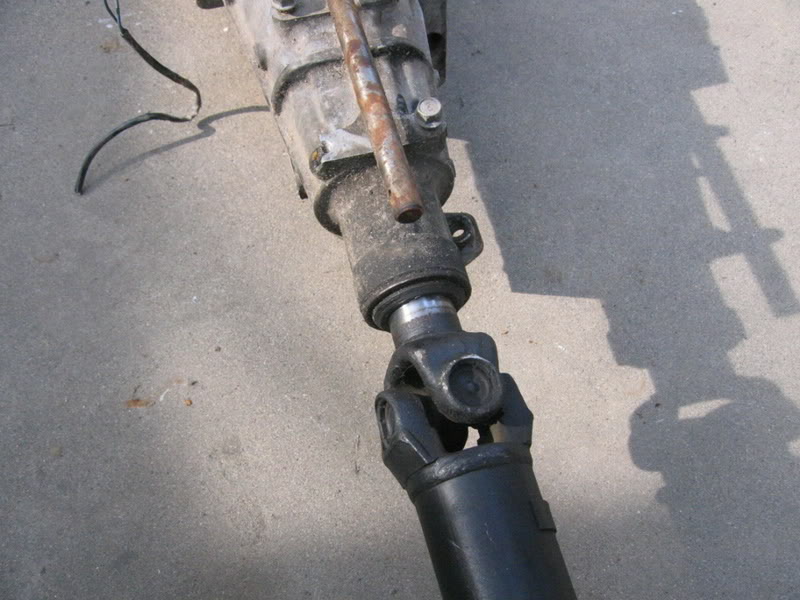

Name:  differentalswap005.jpg
Views: 2
Size:  86.1 KB

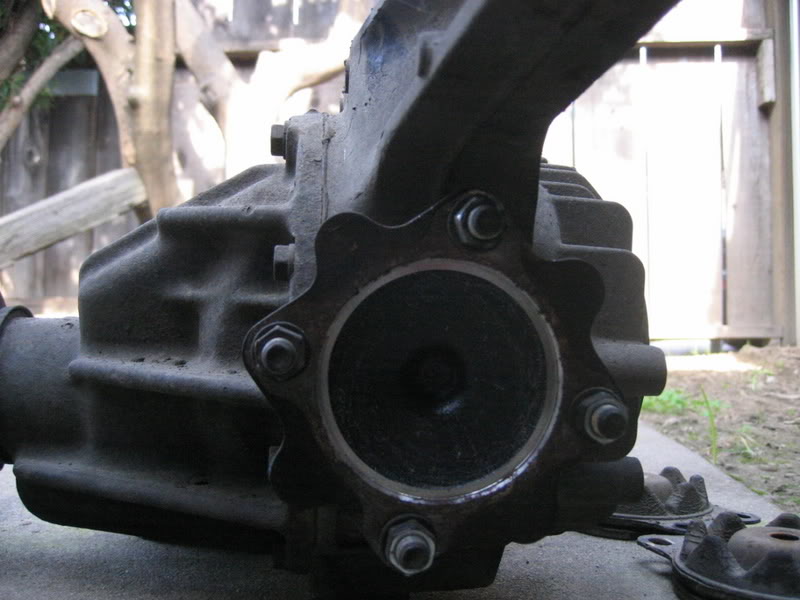

Name:  differentalswap004.jpg
Views: 2
Size:  64.2 KB

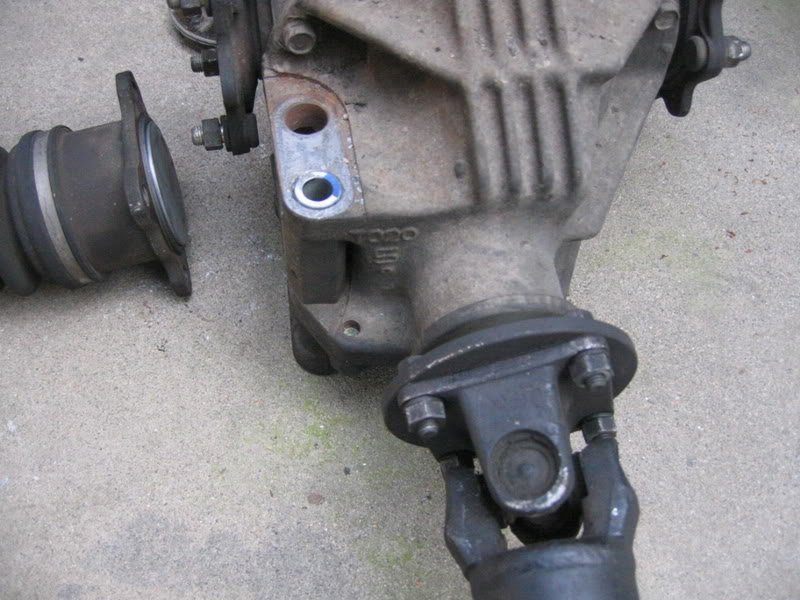

Name:  differentalswap003.jpg
Views: 3
Size:  90.3 KB

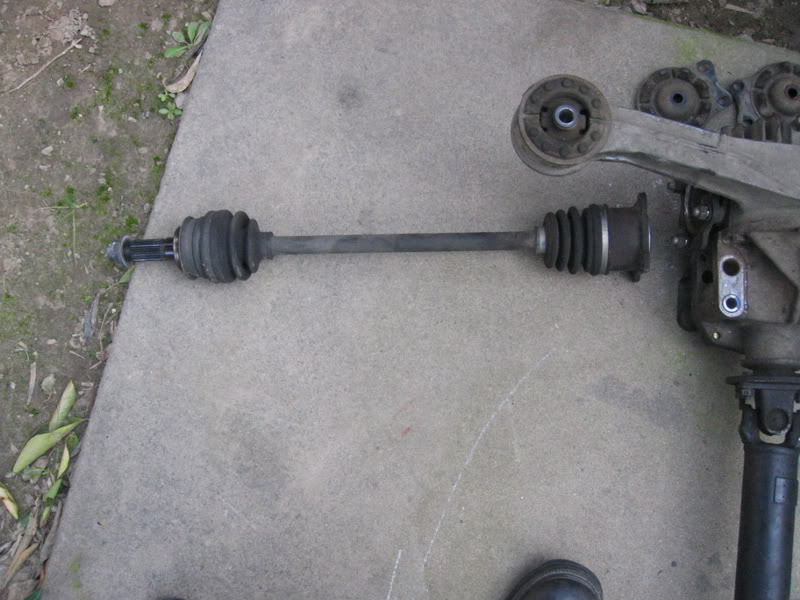

Name:  differentalswap002.jpg
Views: 2
Size:  85.3 KB

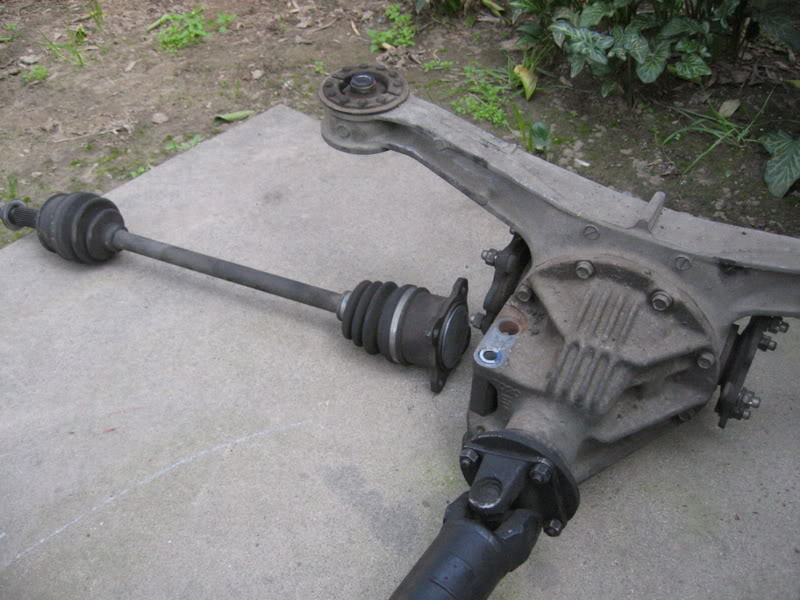

Name:  differentalswap001.jpg
Views: 2
Size:  86.4 KB
akaryrye is offline   Reply With Quote
Old 02-04-2007, 04:24 PM   #2
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Start spraying PB Blaster and then apply heat to the hub. Don't go too heat crazy though, no way to tell how it'll treat the bearings. Then... I'd beat on it :P, Before you beat on it, put the nut back on, it'll help prevent expansion of the axle end.
Splitime is offline   Reply With Quote
Old 02-04-2007, 04:29 PM   #3
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

+1

Put the nut back on so you dont round the edge or whack the threads. Can you get an impact gun on that puller? I would only do it if its warrantied though, I usually do a number on them when I have to impact the. Torch the hub, get it as hot as you can. Try finding an air hammer too, those are helpful.
ApexOnYou is offline   Reply With Quote
Old 02-04-2007, 04:35 PM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Best way I have found after PB blaster and heat is an 8 lb sledge with an aluminum cylinder about 2" thick taped to the end.

If it doesn't move then(in the interest of not destroying the bearings), take the hub off, mount it in a spare rim, support the rim solid, and beat straight down with the sledge. You will need to make clearence for the axle below. I had to cut one axle off to set the rim on some 4x6 planks to get it solid enough
olderguy is offline   Reply With Quote
Old 02-04-2007, 04:39 PM   #5
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

ditto the sledge. Worked for me.
Philip is offline   Reply With Quote
Old 02-04-2007, 04:40 PM   #6
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

i think im going to go get a Bigger BFH (big ******* hammer) and beat the hell out of it. I already am going to have to grind around the end in order to get the nut on as it is.
akaryrye is offline   Reply With Quote
Old 02-04-2007, 04:41 PM   #7
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Just make sure you get the nut back on before you do any more hitting, otherwise its going to be a REAL pain..
ApexOnYou is offline   Reply With Quote
Old 02-04-2007, 04:43 PM   #8
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

ima **** this ************ up!

edit this needs a smiley because i like beating the **** out of things

if it comes down to it i can pull an axle out of the miata in the local wrecking yard.
akaryrye is offline   Reply With Quote
Old 02-04-2007, 04:48 PM   #9
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Yeah you really want to stay away from heat with the bearings. Because of messing with the lube
Loki047 is offline   Reply With Quote
Old 02-04-2007, 04:51 PM   #10
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

Oh if you have a compressor try an air chisel too. I think that helped me some but not as much as a BFH.

I was swapping to a 1.8 housing and half shafts so I didn't particularly care about smashing it to bits.
Philip is offline   Reply With Quote
Old 02-04-2007, 05:11 PM   #11
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

mission BFH successful. It was in there real good and i hit it real hard

here it is:

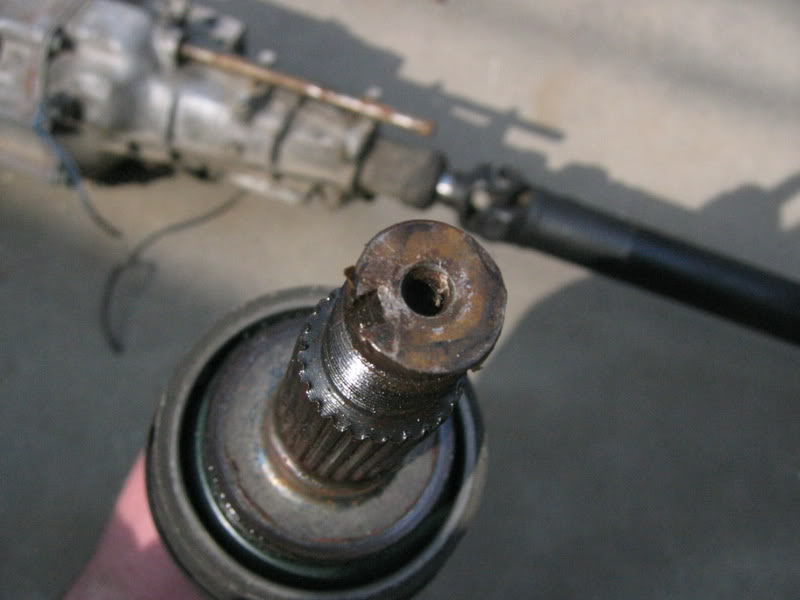

Name:  differentalswap012.jpg
Views: 2
Size:  44.7 KB

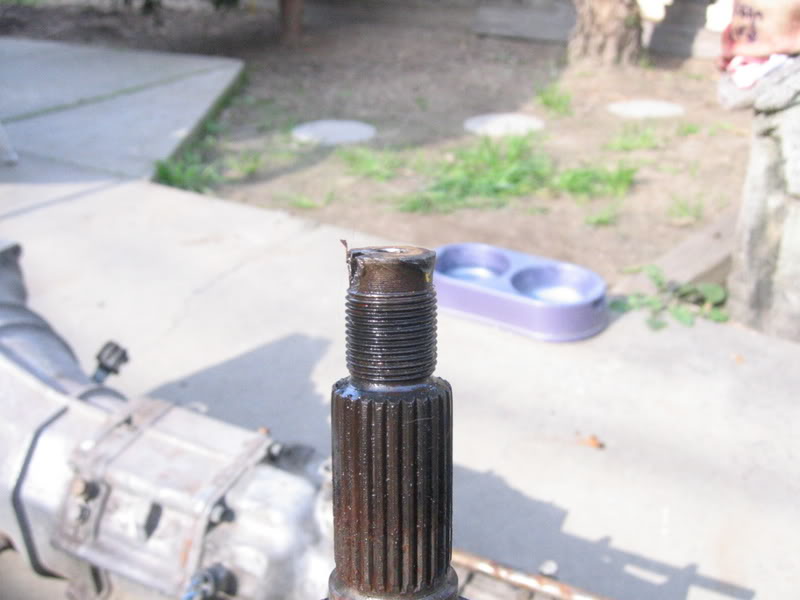

Name:  differentalswap011.jpg
Views: 2
Size:  49.2 KB

Name:  differentalswap010.jpg
Views: 2
Size:  115.5 KB
akaryrye is offline   Reply With Quote
Old 02-04-2007, 05:25 PM   #12
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

look at that sexy guy

wemen just love bald guys holding BFH's and an axle
akaryrye is offline   Reply With Quote
Old 02-04-2007, 05:34 PM   #13
Senior Member

Join Date: Mar 2005
Location: Holiday, FL
Posts: 563
Total Cats: 0
Default

that axle looks so skinny next to you :gay:
Fritch is offline   Reply With Quote
Old 02-04-2007, 05:35 PM   #14
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

If the axle is to be re-used, beside grinding the mushroom at the tip, get a die and re-cut the threads. You want the castle nut to spin on freely and only lock on the flat at the hub.
olderguy is offline   Reply With Quote
Old 02-04-2007, 05:36 PM   #15
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

That ain't real hard, **** the metal isn't even deformed.
Philip is offline   Reply With Quote
Old 02-04-2007, 05:36 PM   #16
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

well, that much anyway
Philip is offline   Reply With Quote
Old 02-04-2007, 05:49 PM   #17
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

10 minutes with a dremel and the nut fit right on.
akaryrye is offline   Reply With Quote
Old 02-04-2007, 06:30 PM   #18
Junior Member

Join Date: Oct 2006
Location: Orlando, FL
Posts: 125
Total Cats: 0
Default

Did I miss something? If you're doing a diff swap on a '90 don't you have to use the half shafts from the later model?
Racer46 is offline   Reply With Quote
Old 02-04-2007, 06:53 PM   #19
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

im going to be swapping the torsen from my 97 on my axles will be too long for the 97 diff and so will the driveshaft.

edit, let me fix that for yall

Im going to be swapping the torsen from my 97 on. My axles will be too long for the 97 diff and so will the driveshaft.

pay attention magna

Last edited by akaryrye; 02-04-2007 at 07:25 PM.
akaryrye is offline   Reply With Quote
Old 02-04-2007, 07:01 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Swapping the '97 rear to the '90 and vise-versa? Still not entirely clear.
