Default How to visually ID the "stronger" rear end pumpkin

Hi all

I just bought myself my "victim" for turboing

Its a 1995 NA 1800 and I want to make sure it has the stronger rearend - It might seem silly to ask as its accepted that all 1800s have the stronger rear end - but this car has a 16 digit VIN and I am looking for visual clues to what rear end is in the car.

please help
3barboost is offline   Reply With Quote
Old 10-30-2008, 01:32 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

by stronger do you simply mean Limited Slip?

all +94 miatas have a 7" ring gear.
Braineack is offline   Reply With Quote
Old 10-30-2008, 01:43 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2007
Location: Johannesburg, South Africa
Posts: 109
Total Cats: 0
Default

I would like to know if it is the 7inch ring gear - for strength and it would be nice to know what diff it is - although thats definetly in the nice to know at this stage - with the car having a really long VIN and being "different" to the USA delivered cars - I cant find a hard and fast rule on what diff it has - I know I want it to have the 7inch ring gear with a LS lurking inside

Its a 1995 1800 NA 5mt,
3barboost is offline   Reply With Quote
Old 10-30-2008, 01:46 PM   #4
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

All 1.8's have the 7" ring gear. Call Mazda with the VIN and they should be able to tell you if its a torsen or not.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-30-2008, 01:49 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2007
Location: Johannesburg, South Africa
Posts: 109
Total Cats: 0
Default

lev I would love to ! but the stealers here arent interested unless its a new car - I cant even order an accel cable from them - this is Africa and sometimes what you take for granted doesnt exist in this part of the world at all
3barboost is offline   Reply With Quote
Old 10-30-2008, 01:56 PM   #6
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

If it's a 1.8, I'm pretty sure it's the 7" ring gear regardless of the market. There's a good writeup on miata.net in the garage for how to identify various types of diffs.
kotomile is offline   Reply With Quote
Old 10-30-2008, 01:58 PM   #7
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

take pictures of it and post it.
Ben is offline   Reply With Quote
Old 10-30-2008, 02:59 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Braineack is offline   Reply With Quote
Old 10-30-2008, 04:37 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2007
Location: Johannesburg, South Africa
Posts: 109
Total Cats: 0
Default

Thanks braineack for that link

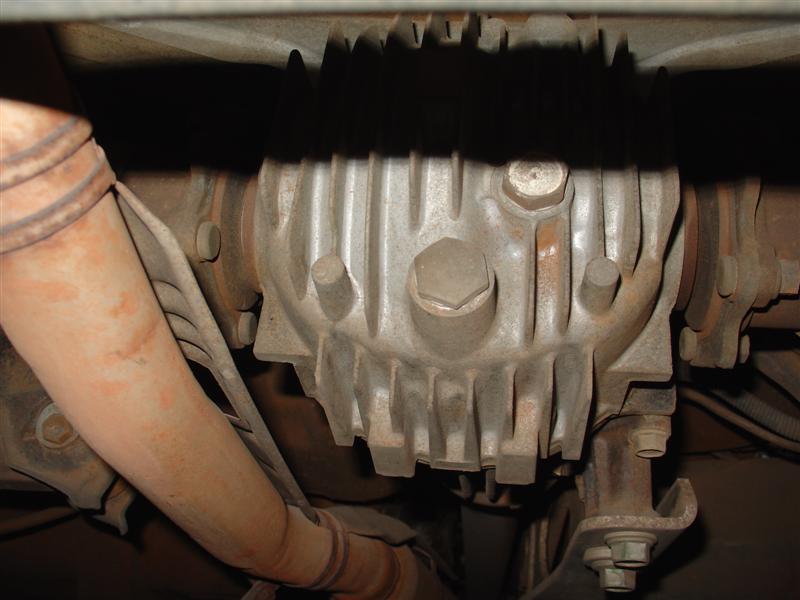

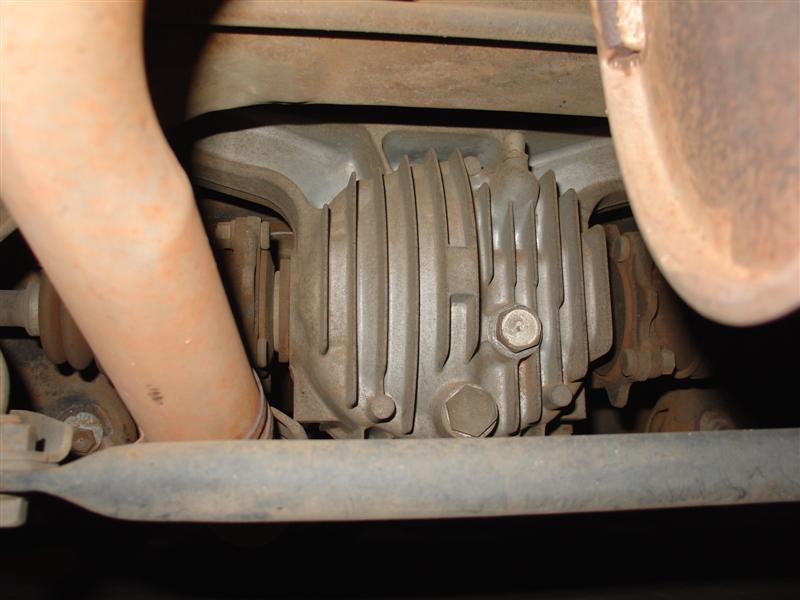

heres a pic of the unit from under the car

those "two flat" areas seem to indicate its a 7"

My biggest concern was when I ran the VIN number to decode it - it says the vehicle is a 1994 build 1800 so I had a concern it somehow had a 6"
Attached Thumbnails
How to visually ID the "stronger" rear end pumpkin-dsc09051-medium-.jpg   How to visually ID the "stronger" rear end pumpkin-dsc09053-medium-.jpg
3barboost is offline   Reply With Quote
Old 10-30-2008, 04:55 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

well actually no, the wings on the flanges and the two stubs on the bottom make me think otherwise.
Braineack is offline   Reply With Quote
Old 10-30-2008, 05:02 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2007
Location: Johannesburg, South Africa
Posts: 109
Total Cats: 0
Default

if you confused think what I am going through !

on that m.net link - there is a picture




and the text says the broken one is off a 1.8 - to me the broken one looks like what I got - or am I silly ?
the driveshaft flanges have got me

would the VIN help out ?

EDIT : ok I am really confused - looking at this and other pics has got me confused / concerned
I think its a 1600 rear end
ho hum dee ha hum

I dont mind posting it since I am 10k miles away

Last edited by 3barboost; 10-30-2008 at 05:05 PM. Reason: confused and not sure what I am looking at
3barboost is offline   Reply With Quote
Old 10-30-2008, 05:24 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

see how flat the bottom in. it's all flush. you have two tabs that jut out. like the bottom housing in that pic, which is a rx7 rear.
Braineack is offline   Reply With Quote
Old 10-30-2008, 05:27 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

just measure the distance between the two bolts on the stub shaft flange.
Braineack is offline   Reply With Quote
Old 10-30-2008, 05:34 PM   #14
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

Here are a couple of side by sides I had. 00 is the clean one with no gaping hole in the bottom. The other is a '92 Hope this helps.

Chris Swearingen is offline   Reply With Quote
Old 10-30-2008, 08:03 PM   #15
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

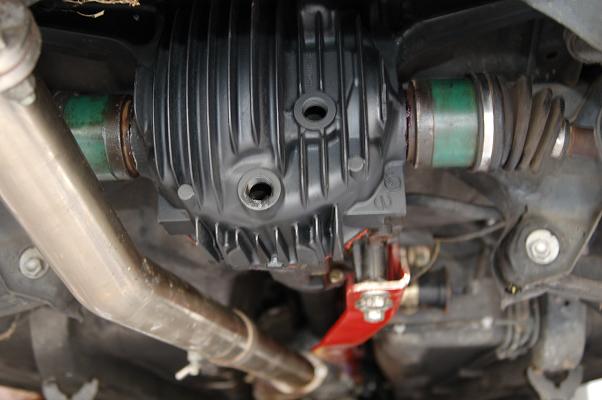

Looks like a 1.6 to me. Here's a 1.8 swapped into my 90.
Attached Thumbnails
How to visually ID the "stronger" rear end pumpkin-resize.jpg
rccote is offline   Reply With Quote
Old 10-30-2008, 08:47 PM   #16
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Measure the distance between the centers of the universals. A 1.8 is roughly 32 inches, a 1.6 is about 34 inches. That would determine the size of the rear, but not whether it is a torsen or not.
olderguy is offline   Reply With Quote
Old 10-31-2008, 03:32 AM   #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2007
Location: Johannesburg, South Africa
Posts: 109
Total Cats: 0
Default

it is a friggin 1.6 after all !!

I am gutted ! I hoped I bought an 1800
based on it being a 95 / the vin number NA18.........it wasnt sold as an 1800 I just assumed it was - assumption is the mother of all f$$ ups !
Now I have learnt about coil pack location......duh !

oh well its cheaper to boost the 1600 in any case and I will toss in an upgraded rear - the rest of the car is so sweet 55k miles on a 1995, 2 owners from new and the coldest aircon ever !
3barboost is offline   Reply With Quote
Old 10-31-2008, 07:02 AM   #18
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

the 1.8 diffs should have the rubber damper where the driveshaft connects to the diff. where the 1.6's don't. (euro-spec at least)
Oscar is offline   Reply With Quote
