Default I need pictures of stock connecting rods.

I'm going home to look at my spare motor that came with the FM Kit. I want to compare the pictures to the rods. If it is forged, I'll use that motor.

If not, I'll swap the turbo.
Thanks.
Toddcod is offline   Reply With Quote
Old 06-03-2008, 07:10 PM   #2
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Best I can do on short notice.

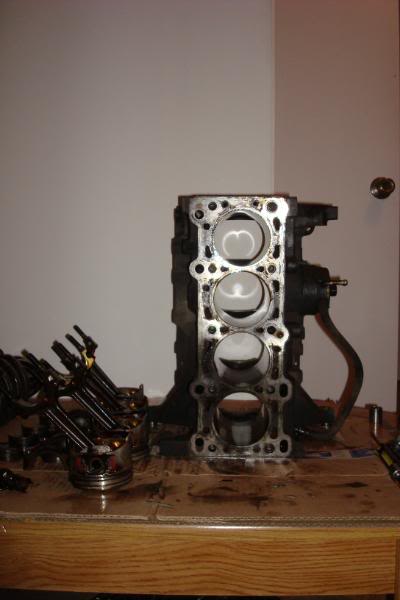

Name:  170.jpg
Views: 2
Size:  33.1 KB
Zabac is offline   Reply With Quote
Old 06-03-2008, 07:44 PM   #3
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

That motor is so gay, it projects asses on the wall behind it!
rleete is offline   Reply With Quote
Old 06-03-2008, 07:52 PM   #4
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

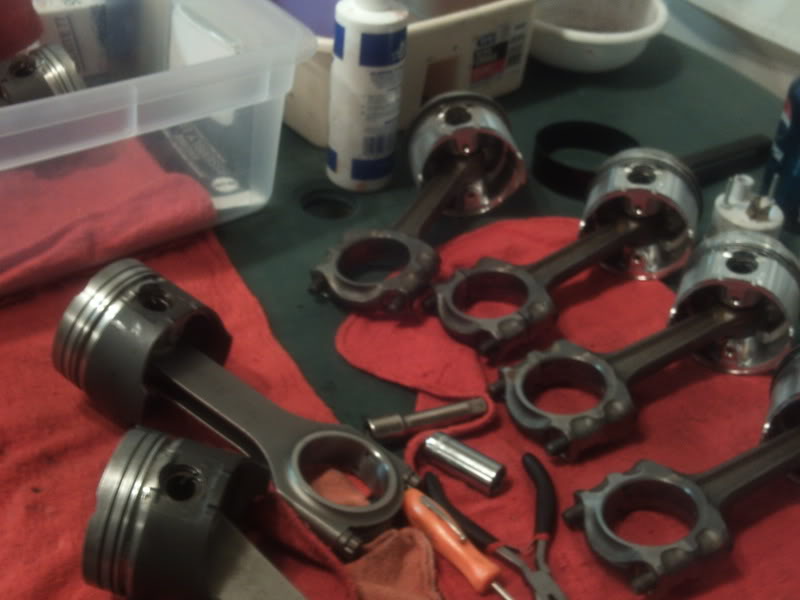

Stock vs forged belfab h beams.

Name:  PICT0268-1.jpg
Views: 2
Size:  49.2 KB

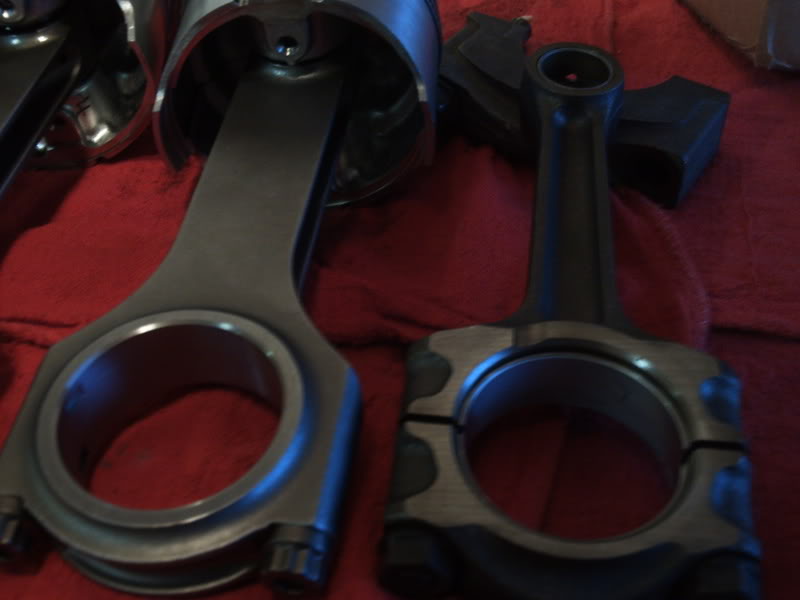

Name:  PICT0197.jpg
Views: 2
Size:  37.0 KB

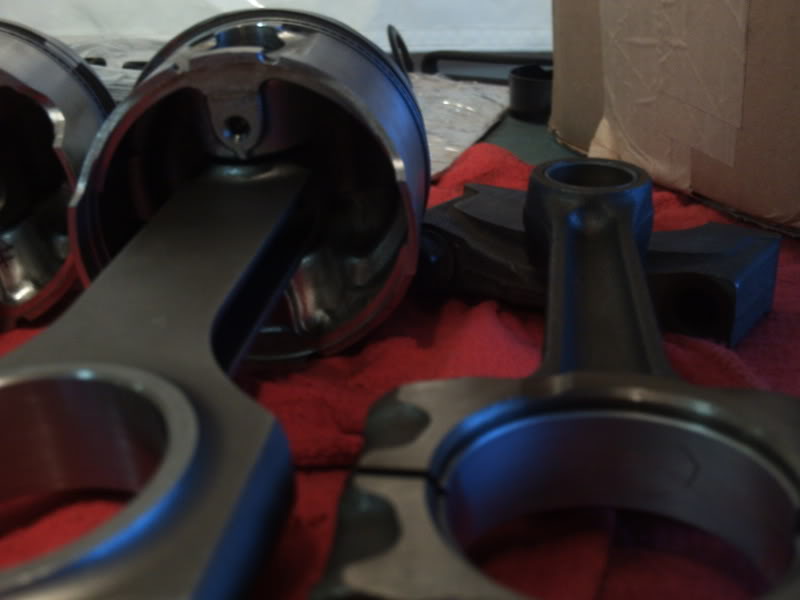

Name:  PICT0200.jpg
Views: 2
Size:  35.8 KB
BenR is offline   Reply With Quote
Old 06-03-2008, 08:46 PM   #5
Elite Member
Thread Starter
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Thanks. I hope it is forged. I would so run more boost.
1. What factors involve running more rpms without destroying the motor. I know some guys were talking about 9000 rpms. Rods, bearings & caps. Do you need different cams?

I want to stop at 250-275 hp. That is my goal to acheive. From what I read everything breaks after that. And this is my daily driver.

2. If not forged, I plan on using an earlier post about running low boost at 6psi on a manual controller, and having a toggle hooked up to my MS EBC for 12psi.

What do you think?
Toddcod is offline   Reply With Quote
Old 06-03-2008, 08:59 PM   #6
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

I don't think you need 9000rpm for 250- 275hp, unless you plan to run less than 8psi which would be daft.
BenR is offline   Reply With Quote
Old 06-04-2008, 10:17 AM   #7
Elite Member
Thread Starter
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Yea, I should of been more clear. My current power goals aren't as radical. But I was curious as to what it takes to rap 9000 RPMs.

It would be cool to have a stickey of what to do for different Hp goals. And in what order.

Last edited by Toddcod; 06-04-2008 at 10:52 AM.
Toddcod is offline   Reply With Quote
Old 06-04-2008, 10:37 AM   #8
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

As Ben says, sub 300hp you should not even thing about raising your limiter.
For a safe 9K RPM you need rods, balanced crank, and lots of head/valvtrain work.
Zabac is offline   Reply With Quote
Old 06-04-2008, 10:56 AM   #9
Elite Member
Thread Starter
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Thanks.
Toddcod is offline   Reply With Quote
Old 06-04-2008, 11:14 AM   #10
Elite Member
Thread Starter
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

Something like this would probably stop alot of newbie questions like mine. I had a better site. They had it broke down into 4 sections, and different hp goals. But the history was deleted on this computer.
http://www.dsmtuners.com/tuning-guide/2gturbo/
http://www.dsmtuners.com/sub.php?page=tech
It would be cool for some of our vendors to post there products in web links like this. I know most of us are cheap. But I think a it would pull in some attention for the site and vendors.
Toddcod is offline   Reply With Quote
Old 06-04-2008, 11:18 AM   #11
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by Toddcod View Post
It would be cool to have a stickey of what to do for different Hp goals. And in what order.


This is kind of a weird question. There are alot of ways to make any given amount of power especially if you're going to build a motor. It kinda depends on budget, what you have laying around, racing class rules constraints, personal style, ect.
BenR is offline   Reply With Quote
