Default I think i blew my engine.

Hello,
Yesterday I did something really stupid. I raised my boost up to 17 psi and at 4th gear ,WOT and 6k rpms my car felt that it lost some power.
After I pulled over I heard a weird sound like knock knock knock continuesly but no smoke from the tail. The sound is coming from the upper place of the engine.
I found some oil in the oil catch can but not much.

After a quick thought I drove the car towards a friendly garage and the engineer ensured me that something is broken inside the engine, just hearing this awful sound. When i drove the car i noticed that in high rpms the knock knock gets weaker and weaker but lots of white smoke comes from tailpipe during acceleration. Also there is a huge power loss but the turbo still produces boost.

What do you guys think I ruined, except my day and my wallet ?
gianic is offline   Reply With Quote
Old 11-22-2008, 10:54 AM   #2
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

maybe blew a hole in a piston or fuxored a ring or valve.
paul is offline   Reply With Quote
Old 11-22-2008, 11:14 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Name:  Failboat.jpg
Views: 3
Size:  27.1 KB
Braineack is offline   Reply With Quote
Old 11-22-2008, 11:19 AM   #4
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Just out of curiosity, why would you turn the boost up to 17psi with an EMB and 305cc injectors?
paul is offline   Reply With Quote
Old 11-22-2008, 11:22 AM   #5
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by paul View Post
maybe blew a hole in a piston or fuxored a ring or valve.
If that its true , is it from the power or the poor management ?

I ran 11:1 the moment it failed without knocking.
gianic is offline   Reply With Quote
Old 11-22-2008, 11:24 AM   #6
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by gianic View Post
If that its true , is it from the power or the poor management ?

I ran 11:1 the moment it failed without knocking.
My sig can answer that question.


How are you maintaining an 11:1 AFR at those boost levels with 305's? I don't see anything about an AFPR.
paul is offline   Reply With Quote
Old 11-22-2008, 11:30 AM   #7
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by paul View Post
My sig can answer that question.


How are you maintaining an 11:1 AFR at those boost levels with 305's? I don't see anything about an AFPR.
I dont use an afpr, these readings are what zeitronix was showing. I guess that either the injectors are underrated or zeironix doesn't show up the right values.
gianic is offline   Reply With Quote
Old 11-22-2008, 11:42 AM   #8
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

My vote is against the supra injectors being underrated by that much. Did you happen to be logging when this happened?
paul is offline   Reply With Quote
Old 11-22-2008, 11:47 AM   #9
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by paul View Post
My vote is against the supra injectors being underrated by that much. Did you happen to be logging when this happened?
Unfortunetaly no. My eyes was centered at the a/f zei gauge during the failure and my afrs were from 10.5 to 11.7:1.
gianic is offline   Reply With Quote
Old 11-22-2008, 11:48 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Do you have 255HP fuel pump? All I've heard about the '99 is the lack of maintaining fuel pressure in high RPMs without one.

Coupled with 305cc injectors, it is impossible with the stock fuel system to support more than 230BHP. ...that's only around 195rwhp.

If your wideband was at 11:1, then your tune had major issues where you could not make a lot of power even with a **** ton of boost. So poor ignition timing, restrictions, extra heat, etc.

The noise you hear is more than likely your ringlands bouncing around.
Braineack is offline   Reply With Quote
Old 11-22-2008, 11:57 AM   #11
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
Do you have 255HP fuel pump? All I've heard about the '99 is the lack of maintaining fuel pressure in high RPMs without one.

Coupled with 305cc injectors, it is impossible with the stock fuel system to support more than 230BHP. ...that's only around 195rwhp.

If your wideband was at 11:1, then your tune had major issues where you could not make a lot of power even with a **** ton of boost. So poor ignition timing, restrictions, extra heat, etc.

The noise you hear is more than likely your ringlands bouncing around.
I m pretty messed up with my failure and i forgot to mention something.

After 5k rpms the boost keeps dropping and dropping and dropping until 6 psi at redline. My bad. Sorry I think this is the reason that my afrs are good up there.
gianic is offline   Reply With Quote
Old 11-22-2008, 12:22 PM   #12
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

well now it makes more sense. Duty cycle is a lot lower at 5k then it is at redline. I can see 305s running an 11:1 AFR at 7k at only 6psi.
paul is offline   Reply With Quote
Old 11-22-2008, 12:30 PM   #13
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

From your experience Braineack and Paul do you suggest me to reinforce the engine with forged internals or just repair it with stock parts?

And something else. Idle runs rock solid at 900 rpms, And car revs freely.
gianic is offline   Reply With Quote
Old 11-22-2008, 12:35 PM   #14
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

I would read a bit more if I were you #1. It depends on what your goals are. If you want 350+ you should build the motor. Below that the stock block can handle it with a good tune. Either way if you do some stupid **** like this again you'll blow your **** up. So read.
johndoe is offline   Reply With Quote
Old 11-22-2008, 12:45 PM   #15
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by johndoe View Post
I would read a bit more if I were you #1. It depends on what your goals are. If you want 350+ you should build the motor. Below that the stock block can handle it with a good tune. Either way if you do some stupid **** like this again you'll blow your **** up. So read.
I feel so damn noob. When I was building the car I promised to my self that i wouldnt run over 12 psi. I hold my promise until the time I installed the incabin mbc ****.. That was my disaster!
gianic is offline   Reply With Quote
Old 11-22-2008, 01:31 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

right now you should do a leakdown test to determine what failed exactly.
Braineack is offline   Reply With Quote
Old 11-22-2008, 01:47 PM   #17
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

If you can't keep a promise to yourself, then you definitely need use forged parts on a rebuild.
m2cupcar is offline   Reply With Quote
Old 11-22-2008, 02:29 PM   #18
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Quote:
Originally Posted by m2cupcar View Post
If you can't keep a promise to yourself, then you definitely need use forged parts on a rebuild.
That would be wise and cost effective in the future

Brain i m seeking right now the posts for the tests.
gianic is offline   Reply With Quote
Old 11-25-2008, 11:55 AM   #19
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

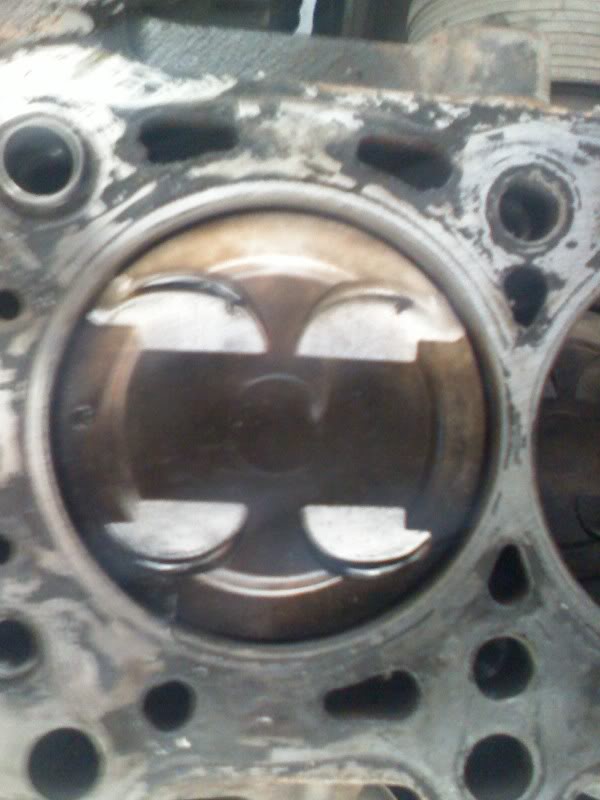

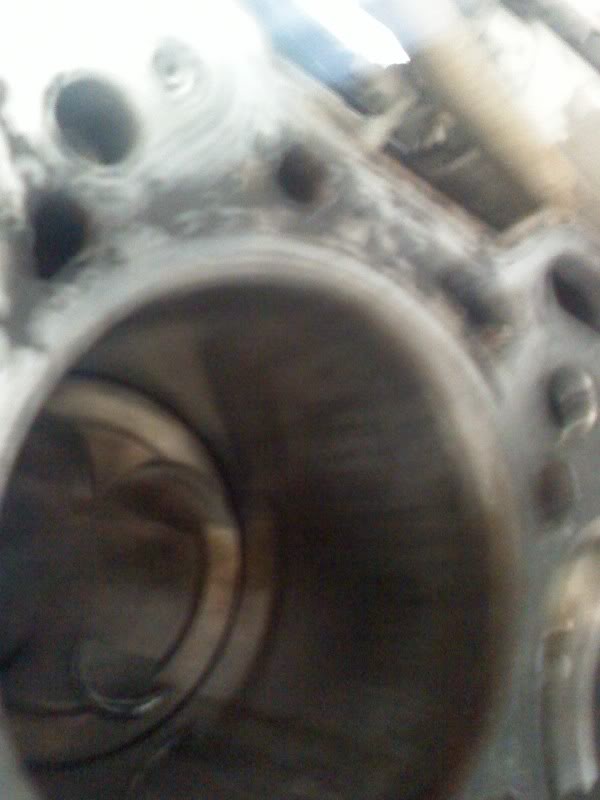

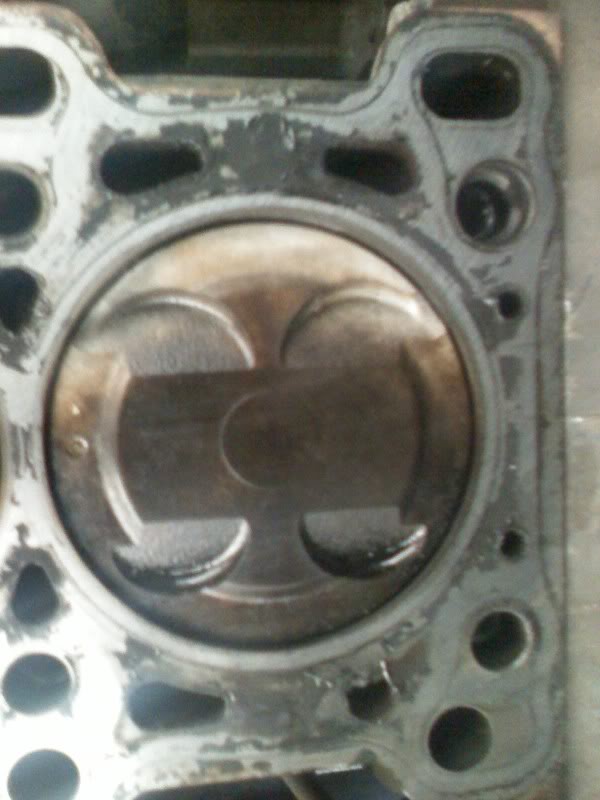

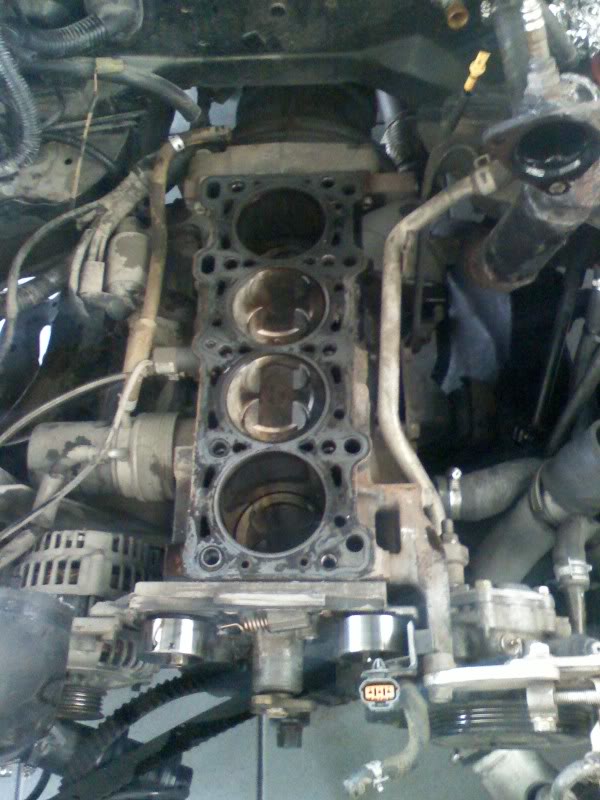

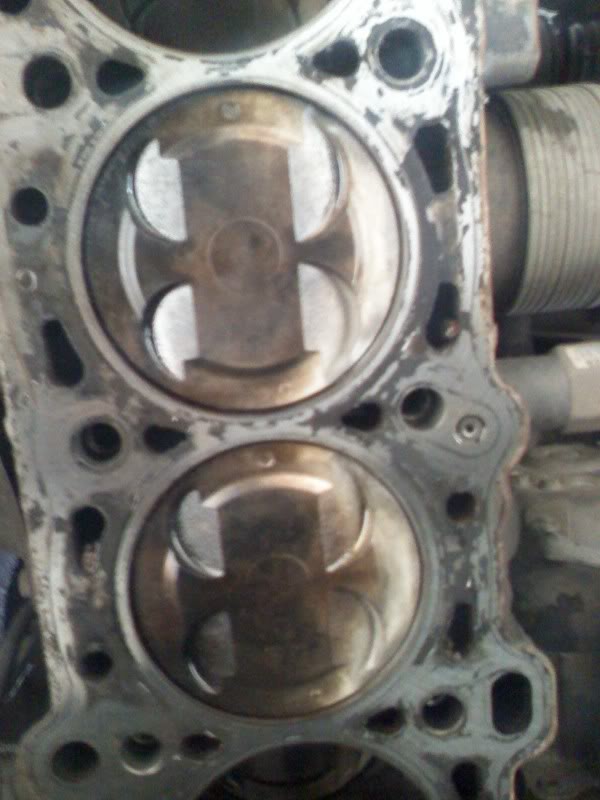

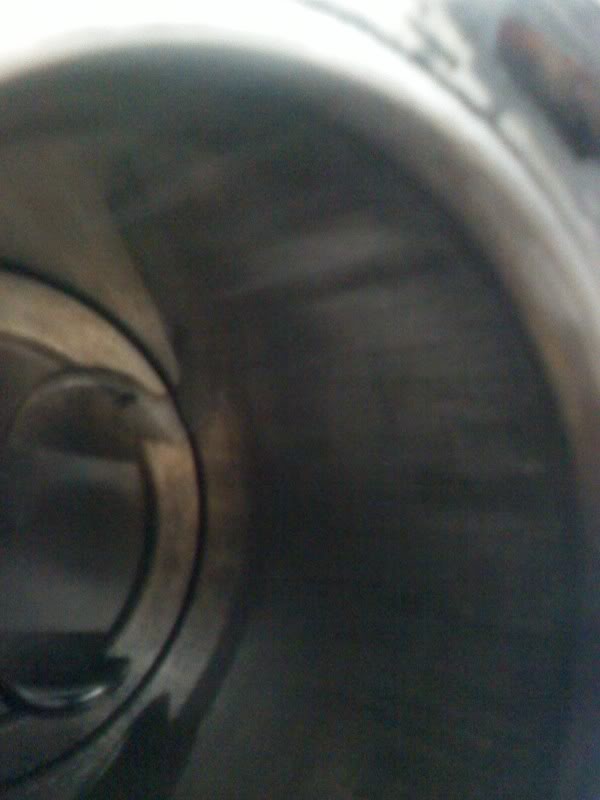

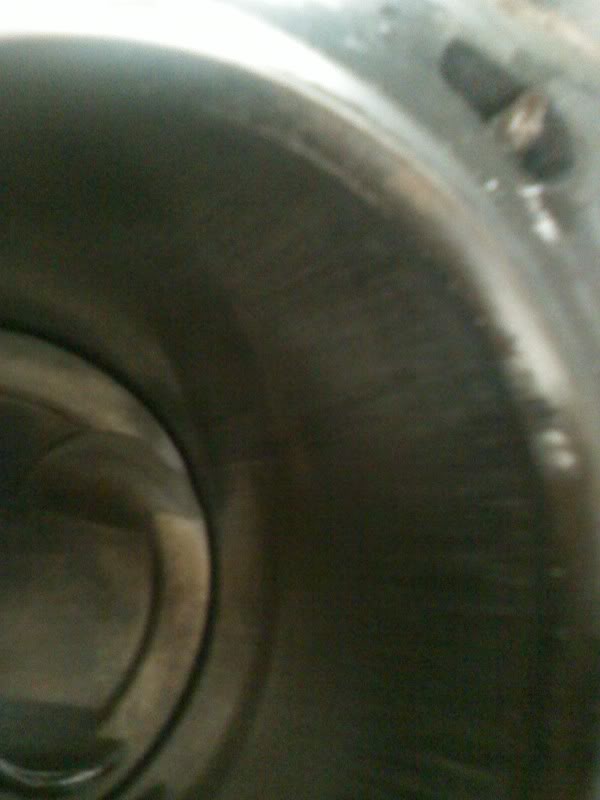

Right now I have this. Tomorrow i ll post and the rods condition. Any recommendations accepted.

Name:  DC081125001.jpg
Views: 3
Size:  77.2 KB

Name:  DC081125002.jpg
Views: 3
Size:  56.2 KB
Name:  DC081125003.jpg
Views: 3
Size:  50.9 KB
Name:  DC081125004.jpg
Views: 3
Size:  50.6 KB
Name:  DC081125006.jpg
Views: 4
Size:  35.8 KB
Name:  DC081125007.jpg
Views: 3
Size:  37.3 KB
Name:  DC081125008.jpg
Views: 3
Size:  40.4 KB
gianic is offline   Reply With Quote
Old 11-25-2008, 11:56 AM   #20
Junior Member
Thread Starter
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Sorry about the quality guys its from my mobile.
gianic is offline   Reply With Quote
