Default IAT temps... how hot is too hot?

Turbo 01 1.8, 8 lbs of boost, 58k miles....


Temps have hit ~ 80* lately, my ultra-gauge shows IAT of approximately 40-50*F over ambient. 125* Saturday morning when it was ~ 75 outside.


That'll be 160* in a few months when it hits 100* outside.

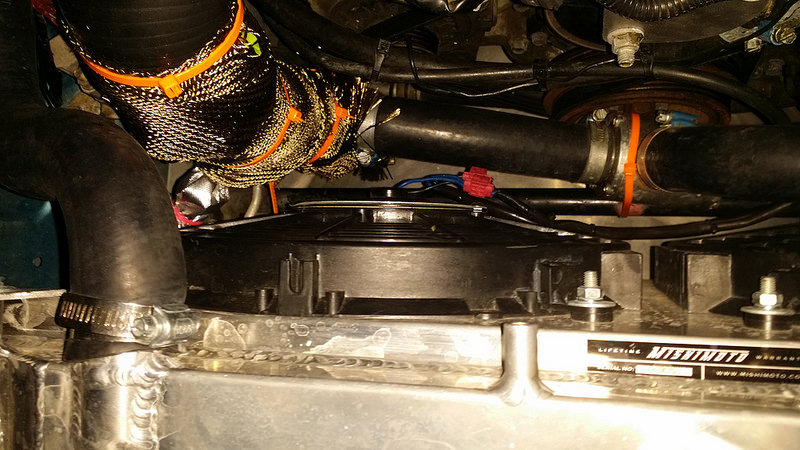

Pardon the crappy wrap of the intake, I threw it on as I was leaving for work.. header wrap, poorly applied by me


crapwraplol by jestmaty, on Flickr
Attached Thumbnails
IAT temps... how hot is too hot?-25113542231_6caa4eac0f_c.jpg
umwhat is offline   Reply With Quote
Old 02-23-2016, 12:54 AM   #2
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

rotfl

Anything over ambient.
deezums is offline   Reply With Quote
Old 02-23-2016, 01:08 AM   #3
Newb
Thread Starter

Join Date: Feb 2016
Posts: 8
Total Cats: 0
Default

Well, the hot *** air coming through the radiator and fans is going to heat up the intake somewhat. There is about a 10" long chunk of aluminum connecting the hoses right at the fan.


Even my new Kia Optima 2.0 turbo engine sees at least 20* above ambient while moving...
umwhat is offline   Reply With Quote
Old 02-23-2016, 02:06 AM   #4
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I'm sorry, was I supposed to expect anything impressive from a kia? I am confused, what does that change about that jank looking setup with jank results?

Are you running a turbo with no intercooler and seriously wondering why it's on fire?
deezums is offline   Reply With Quote
Old 02-23-2016, 02:12 AM   #5
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

With header wrap keeping the heat in
aidandj is offline   Reply With Quote
Old 02-23-2016, 09:56 AM   #6
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

that pic is worth many words lmao
hi_im_sean is offline   Reply With Quote
Old 02-23-2016, 10:02 AM   #7
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

I like the orange accents. It reminds me of a particular race car around here
psyber_0ptix is offline   Reply With Quote
Old 02-23-2016, 10:04 AM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

That sort of looks like a begi setup, but I am not positive.
shuiend is offline   Reply With Quote
Old 02-23-2016, 10:09 AM   #9
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

What intercooler does this car have? A steel pipe? Where is the actual IAT sensor?
psyber_0ptix is offline   Reply With Quote
Old 02-23-2016, 10:24 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by umwhat View Post
Pardon the crappy wrap of the intake, I threw it on as I was leaving for work.. header wrap, poor
next time dont put your AIT sensor directly behide a heat source with a fan attached to it pointed directly at the AIT sensor.


If you have an intercooler and seeing those temps, youre doing something wrong.
Braineack is offline   Reply With Quote
Old 02-23-2016, 04:07 PM   #11
Newb
Thread Starter

Join Date: Feb 2016
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by deezums View Post
I'm sorry, was I supposed to expect anything impressive from a kia? I am confused, what does that change about that jank looking setup with jank results?

Are you running a turbo with no intercooler and seriously wondering why it's on fire?

Stock, newish Kia, just to use as a reference point.... If a NEW car has somewhat fluctuating IAT that run anywhere from ambient to 'whatever over ambient', then I can extrapolate some of that info to my NB. I also will start monitoring my wife's Kia Soul's intake temps too, just to see if they get so high over ambient.


Jank setup is still a work in progress, I didn't build it. Was told that it was experiencing higher than normal IAT's when I got it, I'm just gathering information.


It has the Bell Engineering intercooler #1 if I recall on it.
umwhat is offline   Reply With Quote
Old 02-23-2016, 04:09 PM   #12
Newb
Thread Starter

Join Date: Feb 2016
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by aidandj View Post
With header wrap keeping the heat in

Post intercooler, about 2" behind radiator and fan, it blows fkin hot! I'm just trying to keep the heat OFF the aluminum. I GOTTA believe that air coming out of the radiator is heat soaking the aluminum connector pipe?


It's not an exhaust piece, how would YOU insulate from intense heat on that tube?
umwhat is offline   Reply With Quote
Old 02-23-2016, 04:12 PM   #13
Newb
Thread Starter

Join Date: Feb 2016
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by hi_im_sean View Post
that pic is worth many words lmao

Still in the works, I THREW that insulation on there to see if it affected the temps............................................. ..............


If it does/did, I'll do it right.


Still being sorted out, it ain't going to look pretty until it's fixed
umwhat is offline   Reply With Quote
Old 02-23-2016, 04:14 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

what ECU? what sensor?


give us less information.
Braineack is offline   Reply With Quote
Old 02-23-2016, 04:15 PM   #15
Newb
Thread Starter

Join Date: Feb 2016
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by shuiend View Post
That sort of looks like a begi setup, but I am not positive.

You are correct sir! A/O


The temporary zip ties are to hold crap in place while I sort this IAT/recirc valve dragging on the crank pulley issue.


Thanks for just making an observation, not a crucifixion.
umwhat is offline   Reply With Quote
Old 02-23-2016, 04:18 PM   #16
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Quote:
Originally Posted by umwhat View Post
Post intercooler, about 2" behind radiator and fan, it blows fkin hot! I'm just trying to keep the heat OFF the aluminum. I GOTTA believe that air coming out of the radiator is heat soaking the aluminum connector pipe?


It's not an exhaust piece, how would YOU insulate from intense heat on that tube?
I've got a fat long black silicone tube with enough girth to make you blush, all of which insulates from weaksauce heat soak. That and my IAT is located right after the outlet of the intercooler, nowhere near a heat source so the amount of transfer is more radiant from asphalt than pumping hot air all over it.

sorry bruh, try again.

You can reorganize this pretty cheaply. Really just look to move the location of the IAT closer to the intercooler and out of the way, or if you have access to someone who welds aluminum, you can have a bung welded to the intercooler end tank. Worst case, Begi sells a coupler with a bung attached you can use and just rework your cold side piping a tad. I don't know what's going on with the BPV, but it should be relatively ok to modify.

I'm personally switching some couplers around for my under tray to work and using the following sources:


2.5" coupler
http://www.bellengineering.net/produ...roducts_id=674

some 90 2.5" elbows
http://www.siliconeintakes.com/
psyber_0ptix is offline   Reply With Quote
Old 02-23-2016, 04:19 PM   #17
Newb
Thread Starter

Join Date: Feb 2016
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
what ECU? what sensor?


give us less information.

BEGI reflash....


The IAT sensor is stock I assume, it's post intercooler, about 18"down from the throttle body, right in the line of intense heat coming from the fans. I didn't put it there, it was put there by the builder.


I wonder if it's a false sensor reading, or is it heatsoaked (also giving it a false reading), or if my temps really are that high in winter?


Katy, Texas to be exact. A/C runs every month of the year down here lol
umwhat is offline   Reply With Quote
Old 02-23-2016, 04:25 PM   #18
Newb
Thread Starter

Join Date: Feb 2016
Posts: 8
Total Cats: 0
Default

Quote:
Originally Posted by psyber_0ptix View Post
You can reorganize this pretty cheaply. Really just look to move the location of the IAT closer to the intercooler and out of the way, or if you have access to someone who welds aluminum, you can have a bung welded to the intercooler end tank. Worst case, Begi sells a coupler with a bung attached you can use and just rework your cold side piping a tad.

IAT Sensor Adapter Tube

Intercooler Pipe Fabrication
Thanks sir, that gives me direction and something to think about. Solid info, much appreciated


This is still very much a work in progress
umwhat is offline   Reply With Quote
Old 02-23-2016, 04:27 PM   #19
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

IAT sensors are also relatively inexpensive, so if you suspect a faulty one, just replace it to be sure. If it still reads high, suspect heat soak, especially in the location you're describing.

Post pictures from underside routing if you ever get a chance.
psyber_0ptix is offline   Reply With Quote
Old 02-23-2016, 04:29 PM   #20
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Also iirc, the begi inlet/outlets are 2.25" so design your charge piping accordingly. That's what it is on my Begi #3 anyhow.

I'm running a 2.25"-2.5" silicone adapter then all the necessary parts to the throttle body. keeping it 2.25 will probably be more than sufficient.
