Default Identification of item Please

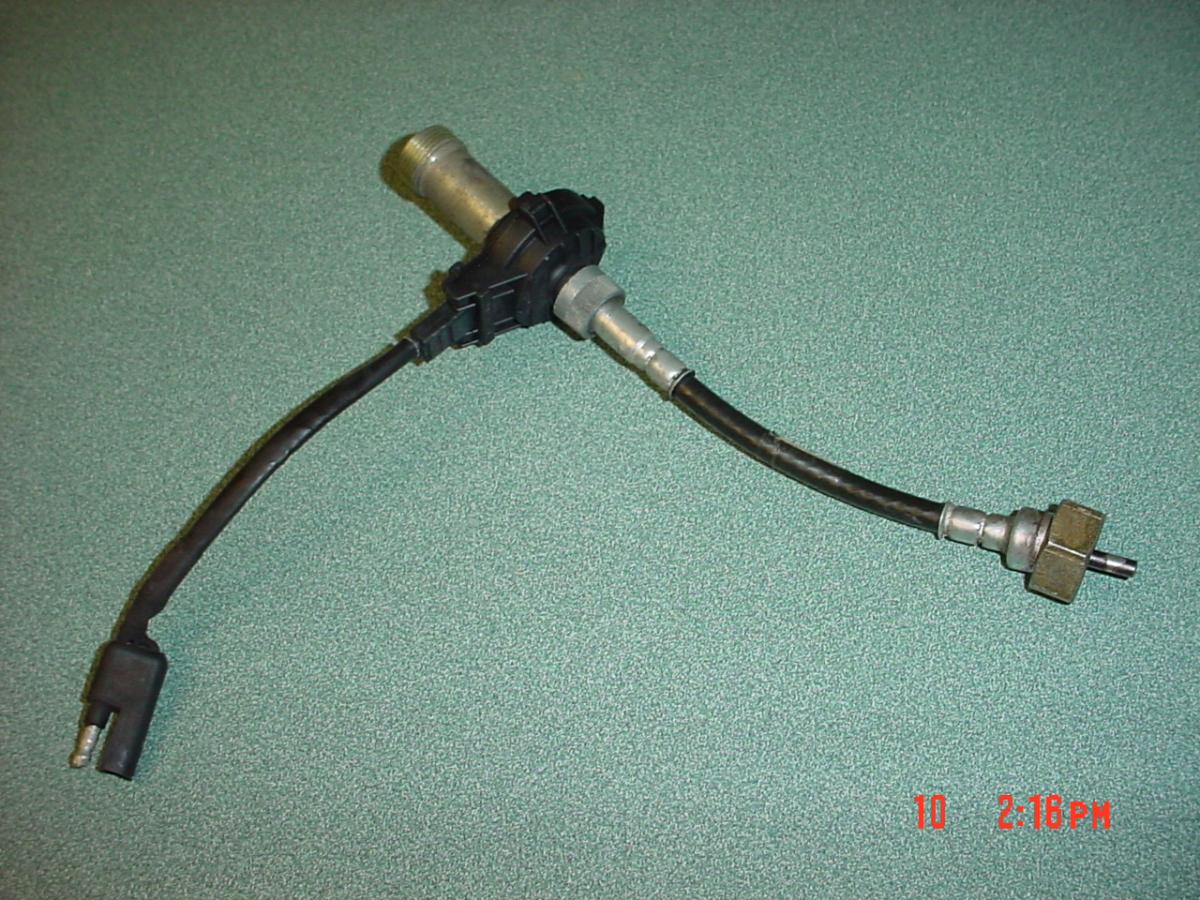

Anyone know what the **** this thing is?
It connects to the transmission housing tail. The other end connects to the speedometer cable. The writing says, " 8 pulses per revolution"
So far I've gotten possible sensor for cruise control which I removed quite awhile ago. Of course the car is a 92 manual trans.
Anyone seen one and knows what it is?
Attached Thumbnails
Identification of item Please-cable.jpg   Identification of item Please-cable2.jpg
LOLA - 92 is offline   Reply With Quote
Old 07-10-2008, 03:42 PM   #2
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

Vss?
SloS13 is offline   Reply With Quote
Old 07-10-2008, 03:56 PM   #3
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

whoa. let me get that so i can set up traction control and/or make MS read my speed.
paul is offline   Reply With Quote
Old 07-10-2008, 04:10 PM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

doesn't look factory Michael. it is interesting though. I want it. what's the part no. on its side?

btw, my internet is back up again obviously but I didn't get an email from you
Ben is offline   Reply With Quote
Old 07-10-2008, 04:26 PM   #5
Senior Member
Thread Starter

LOLA - 92's Avatar

Join Date: Oct 2004
Location: SWAMPS OF FLORIDA !!!
Posts: 1,161
Total Cats: 0
Default

Quote:
Originally Posted by ben View Post
doesn't Look Factory Michael. It Is Interesting Though. I Want It. What's The Part No. On Its Side?

Btw, My Internet Is Back Up Again Obviously But I Didn't Get An Email From You
59d-02392-2
Rev. C

[**** - I thought eveyone had one of these things connected to their trannies]
LOLA - 92 is offline   Reply With Quote
Old 07-10-2008, 04:29 PM   #6
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

It's a speedometer sender, as would be used with an aftermarket speedo gauge. I've installed a lot of those before. So technically, if your MS has speed input, you should be able to make this communicate with it.
I was about to say it may be an early AutoMeter sender, but as far as I know, they've always used 16 pulse-per-rev. senders.
RotorNutFD3S is offline   Reply With Quote
Old 07-10-2008, 04:32 PM   #7
Senior Member
Thread Starter

LOLA - 92's Avatar

Join Date: Oct 2004
Location: SWAMPS OF FLORIDA !!!
Posts: 1,161
Total Cats: 0
Default

Quote:
Originally Posted by RotorNutFD3S View Post
It's a speedometer sender, as would be used with an aftermarket speedo gauge. I've installed a lot of those before. So technically, if your MS has speed input, you should be able to make this communicate with it.
No such thing has ever been on this car.
It has to be something to do with an aftermarket cruise control system that was on it before I went to FI
LOLA - 92 is offline   Reply With Quote
Old 07-10-2008, 04:37 PM   #8
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

That's probably it, as they require speed input. That would mean that the CC unit that was on the car was most likely aftermarket and not OEM.
RotorNutFD3S is offline   Reply With Quote
Old 07-10-2008, 04:51 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by LOLA - 92 View Post
No such thing has ever been on this car.
It has to be something to do with an aftermarket cruise control system that was on it before I went to FI
I'd agree. This wasn't on your car from the factory.
Ben is offline   Reply With Quote
Old 07-10-2008, 05:06 PM   #10
Senior Member
Thread Starter

LOLA - 92's Avatar

Join Date: Oct 2004
Location: SWAMPS OF FLORIDA !!!
Posts: 1,161
Total Cats: 0
Default

FOR SALE -
One used aftermarket Speed Sensor -
Opening Bid is $50.
LOLA - 92 is offline   Reply With Quote
Old 07-10-2008, 10:28 PM   #11
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

Quote:
Originally Posted by LOLA - 92 View Post
FOR SALE -
One used aftermarket Speed Sensor -
Opening Bid is $0.50.
Fixed that for ya.
rleete is offline   Reply With Quote
Old 07-11-2008, 05:46 AM   #12
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Bristol
Posts: 442
Total Cats: 0
Default

Quote:
Originally Posted by paul View Post
whoa. let me get that so i can set up traction control and/or make MS read my speed.
You might get lucky if you pull your clocks out. On the back there is a screw labeled RSW this is a VSS signal. It is connected to a reed switch in the back of the speedo guage which is activated by the rotating magnet in the speedo. My car didn't have cruise control from factory but I still have the VSS pickup. Hope this helps with the traction control, I would love to see it in action.

I found this info whilst getting a Mercedes COMAND satnav/media centre to work in my MX-5 a la Frank Devocht.
Duckie_uk is offline   Reply With Quote
Old 07-11-2008, 08:53 AM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Duckie_uk View Post
I found this info whilst getting a Mercedes COMAND satnav/media centre to work in my MX-5 a la Frank Devocht.
Pics? COMMAND FTMFW

PS--there's plenty of ways of getting speed signal to a NAV system (or trac control), including VSS at the back of the cluster. I'm just too tired/lazy/apathetic to detail now.
Ben is offline   Reply With Quote
Old 07-11-2008, 09:04 AM   #14
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Bristol
Posts: 442
Total Cats: 0
Default

I sold my unit after someone offered me silly money for it and the CANBUS emulator that I used to make it work in my VERY NON CAN miata. I never took any pics of my install but here are some pics that Frank took of his.

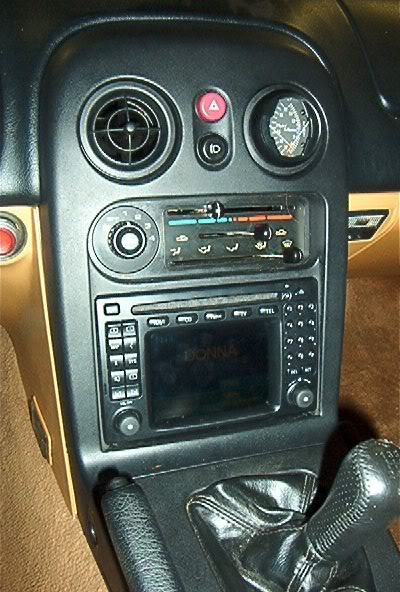

Name:  miata_comand.jpg
Views: 26
Size:  65.2 KB

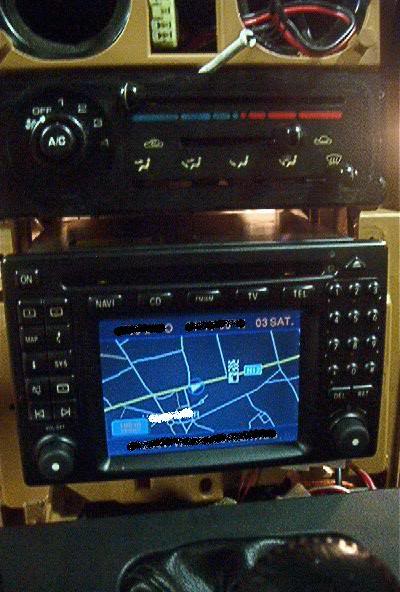

Name:  miata_comand_in2.jpg
Views: 15
Size:  45.9 KB

If anyone wants to do this I will provide a full writeup/howto including part numbers and how to make CAN work in exchange for some old T25 water hardlines.
Duckie_uk is offline   Reply With Quote
Old 07-11-2008, 10:28 AM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,242
Total Cats: 290
Default

Somebody find this man some lines so he will build a faq/howto for this.... it's badass

that's a LHD mx5 in the uk?
m2cupcar is offline   Reply With Quote
Old 07-11-2008, 11:45 AM   #16
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Bristol
Posts: 442
Total Cats: 0
Default

That one isn't mine. It belongs to a fellow called Frank Devocht. I may do the write-up anyway on the understanding that someone in the future may have some hardlines and send them my way rather than bin them.

Edit: https://www.miataturbo.net/forum/showthread.php?t=23447 [/threadjack]

Last edited by Duckie_uk; 07-11-2008 at 03:38 PM.
