Injector Questions - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 08-01-2008, 10:33 PM   #1
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default Injector Questions

I just received some used injectors and (B),(C) were missing and the pintle cap was cracked.

1) Will Injector Rehab replace these missing/cracked items?

2) (A) has the tip stuck out (pintle valve tip?). I illustrated how it looks in blue. It's sticking out like a boner. Will this be a problem?

Name:  d1955002010.jpg
Views: 1
Size:  12.8 KB
Name:  IMG_0295.jpg
Views: 1
Size:  43.2 KB
Thanks.

Last edited by kenzo42; 08-02-2008 at 12:00 AM.
kenzo42 is offline   Reply With Quote
Old 08-01-2008, 11:00 PM   #2
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Based on my experience at 2 other online injector cleaners, B and C will be included in the price of the cleaning... but A will probably be a dollar or three. I haven't done business with IR, but that's how the other two places wrote up my invoice.
samnavy is offline   Reply With Quote
Old 08-01-2008, 11:04 PM   #3
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Any ideas on (A) pintle valve sticking out like that? Uploaded actual picture.

Last edited by kenzo42; 08-02-2008 at 12:00 AM.
kenzo42 is offline   Reply With Quote
Old 08-02-2008, 12:03 AM   #4
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

thats how it's supposed to look when it's closed. it pulls back when open and lets fuel out.
paul is offline   Reply With Quote
Old 08-02-2008, 12:07 AM   #5
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

The other injectors I have look this. No pintle valve sticking out of the hole.

kenzo42 is offline   Reply With Quote
Old 08-02-2008, 12:12 AM   #6
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

that's because the plastic cap is broken on this one. look inside the hole in the cap on the others.
paul is offline   Reply With Quote
Old 08-02-2008, 12:40 AM   #7
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

I have a set of tan tops that looks like that, I didn't want to put them up for sale for this reason.

I managed to **** them up by trying to force them in instad of wiggling them in...
The "boner" thing is normal.
Zabac is offline   Reply With Quote
Old 08-02-2008, 01:39 AM   #8
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

to answer your question yes. injector rehab will put all new parts on em
disturbedfan121 is offline   Reply With Quote
Old 08-02-2008, 01:45 AM   #9
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Sweet, so I can go ahead and sell mine without hesitation now...thanks!
Zabac is offline   Reply With Quote
Old 08-02-2008, 05:23 AM   #10
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

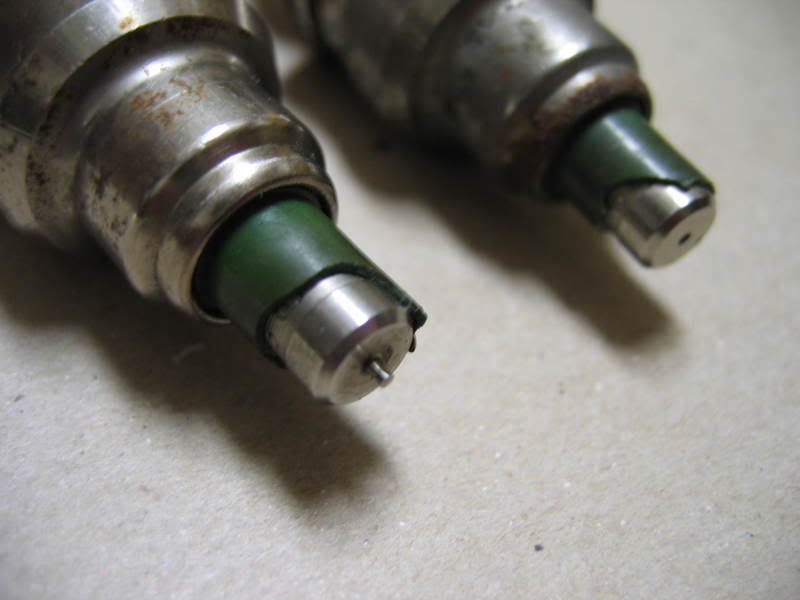

So does that mean 1 injector is open and the other 1 is closed?

Name:  dp.jpg
Views: 1
Size:  35.3 KB
kenzo42 is offline   Reply With Quote
Old 08-02-2008, 06:08 AM   #11
Junior Member
iTrader: (1)

Sentic's Avatar

Join Date: Feb 2008
Location: Sweden
Posts: 435
Total Cats: 5
Default

The one to the right is messed up, stuck open.
They might be able to fix that, might not.
Sentic is offline   Reply With Quote
Old 08-02-2008, 06:11 AM   #12
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by Sentic View Post
The one to the right is messed up, stuck open.
They might be able to fix that, might not.
Are you sure about this? That means that the other 3 that I have are stuck open and jacked? And the one I thought was jacked is actually good? Can anyone clarify? Confused.
kenzo42 is offline   Reply With Quote
Old 08-02-2008, 09:08 AM   #13
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

the pintle should be sticking out to close the injector. i have 15 denso injectors in front of me. all look like the one on the left. Do not use the ones with the pintle not sticking out.

They may be able to unstick them at an injector cleaning place.
paul is offline   Reply With Quote
Old 08-05-2008, 09:46 AM   #14
KGP
Newb
iTrader: (9)

Join Date: Feb 2008
Location: South Jersey
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by kenzo42 View Post
So does that mean 1 injector is open and the other 1 is closed?

no, it means that one injector is good and the other (more than likely because the cap was missing and injector was mishandled) the pintle broke off.

Injector on the right is trash.
KGP is offline   Reply With Quote
Old 08-05-2008, 09:49 AM   #15
KGP
Newb
iTrader: (9)

Join Date: Feb 2008
Location: South Jersey
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by kenzo42 View Post
I just received some used injectors and (B),(C) were missing and the pintle cap was cracked.

1) Will Injector Rehab replace these missing/cracked items?

2) (A) has the tip stuck out (pintle valve tip?). I illustrated how it looks in blue. It's sticking out like a boner. Will this be a problem?



Thanks.
With cleaning and flow testing http://www.injector-rehab.com/ins/rates.htm

-The cap to "A" would be replaced as well as the lower grommet that goes over it
-"B" and "C" will be replaced as well as the internal filter

Hope that helps
KGP is offline   Reply With Quote
Old 08-05-2008, 10:03 AM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

/thread
hustler is offline   Reply With Quote
