Default intake options?

hear and read on the forums something about losing 4ft lbs over the high RPM range if you take your stock intake tube off???

if true......what if i just put a cone filter on the end of that pipe and delete everything after the end of the intake tube........(the airbox and snorkel)
any benefit???

or


if i just run a cold side intake???? where does the MAF go?????



i have an AEM filter can i just put that on the end of the factory intake air tube and get rid of the box and so forth and it work fine with increase in airflow???? (got a heatshield too by the way)
NAshowdown95 is offline   Reply With Quote
Old 03-08-2007, 01:10 AM   #2
Senior Member

boostinsteve's Avatar

Join Date: Oct 2006
Location: Honolulu, HI
Posts: 563
Total Cats: 0
Default

I would have to say that this would be a question that can probably be answered a little better by the gurus over on m.net in the naturally aspirated section. The smoother that you can get the air in there, the better I would say because that will keep the turbulent air flow down. Don't forget that you have a maf that still needs to be included in the equation.
boostinsteve is offline   Reply With Quote
Old 03-08-2007, 01:14 AM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Where does the turbo come into play, I think i'm missing something.

I might be mistaken but i'm pretty sure the only CAI gains were from the "macaroni" style intake. Sure you could rig up an adapter if needed to hook up the AEM filter, though I don't see you getting many gains from sucking warm air from the engine bay versus the intake box. Some sort of intake that actually pulled air from outside the engine bay would be the only benefit i could think of.
cjernigan is offline   Reply With Quote
Old 03-08-2007, 02:08 AM   #4
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

A cowl intake would benefit better than any other intake, at least from what I have seen. The Racing Beat was 2nd with the dyno charts I believe. Don't quote me though. Ask on M.net.. Then sort through the 40 replies to find the 2 factual.
ApexOnYou is offline   Reply With Quote
Old 03-08-2007, 09:51 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,873
Total Cats: 1,790
Default

R*Speed GAINED HP/TQ throughout the rpms with the monsterflow cone filter and tube. As well as the the J/R Cold Air Intake proved gains throughout.

I'm a strong disbeliever in the the whole resonator thing, the name gives it away, the ******* purpose is for SOUND DAMENPING, not airflow.

The miata is the first car I've ever dealt with where people are actually going out of their way to keep chambers and resonators on the intake tube, because one person 10 years ago said it increased TQ. Too many unproven myths on M.net...
Braineack is online now   Reply With Quote
Old 03-08-2007, 10:17 AM   #6
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

turbo it and your resonator chamber definitely won't matter
Mach929 is offline   Reply With Quote
Old 03-08-2007, 04:33 PM   #7
Guest
Thread Starter
iTrader: (-2)

Join Date: Nov 2006
Posts: 145
Total Cats: 0
Default

hahahahaha true.....i have N/A setup right now and wont be able to afford FI for at least a yr or so......but for driveability and just better airflow......would it work if i took the stock tube and just put a AEM cone filter where the airbox is right now (delete airbox and the snorkel after the box) would that work is all im asking?
NAshowdown95 is offline   Reply With Quote
Old 03-08-2007, 04:47 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,873
Total Cats: 1,790
Default

yes, the cheast and easiest thing to do. dont go spending money on N/A performance if you have FI plans.

spend it on suspension, comfort, safety, brakes, radiator, rear, etc.
Braineack is online now   Reply With Quote
Old 03-08-2007, 04:49 PM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Brain nailed it. Cheap out on the intake if FI is in your future. All my other advice I gave you in your thread in the Miata group, Jamal.
kotomile is offline   Reply With Quote
Old 03-08-2007, 04:50 PM   #10
Junior Member

Join Date: Oct 2006
Location: Vancouver, Canada
Posts: 199
Total Cats: 0
Default

Yes, you buy on ebay the adaptor to fit the AFM and the cone filter of your choice.

Not big gains but there will be some.

It will work like the poor mans K&N FIPK.
gwilo is offline   Reply With Quote
Old 03-08-2007, 07:27 PM   #11
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

If you buy the air filter adapter plate now you can still use it when you go turbo, so its not really wasting any money.
miataspeed1point6 is offline   Reply With Quote
Old 03-08-2007, 09:33 PM   #12
Junior Member
iTrader: (1)

Join Date: May 2006
Location: Athens, GA
Posts: 247
Total Cats: 0
Default

2.5 inch hole saw and a couple feet of wet dry vac hose equals a quick, cheap cowl air intake...
GTS Miata is offline   Reply With Quote
Old 03-08-2007, 10:12 PM   #13
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

the K&N intake gains like 3.7 rwhp...but who knows if that is really true
miatamania is offline   Reply With Quote
Old 03-08-2007, 11:51 PM   #14
Guest
Thread Starter
iTrader: (-2)

Join Date: Nov 2006
Posts: 145
Total Cats: 0
Default

thnx for the help guys
NAshowdown95 is offline   Reply With Quote
Old 03-09-2007, 12:04 AM   #15
Guest
Thread Starter
iTrader: (-2)

Join Date: Nov 2006
Posts: 145
Total Cats: 0
Default

would it also be called a vacuum sensor adapter????


is that the adapter yall are speaking of???
NAshowdown95 is offline   Reply With Quote
Old 03-09-2007, 12:14 AM   #16
Junior Member

Join Date: Oct 2006
Location: Vancouver, Canada
Posts: 199
Total Cats: 0
Default

gwilo is offline   Reply With Quote
Old 03-09-2007, 02:41 AM   #17
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
Too many unproven myths on M.net...
Myth Busters needs to get on that ****. :gay:



NA95: Check the vB for some intake options.
UofACATS is offline   Reply With Quote
Old 03-09-2007, 03:50 AM   #18
Junior Member
iTrader: (3)

timhill78's Avatar

Join Date: Aug 2006
Location: Oregon
Posts: 241
Total Cats: 0
Default

I have an used filter and adapter I could sell if interested.http://cgi.ebay.com/ebaymotors/Mazda...33205721QQrdZ1

It's just like this only it has a no name filter not a K&N.
timhill78 is offline   Reply With Quote
Old 03-09-2007, 05:05 AM   #19
jif
Junior Member

Join Date: Mar 2007
Location: Auckland, NZ
Posts: 49
Total Cats: 0
Default just the facts, ma'am...

http://autospeed.drive.com.au/cms/article.html?&A=0892

summary - yes the airbox and snorkel are about half the restriction ... !!
jif is offline   Reply With Quote
Old 03-09-2007, 04:56 PM   #20
Guest
Thread Starter
iTrader: (-2)

Join Date: Nov 2006
Posts: 145
Total Cats: 0
Default

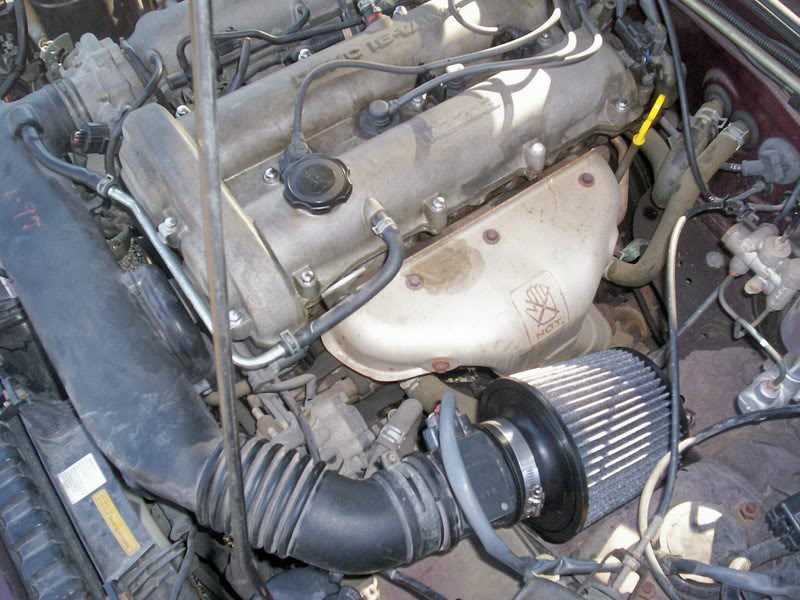

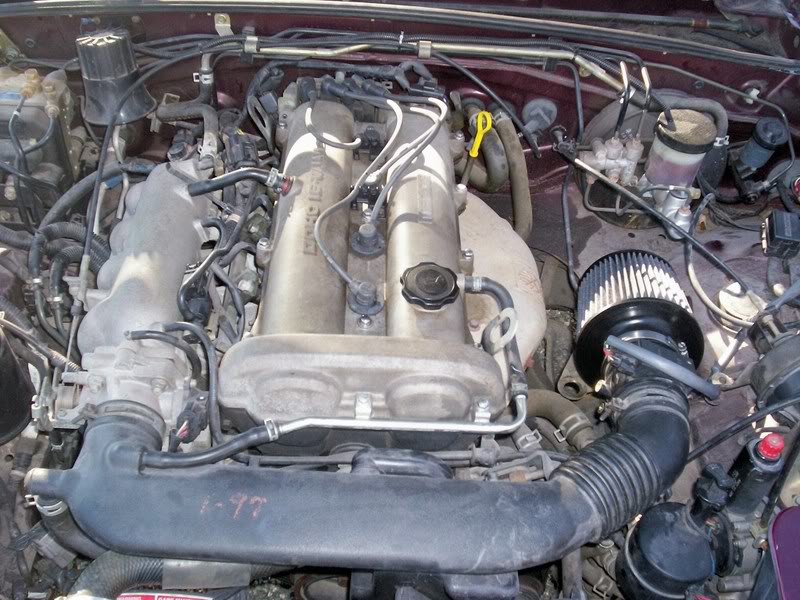

so yea this is what i decided on today........heat shield should be here on monday or tuesday.......excuse the dirty engine bay too hahaha

Name:  100_1682.jpg
Views: 3
Size:  98.4 KB

Name:  100_1681.jpg
Views: 3
Size:  109.8 KB
NAshowdown95 is offline   Reply With Quote
