Default Interpreting tyre temps

Decided to check my rear tyre temps today.

TOYO T1R,S 215x16x40 as new condition, running at 26psi when temps taken
Weather warm and dry
1/2hr blat of twisties and straights

Stopped to take measurements.took temps at 5 points across the tyre from outer to inner then back to outer

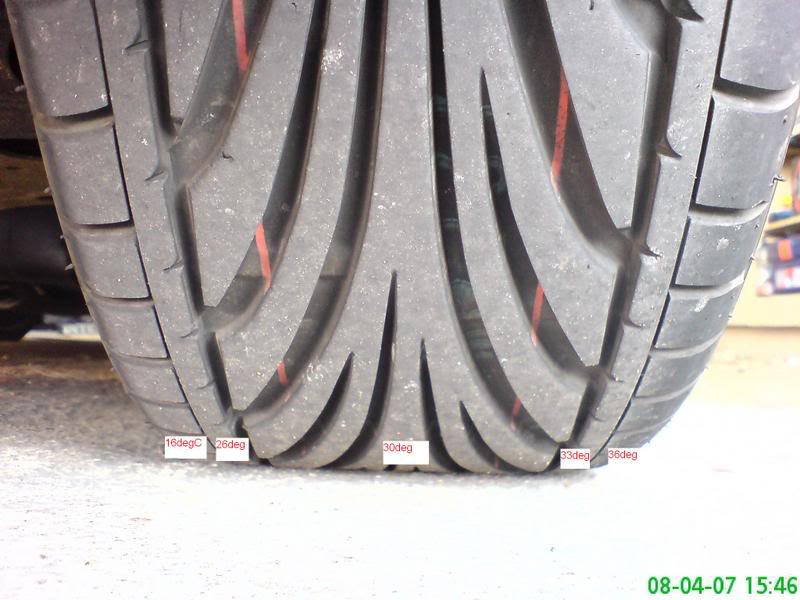

LEFT REAR
Name:  t1rleft-1.jpg
Views: 1
Size:  61.6 KB

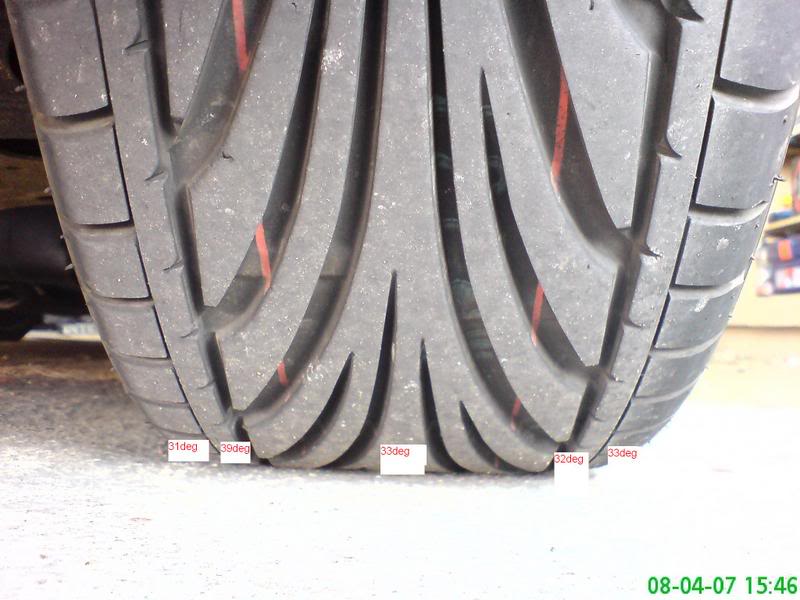

RIGHT REAR
Name:  t1rright-1.jpg
Views: 1
Size:  61.5 KB




Overall ok- but there is quite a bit of difference in the outer of the left rear - compared to the rest of the tyre and in comparison to the same point in the right rear tyre.

I have been feeling what is very similar to "lift off oversteer" but on high speed bends/curves- even on a trailing throttle.I,m wondering if its connected to the tyre temps and probably down to the camber/alignment settings on rears.

Anyone any comments/experience of this.?
rockdoc is offline   Reply With Quote
Old 04-08-2007, 05:15 PM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,247
Total Cats: 291
Default

I've never done temps on street tires- but with race tires you're looking for the least amount of deviation across the tire- think balance. You have to take into consideration things like the track, more right handers than left handers? etc.

In general higher temps on the inner part are evidence of too much neg camber, while the opposite would show higher temps on the outside. Low tire pressures would also show high temps on the outside. Cool temps on the outer, higher temps in the middle is overinflation... and so on.

What's missing from your images is which temp is the inside of the tire and which temp is outside.
m2cupcar is online now   Reply With Quote
Old 04-08-2007, 05:25 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

this is a pretty good article on it:

http://www.race-cars-classics.com/information/tyres.php
Braineack is online now   Reply With Quote
Old 04-09-2007, 06:32 PM   #4
Junior Member
Thread Starter

Join Date: Jun 2006
Location: scotland/Houston
Posts: 127
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
this is a pretty good article on it:

http://www.race-cars-classics.com/information/tyres.php

Absolutely- that was a great read- thanks
rockdoc is offline   Reply With Quote
