Default K&N intake filter for throttle body

Serious question:
Is there a K&N filter that I can stick on the end of a '99 t-body that clears the hood? I need a lot of things right now and I don't care to spend more money on an intake.
hustler is offline   Reply With Quote
Old 01-22-2013, 09:17 PM   #2
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Maybe kinda?


Attached Thumbnails

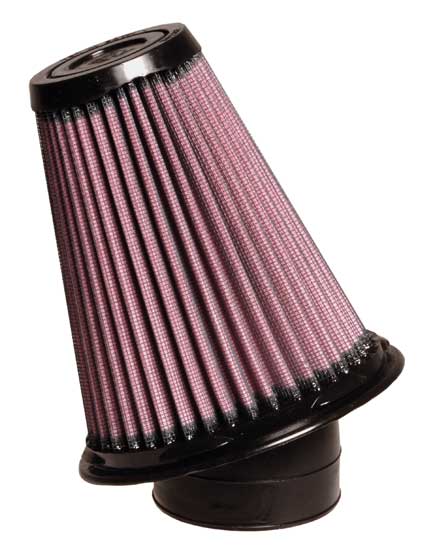

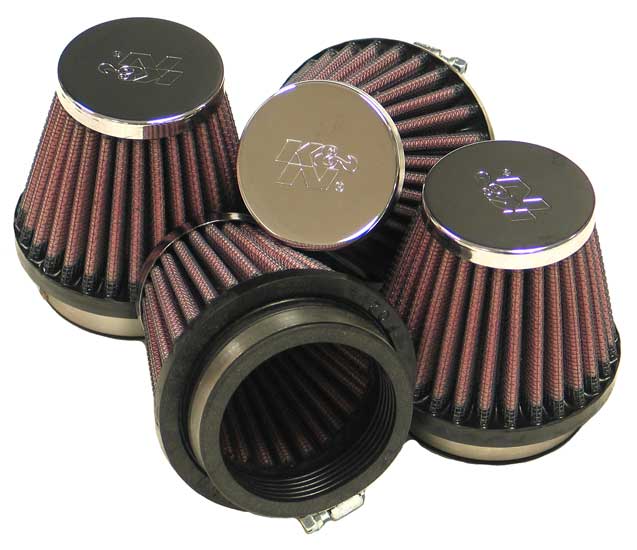

K&N intake filter for throttle body-ru-5006.jpg   K&N intake filter for throttle body-rc-2344.jpg
hustler is offline   Reply With Quote
Old 01-22-2013, 09:32 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

yeah or use an elbow.

but its fail aidz. because you will lose any shred of low end torque the car may possibly have had.

why not spend like another 30 and get an ebay intake or something? where its at least a few feet long and wont kill your lowend?
18psi is offline   Reply With Quote
Old 01-22-2013, 09:39 PM   #4
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by 18psi View Post
yeah or use an elbow.

but its fail aidz. because you will lose any shred of low end torque the car may possibly have had.

why not spend like another 30 and get an ebay intake or something? where its at least a few feet long and wont kill your lowend?
What is the OD of the t-body?
hustler is offline   Reply With Quote
Old 01-22-2013, 09:50 PM   #5
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

2.6''

That includes the raised edge.
Miater is offline   Reply With Quote
Old 01-22-2013, 09:54 PM   #6
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thanks, does that mean I can do 2.5" silicone hose or must I go up in size?
hustler is offline   Reply With Quote
Old 01-22-2013, 10:11 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

hit the gym so you can get those skinny kermit the frog arms to stretch 5ply silicone .01" bro

use what I did to you last night as a reference
18psi is offline   Reply With Quote
Old 01-22-2013, 10:36 PM   #8
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Spit on it, bite it's ear lobe and slowly push the throttle body into the coupler. It might resist as first but a change in position might help both of you.


Coupler onto throttle body doesn't sound as good.
Miater is offline   Reply With Quote
Old 01-22-2013, 10:45 PM   #9
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

C'mon, man. This is Hustler. He goes dry, all the way.
rleete is offline   Reply With Quote
Old 01-22-2013, 10:56 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

seriously, stop being retarded

get something like this:
BCP Red 99 05 Miata NB MX5 MX 5 1 8 Cold Air Intake Racing System Filter | eBay

you'll spend 20-30 on filter alone otherwise. probably more with clamps and coupler and whatnot, and have hybrid car torque
18psi is offline   Reply With Quote
Old 01-23-2013, 03:28 AM   #11
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

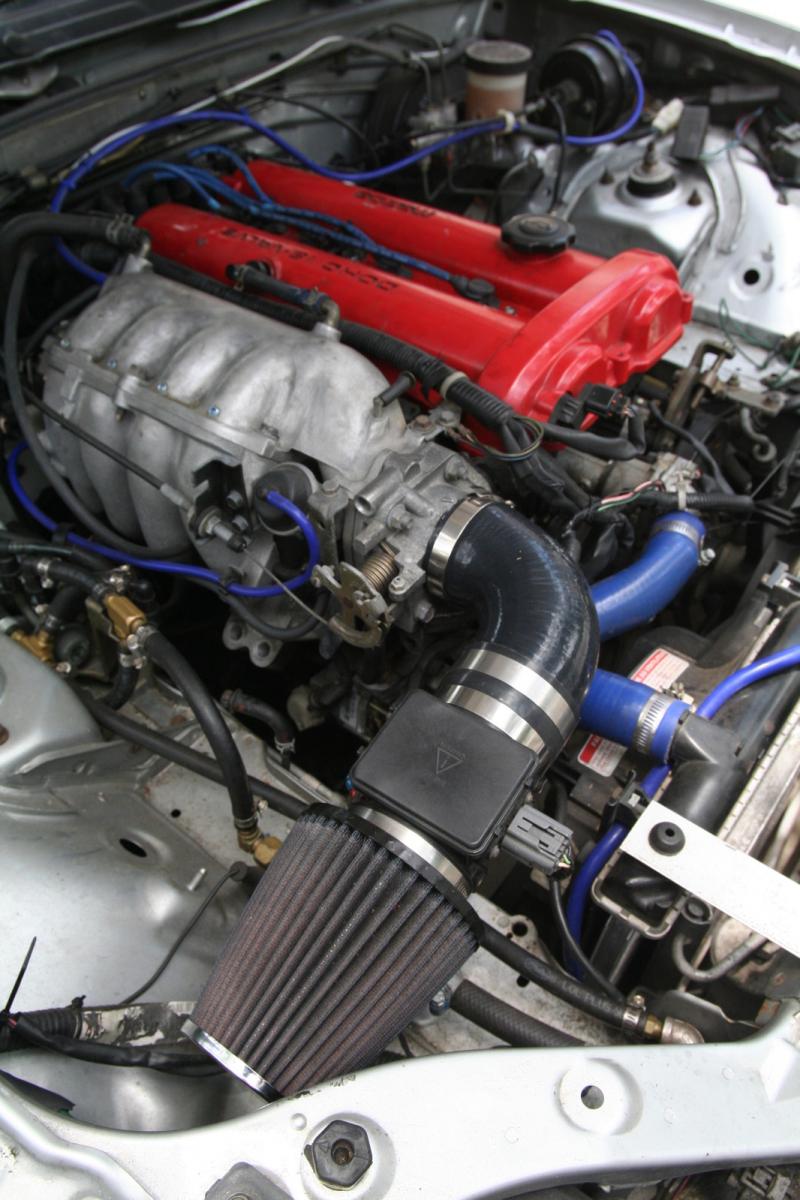

I did it with a silicone 90 coupler and a short piece of pipe.

Attached Thumbnails
K&N intake filter for throttle body-3532pvr.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-24-2013, 09:44 PM   #12
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Part number for above filter?
Miater is offline   Reply With Quote
Old 01-24-2013, 10:07 PM   #13
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Not sure. Came with BEGi kit and was a K&N.
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-25-2013, 04:19 PM   #14
Junior Member

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
yeah or use an elbow.

but its fail aidz. because you will lose any shred of low end torque the car may possibly have had.

why not spend like another 30 and get an ebay intake or something? where its at least a few feet long and wont kill your lowend?
Your intake length theory might not be entirely true. While throttle body trumpet length adheres to the "go shorter to move the torque up the rev range" concept (as far as I know… I bet there are exceptions), judging a suitable intake hose length before an intake manifold is a bit trickier. I'm testing at least two different intake hose lengths for the F20c next week on a dyno - I'll be sure to post results if anyone is interested.

As an example, here are a couple of plots of an F20C. The car was tuned with the shorter intake, which is the red line. Then a longer intake tube was added, which is shown by the blue line. As you can see, the longer intake actually slightly reduces midrange and boosts the very top end - the opposite of what you might expect.

http://img215.imageshack.us/img215/6...ngthcompar.png
owenwilliams is offline   Reply With Quote
Old 01-25-2013, 04:30 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

I'm not sure how an F20C relates to a miata (different just about everything), and I don't have cold hard data (but reputable other people, like Emilio, have weighed in on the subject with opinions similar to mine).

What I do know though is that on my green 99, with 01 block and 99 head, all else being stock or nearly stock, installing a little elbow with filter like pictured above, made a VERY significant decrease in lowend/midrange torque and response.
We went back and forth between that and stock, just to make sure, and confirmed our findings.
Hustler will probably ignore this post, and I don't really care. This is more for people that are not stubborn as a mule that might see this later.

That's just my .02
18psi is offline   Reply With Quote
Old 01-25-2013, 04:39 PM   #16
Junior Member

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

That's fair enough. Different for every engine.
owenwilliams is offline   Reply With Quote
Old 01-26-2013, 11:39 AM   #17
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

hustlage, you want a stock 2001 intake and airbox to play with?
y8s is offline   Reply With Quote
Old 02-03-2013, 12:07 PM   #18
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
hustlage, you want a stock 2001 intake and airbox to play with?
Thanks, but I'll pass. I found a little more money to play with.

Do I want to build this intake out of 2.5" silicone or 2.75"? I'm thinking the bigger one but not sure and I need someone with a brain to do the math since I'm functionally retarded.
hustler is offline   Reply With Quote
Old 02-03-2013, 12:55 PM   #19
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

hustler is offline   Reply With Quote
Old 02-03-2013, 01:35 PM   #20
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

The XD is for off road. Dusty conditions. Unless you plan to Baja the car, get the first one.
rleete is offline   Reply With Quote
