Default Key broke, how do you remove pulley?

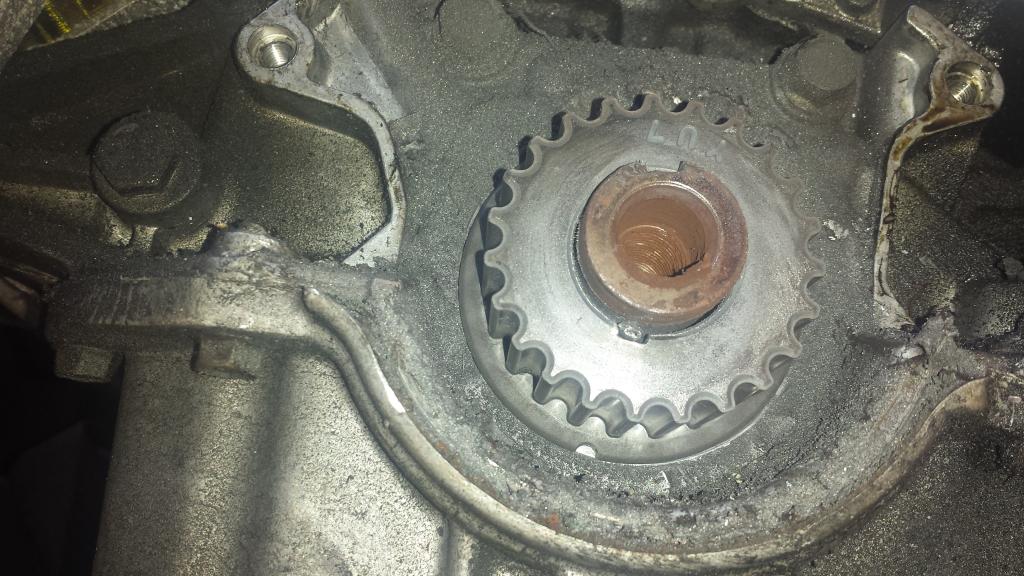

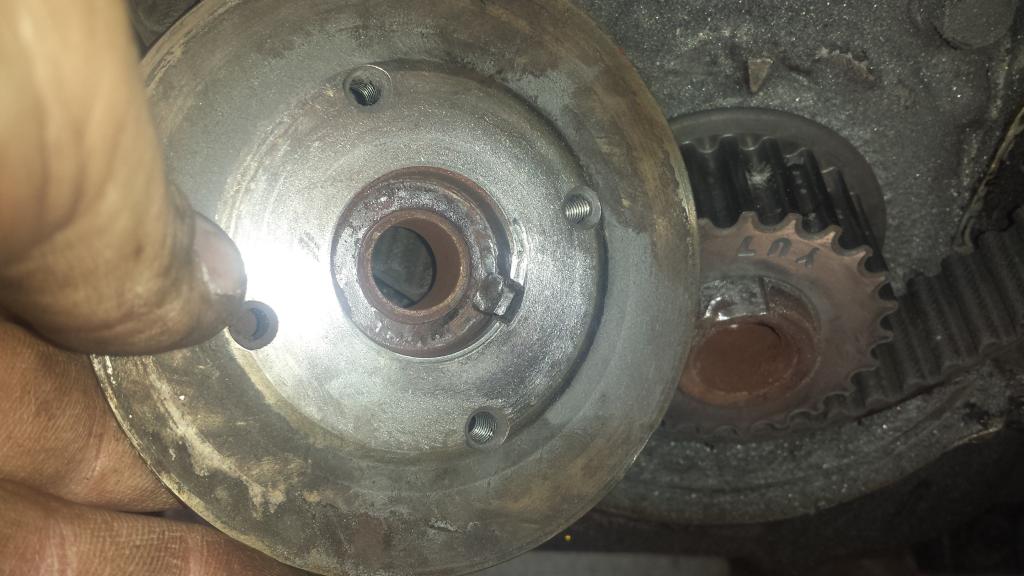

Key broke, how do you remove pulley? 94 1.8
Key broken and I'm guessing part of it is wedged in there to the point the coged pulley will not come off. Already chipped it in one spot trying to pry it off. There is no way to fit a puller behind it and no holes taped in it to get a balancer puller to screw in to......ideas?



Attached Thumbnails
Key broke, how do you remove pulley?-20140310_145528_zpsd2cac4c8.jpg   Key broke, how do you remove pulley?-20140310_145331_zps36a5a512.jpg
IcantDo55 is offline   Reply With Quote
Old 03-10-2014, 04:16 PM   #2
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

PS is the crank fucked and this is futile?
IcantDo55 is offline   Reply With Quote
Old 03-10-2014, 04:27 PM   #3
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Looking at it, seems like the crank is fubared.
blaen99 is offline   Reply With Quote
Old 03-10-2014, 04:47 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

You don't. The crank is fucked. Sorry :(
Savington is offline   Reply With Quote
Old 03-10-2014, 04:59 PM   #5
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

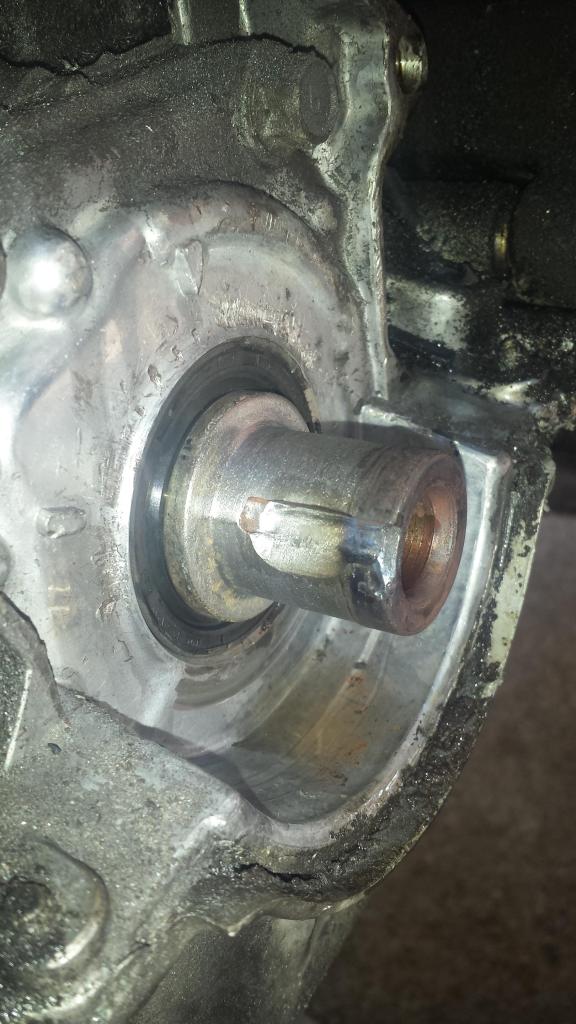

Ok well you do with a LOT of MAPP GAS. lol

Serious question I understand the crank is fucked but on a 200K motor anyone had any luck with welding the pulley back on? Its going in a Lemons car and the belt will definitely outlive the motor.

Thoughts, I cant be the first one to think/try this.

Like?
Attached Thumbnails
Key broke, how do you remove pulley?-20140310_154839_zps551d2b49.jpg
IcantDo55 is offline   Reply With Quote
Old 03-10-2014, 05:02 PM   #6
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

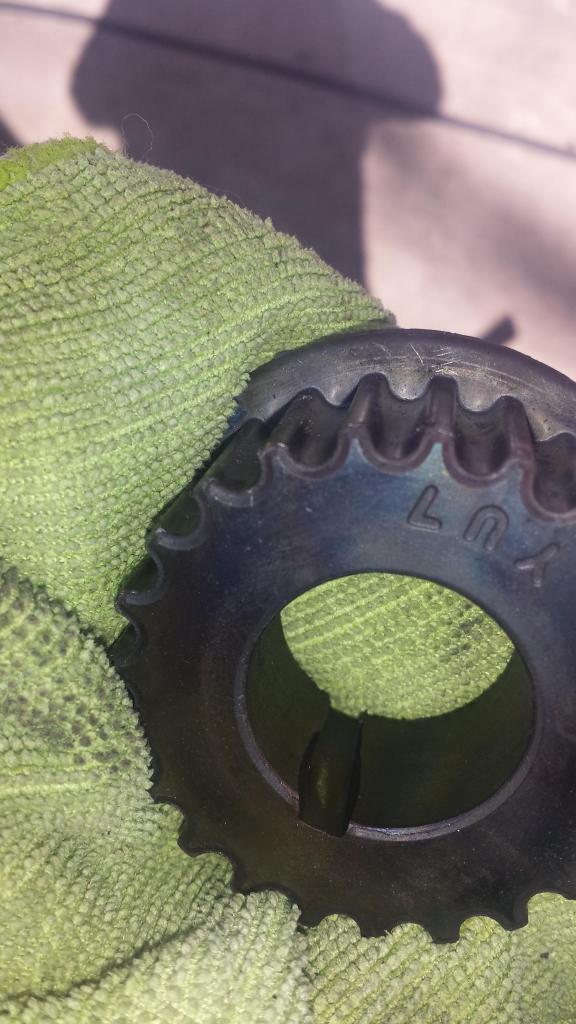

Attached Thumbnails
Key broke, how do you remove pulley?-20140310_155025_zps3671a73b.jpg
IcantDo55 is offline   Reply With Quote
Old 03-10-2014, 05:26 PM   #7
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

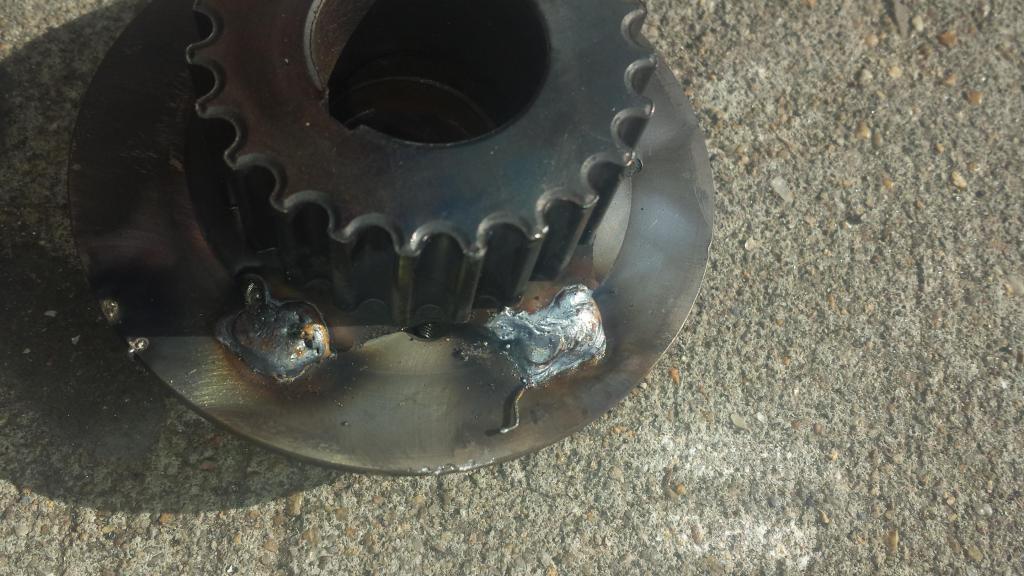

So in testing it looks like it can be welded.
Attached Thumbnails
Key broke, how do you remove pulley?-20140310_161330_zps45a89ded.jpg
IcantDo55 is offline   Reply With Quote
Old 03-10-2014, 05:35 PM   #8
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Dude, i say you can sure as **** weld that thing back on for a ghetto *** fix, should only need a little tack weld too. Go for it and report back.
Fireindc is offline   Reply With Quote
Old 03-10-2014, 05:36 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I've seen 1.6 cranks that were JB welded and held up until the timing belt snapped.
Ben is offline   Reply With Quote
Old 03-10-2014, 06:11 PM   #10
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Like
IcantDo55 is offline   Reply With Quote
Old 03-10-2014, 07:23 PM   #11
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

I'd say the traditional 1.6SNC fix (Loktite 660 IIRC) would work well here.

Use proper torque and red on the crank bolt. Remember, the Woodruff key is there to position the parts. It's bolt torque that should hold everything together.

In for ghetto pix!
hornetball is offline   Reply With Quote
Old 03-11-2014, 02:33 AM   #12
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

I love it. I fixed my short noser in the above mentioned method and cracked piston rings with 25k miles on bandaids long before that thing was on it's way out. Weld away. Agreed it will only take a tiny weld.
krissetsfire is offline   Reply With Quote
Old 03-11-2014, 02:49 AM   #13
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

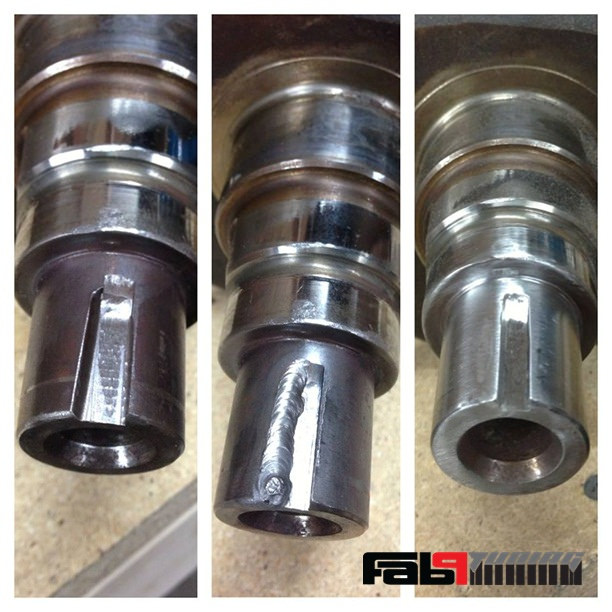

I think you'll have serious issues with welding that on straight. The process of heating it up on one side without it being secured by the crank bolt will almost certainly cause it to sit unevenly.

That being said - I've repaired a number of cranks with damaged keyways. Some steady work with a tig welder and then have it looked over by a machine shop... But it sounds like you are looking for a quick fix..

Attached Thumbnails
Key broke, how do you remove pulley?-13077076994_32c6d39815_z.jpg

Last edited by FAB; 03-11-2014 at 03:02 AM. Reason: picture link correction
FAB is offline   Reply With Quote
Old 03-11-2014, 04:21 AM   #14
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

That looks amazing.
IcantDo55 is offline   Reply With Quote
Old 03-11-2014, 09:47 AM   #15
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Loctite fix that bitch.


A serious lemons build would probably replace that crank.
Leafy is offline   Reply With Quote
Old 03-11-2014, 12:53 PM   #16
I'm Miserable!

Join Date: Mar 2014
Posts: 5
Total Cats: 1
Default

go to pick and pull and get a block with a good crank and a bunch of spear parts you can use or resale

and how do you mess up a crank like this wow never seen that ever
XFOX is offline   Reply With Quote
Old 03-11-2014, 01:06 PM   #17
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by XFOX View Post
go to pick and pull and get a block with a good crank and a bunch of spear parts you can use or resale

and how do you mess up a crank like this wow never seen that ever
you must be new to miatatatas
Fireindc is offline   Reply With Quote
Old 03-11-2014, 02:11 PM   #18
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Fireindc View Post
you must be new to miatatatas
To be fair, I've never seen anything this bad unless there was a supercharger involved.

Seriously, how?
hornetball is offline   Reply With Quote
Old 03-11-2014, 03:27 PM   #19
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by Leafy View Post
Loctite fix that bitch.

I'm feeling this idea.


A serious lemons build would probably replace that crank.
LeMons is not serious.

Quote:
Originally Posted by XFOX View Post
go to pick and pull and get a block with a good crank and a bunch of spear parts you can use or resale

and how do you mess up a crank like this wow never seen that ever
Newby

Quote:
Originally Posted by hornetball View Post
To be fair, I've never seen anything this bad unless there was a supercharger involved.

Seriously, how?
As I got the car with out the AFM or crossover intake pipe and crank looks like this I bet your right. Header was heat wrapped. All pointing to hotside SC in its past.
IcantDo55 is offline   Reply With Quote
Old 03-11-2014, 03:34 PM   #20
I'm Miserable!

Join Date: Mar 2014
Posts: 5
Total Cats: 1
Default

Quote:
Originally Posted by Fireindc View Post
you must be new to miatatatas
yes I'm new to the Miata and that why I ask how this can happen ? I like to not have it happen to my Miata but I'm thinking of picking up a few back up engines out of the wrecking yard when I have some time to go pull them .
The ( you pull it ) here gets a Miata about every month or so.
