Old 03-11-2014, 04:27 PM   #21
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I JB welded mine on an old miata I had...as long as surface is prepped then it should hold up fine...I'd probably swing for a new Timing gear and Key though...

I've also heard of people making more marks in the cranks and gear so there are 2-3 more key ways for durability...they had access to machining equipment though.
Preluding is offline   Reply With Quote
Old 03-11-2014, 04:34 PM   #22
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,011
Total Cats: 583
Default

Quote:
Originally Posted by IcantDo55 View Post
As I got the car with out the AFM or crossover intake pipe and crank looks like this I bet your right. Header was heat wrapped. All pointing to hotside SC in its past.
Gotcha'. I thought this was on your turbo car. A SC would definitely explain this damage.
hornetball is offline   Reply With Quote
Old 03-13-2014, 04:34 AM   #23
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

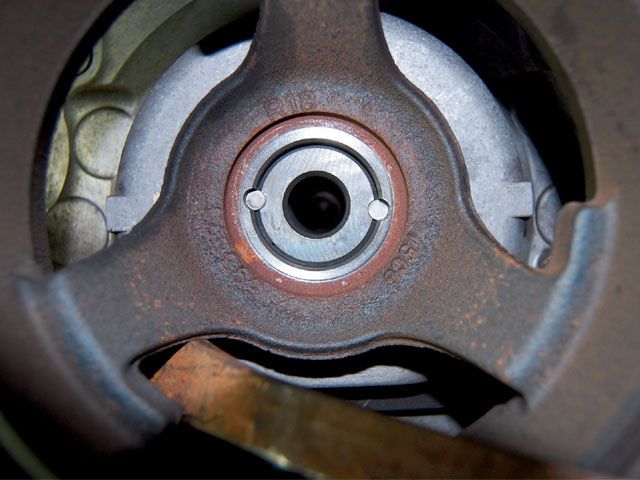

So anyone ever "pin" a crank pulley? I see its popular in the SC crowd on LS motors. Just drill out a hole like a key way and drive a roll pin in there. I dont know how easy it would be to remove again but it should never let it slip regardless of the stock key. I would loctite the stock key in too.

My SC Mustang has machined two keys in to the crank but that was high dollar high HP build (800) and a bug blower using a 10 rib belt.

One below had two but I think one would do it.
Attached Thumbnails
Key broke, how do you remove pulley?-sucp_0808_36_z-supercharged_chevy_trailblazer_ss-crank_pinless.jpg
IcantDo55 is offline   Reply With Quote
Old 03-13-2014, 12:44 PM   #24
Junior Member

Join Date: Dec 2009
Location: ON, Canada
Posts: 106
Total Cats: 2
Default

Its already F'd so how many more times do you think you want to dick around with this engine (i.e. replace the timing belt)? Pin it, weld it, or JB it and then drive until you are ready (or forced) to swap in a good motor.
Staffah is offline   Reply With Quote
Old 03-13-2014, 01:05 PM   #25
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by IcantDo55 View Post
So anyone ever "pin" a crank pulley? I see its popular in the SC crowd on LS motors. Just drill out a hole like a key way and drive a roll pin in there. I dont know how easy it would be to remove again but it should never let it slip regardless of the stock key. I would loctite the stock key in too.

My SC Mustang has machined two keys in to the crank but that was high dollar high HP build (800) and a bug blower using a 10 rib belt.

One below had two but I think one would do it.
This is surprisingly not common in the Miata community. It's probably because most owners don't even think about the problem until they have already started to blow out their keyways.

I don't see why this wouldn't work as a quick fix in your situation. Certainly better than welding. The only problem I see is again keeping things even as the Miata configuration is not a press on pulley.

Sounds like you should give this a shot considering your crank is already beyond the point of return and unlike welding - this is at least an easy fix to un-do if/when it comes time to replace the crank.

EDIT - Whatever you do - keep an eye on it for the first few hundred miles. An unbalanced pulley is worse than not having one at all.
FAB is offline   Reply With Quote
Old 03-13-2014, 01:11 PM   #26
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by IcantDo55 View Post
So anyone ever "pin" a crank pulley? I see its popular in the SC crowd on LS motors. Just drill out a hole like a key way and drive a roll pin in there. I dont know how easy it would be to remove again but it should never let it slip regardless of the stock key. I would loctite the stock key in too.

My SC Mustang has machined two keys in to the crank but that was high dollar high HP build (800) and a bug blower using a 10 rib belt.

One below had two but I think one would do it.
I did this with a Honda I had.

the issue I could see with a Miata is that the crank face isn't flush with the pully. so you wouldn't be able to get the hole started with a drill in a place that would help.

Solution though might be putting a solid rod in the pully off the engine and drilling the hole centered on the ID of the pully, slip it on then drill the crank for it after. Could be a serious pain though.
shlammed is offline   Reply With Quote
Old 03-13-2014, 01:16 PM   #27
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by shlammed View Post
I did this with a Honda I had.

the issue I could see with a Miata is that the crank face isn't flush with the pully. so you wouldn't be able to get the hole started with a drill in a place that would help.
Good catch I knew there had to be a better reason why this is not a more popular solution for our poorly designed crank pulley setup.
FAB is offline   Reply With Quote
Old 03-13-2014, 01:47 PM   #28
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,011
Total Cats: 583
Default

TDR adds pins on all their SC installs. Friend of mine just had an M45 installed by them.

Personally, I think the solution is easy. Use a turbo.
hornetball is offline   Reply With Quote
Old 03-13-2014, 11:22 PM   #29
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Quote:
Originally Posted by shlammed View Post
I did this with a Honda I had.

the issue I could see with a Miata is that the crank face isn't flush with the pully. so you wouldn't be able to get the hole started with a drill in a place that would help.

Solution though might be putting a solid rod in the pully off the engine and drilling the hole centered on the ID of the pully, slip it on then drill the crank for it after. Could be a serious pain though.

I'll gust shim it flush drill and then remove shims.
IcantDo55 is offline   Reply With Quote
Old 03-13-2014, 11:50 PM   #30
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

It's shallow in the wrong direction. The pulley face is proud not the shaft. Maybe remove the timing gear from behind the pulley boss and do it...?
FAB is offline   Reply With Quote
Old 04-23-2017, 12:12 AM   #31
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Any pics of the TDR pinned sprocket ?
Landrew is offline   Reply With Quote
