Default Lemons Reroute "the budget route" FREE

Ok here goes (flame suite on)...

Off road, (no heater core).

1)First remove and the thermostat housing and get a 30mm freeze plug tap it in front of head.

2)Take housing and cut off the flange that originally mounted to the head, smooth the edge out. Discard flange.

3)Pull out strange t-hose thingie pressed into housing, yes it comes out. Drill and tap the hole for the ECM coolant sensor.



Drill a hole or two in thermostat (for constant flow).

Name:  CIMG0065.jpg
Views: 1
Size:  107.1 KB

Assemble the top and bottom of thermostat housing and don't forget to put thermostat in there.

Name:  CIMG0066.jpg
Views: 1
Size:  110.7 KB

Than acquire another thermostat housing (just top part) the one with the cooling fan sensor. But a bolt in the sensor hole. Don't forget to cap the return line to water pump with rubber cap (one under header).

Name:  CIMG0069.jpg
Views: 1
Size:  105.6 KB

Place on rear of motor and get a curved hose to get around intake.

Name:  CIMG0729.jpg
Views: 1
Size:  168.7 KB

Name:  CIMG0730.jpg
Views: 1
Size:  160.1 KB

Place inline thermostat housing on end of hose (if it sits where mine does both cooling fan sensor and ECM coolant sensor wires reach). Find another hose to reach from there to radiator.

Name:  CIMG0759.jpg
Views: 1
Size:  114.9 KB

Route the front coolant lines from intake to water pump including what ever you have...Turbo, TB, EGR, butt warmer.

Name:  DSC_0225.jpg
Views: 1
Size:  129.3 KB


There you have it, a reroute costing, uh...one junk yard thermostat housing and two hoses. Found mine in garage, so its FREE!


PS: I bet if you did not drill holes in thermostat and ran the "cursed" water plug to the heater core and left the out of the heater core hooked to the water pump return you would have heat, cheep.
IcantDo55 is offline   Reply With Quote
Old 02-02-2009, 01:42 AM   #2
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Nice, im actually going to steal your idea and mount my thermostat like this. Thanks for the writeup and pics.
thesnowboarder is offline   Reply With Quote
Old 02-02-2009, 02:24 AM   #3
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

We did a reroute on our lemons car too but it was just done with the front piece for the water pump. We used a 1.8L front thermostat cover and replaced the stock inlet for the water pump with that. Then we bypassed the heater and put a T in tied it back in to the front upper radiator hose.

Looks good. Isn't being able to do things you wouldn't normally be willing to do to a car fun?
rharris19 is offline   Reply With Quote
Old 02-02-2009, 03:44 AM   #4
Former Vendor

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

I cant wait to see how this car does
Deatschwerks is offline   Reply With Quote
Old 02-02-2009, 10:39 PM   #5
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

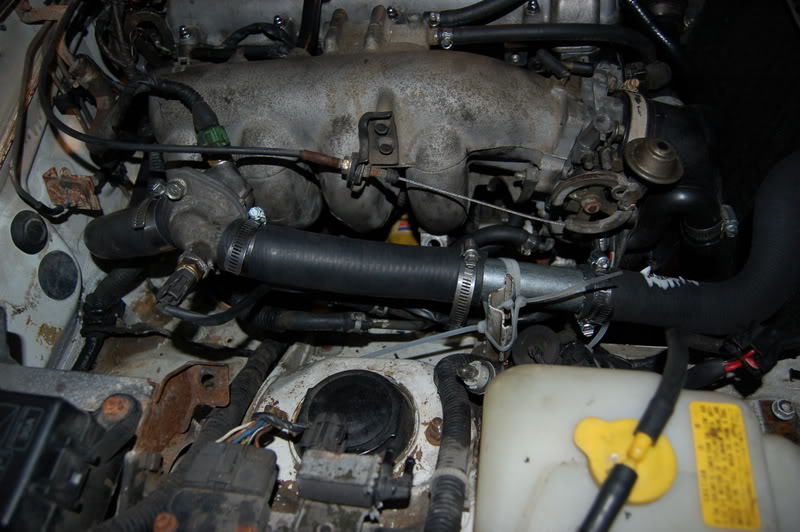

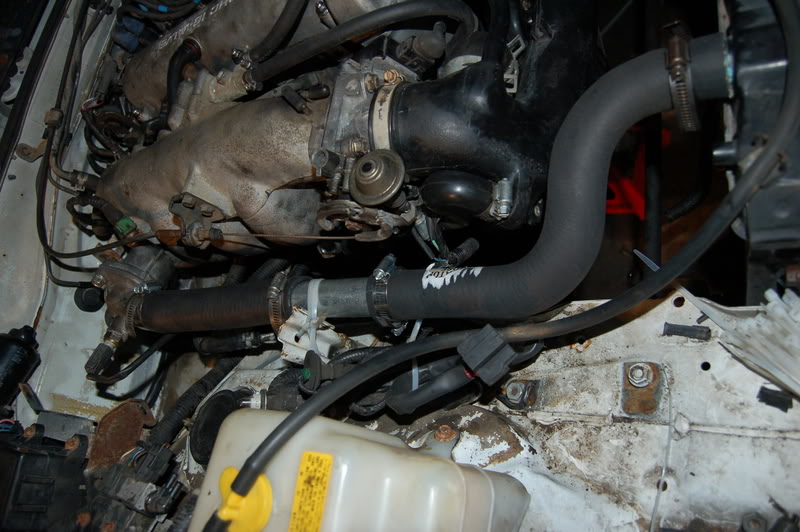

Here is it installed.

Name:  DSC_0255.jpg
Views: 1
Size:  105.5 KB

Name:  DSC_0254.jpg
Views: 1
Size:  111.3 KB

Yes its galvanized threaded pipe. lol
IcantDo55 is offline   Reply With Quote
Old 02-02-2009, 10:44 PM   #6
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Mike, I see a part that isn't rusted and I hear Lemons judges will take points off for non-rusted parts. The clutch line bracket is probably worth a few points though.
samnavy is offline   Reply With Quote
Old 02-02-2009, 10:55 PM   #7
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by samnavy View Post
Mike, I see a part that isn't rusted and I hear Lemons judges will take points off for non-rusted parts. The clutch line bracket is probably worth a few points though.

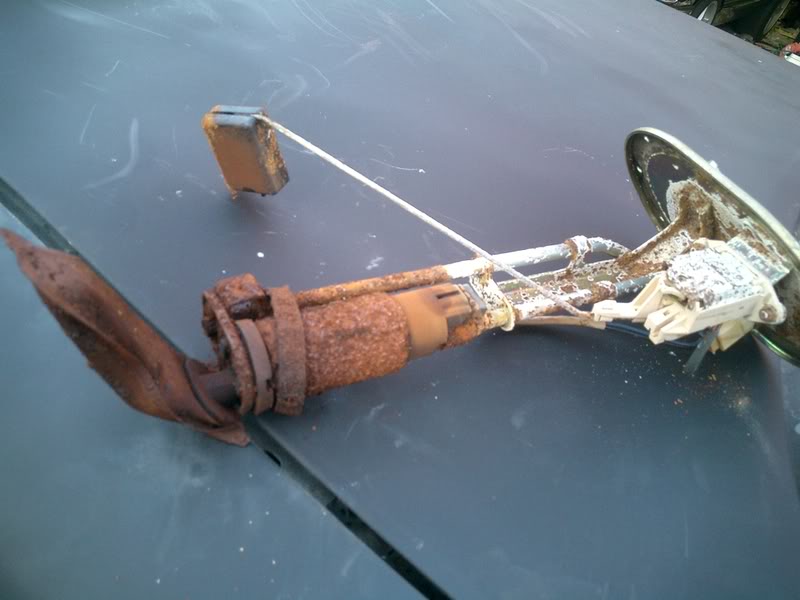

Not rusted, look what I had to contend with today...
