Default Looking for pics of real aero parts

So I've built a pretty hefty air dam and cut out my back bumper in the name of aero. Pulled an average gain of 3 mpg so it is effective, but its not done.

I'm looking for pics of NA's with effective aero mods. None of the "Oh I have a race car" ricer ****, but real effective parts. Particularly air dams (mine's not quite done) and rear diffusers. Not looking for downforce yet, just a reduction in drag.
--Alex
AlexO35 is offline   Reply With Quote
Old 07-14-2008, 04:13 PM   #2
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I can't speak to the effectiveness of these, but I saved them because they looked like good parts to copy myself.

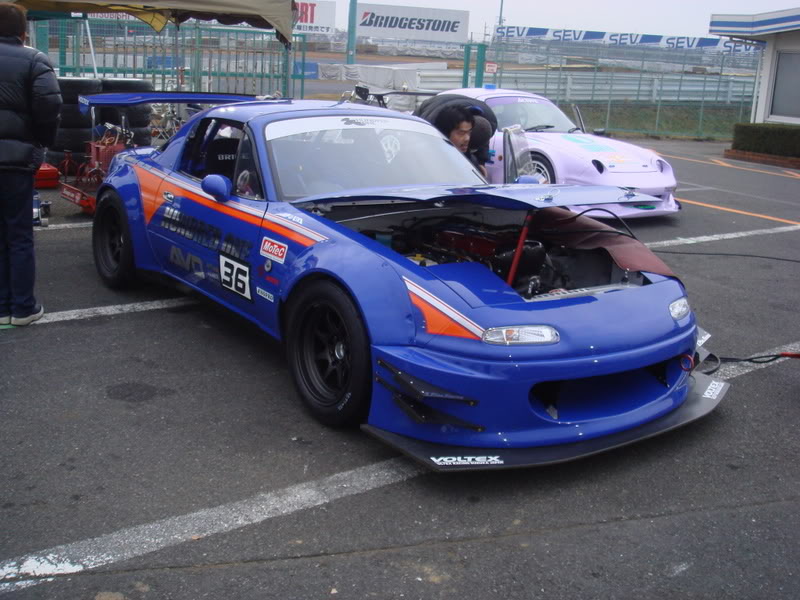

Name:  DSC05964.jpg
Views: 18
Size:  97.7 KB

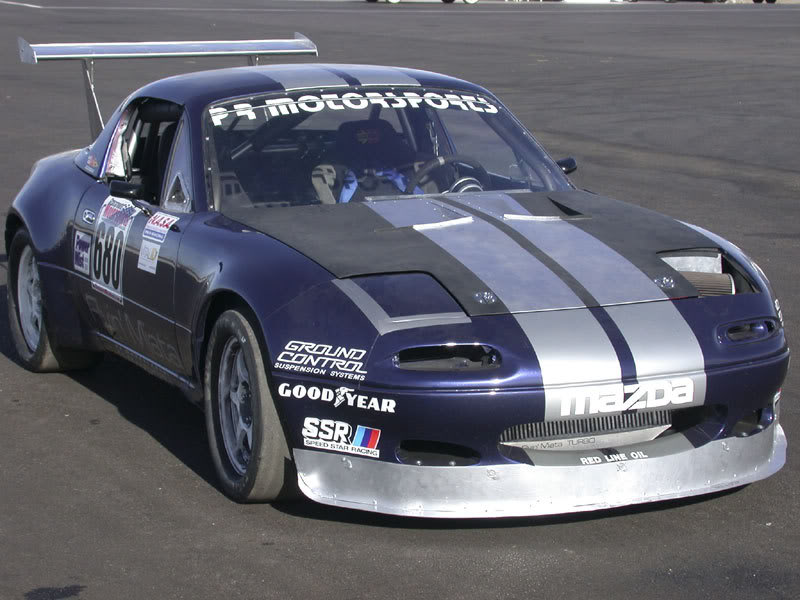

Name:  DSCN7934.jpg
Views: 19
Size:  76.9 KB

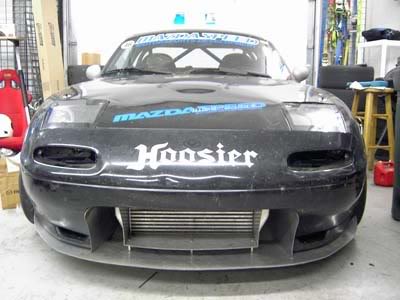

Name:  PICT3112.jpg
Views: 9
Size:  28.0 KB

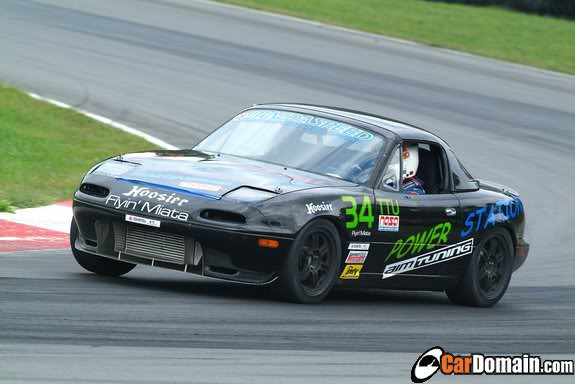

Name:  untitled.jpg
Views: 8
Size:  34.4 KB

I have seen diffusers on CR, but I have no idea if they work. I doubt I will ever make one, so I haven't searched very hard for real miata race cars with them.
miataspeed1point6 is offline   Reply With Quote
Old 07-14-2008, 04:20 PM   #3
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

For the rear, just do what stealth did...it seems to work well.
Zabac is offline   Reply With Quote
Old 07-14-2008, 04:37 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

all those posted are for increased down force, not the removal of drag.


things like front chin spoilers, undertrays, skirts, difusers, etc etc, would be to help reduce drag...thus is increase in MPG not decrease










i believe this is what he wants to see..
Braineack is offline   Reply With Quote
Old 07-14-2008, 05:35 PM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by miataspeed1point6 View Post
I can't speak to the effectiveness of these, but I saved them because they looked like good parts to copy myself.

In this first pic, you can't really see much because there's a blue Miata in the way.
Joe Perez is online now   Reply With Quote
Old 07-14-2008, 05:38 PM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

that blue car is very good for round-eye. I need that bumper.
hustler is offline   Reply With Quote
Old 07-14-2008, 05:38 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

actually the lips (horizontal -- ) and air dams (vertical | ) do a very similar job. they keep air from going down under the nose of the car. that helps both keep air out from under the car where **** is fugly aerodynamically and also creates a low pressure region under the car that helps improve pressure differential across fun parts like the radiator.

air holes in the rear bumper are for a similar reason.

diffusers are more for downforce. they "spread out" so that the air also spreads out (rarifies), speeds up, and creates a low pressure region. if you have low pressure under something and high pressure (or atmospheric) above it, guess what you get? downforce.

so if you imagine a giant wing... flip it ,,umop apisdn,, and put four wheels on it... you have a race car. smooth underside that rises at the back.
y8s is offline   Reply With Quote
Old 07-14-2008, 05:59 PM   #8
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Sweet. Thanks for the pics. Any more of the white car a little closer?

My air dam is a Track Dog knock off really, but I haven't decided how to finish the ends and incorporate the splitter. I like the idea of doing the nose and front undertray in one piece. I am a bit concerned with blocking off the bottom of the engine compartment without a way to vent heat properly. I'll probably have to go with a vented hood.

While I agree that usually the purpose of diffuses is fo downforce, they also do a nice job of releasing the underside air back to ambient thereby reducing drag. That and I don't like the drilled bumpers. A bit too much rice / drift for me. Basically on mine I took a template for a FM dual exhaust, cut out the secong hole and connected them. Its really quite subtle due to the height of the car. Now I just need to transition that cutout into the underbody of the car. So while it may not be a true diffuser, it should help put the air back nicely.
--Alex
AlexO35 is offline   Reply With Quote
Old 07-14-2008, 06:31 PM   #9
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Quote:
Originally Posted by AlexO35 View Post
Sweet. Thanks for the pics. Any more of the white car a little closer?

While I agree that usually the purpose of diffuses is fo downforce, they also do a nice job of releasing the underside air back to ambient thereby reducing drag. That and I don't like the drilled bumpers. A bit too much rice / drift for me. Basically on mine I took a template for a FM dual exhaust, cut out the secong hole and connected them. Its really quite subtle due to the height of the car. Now I just need to transition that cutout into the underbody of the car. So while it may not be a true diffuser, it should help put the air back nicely.
--Alex
I'll link you to my random miata picture gallery. Lots of random aero/motor etc.. stuff.
http://s295.photobucket.com/albums/m...ta%20Pictures/

The white car is actually light blue i think, here is a closer shot of that fender mod
ie:
More of that rear bumper style here.



I think we are mixing up "difusers" here also. The red car up above with the "drilled bumper" is mine. The piece used is mainly designed for drag cars to trim what is normally either a missing bumper or a severly hacked one. It's main purpose is to allow air to flow through instead of getting caught.

It's aero effect is quite different from an underbody/aero difuser. Which will flow the air more effectively and block that entire area off. Thus allowing the air to be shaped in a way that speeds flow (as mentioned above) and creates downforce.
ie:

My use is neither ricey or ******* btw... its a track car (I'm fairly sure you weren't 'picking' on it... but anyways)
Splitime is online now   Reply With Quote
Old 07-14-2008, 07:27 PM   #10
Junior Member
iTrader: (1)

Join Date: Jun 2008
Location: Atlanta, GA
Posts: 157
Total Cats: 0
Default

LMAONADE


Are those Wrangler hood toggles?
quadmasta is offline   Reply With Quote
Old 07-14-2008, 07:49 PM   #11
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

That blue car would look nice if it didn't have that super gay sticker and round hook type of thingy just hanging there randomly.
Zabac is offline   Reply With Quote
Old 07-14-2008, 08:03 PM   #12
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by Splitime View Post
I think we are mixing up "difusers" here also. The red car up above with the "drilled bumper" is mine. The piece used is mainly designed for drag cars to trim what is normally either a missing bumper or a severly hacked one. It's main purpose is to allow air to flow through instead of getting caught.




Do you have any test data?
BenR is offline   Reply With Quote
Old 07-14-2008, 08:07 PM   #13
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by Zabac View Post
That blue car would look nice if it didn't have that super gay sticker and round hook type of thingy just hanging there randomly.


It's a tow hook, that car looks to have a full cage so it probably competes wheel to wheel. Tow hooks are required for wheel to wheel racing, sure it could be placed in a more pleasing manner, but it looks 100% as functional as the rollcage.
BenR is offline   Reply With Quote
Old 07-14-2008, 08:21 PM   #14
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
All those posted are for increased down force, not the removal of drag. I believe this is what he wants to see..
Oops.
miataspeed1point6 is offline   Reply With Quote
Old 07-14-2008, 08:35 PM   #15
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

Quote:
Originally Posted by Joe Perez View Post
In this first pic, you can't really see much because there's a blue Miata in the way.

You're right, looks like there is a Ford RS200 in the background.
The_Pipefather is offline   Reply With Quote
Old 07-14-2008, 09:02 PM   #16
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by The_Pipefather View Post
You're right, looks like there is a Ford RS200 in the background.



That is NOT a RS200. It looks more like one of those jdm body kit miatas, probably pitcrew.
BenR is offline   Reply With Quote
Old 07-14-2008, 10:37 PM   #17
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,293
Total Cats: 26
Default

Quote:
Originally Posted by BenR View Post
Do you have any test data?
Not going to do the homework for you. You'll see how the underbody panels differ in use vs simple bumper opening aero.

And that ugly thing is most definitly some nasty jdm bodykitted miata.
Splitime is online now   Reply With Quote
Old 07-14-2008, 11:07 PM   #18
Junior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

There is some pretty good reading in "Racecar Engineering". I don't have the links to the articles anymore though. It gives a pretty good run down of diffusers. The aero holes are just common sense. They've been doing that on race cars for years. Take a look at the back bumper sometime. Sits there like a big old parachute air brake.

Splitime: Thanks for the link. Whole crap load of pics to go through. You're right, wasn't picking on your car with the ricey bumper hole crack. I've just been tainted by Hondas doing it for the "look". Well, one particular Honda that I can't stand actually. For a track car though, I get it.

What is the purpose of the fender mod on the white car?
--Alex
AlexO35 is offline   Reply With Quote
Old 07-14-2008, 11:10 PM   #19
Senior Member

Join Date: Nov 2005
Location: Baltimore Maryland
Posts: 1,010
Total Cats: 8
Default

I think it's an re-amemiya car
airbrush1 is offline   Reply With Quote
Old 07-14-2008, 11:11 PM   #20
Junior Member
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 474
Total Cats: 0
Default

Where can I get a working wing like the one on the blue car in the post by miataspeed1point6?
