Default Mishimoto radiator install

Installed my Mishimoto radiator tonight and thought I would say a little about it.

First of all it is a pain in the ... taking out the lower fan mounts if you don't take off the plastic splash guard on the bottom. And also make sure when your putting it back together you grab the right fan for the right side

Fitment of the radiator was great. I only had to make 1 small modification to the hook mounts at the bottom that hold the radiator. I just took a hammer and gave each a couple small hits to bend them towards the wheels to allow the radiator to slide down. I let the car run for about 30min while I cleaned up watching for leaks and so far so good. Major test will be my hr commute in the morning... Total install time was 4hrs. This was my first time ever installing a radiator and so far the most engine work I have done on my own.

Will get some pics tomorrow in the daylight.

PICS:
'

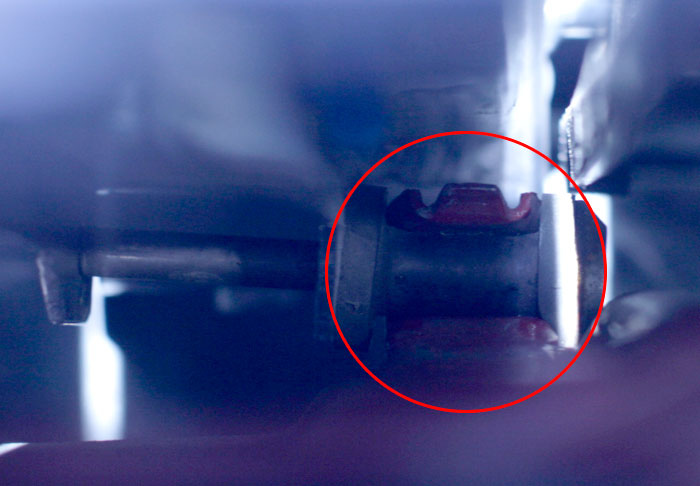

And in this pic I have circled the mount that needed a slight adjustment to make the radiator fit.
Attached Thumbnails
Mishimoto radiator install-_mg_2091-1.jpg   Mishimoto radiator install-_mg_2093-1.jpg   Mishimoto radiator install-_mg_2092-1.jpg

Last edited by Tekel; 07-19-2010 at 02:36 PM.
Tekel is offline   Reply With Quote
Old 07-16-2010, 12:43 AM   #2
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Don't feel bad....took me as long first time, i blew thru pulling the old....everything went perfect till I got to the same rad hooks. Got it in wrestling, which I later realized forced the rad hooks same way you described. Upon now pulling my motor, I paid attention and bent them to the perfect orientation...piece of cake from now on.

FYI if I'm not mistaken you'll wanna make sure to test or get a better cap....I wanna say 14psi is what you want it to hold, surely someone will come in and elaborate.

Emjoy
TonyV is offline   Reply With Quote
Old 07-16-2010, 09:36 AM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

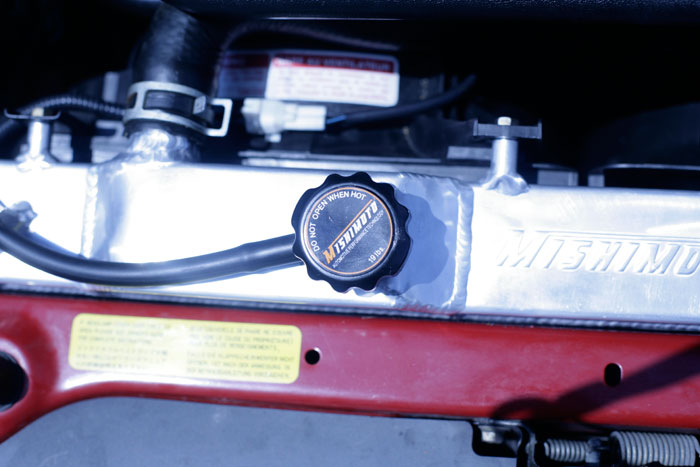

It came with a cap that says its good to 19psi.
Tekel is offline   Reply With Quote
Old 07-16-2010, 10:02 AM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Good thing you didn't type out "pain in the ***." That might offend someone.
hustler is offline   Reply With Quote
Old 07-16-2010, 10:20 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

so what you're saying is the rad is great for the money, fitment is good, and overall nothing real to complain about besides your own stupid wrenching mistakes?

that's good
18psi is offline   Reply With Quote
Old 07-16-2010, 10:31 AM   #6
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Quote:
Originally Posted by hustler View Post
Good thing you didn't type out "pain in the ***." That might offend someone.
Or I choose for my personal reasons not to. But I'm glad I didn't offend you so for that reason alone I am satisfied with my decision.


Quote:
Originally Posted by 18psi
so what you're saying is the rad is great for the money, fitment is good, and overall nothing real to complain about besides your own stupid wrenching mistakes?

that's good
Yep so far so good. After my 50mile interstate commute no leaks or anything to speak of.
Tekel is offline   Reply With Quote
Old 07-19-2010, 02:36 PM   #7
Senior Member
Thread Starter
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Post has been updated with pics.
Tekel is offline   Reply With Quote
Old 07-19-2010, 02:43 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

looks good. I'll be getting one in the future
18psi is offline   Reply With Quote
Old 07-19-2010, 02:59 PM   #9
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 411
Total Cats: 1
Default

Looks nice. Glad it wasn't too much of a pain to install.
RavynX is offline   Reply With Quote
Old 07-19-2010, 03:38 PM   #10
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

My Mishi has been great. I guess I've had it a year and a half.
sixshooter is offline   Reply With Quote
Old 07-19-2010, 09:38 PM   #11
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: Louisville, KY
Posts: 232
Total Cats: 0
Default

I just put one in my NB. Very easy to install and fits a lot better than people seem to say. I had to bend the ac condenser brackets and cut the very bottom corner of the fan off where the ps lines run by. I'm gonna put some pictures up of the install soon, probably in my build thread
