Default mixing manifold question

Hi,

Planning my coolant reroute and just wondering how easy is to remove the hardline from the mixing manifold that goes to the heater core?
Attached Thumbnails

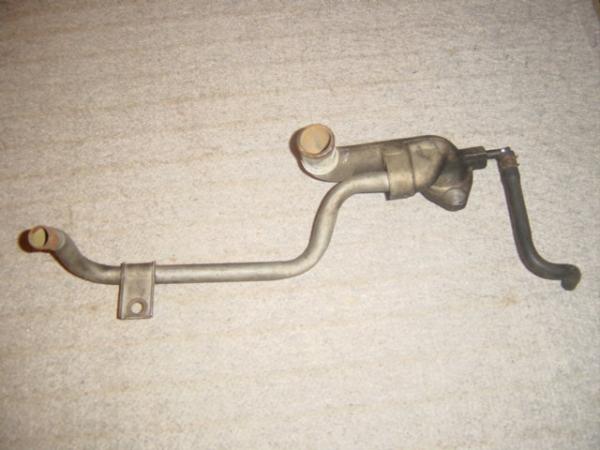

mixing manifold question-mixing-manifold.jpg
Mimime is offline   Reply With Quote
Old 05-13-2008, 08:15 PM   #2
Junior Member
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

Just pull it out. Its pressure fitted with an oring.
supersuk is offline   Reply With Quote
Old 05-13-2008, 08:16 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Easy. One good tug and it pops right out.
Savington is offline   Reply With Quote
Old 05-13-2008, 11:10 PM   #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

but is it just as easy to fit it back in?
Mimime is offline   Reply With Quote
Old 05-14-2008, 03:44 AM   #5
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Yes. You just need a new o-ring if the old one is shot. What are your plans for your re-route? You might be interested in my re-route... I am taking final pictures tomorrow. Its very inexpensive, and it utilizes almost all stock parts. I think in total it has cost me $115. The thermostat housing costed the most.
highroller101 is offline   Reply With Quote
Old 05-14-2008, 04:23 AM   #6
Senior Member

Join Date: Mar 2006
Location: Ireland
Posts: 534
Total Cats: 0
Default

Quote:
Originally Posted by highroller101 View Post
Yes. You just need a new o-ring if the old one is shot. What are your plans for your re-route? You might be interested in my re-route... I am taking final pictures tomorrow. Its very inexpensive, and it utilizes almost all stock parts. I think in total it has cost me $115. The thermostat housing costed the most.
I'm interested in seeing that thanks !
Fergus is offline   Reply With Quote
Old 05-14-2008, 04:28 AM   #7
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

ill PM you pix on monday if you want
highroller101 is offline   Reply With Quote
Old 05-14-2008, 11:23 AM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by highroller101 View Post
You might be interested in my re-route... I am taking final pictures tomorrow. Its very inexpensive, and it utilizes almost all stock parts. I think in total it has cost me $115. The thermostat housing costed the most.
It's now tomorrow. Pictures or ban.
Joe Perez is offline   Reply With Quote
Old 05-14-2008, 11:34 AM   #9
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Joe must need a re-route pretty bad, lol
Zabac is offline   Reply With Quote
Old 05-14-2008, 01:46 PM   #10
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I'm interested too.
kotomile is offline   Reply With Quote
Old 05-19-2008, 02:05 AM   #11
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

sorry about that guys, I will have pictures up tomorrow, I spent the weekend at NHIS doing a VRG vintage race with my grandfather. I will wake up finish my pics and put them up. Please dont ban!
highroller101 is offline   Reply With Quote
Old 05-19-2008, 11:53 AM   #12
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by highroller101 View Post
sorry about that guys, I will have pictures up tomorrow, I spent the weekend at NHIS doing a VRG vintage race with my grandfather. I will wake up finish my pics and put them up. Please dont ban!
Pics, pics, pics!
Rafa is offline   Reply With Quote
Old 05-20-2008, 01:09 PM   #13
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

alright guys, my job called and placed me working everyday this week. My car is at my fathers shop so I will explain it here because I dont have time to take pics right now.
parts list:
1.8L thermostat housing
Turbo Tim inline thermostat housing (needs to be drilled to accept a fitting.
(2) 1/8" NPT to 1/4 barb
(3) flexible rad hoses (or ones that match the bend)
Spacer, (I made mine, and I think Turbo Tim makes them too) spacer has 2 outlets, one that matches the temp sensor, and the other is a 1/4 pipe threading
1/4" pipe thread to 5/8" pipe thread "reducer"
insert a bolt in the opening on the reused thermostat upper housing. I drilled and tapped the flat surface to insert the secondary temp sensor (green)
some wire to relocate the front temp sensor.
freeze plug ( I made a plate to make it look pretty) haha
5/8" pipe thread to 1/4" barb
hose 5/8" with a 90* in it. 3/8 hose if you dont already have extra from your turbo.

re-used:
rad hose and metal hose from the bottom outlet of the rad. relocated to the top input of the rad going straight down under the intake mani
heater core 5/8 hose
1.6L tstat upper housing
temp sensors
heater core(acts as a secondary rad for the turbo) WORKS GREAT!
some other little pieces like clamps.

reroute goes like this....
out rad into the motor, pipe fitting to go to turbo
turbo water outlet goes to heater core
engine water passes straight through the motor and through a spacer where it meets with
the water from the heater goes through the spacer and back into the system
spacer has a pipe reducer and the grey temp sensor
1.6L tstat upper housing is attached with longer bolts and is drilled to fit the green temp sensor
flex hose or a fitted hose with a 90* built in
Turbo Tim tstat housing drilled with a fitting.
the return line from the throttle body can be fished through the intake manifold for a perfect fit to the tstat housing
flex hose or fitted hose with a 45* built in
mated to the reused metal and rad hose

FINISHED!!!!

You retain the heater core and provide extra cooling for that turbo water!

Test 1
60* outside with 2 holes drilled in tstat.
.....
.....
.....
it took 20 MINUTES @5500 rpm for the car to reach operating temp!!!! (80*c) highway so no stopping!!!

How about that!!!

Test 2

Did a Slalom in 85* sunlight (45 seconds @7000 rpm I know its not much)
Didn't even come close (needle didnt move at all)

Test 3 comes on July 4th on a track day, where there will be 3 people running the car full tilt for 3 20 min sessions sequentially with a 3 minute break in between.. This will be the ULTIMATE test!



Good Luck all!!
PS there are pics of some of the first things to do on my post called "Workin on the car so I took some shots"
highroller101 is offline   Reply With Quote
Old 05-20-2008, 01:15 PM   #14
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

highroller101 is offline   Reply With Quote
Old 05-20-2008, 01:17 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by highroller101 View Post
it took 20 MINUTES @5500 rpm for the car to reach operating temp!!!! (80*c) highway so no stopping!!!
Joe Perez is offline   Reply With Quote
Old 05-20-2008, 01:33 PM   #16
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

it was night time. hasnt been out in the sun except for test 2
highroller101 is offline   Reply With Quote
Old 05-20-2008, 01:34 PM   #17
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

and that can be fixed with how many holes you drill in your tstat. I drilled 2, even though Paul and Turbo Tim told me only to drill 1 1/8" hole
highroller101 is offline   Reply With Quote
Old 05-20-2008, 01:35 PM   #18
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

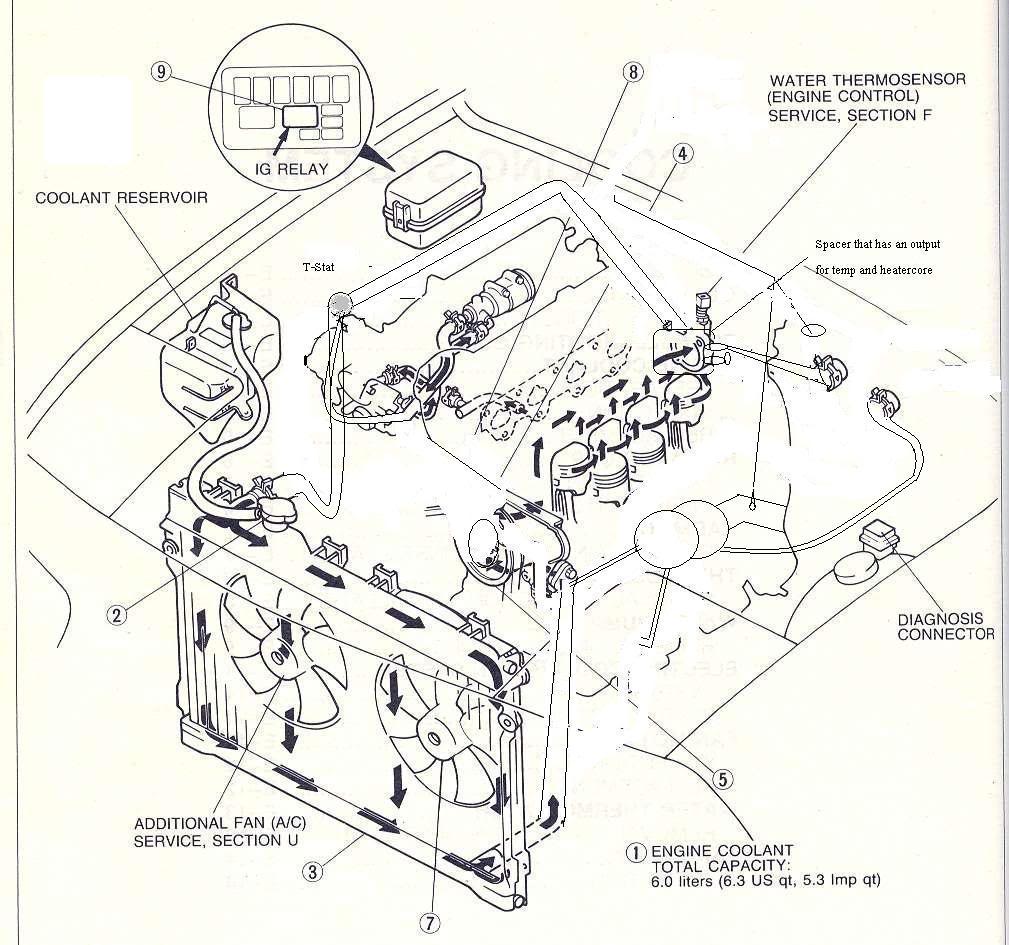

Name:  coolantroute-1.jpg
Views: 22
Size:  144.4 KB
highroller101 is offline   Reply With Quote
Old 06-04-2008, 02:54 AM   #19
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

highroller101 is offline   Reply With Quote
Old 06-04-2008, 07:54 AM   #20
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by highroller101 View Post
it took 20 MINUTES @5500 rpm for the car to reach operating temp!!!! (80*c) highway so no stopping!!!
Ummm... that is not a good thing there. Ideally the engine would reach operating temp quickly, then stay there without overheating.
