Default Modifications needed to mount 1.8 variable TPS on 1.6 throttle body

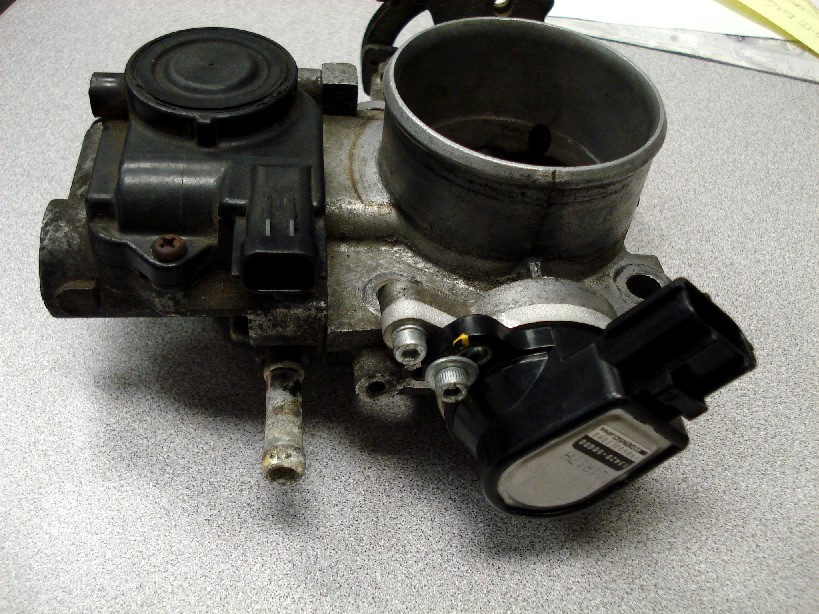

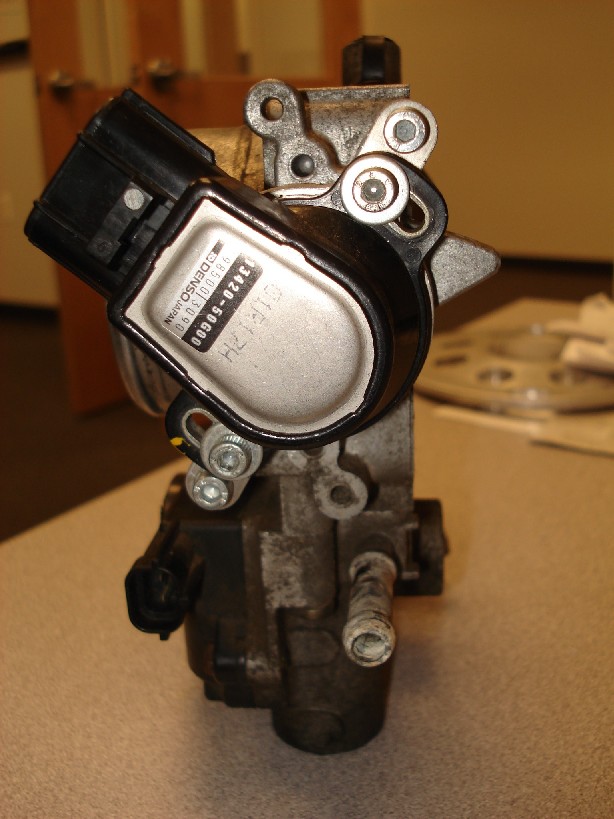

OK I finally got some pictures off my camera of the modifications I made to mount a 1.8l variable throttle position sensor onto my 1.6l throttle body.
Attached Thumbnails
Modifications needed to mount 1.8 variable TPS on 1.6 throttle body-tpsplate.jpg   Modifications needed to mount 1.8 variable TPS on 1.6 throttle body-tpsblade.jpg   Modifications needed to mount 1.8 variable TPS on 1.6 throttle body-tps1.jpg   Modifications needed to mount 1.8 variable TPS on 1.6 throttle body-tps2.jpg
TurboTim is offline   Reply With Quote
Old 02-22-2007, 10:14 AM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I don't see a price!
That's a very nice piece. I'd think there would probably be some Miata shops interested in selling those.
m2cupcar is offline   Reply With Quote
Old 02-22-2007, 11:22 AM   #3
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

clever...trying to CNC some pieces?
miatamania is offline   Reply With Quote
Old 02-22-2007, 01:07 PM   #4
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Are the 1.6L automatic TPS hard to find?
bripab007 is offline   Reply With Quote
Old 02-22-2007, 02:55 PM   #5
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

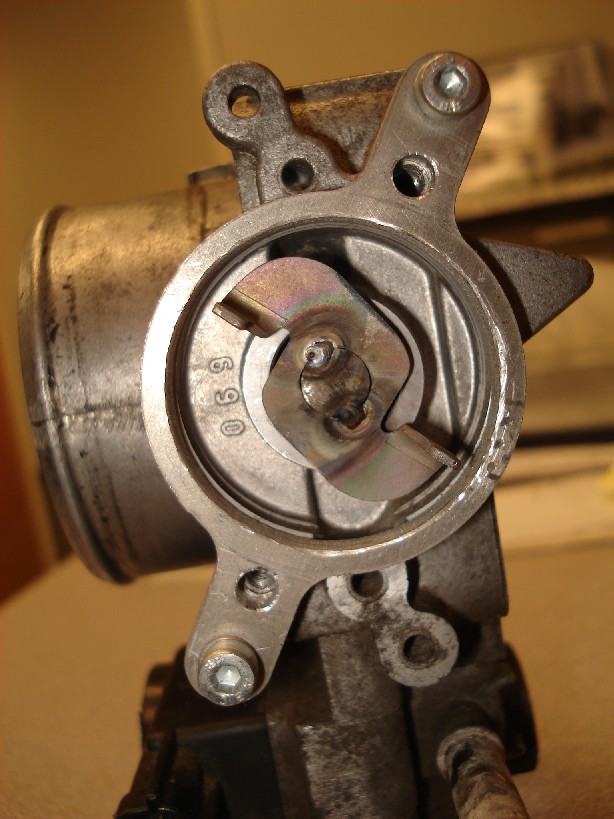

Dunno. I couldn't find one cheap when i needed it. The most difficult part of doing it this way is finding the blade that you weld onto the TB shaft. See the second pic. I pirated the sensor, harness connector, and the blade off my roommates parts car.

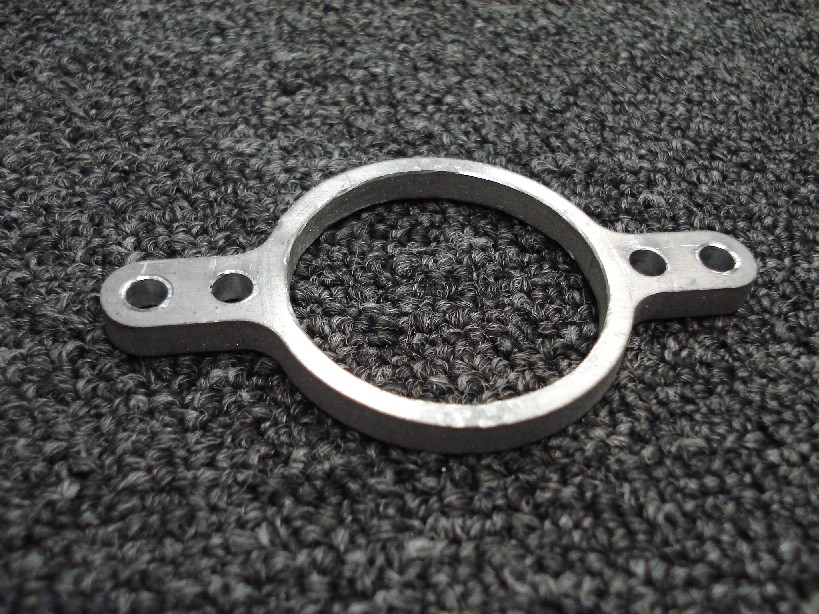

I have a solid model, drawing, and g-code (waterjet) for the spacer/adapter somewhere.
TurboTim is offline   Reply With Quote
