Default MSM 6 speed

I am sure this question has been answered 1000 times in some other context, and i searched and I am pretty sure I know the answer but I always like getting definitive yes or no answers.

-Is the MSM 6speed a direct swap to the NA 1.8 5speed just as the regular 6 speeds are?

-Are the ratios Identical?

-Will I be fine with my stock 96 rear gearing (torsen) ?

Sorry for the "you should have searched" type questions.
240_to_miata is offline   Reply With Quote
Old 05-17-2010, 10:10 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,193
Total Cats: 2,583
Default

the answer to all 3 is yes I believe
18psi is offline   Reply With Quote
Old 05-17-2010, 11:09 AM   #3
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Yes X 3

Although you'll be forced to use only 2 starter bolts if you used the NA bellhousing plate. You will have to splice 2 wires for the reverse or neutral switch. Just like regular 6 speeds.
Bryce is offline   Reply With Quote
Old 05-17-2010, 11:26 AM   #4
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I could only use 2 starter bolts even with the bellhousing plate off the 6speed. I think you would have to use the starter off the 6speed to have all 3 bolts used (not that it matters)
Preluding is offline   Reply With Quote
Old 05-17-2010, 11:46 AM   #5
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 187
Default

the MSM and NA 6-speeds are mechanically identical.

the MSM is believed to have stronger gears.

you will run higher revs in the 6 speed than you would have in the 5 speed; example:
6th gear in the 6 speed runs a higher RPM per given speed than 5th gear in the 5 speed.

So if you're looking for lower freeway RPMs, swapping in a 6-speed will not be "like adding that extra gear to your 5-speed"

You would need a different rear end if that's your goal.

You won't hurt anything with your current rear end though.

The NB starter is a direct swap, requires no re-wiring, and shaves a SUBSTANTIAL amount of weight.
fooger03 is offline   Reply With Quote
Old 05-17-2010, 12:19 PM   #6
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Quote:
Originally Posted by fooger03 View Post
The NB starter is a direct swap, requires no re-wiring, and shaves a SUBSTANTIAL amount of weight.
I just weighed an extra NA starter I have. It's 9.6lbs, kinda surprised me that it weighted as much as it did. Anyone got an NB stater to throw on a scale?
pdexta is offline   Reply With Quote
Old 05-17-2010, 12:21 PM   #7
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by pdexta View Post
I just weighed an extra NA starter I have. It's 9.6lbs, kinda surprised me that it weighted as much as it did. Anyone got an NB stater to throw on a scale?
In for starter weights :P
Splitime is online now   Reply With Quote
Old 05-17-2010, 01:16 PM   #8
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

bump starters weigh 0 lbs.
shlammed is offline   Reply With Quote
Old 05-17-2010, 02:58 PM   #9
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 187
Default

Answered on M.net
http://forum.miata.net/vb/showthread...starter+weight


for those afraid of the dark:
Quote:
Originally Posted by [email protected]:
With the introduction of the NB, Mazda gave us a new starter motor. It's quite a bit smaller than the NA version, and has a different bolt pattern for the bellhousing mount. Well, it turns out the 1994-97 automatic cars also have a different starter motor with the regular NA 5-speed bolt pattern.

If you want to install a lighter starter motor but don't want to lose one of the three mounting holes, the 1994-97 automatic is an option.

Weights:
1990-97 5-speed (and 1990-93 auto): 9.80 lbs
1994-97 automatic: 7.05 lbs
1999-05: 6.00 lbs
fooger03 is offline   Reply With Quote
Old 05-17-2010, 05:13 PM   #10
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Thanks for all the quick info guys.

While you are in such a giving mood....

The 5 speed shifter assembly DOES NOT bolt in to the 6 speed right? I need the shifter with the trani?
240_to_miata is offline   Reply With Quote
Old 05-17-2010, 05:17 PM   #11
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

You can use the 5 speed shifter. You will have to press/pull one of the alignment pins the keeps the shifter from spinning because the 6 speed has 2 of them.
Bryce is offline   Reply With Quote
Old 05-17-2010, 05:31 PM   #12
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by Bryce View Post
You can use the 5 speed shifter. You will have to press/pull one of the alignment pins the keeps the shifter from spinning because the 6 speed has 2 of them.
awesome, Thanks!
240_to_miata is offline   Reply With Quote
Old 05-17-2010, 08:36 PM   #13
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default Picture Please

Can someone post a good picture of the top of a 6 speed transmission, please
olderguy is offline   Reply With Quote
Old 05-17-2010, 09:05 PM   #14
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

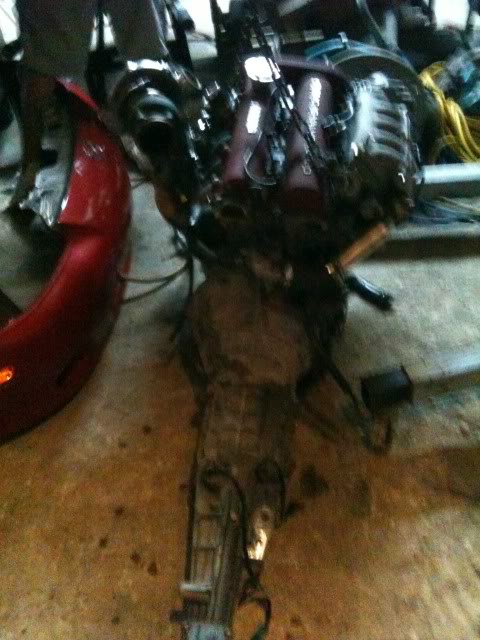

This is the best I have, maybe Jared can take a better one.

Name:  bada384e.jpg
Views: 20
Size:  58.2 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-17-2010, 09:08 PM   #15
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Thanks, but need one with more detail. Friend has an oil leak coming from the top middle and I would like to see if there is anything that could be leaking up there other than the gasket between the two sections.
olderguy is offline   Reply With Quote
Old 05-17-2010, 09:16 PM   #16
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
This is the best I have, maybe Jared can take a better one.

That is the worst picture i have seen in my life
stranges12712 is offline   Reply With Quote
Old 05-17-2010, 11:37 PM   #17
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 187
Default

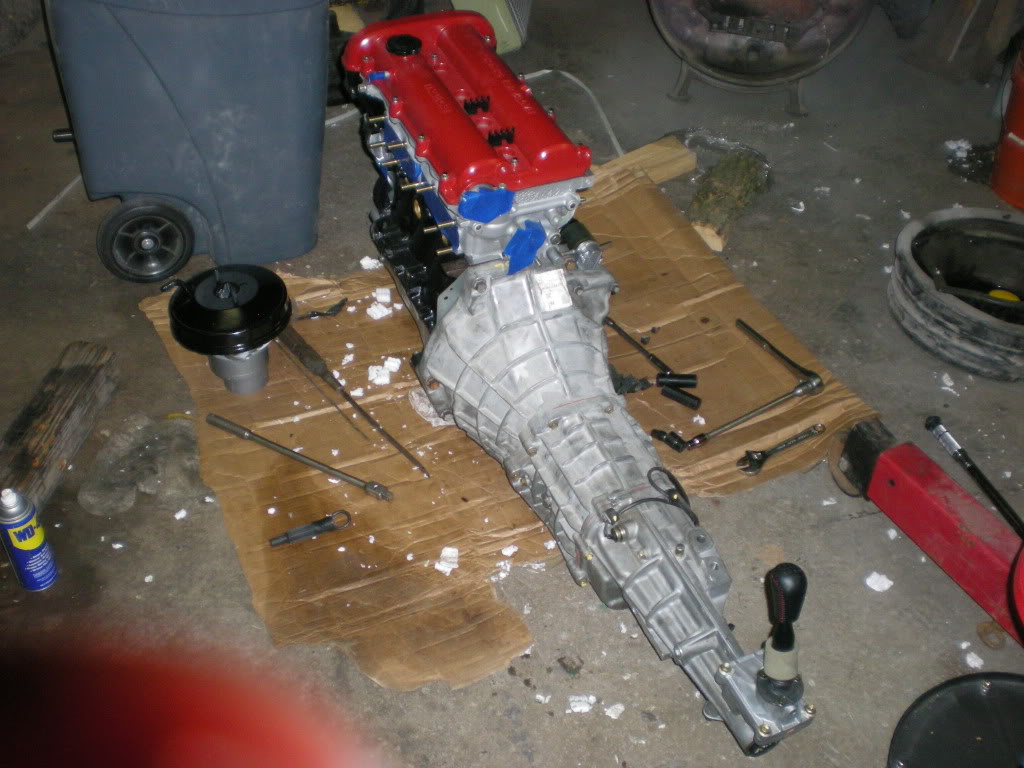

this help?

Name:  DSCN2020.jpg
Views: 28
Size:  158.5 KB

could be either of the two sensors. The pressure vent is also up there.
fooger03 is offline   Reply With Quote
Old 05-18-2010, 12:16 AM   #18
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Yes, thanks.

There is oil on both sides (forward and rearward) of the rear orange gasket location, running down both sides of the transmission, coming from as high as visible. It might be possible that the entire tranny was overfilled through the shift area, but doubtful since it was last removed to replace a squealing pilot bearing by a "real mechanic"
olderguy is offline   Reply With Quote
Old 05-18-2010, 09:11 AM   #19
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 187
Default

leave in the drain plug, pull the tranny fill plug (located a few inches above the drain plug, same size socket as drain), wait until fluid stop draining, replace.

if Any fluid comes out fill plug, then you were right, too much fluid.
fooger03 is offline   Reply With Quote
Old 05-18-2010, 11:24 PM   #20
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Note: This is not the 6 speed in the For Sale section.
