View Poll Results: The $50 hood extractor: is it worth it?
Worth every penny. Where do I get one? 21 80.77%
Rice... but I might eat it. 3 11.54%
If you need an extractor, you've got bigger problems. 2 7.69%
Voters: 26. You may not vote on this poll

Reply



LinkBack Thread Tools
Old 04-11-2008, 05:41 PM   #61
Newb

Join Date: Feb 2008
Location: Dallas, TX
Posts: 38
Total Cats: 0
Default

I've been working on getting one of these in too... I have the hole in my hood and everything ready to mount up, but I need to repaint the scoop before I put it in. I am out of town for the next two weekends, but hopefully the weekend after that I will be able to get out on the track and let you know if it worked or not. I won't have any "hard data" or logs, but I do know my car was running hot on the track in mild tempuratures (~60* F) a few weeks ago so if it stays cool after this thats good enough for me!

Great job and thanks for the idea!
stevenh is offline   Reply With Quote
Old 04-11-2008, 05:45 PM   #62
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

For cutting - make a template is some paper board and double check it. I didn't on mine, and almost cut away to much. I traced the template using a grease pencil, then laid down painters tape. Used a drill bit, and then a step bit to make a starter hole. From there cut with a jig/saber saw and metal blade. After that, did some trip with tin snips to clear out bracing.

I just took an ~ hour trip on the interstate. After exiting, the coolant temp came up from speed temps but plateaus around 90c. This was on a ~65f overcast day. So there's no denying that this mod is going to help both traffic/stopNgo and speed temps.

I also think the efficiency could be improved by running a flap from the top of the rad to the front of the exit hole. Right now it's just open between the two.
m2cupcar is offline   Reply With Quote
Old 04-11-2008, 06:40 PM   #63
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

Has anyone given any thoughts, and or done any testing on the potential aerodynamic benefits of this extractor? How much air is now going over the hood that used to be trapped under the car?

Do "we" have a feel for the volume of air actually extracted?
Chris Swearingen is offline   Reply With Quote
Old 04-11-2008, 07:31 PM   #64
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

good thing i have one of these:




I can at least record the before and after drop/rise in air pressure....
Braineack is online now   Reply With Quote
Old 04-11-2008, 08:29 PM   #65
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

chris- I haven't. Not competing, so it doesn't really matter - that and the fact that I haven't even gotten around to constructing an undertray yet. My main concern was just reducing temps. That's the nice thing about a project car vs. a race car- there's no race to win and no deadlines to meet.
m2cupcar is offline   Reply With Quote
Old 04-13-2008, 01:16 PM   #66
Newb

Join Date: Apr 2008
Posts: 12
Total Cats: 0
Default

Well the lower you keep the engine bay pressure the less drag the car will have since there is less pressure in front of the radiator. It should help keep the area under the car at a lower pressure since less air is "escaping" there form the engine bay. Small benefits but they are benefits none the less.
p00t is offline   Reply With Quote
Old 04-23-2008, 12:13 PM   #67
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

You guys are a bad influence

We were getting some heat soak with two drivers and a small heat at the last autocross so I ordered a black mini cooper scooper for the car. I will let you know how it goes.

I don't have a magnehelic gauge, so we will have to leave it to the Brain to get any real data. (Hint Hint)
Chris Swearingen is offline   Reply With Quote
Old 04-23-2008, 12:24 PM   #68
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

ha. we'll see. If i didnt have to drop my tranny twice last weekend, I would have had the hood done.
Braineack is online now   Reply With Quote
Old 04-23-2008, 12:34 PM   #69
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

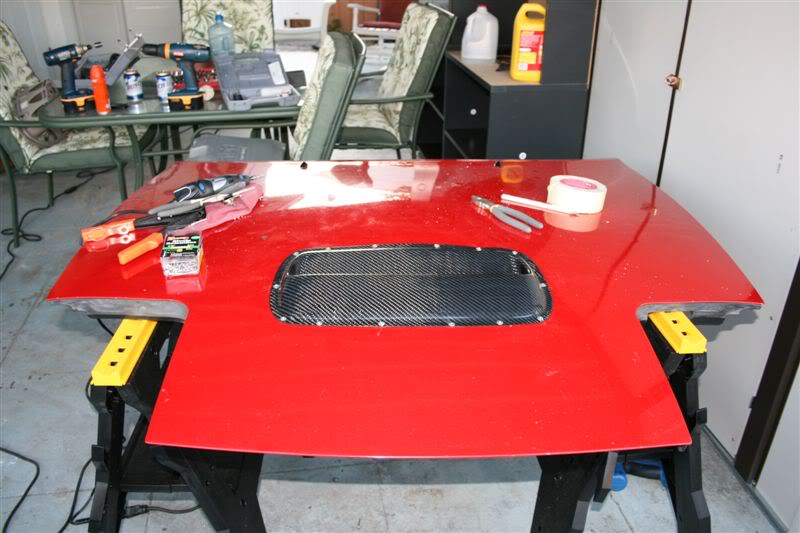

Sneak peak-

Name:  IMG_2914.jpg
Views: 6
Size:  64.4 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-23-2008, 01:57 PM   #70
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

I likeeee ^
m2cupcar is offline   Reply With Quote
Old 04-23-2008, 03:47 PM   #71
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Do y'all think that one of the carbon style extractors like the one Brain is using would work on an NB hood? As long as the hump in the center of the hood does not come out farther on an NB I think it would work?
ZX-Tex is offline   Reply With Quote
Old 04-23-2008, 03:51 PM   #72
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

I think you're thinking is pretty smart.
m2cupcar is offline   Reply With Quote
Old 04-23-2008, 03:56 PM   #73
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

If you put rivets in the right places, the CF scoop will take the shape of the hood. Mine did anyways.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-23-2008, 04:11 PM   #74
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I think that a carbon one would look good on my mica green without paint. That would make it really easy.
ZX-Tex is offline   Reply With Quote
Old 04-23-2008, 04:25 PM   #75
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

hmmm....i do have a spare hood lying around....
disturbedfan121 is offline   Reply With Quote
Old 05-15-2008, 08:55 PM   #76
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Rob...was yours an 02-06 scoop, or 07-08?
Atlanta93LE is offline   Reply With Quote
Old 05-15-2008, 09:01 PM   #77
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by levnubhin View Post
If you put rivets in the right places, the CF scoop will take the shape of the hood. Mine did anyways.
pics?
kotomile is offline   Reply With Quote
Old 05-15-2008, 09:09 PM   #78
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by kotomile View Post
pics?
I'll get some up tomorrow.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-15-2008, 09:52 PM   #79
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 290
Default

02-06
m2cupcar is offline   Reply With Quote
Old 05-17-2008, 07:17 AM   #80
Senior Member
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

m2cupcar, could you post the vendor you got the scoop from?

Thanks,
Mimime is offline   Reply With Quote
